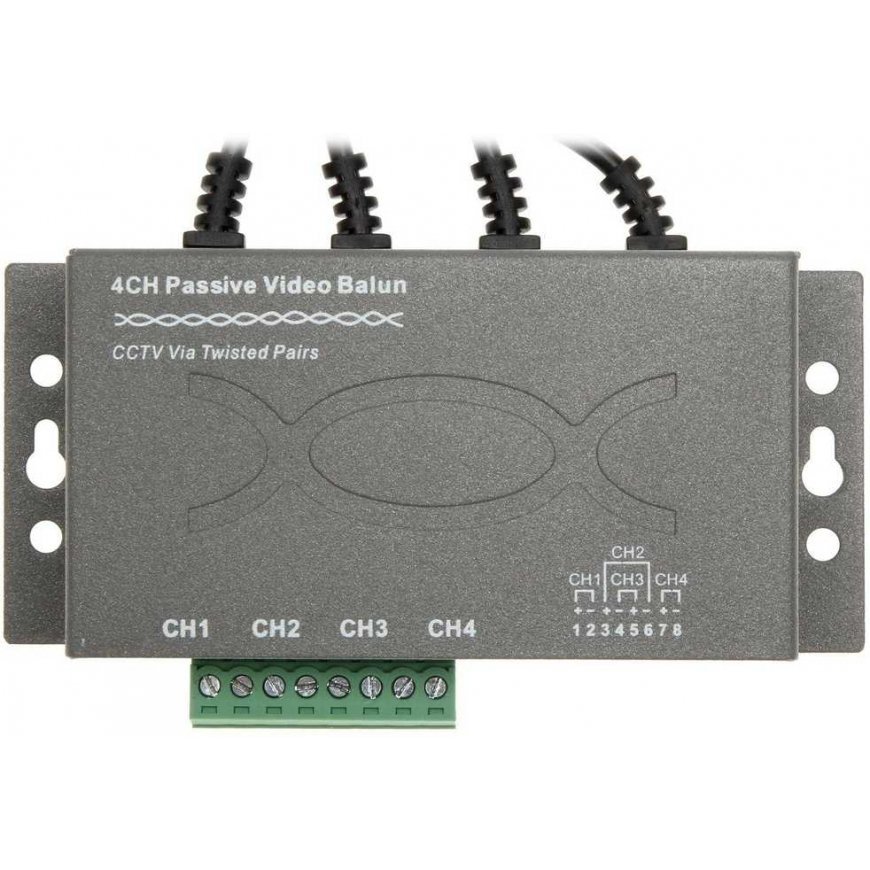

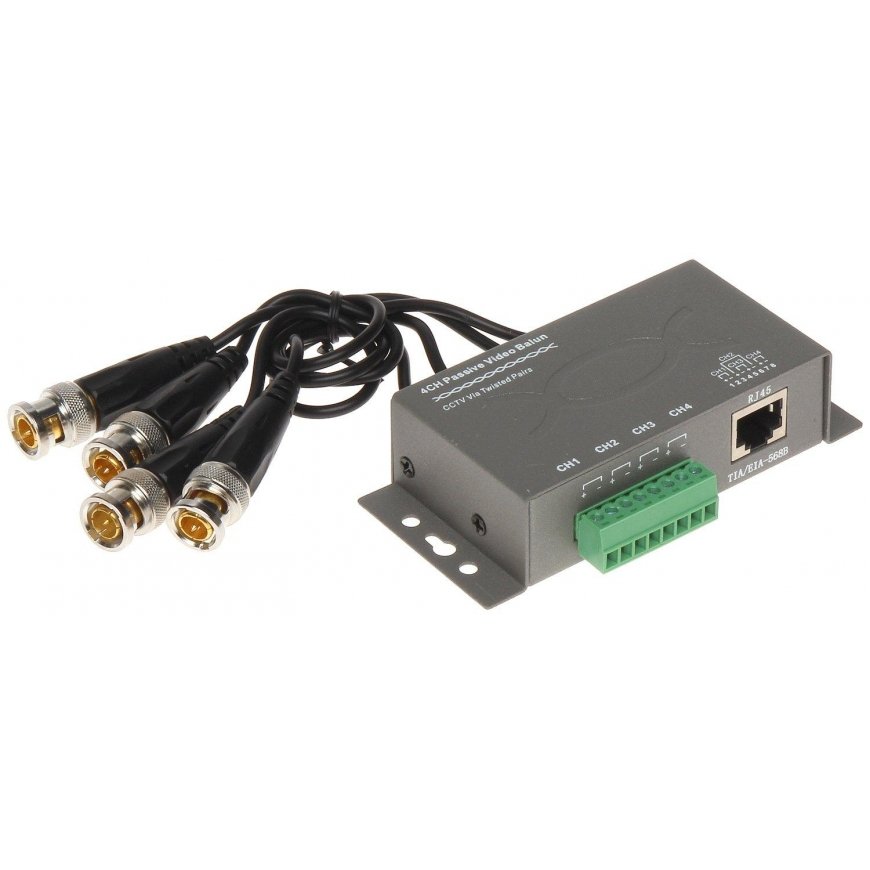

VIDEO TRANSFORMER TR-4M
2392020 5902887011368
Shipping 1-14 b.d.
TR-4M is intended for sending a video signal through a computer cable.
The device adapts the 75Ω impedance of the coaxial cable to the impedance of the symmetrical cable, ensuring video signal transmission at a distance of up to 400m (category 5 computer twisted pair) and eliminating asymmetric disturbances.
It is necessary to pay attention to the correct connection of the (+) and (-) terminals.
Reverse connection causes video distortion.
All elements are housed in a metal case.
| Standard : | AHD - 5 Mpx , HD-CVI - 8 Mpx 4K UHD , HD-TVI - 8 Mpx 4K UHD , CVBS - PAL , NTSC |
| Device Type : | Passive |
| Number of channels : | 4 pcs. Videos |
| Video transmission distance : | 250 m @ 720p - UTP 5e cat. 150 m @ 1080p - UTP 5e cat. 400 m @ CVBS - PAL , NTSC - UTP 5e cat. |
| in/out voltage 75Ω (CVBS) : | 1 Vpp |
| Suppression : | 4.43 MHz @ 0.42 dB 11 MHz @ 0.71 dB 21MHz @ 1.07dB 38 MHz @ 1.41 dB 42 MHz @ 1.41 dB 67.5 MHz @ 2.32 dB |
| Separation between inputs : | > -50 dB |
| CMRR (dB @ 5MHz) : | 60 dB |
| Impedance of coaxial connection : | 75 Ω |
| Impedance of symmetrical connection : | 100 Ω |

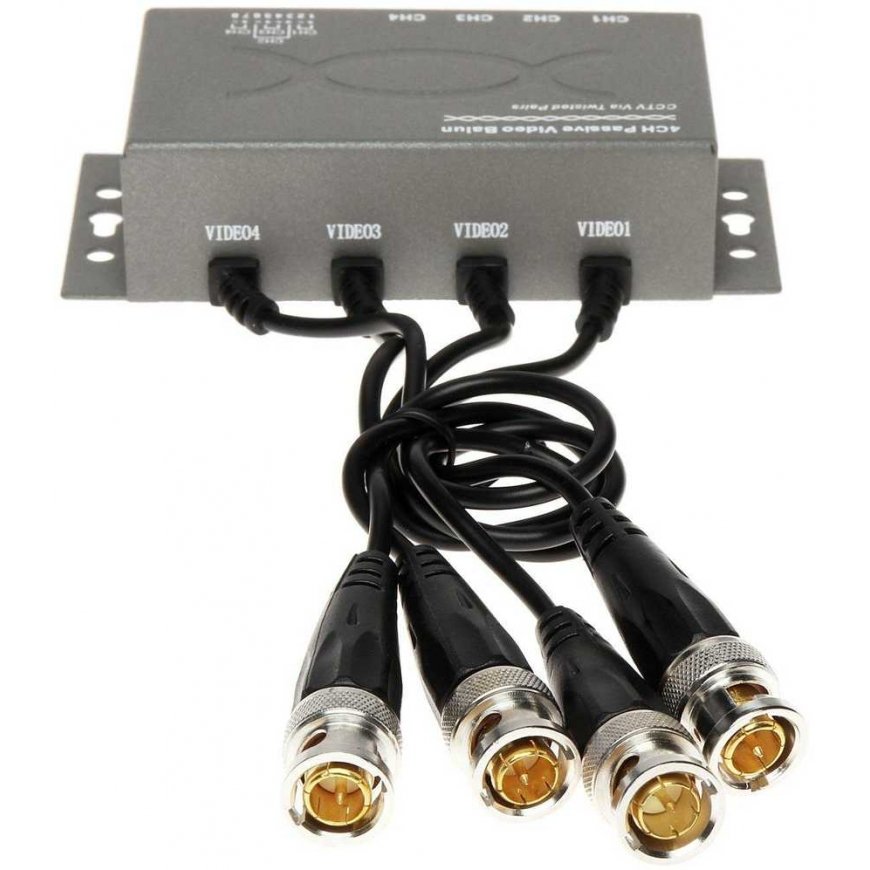

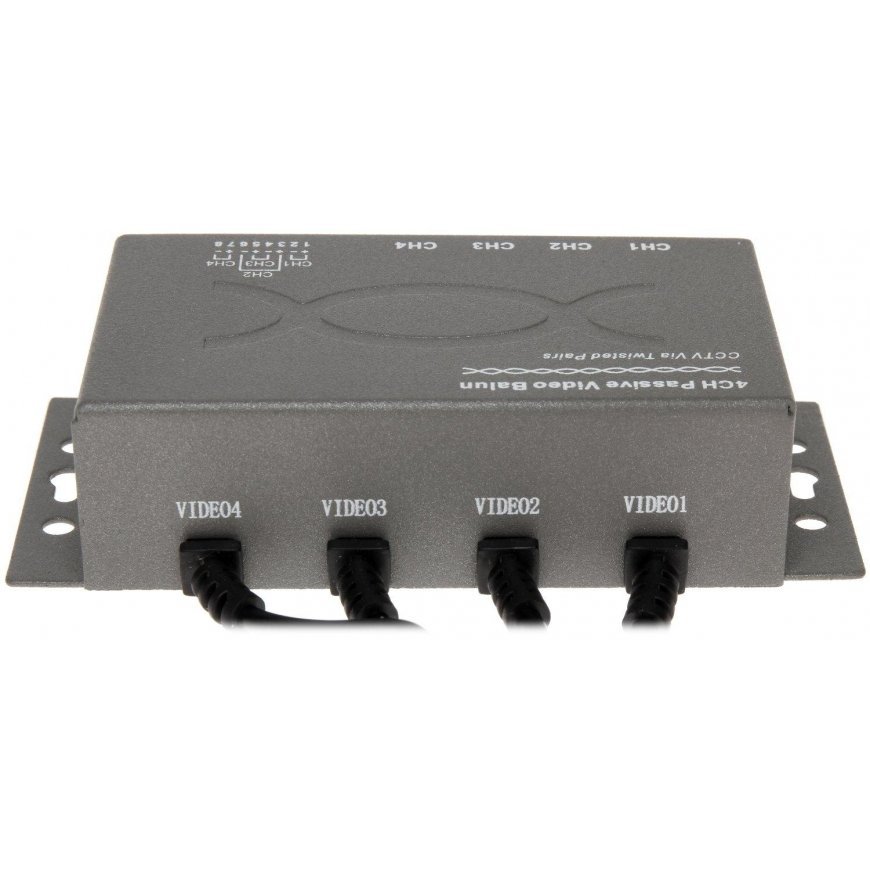

| Coaxial Link Type : | 4 x BNC Plug with cable |

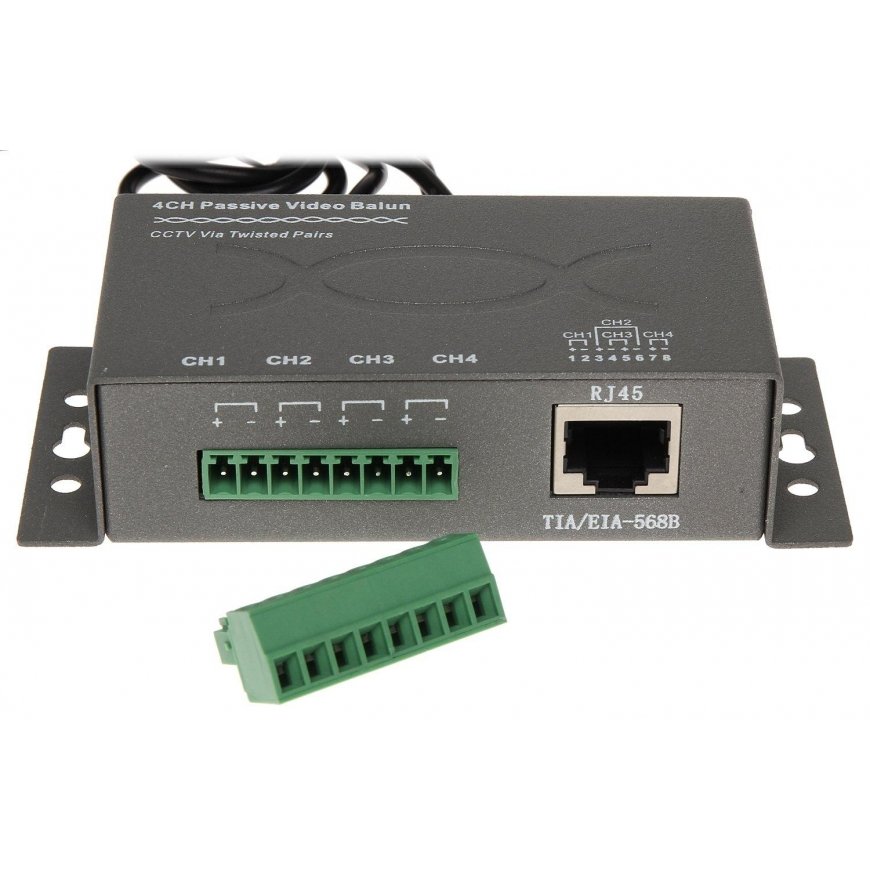

| Symmetrical connection type : | Cable terminals / RJ-45 (8-pin, 4 pairs) |
| Working temperature : | -10 °C ... 70 °C |
| Permissible relative humidity of the environment : | < 95% |
| Weight : | 0.175 kg |
| Dimensions : | 105 x 58 x 25 mm |
| Warranty : | 2 years |
Frequency and amplitude characteristic - 2 transformers shorted (RF PWR OUT = 0 dBm)
Image during remote transmission 0 m
Image during remote transmission 300 m
