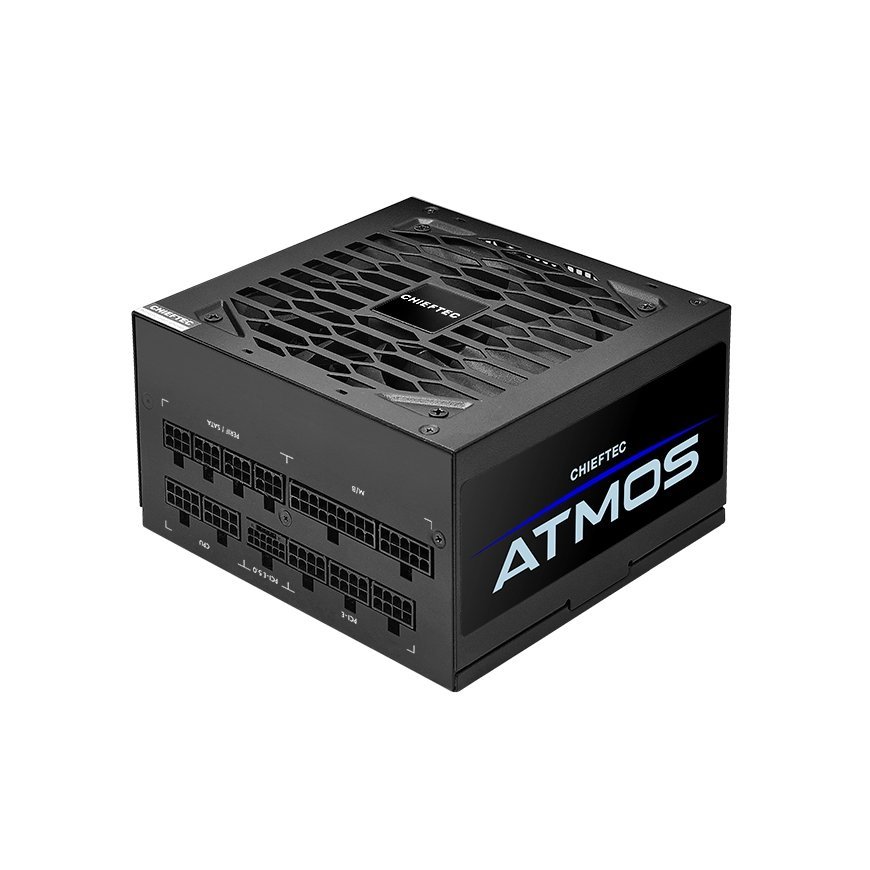

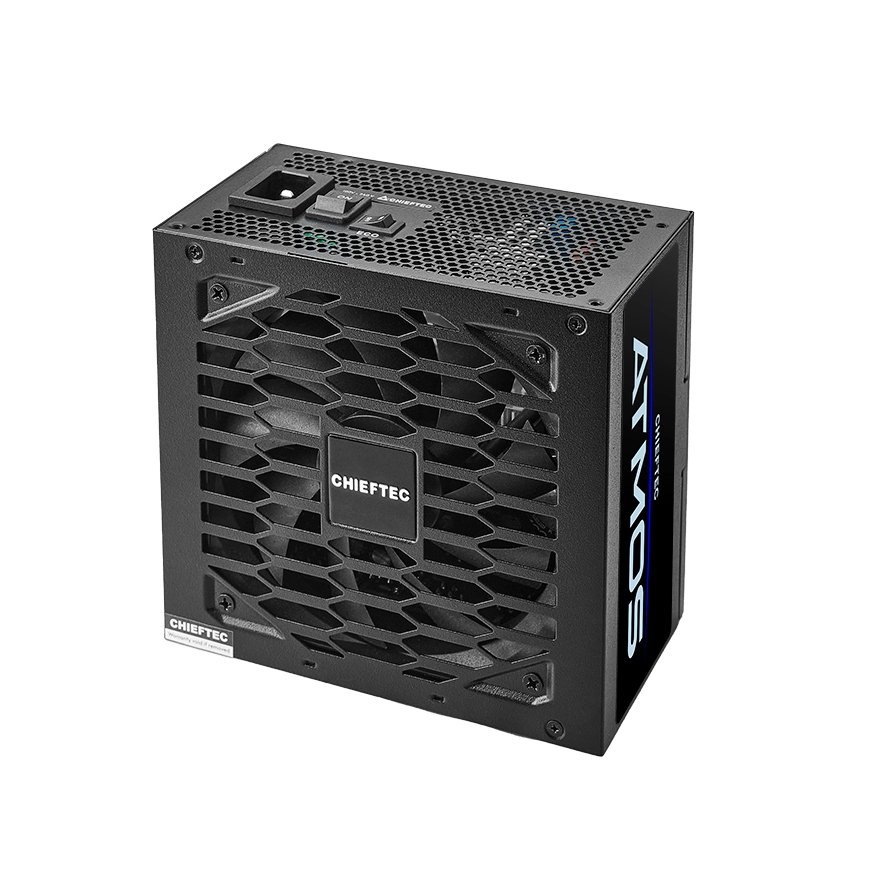

Chieftec Atmos power supply unit 750 W 20+4 pin ATX ATX Black
129,00 €
Monthly payment from 4.22 €
2384874 CPX-750FC
0753263078391
2026-07-23
You are interested in this product?

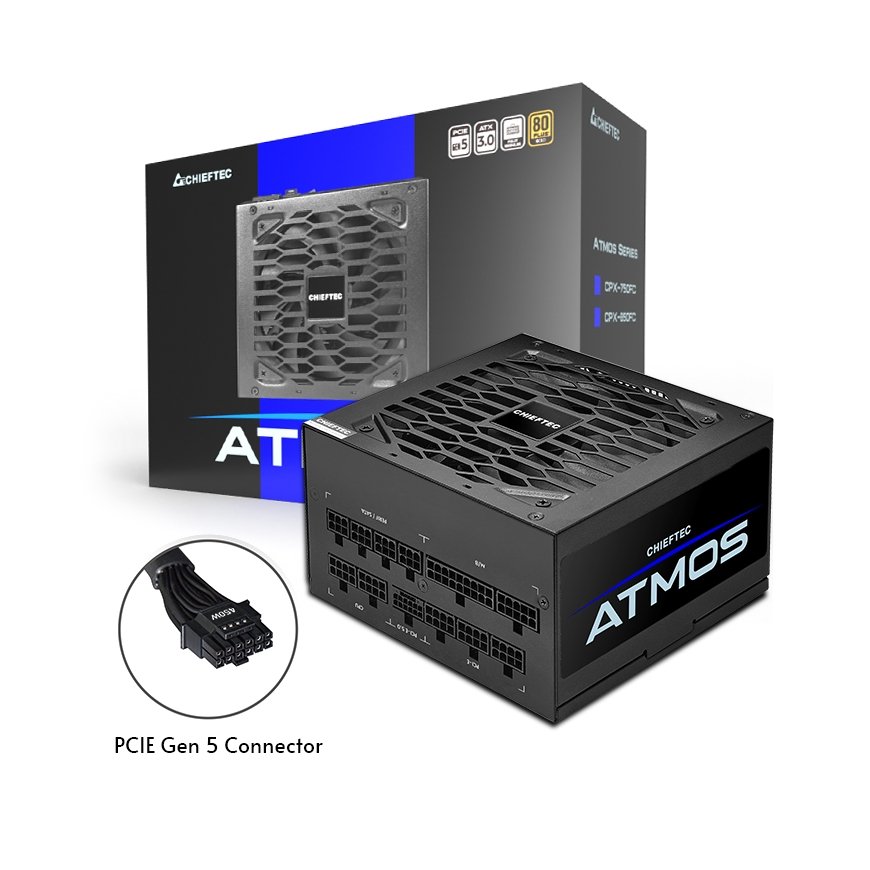

PCIe GEN5 with 80 PLUS® GOLD certified efficiency, delivering exceptional
performance up to 850W. The ATMOS series features a state-of-the-art technical
design including an SRC Full-bridge converter with DC-to-DC technology, and
Japanese capacitors to ensure longevity and stability.

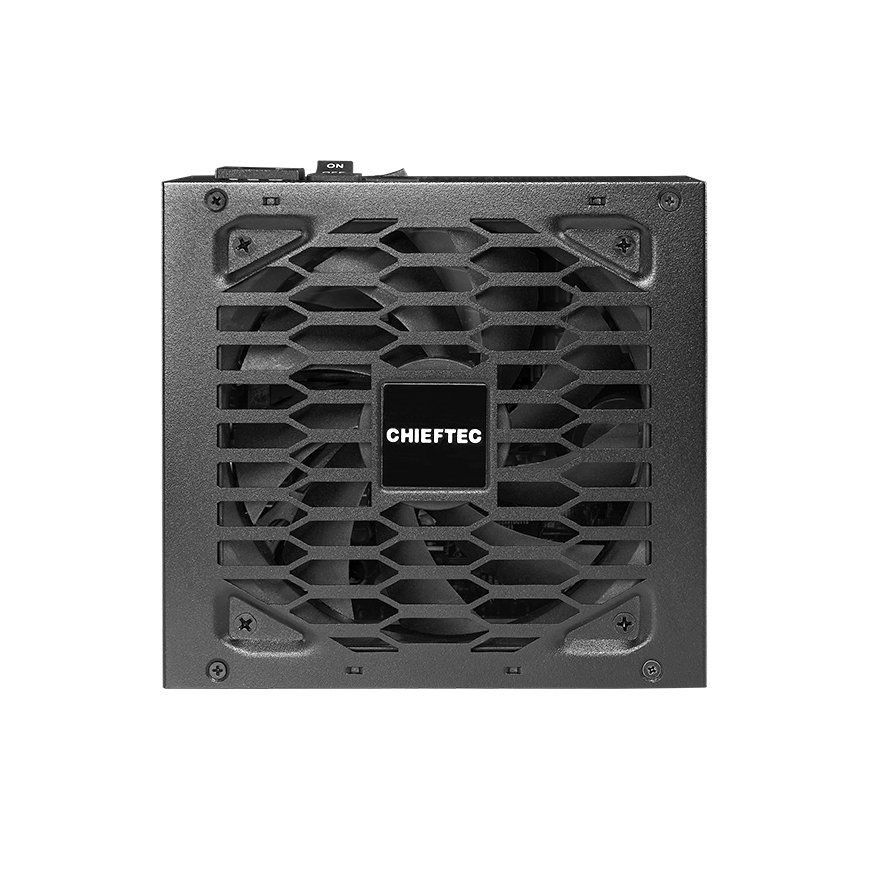

The ATMOS 120mm FDB silent fan optimizes the balance between cooling
and noise with excellent durability, while the ECO fan mode enables fanless
operations at low loads. CHIEFTEC’s multiple security protection technology is
designed to keep your system safe.
Power | |
| Input current | 9 - 4.5 A |
| Power protection features | Over current, Over voltage, Short circuit, Surge and inrush |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Maximum input current (@110V) | 9 A |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Max output current (+12V1) | 62.5 A |
| Maximum input current (@220V) | 4.5 A |
| Total power | 750 W |
Performance | |
| ATX version | 3.0 |
| Purpose | PC/Server |
| 80 PLUS certification | 80 PLUS Gold |
| Power supply unit (PSU) form factor | ATX |
| Supported motherboard form factors | ATX |
Design | |
| Product colour | Black |
| Fan diameter | 12 cm |
| On/off switch | Yes |

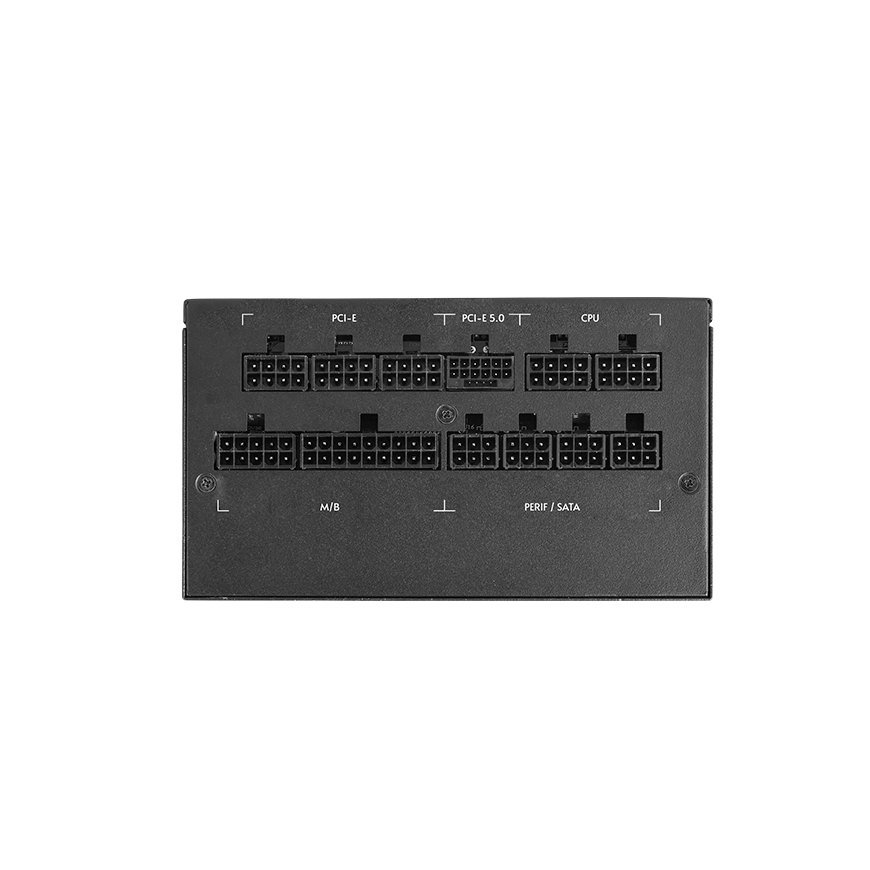

Ports & interfaces | |
| Number of SATA power connectors | 9 |
| ATX power connector (20+4 pin) | Yes |
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Fully-Modular |
| Motherboard power cable length | 60 cm |
| SATA power cable length | 550, 750, 650 |
| Peripheral (Molex) power cable length | 550, 650, 750, 850 |
| CPU power cable length | 60 cm |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (16-pin) | 1 |
Weight & dimensions | |
| Weight | 1.49 kg |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
