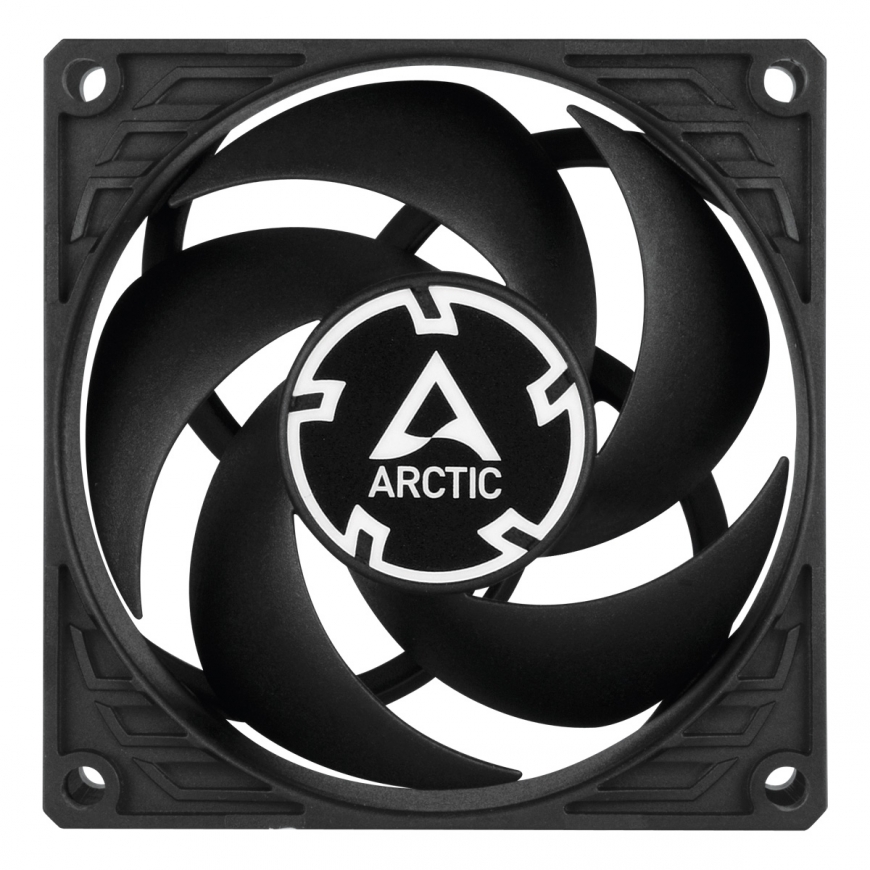

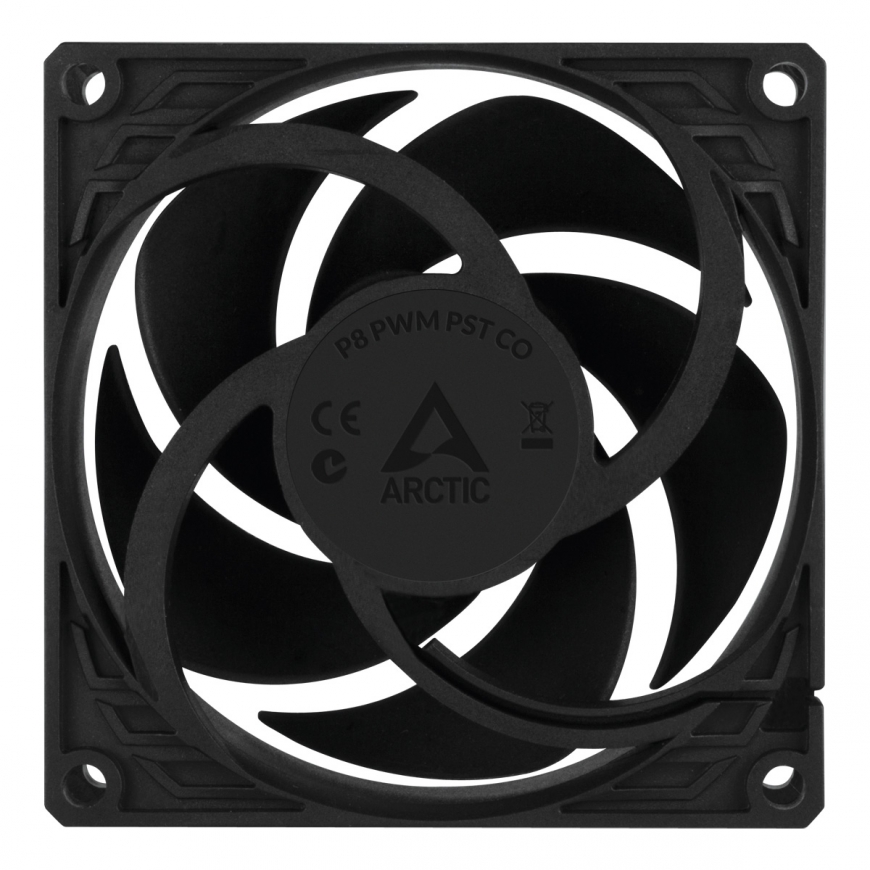

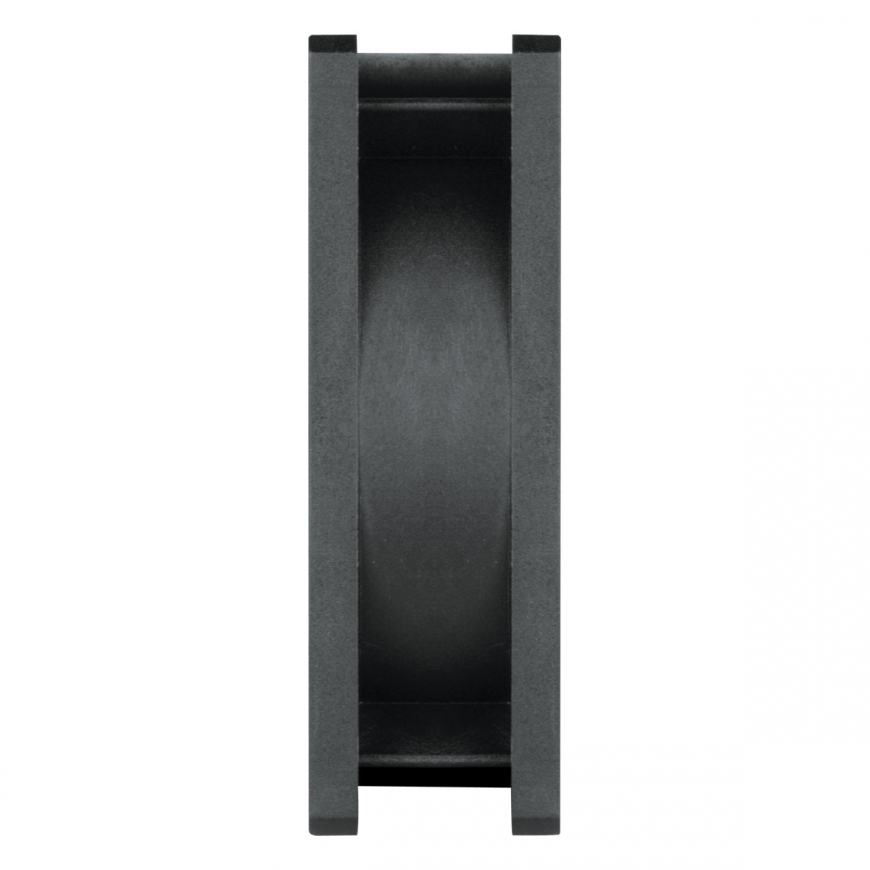

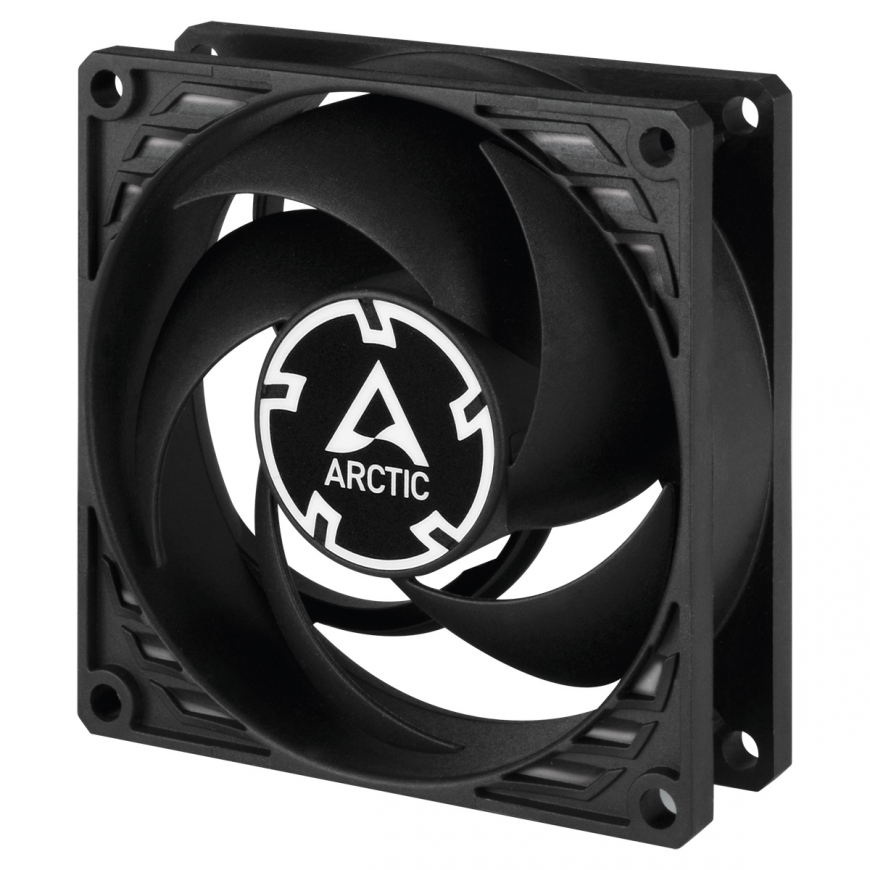

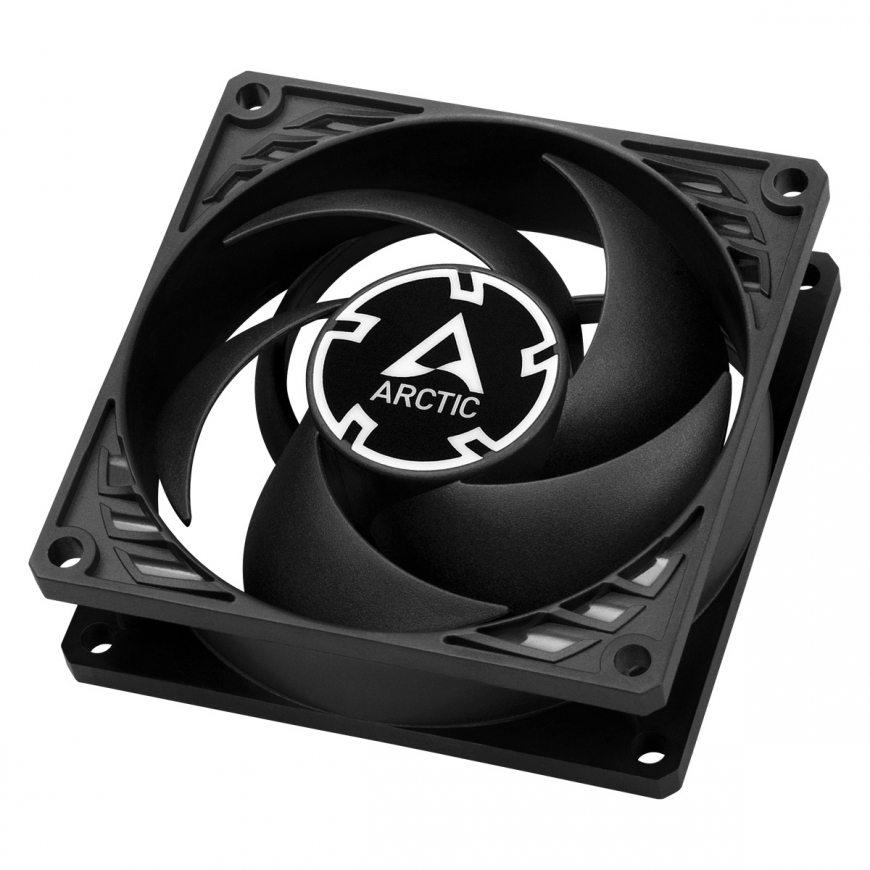

ARCTIC P8 PWM PST CO - Pressure-optimised 80 mm Fan with PWM PST for Continuous Operation
2359815 ACFAN00151A
4895213702041, 0872767009936
Shipping 3-5 b.d.
Optimised for Static Pressure
During the development of the new P8 PWM PST CO, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P8 PWM PST CO is particularly suitable for use on heatsinks and radiators.
For Continuous Operation
The premium quality Japanese dual ball bearing allows continuous operation 24/7 without the slightest compromise in performance. Dust and high temperature are affecting this bearing a lot less than generic sleeve or one ball bearings and thus make it the perfect choice when reliability is essential.
Maximum Quietness, Minimum Vibration
Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable.
Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.
Extended Life Span
A 10 °C lower motor temperature roughly doubles the life span of a fan.
The new ARCTIC motor has a four times longer service life through its low coil temperature.
Consequently, we have extended the warranty to 10 years.
200 to 3000 RPM regulated via PWM
With a wide range of regulation and the PWM Sharing Technology (PST), the P8 PWM PST CO fan speed can be controlled synchronously with all your other fans together. This keeps noise at a minimum while guaranteeing maximum cooling performance when needed.
Two Way Installation
Push warm air out of the case
Pull cool air into your case
Performance | |
| Supported processor sockets | Not supported |
| Type | Fan |
| Fan diameter | 8 cm |
| Airflow | 40.3 m³/h |
| Maximum airflow | 23.4 cfm |
| Maximum air pressure | 1.9 mmH2O |
| Compatible processor series | Not supported |
| Pulse-width modulation (PWM) support | Yes |
| Rotational speed (min) | 200 RPM |
| Rotational speed (max) | 3000 RPM |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Noise level | 0.3 sone |
| Suitable location | Computer case |
Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan connector | 4-pin |
| Number of fan blades | 5 |
Power | |
| Rated current | 0.09 A |
| Voltage | 12 V |
Weight & dimensions | |
| Weight | 78.5 g |
| Package weight | 97 g |
| Height | 80 mm |
| Width | 80 mm |
| Depth | 25 mm |
| Package height | 82.5 mm |
| Package width | 82.5 mm |
| Package depth | 26 mm |
Packaging content | |
| Screws included | Yes |
| Number of screws | 4 |
| Package type | Box |
| Manual | Yes |
Other features | |
| Country of origin | China |
| Mounting hole pattern (W x D) | 71.5 x 71.5 mm |
