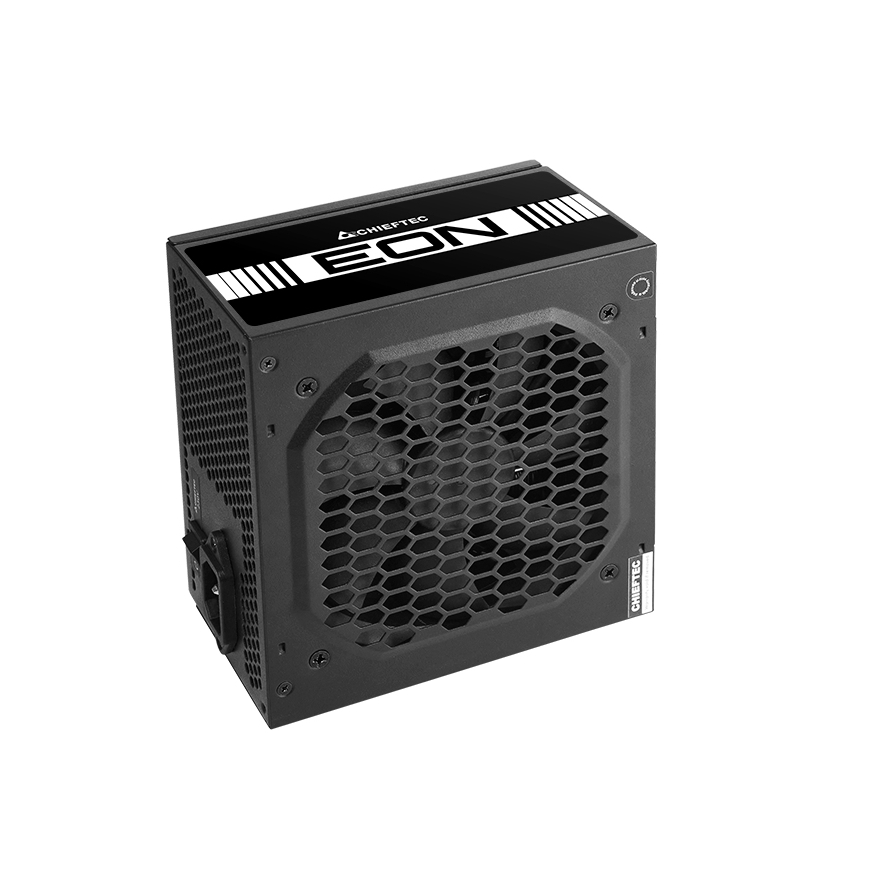

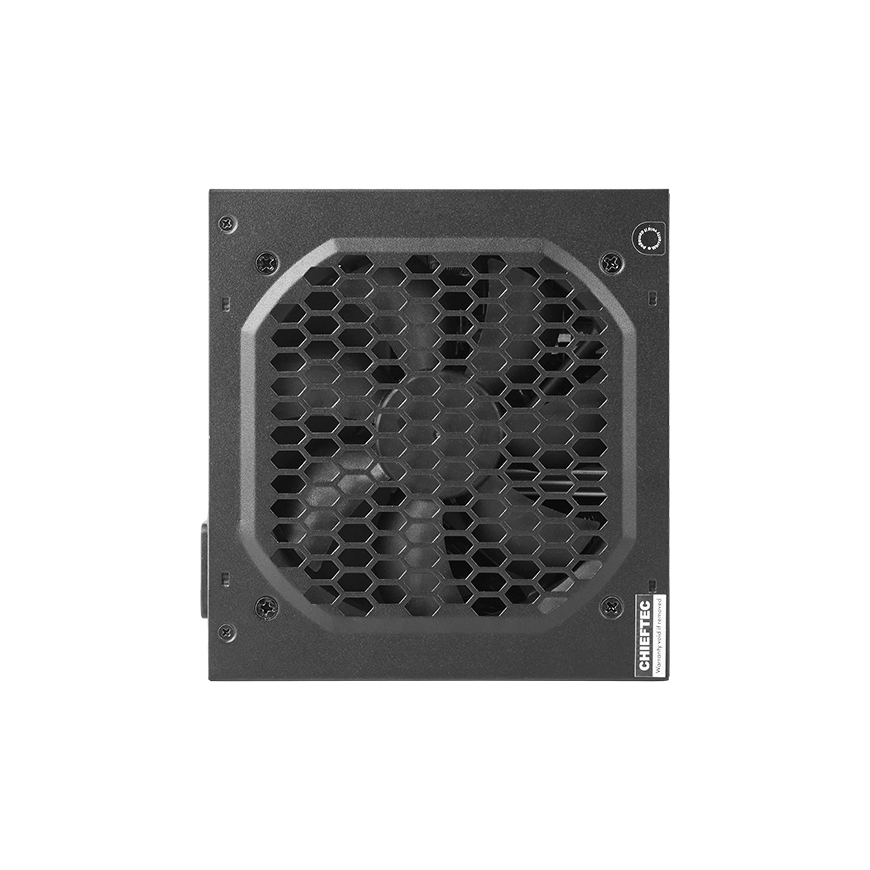

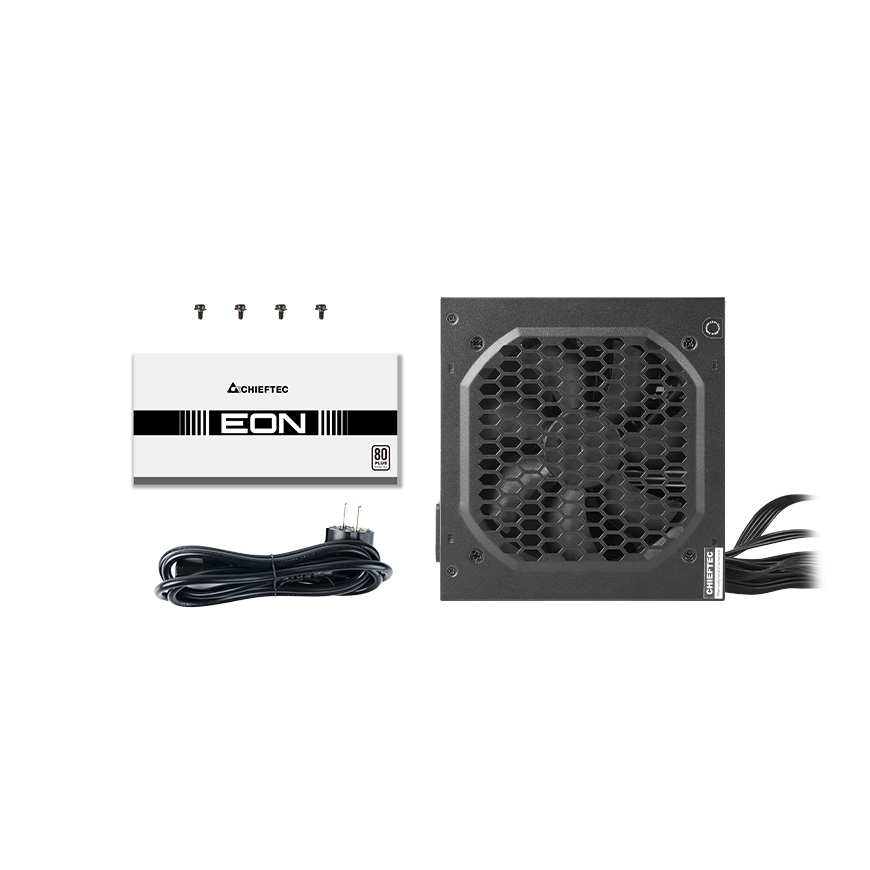

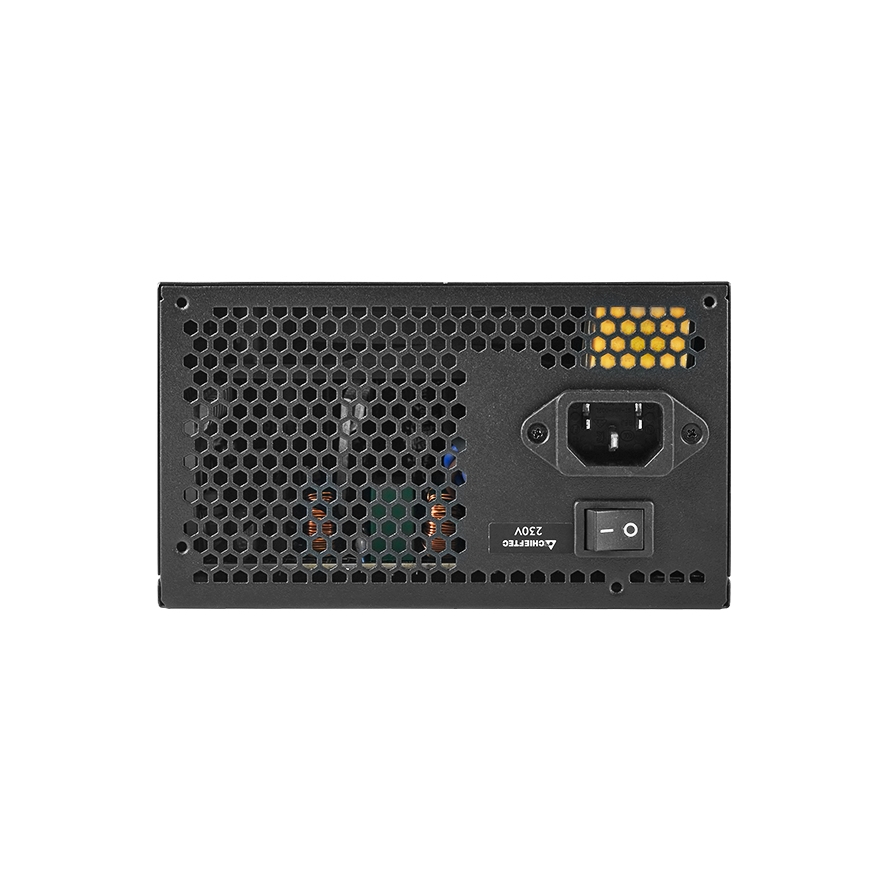

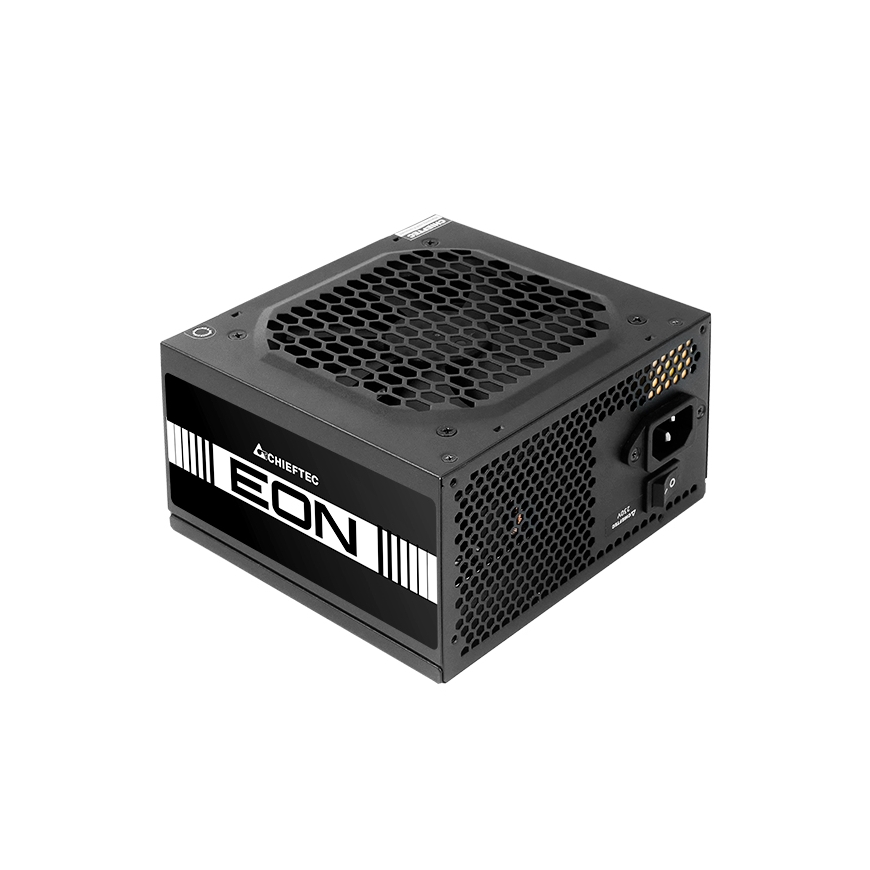

Chieftec EON power supply unit 700 W 20+4 pin ATX ATX Black
49,00 €
47,12 €
Monthly payment from 2.11 €
2356295 ZPU-700S
0753263078445, 7532630784454
Shipping 2-3 b.d.
You are interested in this product?
competitive pricing, equipped with silent 120mm fans.
The power supplies are fully built from steel, coated in elegant black, and
equipped with extra-long native cables. The EON Series runs quietly and provides
its power with all essential protection and safety features.
Power | |
| Input current | 5.5 A |
| Power protection features | Short circuit, Surge and inrush, Surge protection |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (-12V) | 4.8 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.4 A |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 Hz |
| Max output current (+12V1) | 53 A |
| Maximum input current (@220V) | 5.5 A |
| Total power | 700 W |
Performance | |
| ATX version | 2.3 |
| Purpose | PC/Server |
| 80 PLUS certification | 80 PLUS |
| Power supply unit (PSU) form factor | ATX |
| Supported motherboard form factors | ATX |
Design | |
| Product colour | Black |
| Fan diameter | 12 cm |
| On/off switch | Yes |
Ports & interfaces | |
| Number of SATA power connectors | 4 |
| ATX power connector (20+4 pin) | Yes |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 2 |
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Non-Modular |
| Motherboard power cable length | 65 cm |
| SATA power cable length | 450, 600, 750 |
| Peripheral (Molex) power cable length | 450, 750, 600 |
| EPS power connector (4+4 pin) | Yes |
Weight & dimensions | |
| Weight | 1.4 kg |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
Logistics data | |
| Warranty period | 2 year(s) |
