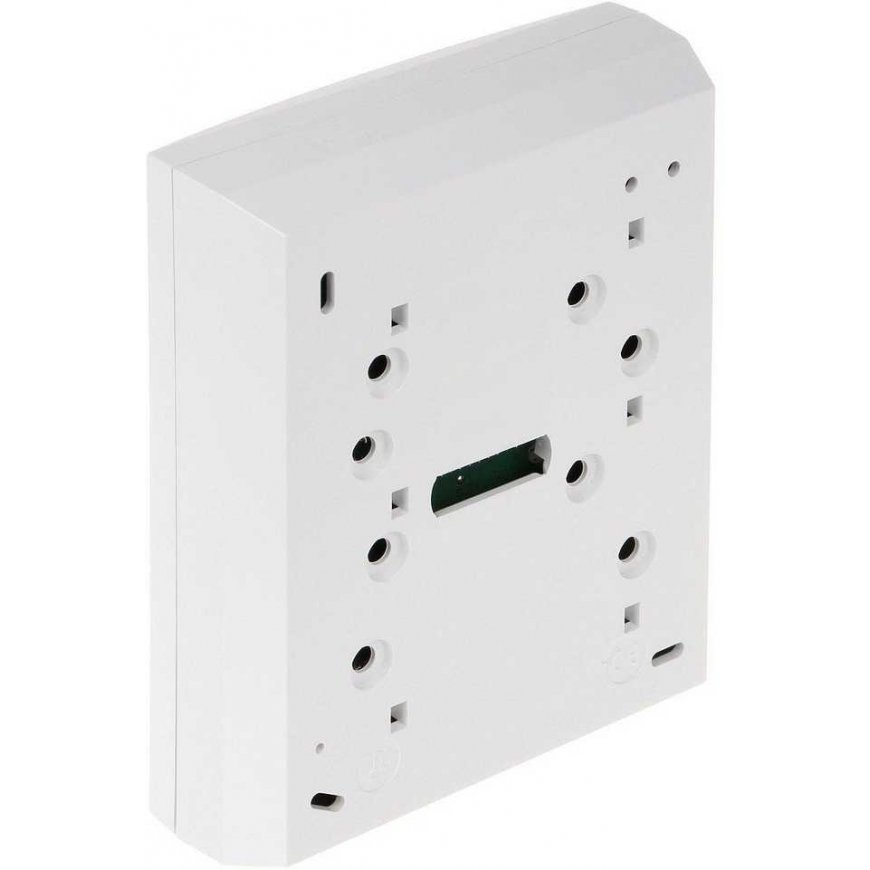

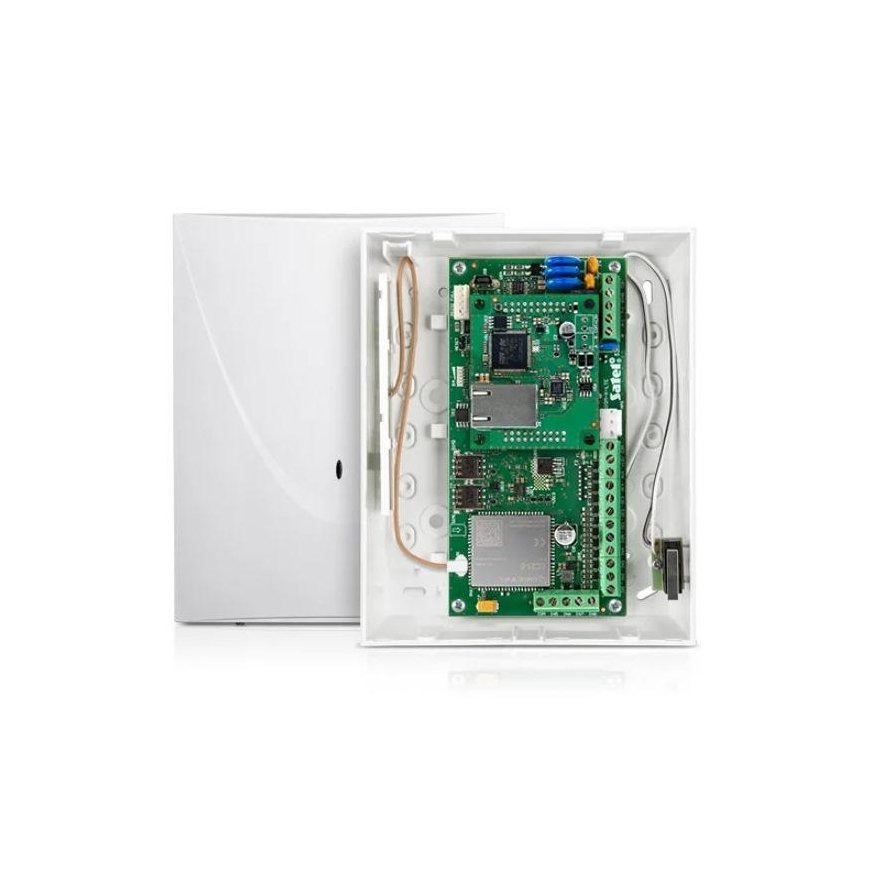

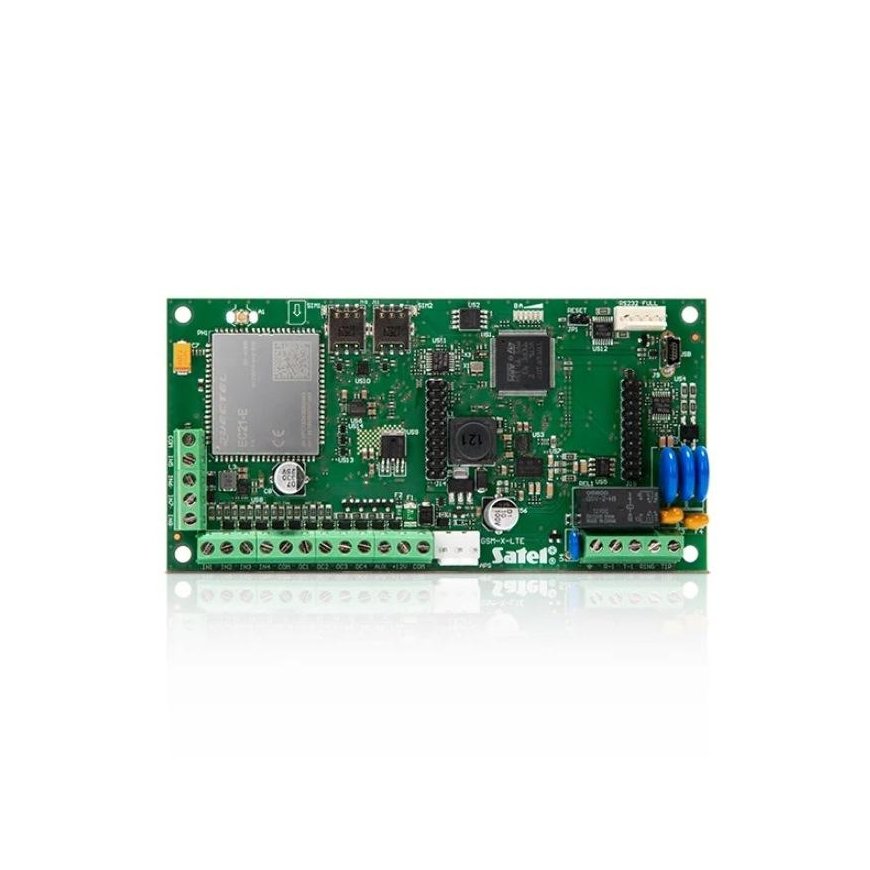

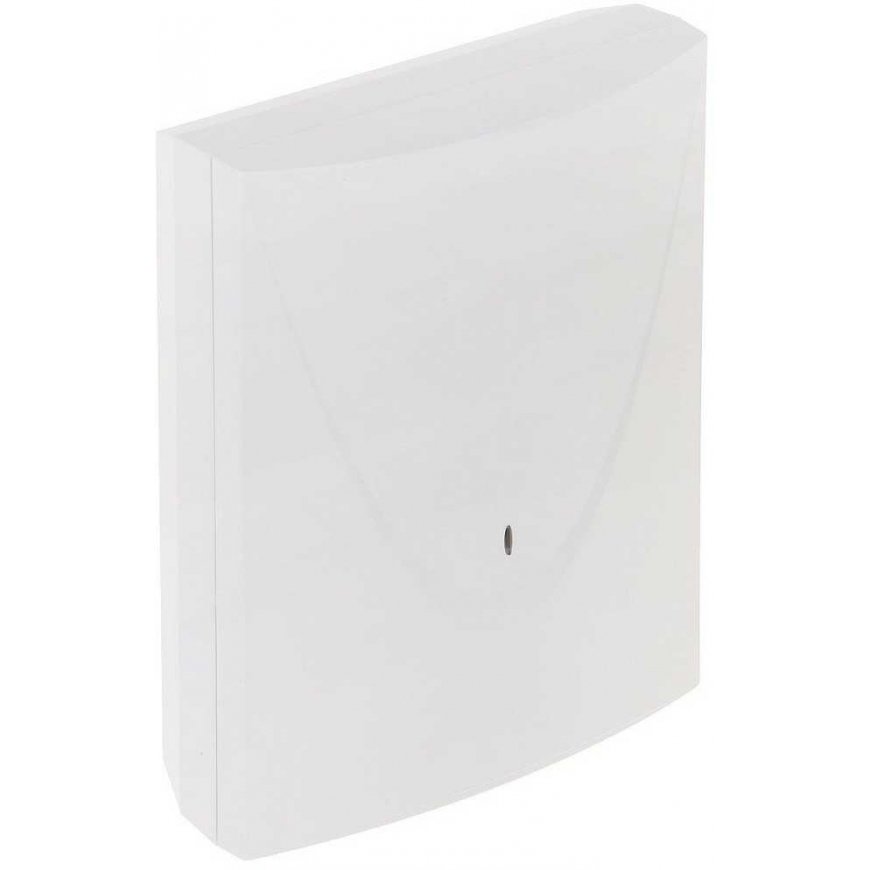

GSM COMMUNICATION MODULE GSM-X-LTE SATELLITE
2333556 GSM-X-LTE
5905033337121
This product is no longer in stock
The GSM-X-LTE communication module allows you to use the network for a 4G GSM signaling station as a primary or backup communication path.
The device is visible to the alarm station as an analog telephone line.
The module independently monitors both the telephone network and the GSM connection through both SIM cards, which helps to choose the optimal transmission path.
The device's compatibility with LTE mobile networks ensures the highest quality and reliability of data transmission.
The device allows monitoring the operation of various devices, including alarm centers that do not have a telephone communicator.
Thanks to the analog GSM-X-LTE input, it can be freely used in automation.
The product also provides an opportunity to control the status of the outputs via SMS.
The capabilities of the device can be expanded with an Ethernet network connection using a special module GSM-X-ETH (available separately).
| Alarm inputs : | 8 pcs. |
| Alarm outputs : | 4 pcs. |
| Numbers for messages by phone : | max. 8 |
| Form for sending event codes : | CLIP, PUSH, SMS, GPRS, LTE |
| Selected features : | Service of two SIM cards Simulation of an analog telephone line using a mobile connection Conversion of PAGER messages to SMS Remote module configuration via GPRS Remote programming of alarm control panels via GPRS - "remote RS-232 interface" function Remote module software update TAMPER switch, signaling the opening of the enclosure Network operation 4G/3G/2G GSM |
| Meals : | 12 V DC / 520 mA |
| Working temperature : | -10 ... 55 °C |
| Weight : | 0.27 kg |
| Dimensions : | 158 x 126 x 46 |
| Manufacturer / Brand : | SATEL |
| Warranty : | 2 years |
