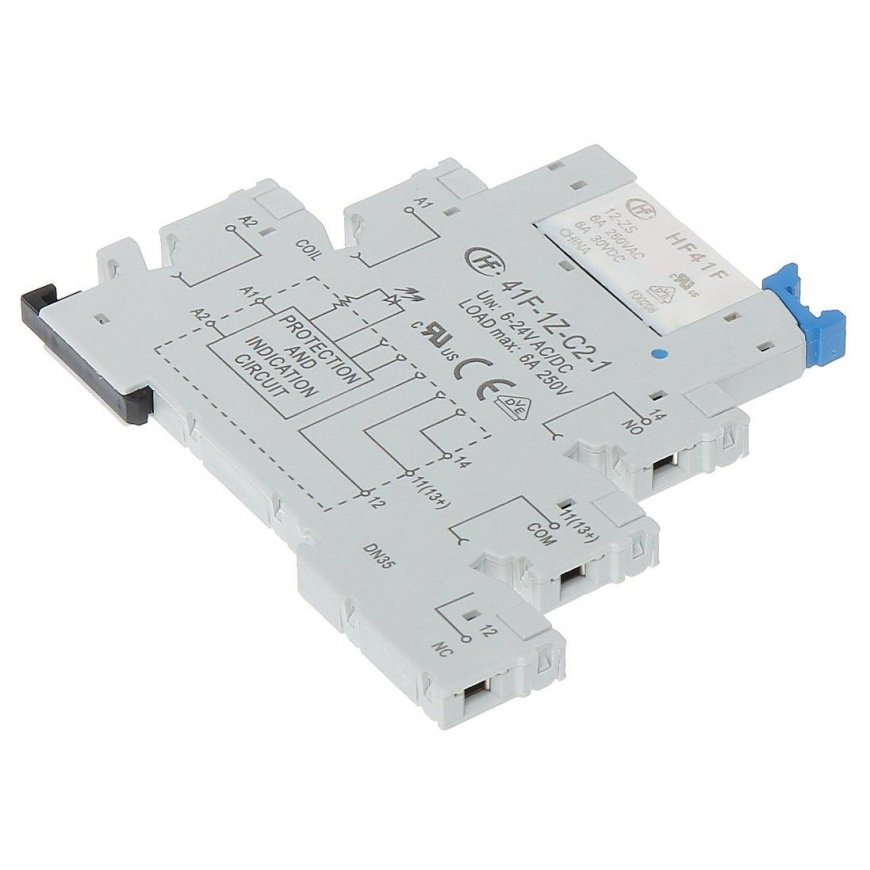

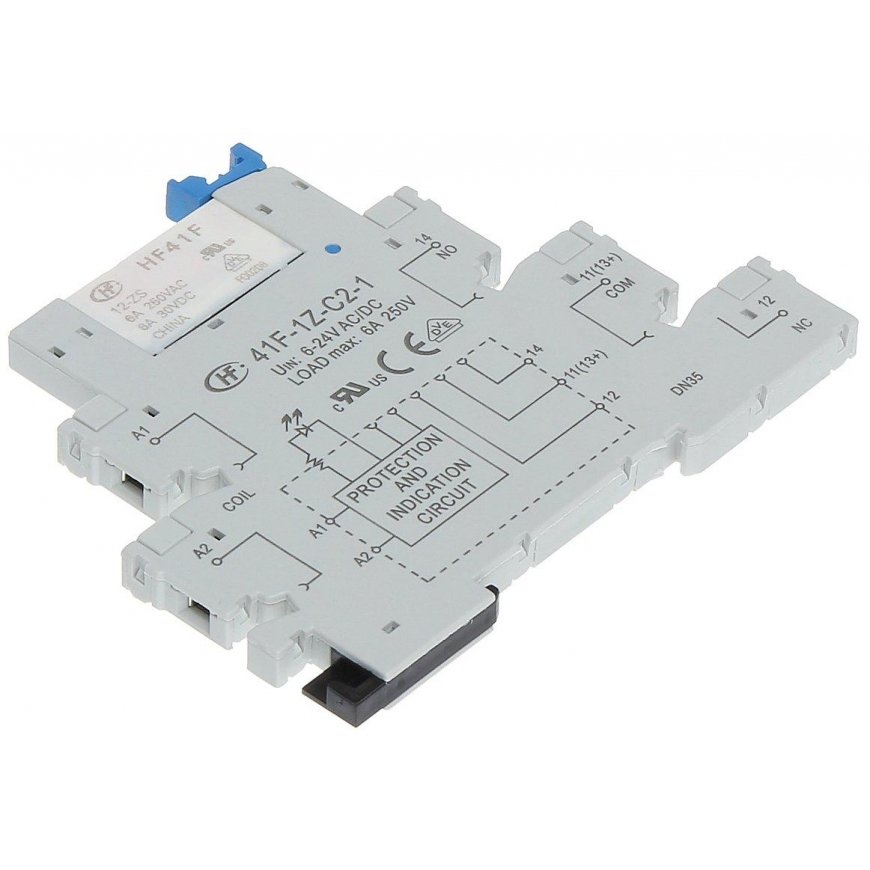

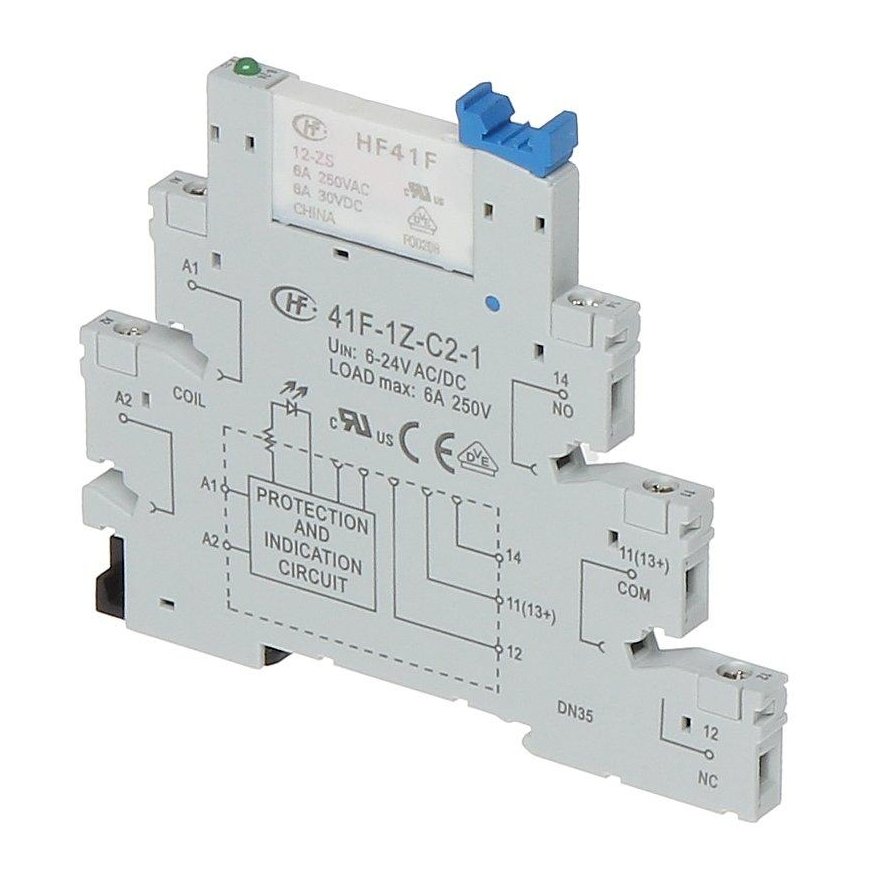

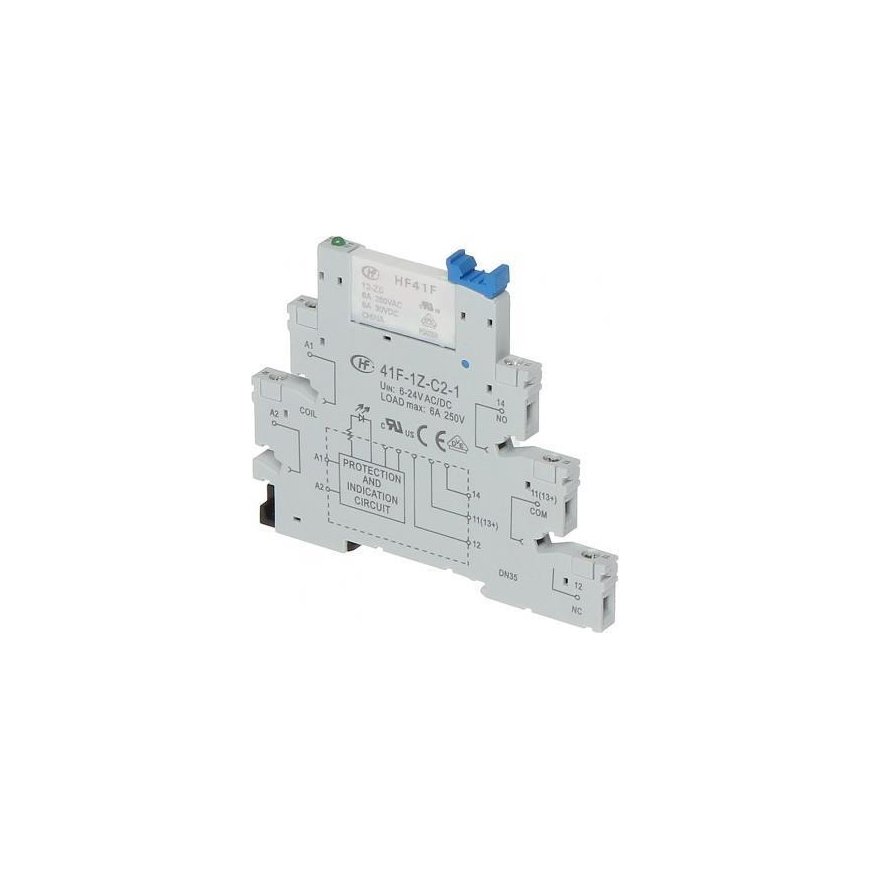

RELAY MODULE PK-41F-1Z-C2-1/12V
29,00 €
2297974 5902887037122
This product is no longer in stock
You are interested in this product?
Allows to increase the maximum load capacity of transistor outputs and provides galvanic isolation between the output line and the load.
| Number of relay outputs : | 1 |
| Meals : | 12V DC |
| Current consumption : | 14.2mA @ 12V DC |
| Maximum contact load : | 6 A (max), 30 V DC / 250 V AC (max) |
| Output : | 1 x NO/NC |
| Main features : | Mounting - Rail DIN (TS-35) LED indication |
| Working temperature : | -40 °C ... 80 °C |
| Weight : | 0.03 kg |

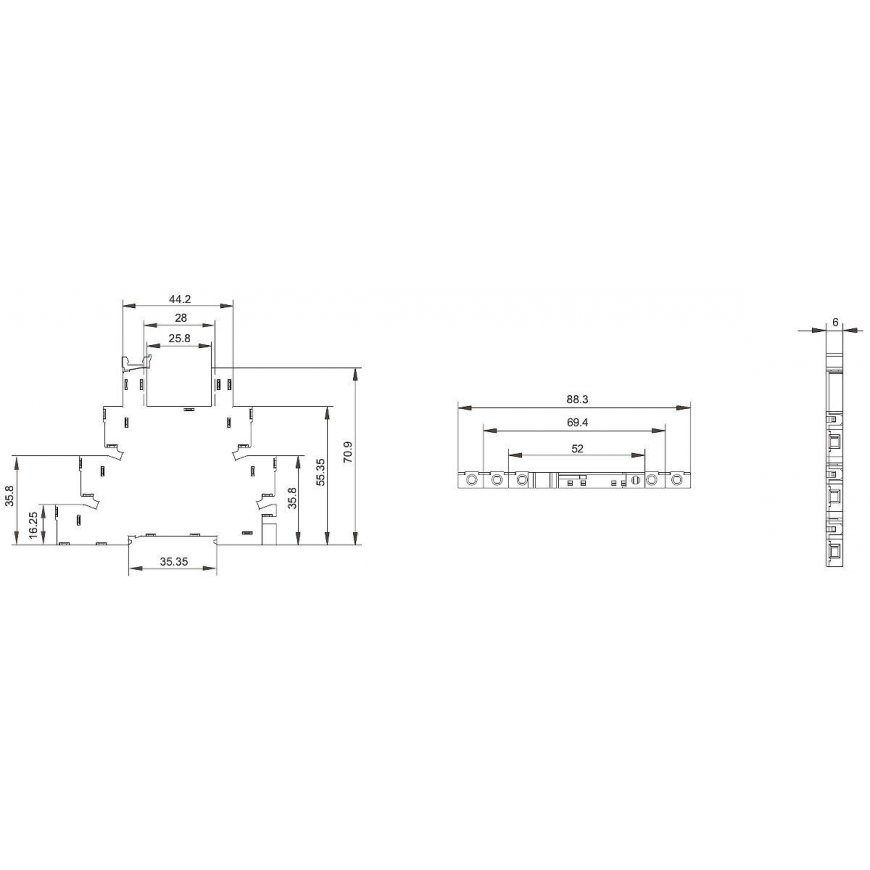

| Dimensions : | 88 x 71 x 6 mm |
| Warranty : | 2 years |
