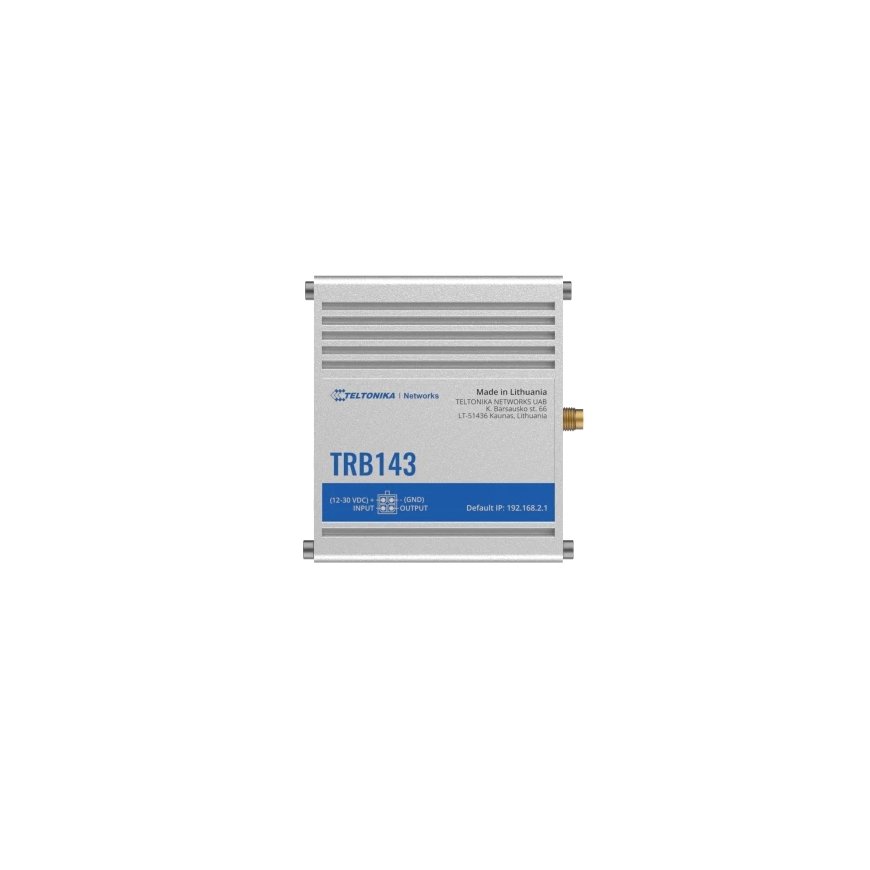

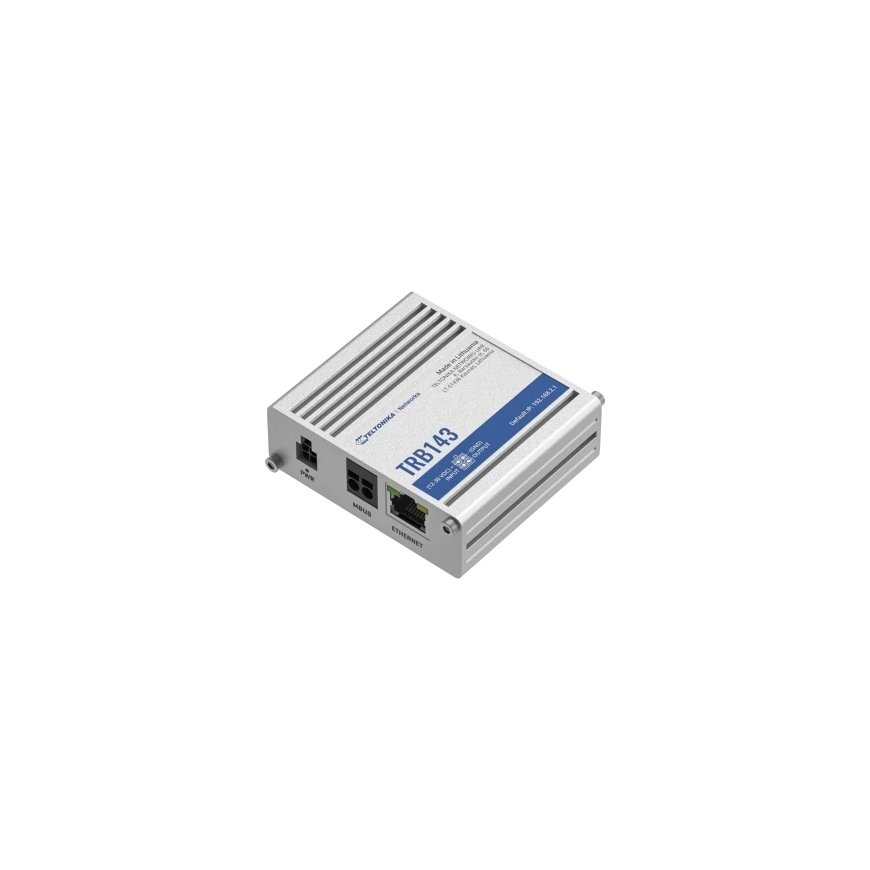

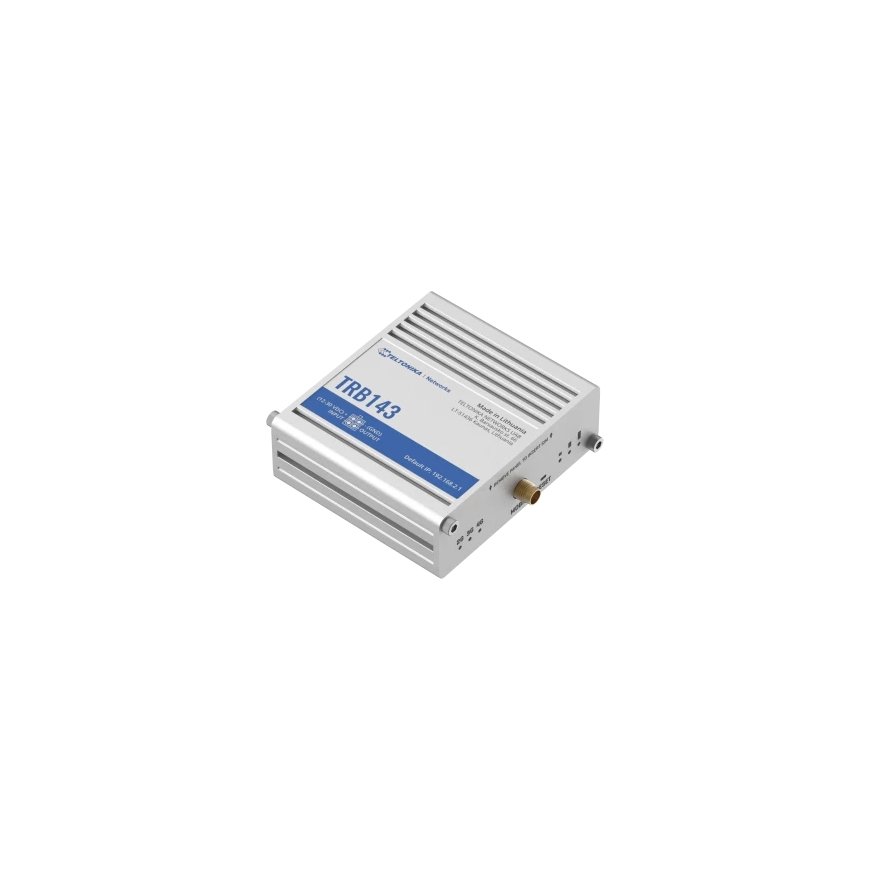

Teltonika TRB143 gateway/controller 10, 100, 1000 Mbit/s
199,73 €
Monthly payment from 6.04 €
2285804 TRB143000000
4779051840137
Shipping 3-7 b.d.
You are interested in this product?
The TRB143 industrial gateway was designed with an integrated M-Bus interface specifically for telemetry and utility-monitoring applications. It features cellular and wired connectivity, one Gigabit Ethernet port, and a pair of digital Inputs/Outputs, making it applicable to a variety of environment-monitoring scenarios.
- M-BUS INTERFACE
Supporting up to 250 client devices
- CONNECTIVITY
4G/LTE (Cat 4), 3G, 2G
- DURABILITY
Rugged aluminum housing
- COMPACT
Simple integration
- Hardware version
Europe, The Middle East, Africa, Thailand
Network | |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3az |
| Ethernet LAN data rates | 10, 100, 1000 |
| Cabling technology | 10/100/1000Base-T(X) |
| Dynamic DNS (DDNS) | Yes |
Mobile network | |
| Short Message Service (SMS) | Yes |
| 4G LTE category | 4 |
| Mobile network generation | 4G |
Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
Management features | |
| Quality of Service (QoS) support | Yes |
Security | |
| DMZ support | Yes |
| Firewall security | Yes |
| Network address translation (NAT) | Yes |
Protocols | |
| Supported network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL) |
| Data link protocols | HTTP(S), MQTT, Azure MQTT, Kinesis |
Design | |
| Product colour | Steel |
| International Protection (IP) code | IP30 |
Antenna | |
| Antenna connector type | SMA |
| Antennas quantity | 1 |
| Antenna type | External |
Features | |
| Built-in processor | Yes |
| Processor frequency | 1300 MHz |
| Internal memory | 256 MB |
| Flash memory | 512 MB |
| Processor model | Cortex-A7 |
| Processor manufacturer | ARM |
| Internal memory type | DDR3 |
Power | |
| Power consumption (typical) | 3 W |
| Power over Ethernet (PoE) | Yes |
Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions | |
| Width | 74.5 mm |
| Depth | 73 mm |
| Height | 25 mm |
| Weight | 145 g |
