The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

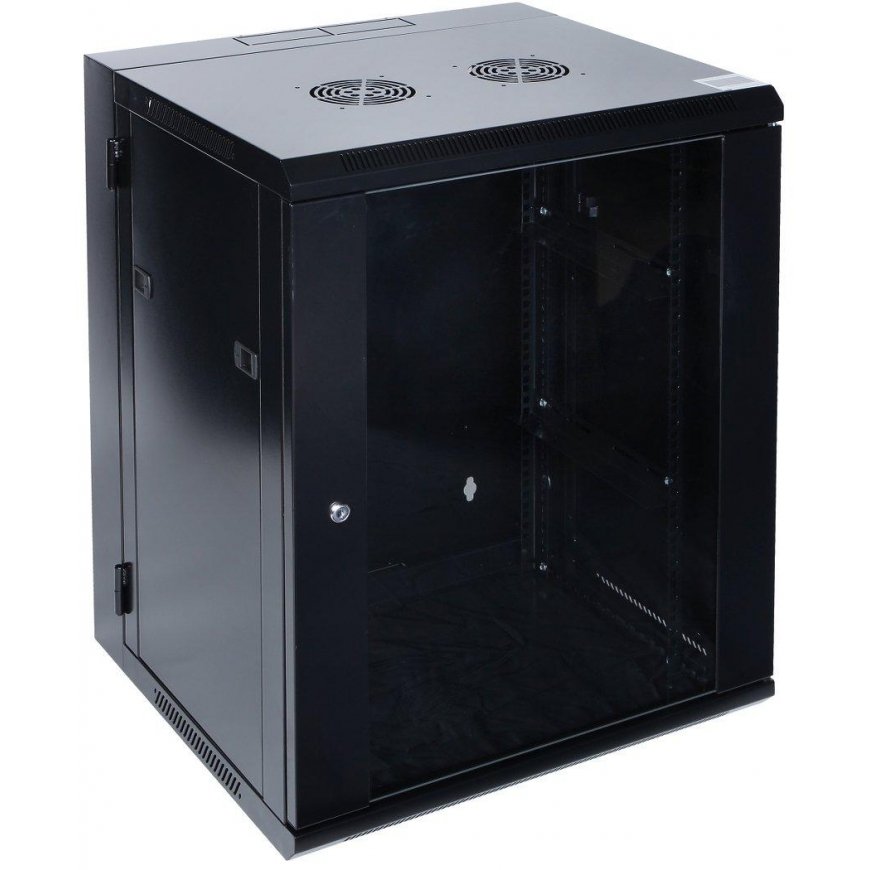

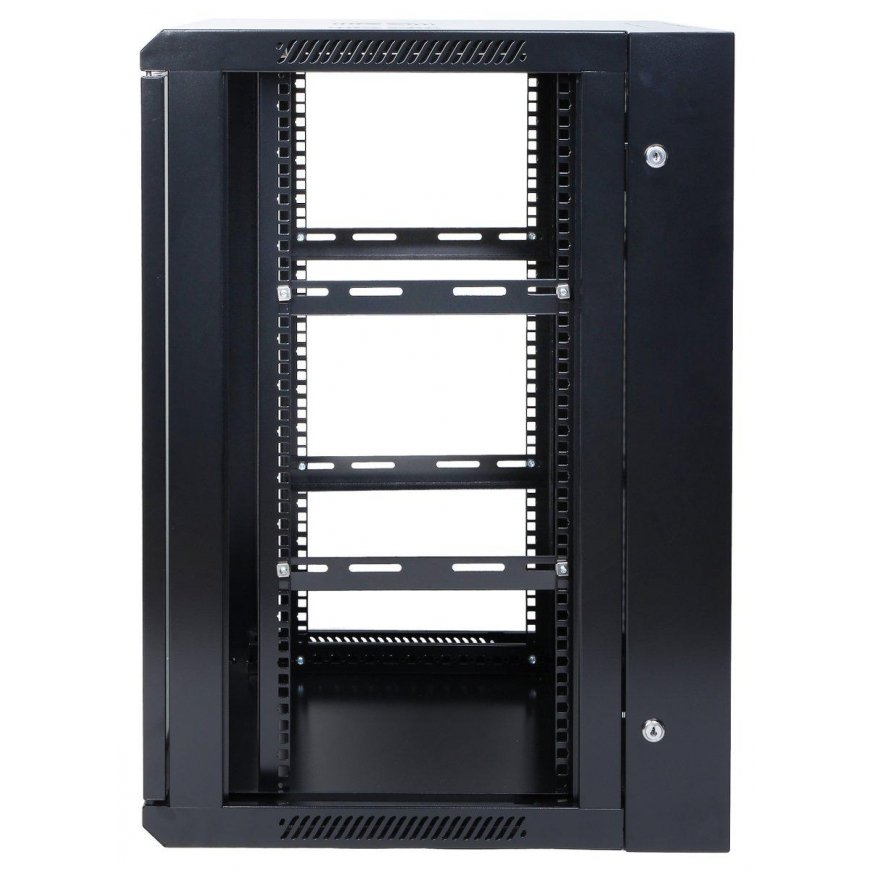

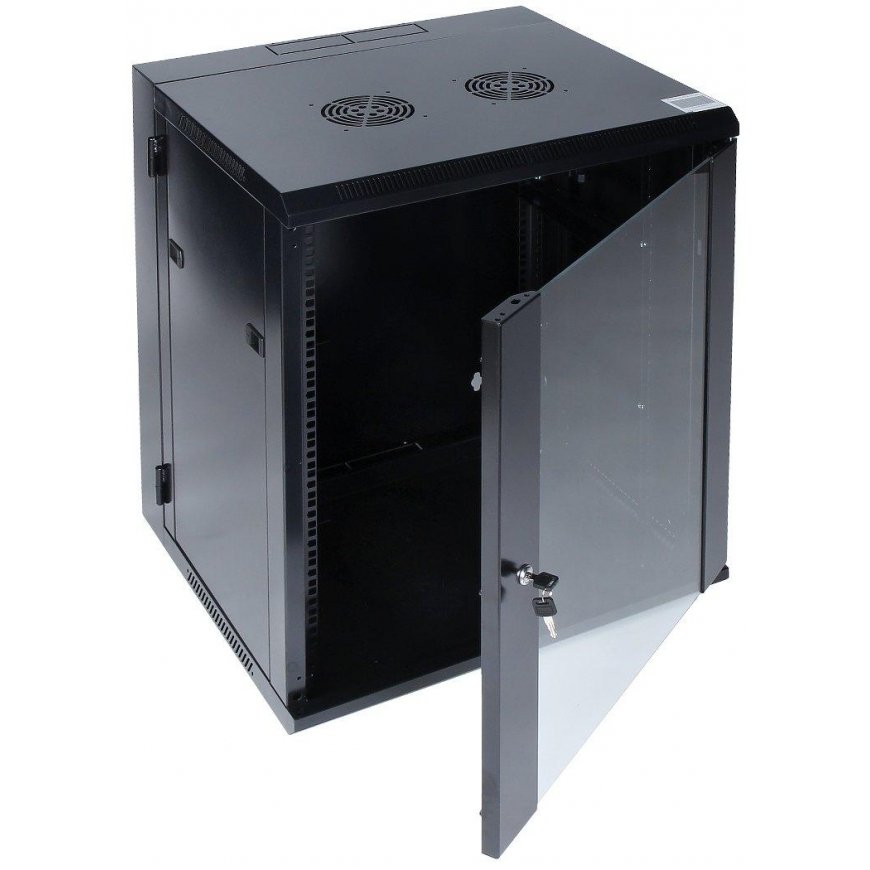

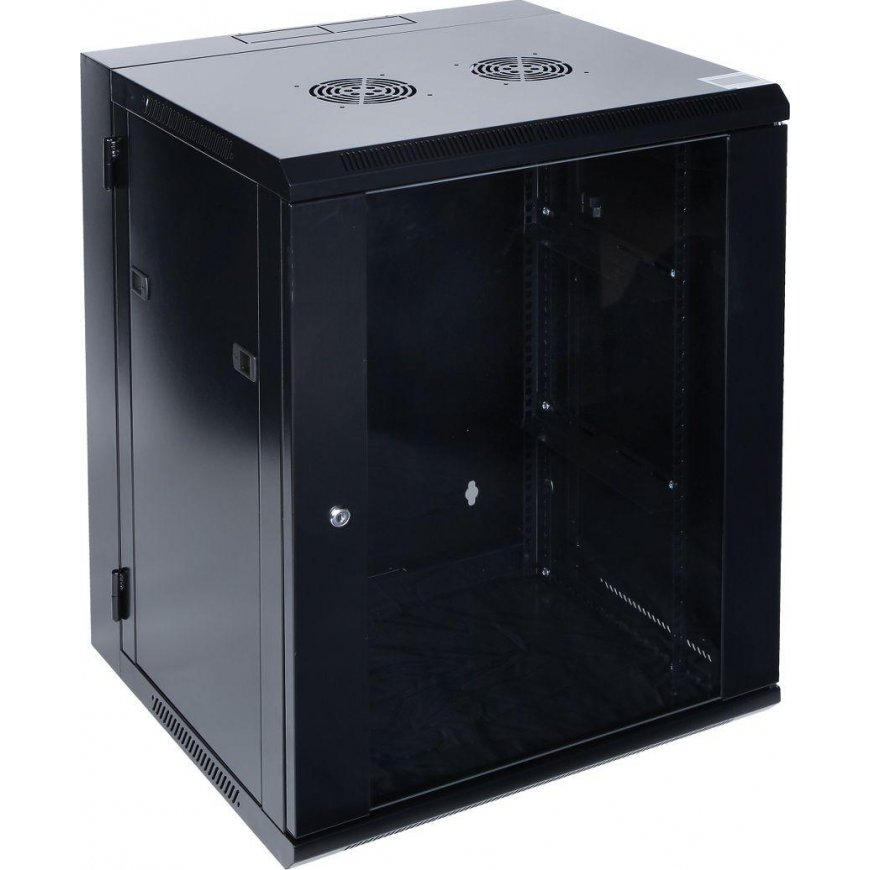

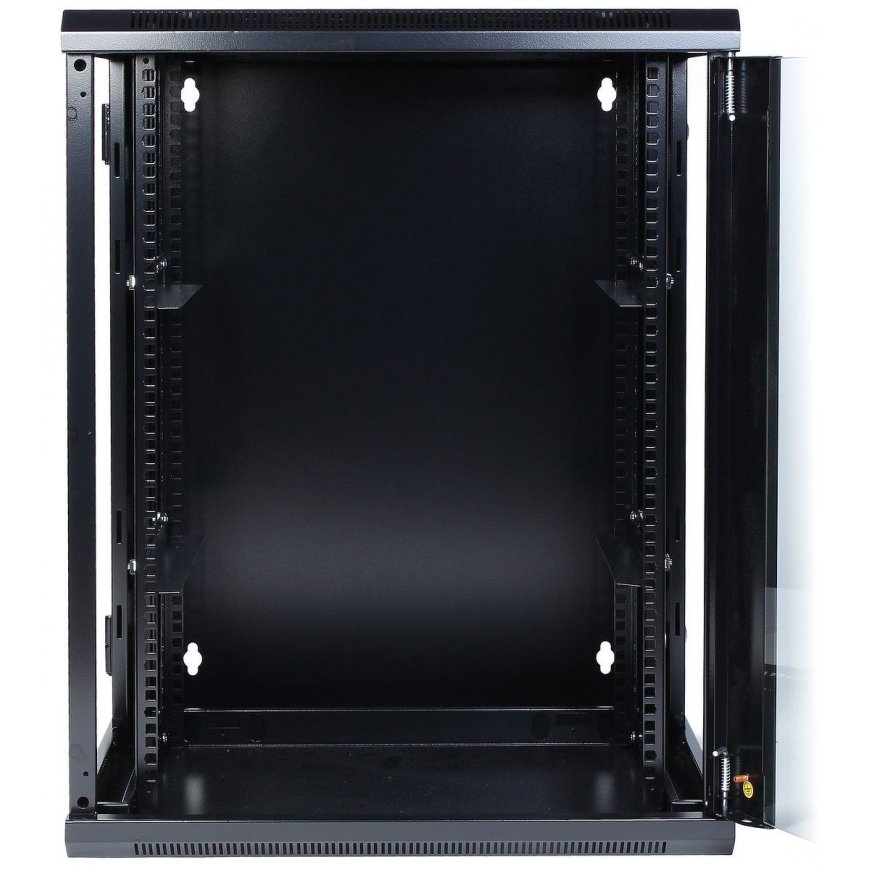

Array RACK HANGING TWO-SECTION CABINET EPRADO-R19-15U/2S
2263897 5902887004667
This product is no longer in stock
More and more often, devices for home LAN, RTV, CCTV installation are chosen by evaluating the RACK system, in order to make the installation look aesthetic, and the devices are protected from accidental mechanical damage.
Two-section hanging cabinets, mounted on the wall, will ensure access to equipment from the front as well as from the back.
The cabinet EPRADO-R19-15U/2S is intended for installation of devices with a 19" standard case.
An ideal solution for recorders, power supplies, distributors, head end stations, network devices, etc. for installation. Devices that do not meet the RACK-19 standard, such as recorders, multicommutators, RTV-SAT amplifiers, modulators, can also be placed in the case.
For this, you need to use the shelves installed in the RACK cabinet.
The RACK cabinet has many ventilation holes that ensure proper air circulation.
In addition, it is possible to install fans that ensure adequate cooling of the cabinet.
| Inner width : | 19" |
| Internal height : | 15 U |
| Internal depth : | 440 mm |
| Outer width : | 600 mm |
| External height : | 765 mm |
| Outer depth : | 548 mm |
| Openings for fans : | 105 x 105 mm (2 places) |
| Color : | Black |
| Door : | Front: glazed Rear: metal, fixed Front door can be installed as opening to the left or right Rear door opens to the right, without the possibility of changing the opening side |
| Main features : | Hole for cables: on the back wall, top, bottom 3 separate sets of keys 4 pcs. Rack rails are intended for installation of equipment. Load: 60 kg |
| Weight : | 28.9 kg |
| Warranty : | 3 years |
