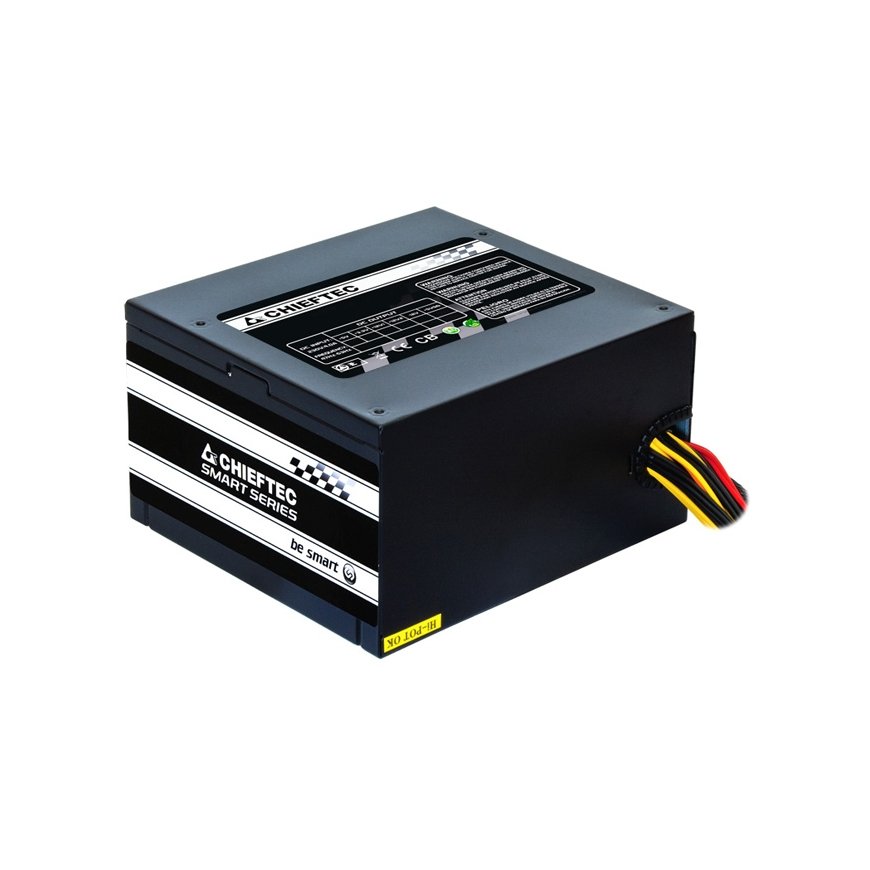

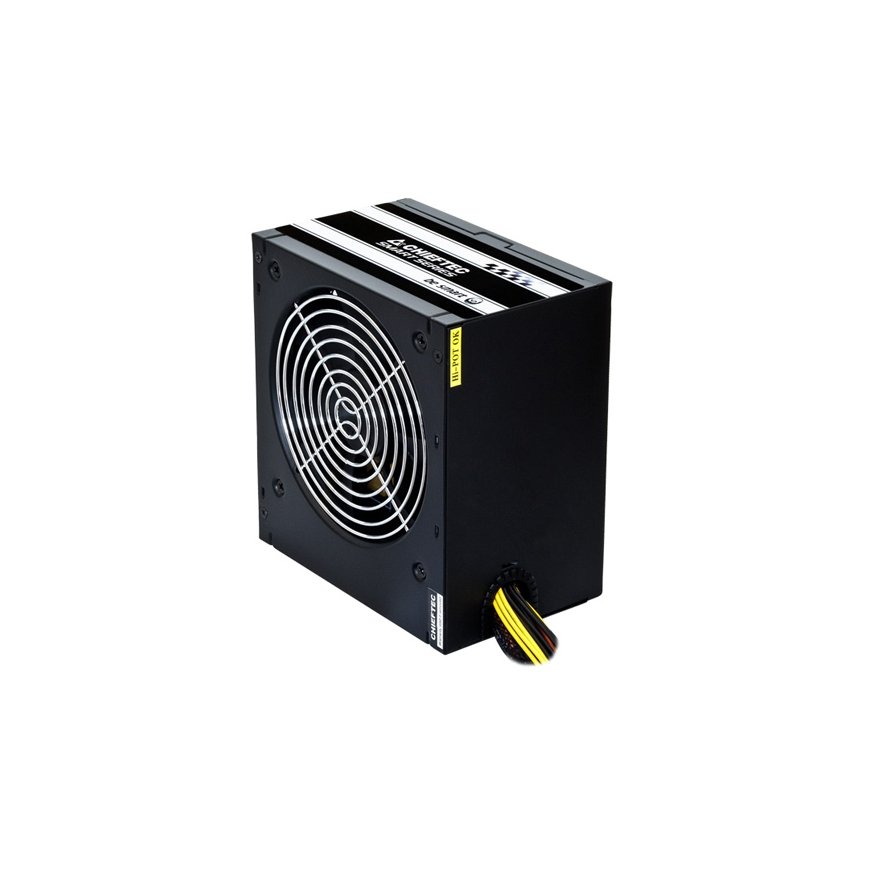

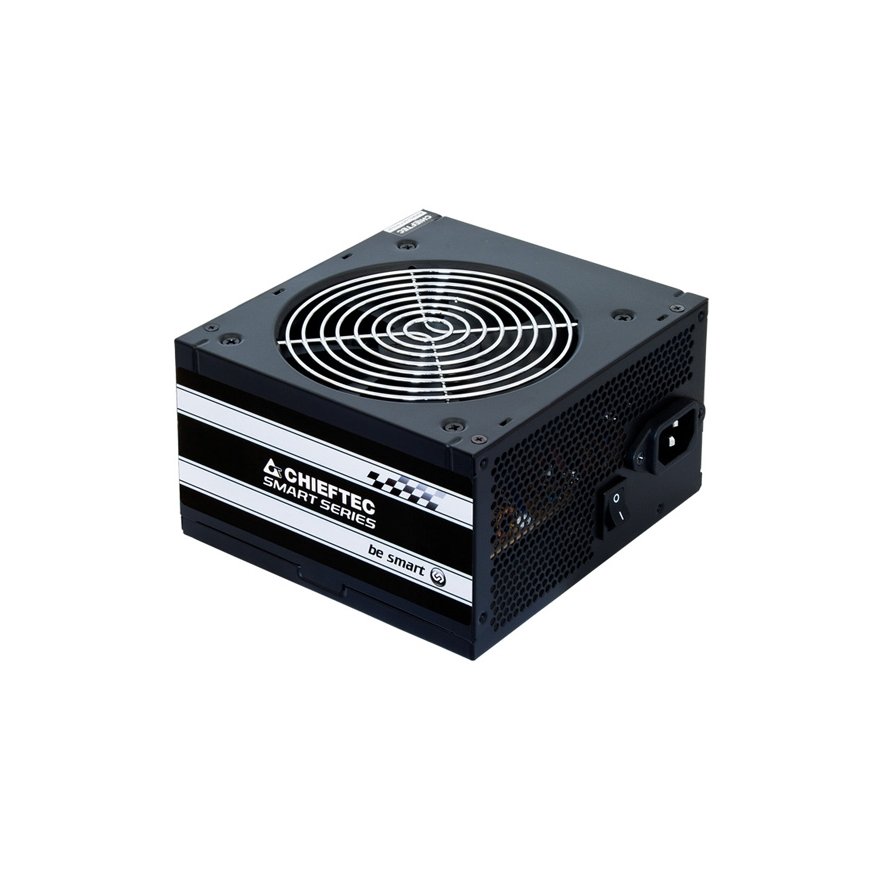

Chieftec GPS-650A8 power supply unit 650 W 20+4 pin ATX PS/2 Black
Chieftec GPS-650A8 power supply unit 650 W 20+4 pin ATX PS/2 Black
Chieftec GPS-650A8 power supply unit 650 W 20+4 pin ATX PS/2 Black
Chieftec GPS-650A8 power supply unit 650 W 20+4 pin ATX PS/2 Black
Chieftec GPS-650A8 power supply unit 650 W 20+4 pin ATX PS/2 Black
Chieftec GPS-650A8 power supply unit 650 W 20+4 pin ATX PS/2 Black
Chieftec GPS-650A8 power supply unit 650 W 20+4 pin ATX PS/2 Black
Chieftec GPS-650A8 power supply unit 650 W 20+4 pin ATX PS/2 Black
Chieftec GPS-650A8 power supply unit 650 W 20+4 pin ATX PS/2 Black
Chieftec GPS-650A8 power supply unit 650 W 20+4 pin ATX PS/2 Black
Chieftec GPS-650A8 power supply unit 650 W 20+4 pin ATX PS/2 Black
Chieftec GPS-650A8 power supply unit 650 W 20+4 pin ATX PS/2 Black
Chieftec GPS-650A8 power supply unit 650 W 20+4 pin ATX PS/2 Black
Chieftec GPS-650A8 power supply unit 650 W 20+4 pin ATX PS/2 Black
Chieftec GPS-650A8 power supply unit 650 W 20+4 pin ATX PS/2 Black

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

Chieftec GPS-650A8 power supply unit 650 W 20+4 pin ATX PS/2 Black

47,78 €
Monthly payment from 2.13 €
2244620

GPS-650A8

4710713239562

Shipping 2-3 b.d.

Quantity

You are interested in this product?
(Read terms of service)
This new smart series offers both quality and efficiency. The PSU itself is painted in decent black, equipped with long native cables, a power cord, and a solid carton to protect it. With an efficiency of over 85%, the GPS-650A8 fulfills the requirement of green power at an attractive price.
Power
Efficiency 85%
Input current 5 A
Power protection features Overload, Over voltage, Short circuit, Under voltage
Power factor 0.9
Power Factor Correction (PFC) type Active
Combined power (+3.3V) 120 W
Combined power (+12V) 600 W
Combined power (+5V) 120 W
Combined power (-12V) 3.6 W
Combined power (+5Vsb) 12.5 W
Max output current (+3.3V) 20 A
Max output current (+5V) 20 A
Max output current (+5Vsb) 2.5 A
Max output current (-12V) 0.3 A
AC input voltage 220 - 240 V
AC input frequency 47 - 63 Hz
Max output current (+12V1) 50 A
Total power 650 W
Performance
ATX version 2.3
Purpose PC
80 PLUS certification 80 PLUS Bronze
Power supply unit (PSU) form factor PS/2
Supported motherboard form factors ATX
Design
Product colour Black
Number of fans 1 fan(s)
Fan diameter 12 cm
Cooling type Active
On/off switch Yes
Ports & interfaces
Floppy drive power connector 1
Number of SATA power connectors 6
EPS power connector (8-pin) Yes
Peripheral (Molex) power connectors (4-pin) 2
PCI Express power connectors (6+2 pin) 2
Motherboard power connector 20+4 pin ATX
Cabling type Non-Modular
PCI Express connector Yes
Floppy disk drive connector Yes
SATA power cable length 500, 150
PCI Express power cable length 50 cm
Weight & dimensions
Width 140 mm
Depth 150 mm
Height 87 mm
Packaging data
Package type Box
Packaging content
Cables included AC, SATA, PCIe, Peripheral (Molex)
Certificates
Certification CE, CB, EAC, ErP, RoHS, interseroh, TÜV
