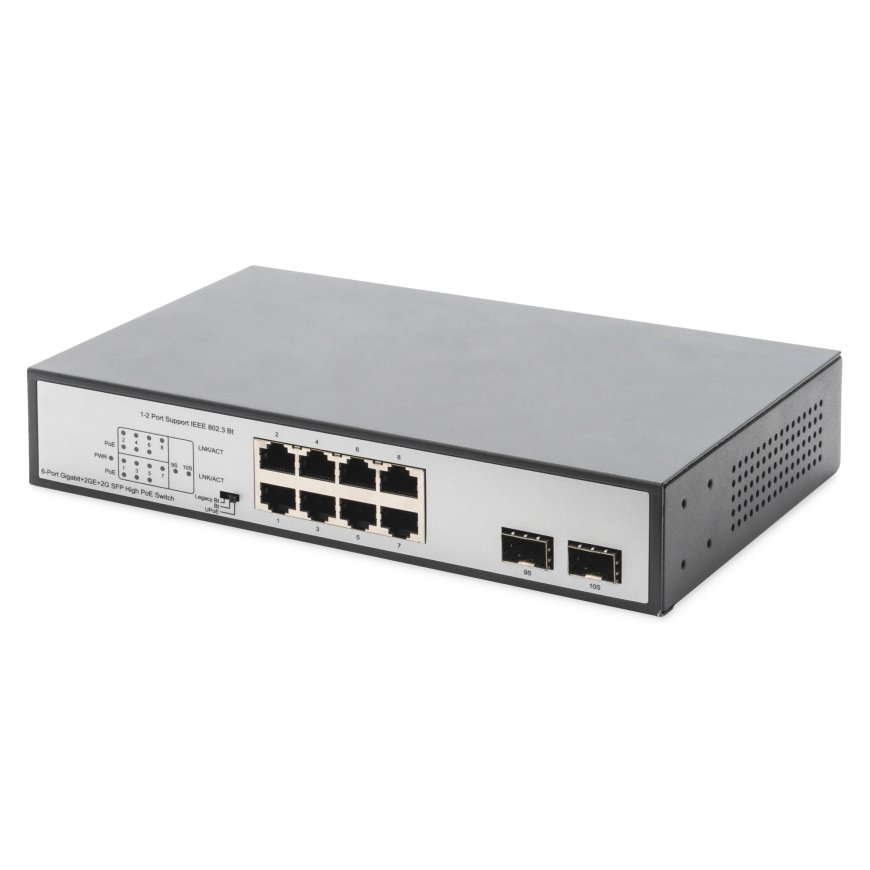

Digitus 8-Port Gigabit PoE Networkswitch, Desktop, unmanaged, 2 Uplink Ports, SFP, 180 W, af/at/bt
181,52 €
Monthly payment from 5.57 €
2191776 DN-95140
4016032467380
This product is no longer in stock
You are interested in this product?
- Supports the PoE standards IEEE 802.3af, IEEE 802.3at & IEEE 802.3bt
- Total PoE budget of 180 W - supports PoE++
- 6 x RJ45 PoE Ports (2 x 90 W, 4 x 30 W)
- 2 x RJ45 Ports - usable as uplink or for LAN devices
- 2 x SFP Ports - for SFP modules (fiber glass/copper)
- Automatic detection of PoE devices - can also be used for non-PoE devices
- LED status displays on front panel
- Supports legacy BT, BT and UPoE modes
The DIGITUS® 8 Port Gigabit PoE Switch provides you with a multifunctional switch for many application scenarios. You can use all 8 ports for conventional network devices without a PoE supply. You can use six ports for PoE-cable network devices, two of those ports even with 90 watt (IEEE 802.3bt) per port. The remaining 4 ports support IEEE 802.3at/af devices up to 30 watt. Two SFP uplink ports are also integrated, which you can fit with SFP modules for fiber optic or copper technology. The gigabit standards continue to be supported with data transfer rates of up to 1000 Mbps, auto MDI/MDIX and auto negotiation for the RJ45 ports. The Switch also has 3 modes: Legacy BT, BT and UPoE that can be adjusted on the front side with a DIP Switch. You can implement conventional network applications with this Gigabit PoE Switch and also supply high-performance network devices, such as POS systems, access control systems, a surveillance and parking-lot system with electricity. A total budget of 180 W is provided here for PoE devices.
Network | |
| Networking standards | IEEE 802.3bt |
| Auto MDI/MDI-X | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
Security | |
| MAC address table | 4000 entries |
Design | |
| Product colour | Black, Silver |
| Wall mountable | Yes |
Power | |

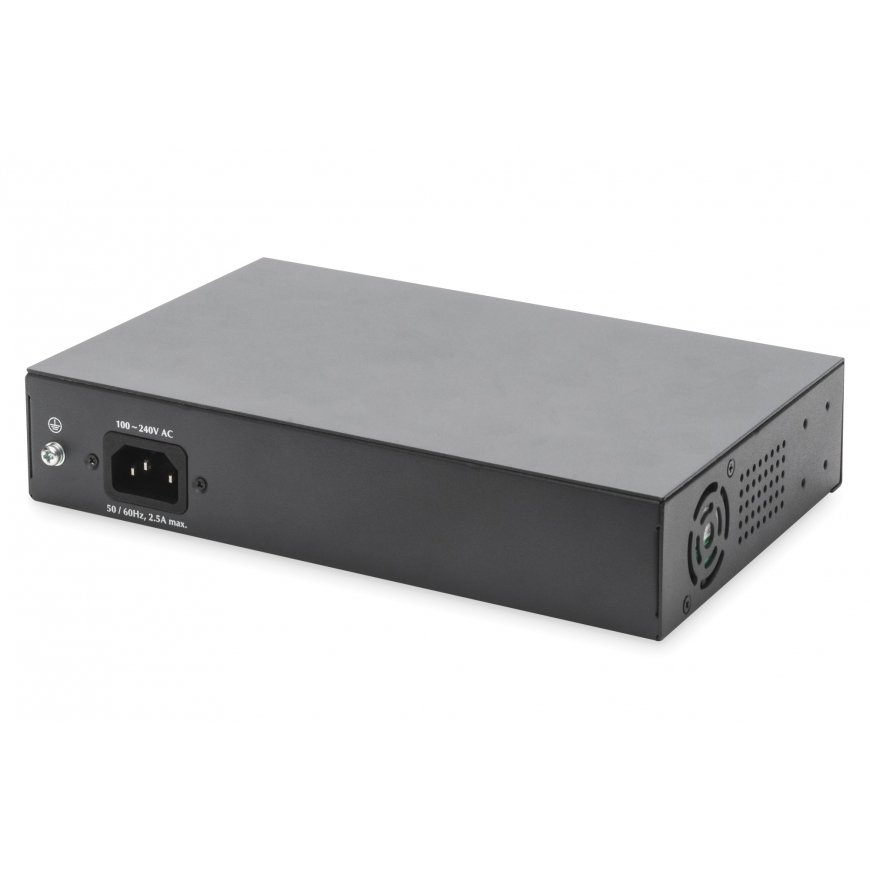

| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power over Ethernet (PoE) | Yes |
Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions | |
| Width | 150 mm |
| Depth | 220 mm |
| Height | 44 mm |
| Weight | 1.34 kg |
Packaging data | |
| Package width | 310 mm |
| Package depth | 200 mm |
| Package weight | 1.88 kg |
| Package volume | 4960 cm³ |
Logistics data | |
| Country of origin | China |
| UK Trade Tariff code | 85176200 |
| Harmonized System (HS) code | 85176990 |
Packaging content | |
| Cables included | AC |
