Trendnet TI-PG50F network switch Unmanaged Power over Ethernet (PoE) Black
183,45 €
Monthly payment from 5.62 €
2183934 TI-PG50F
0710931161564
2026-07-28
You are interested in this product?

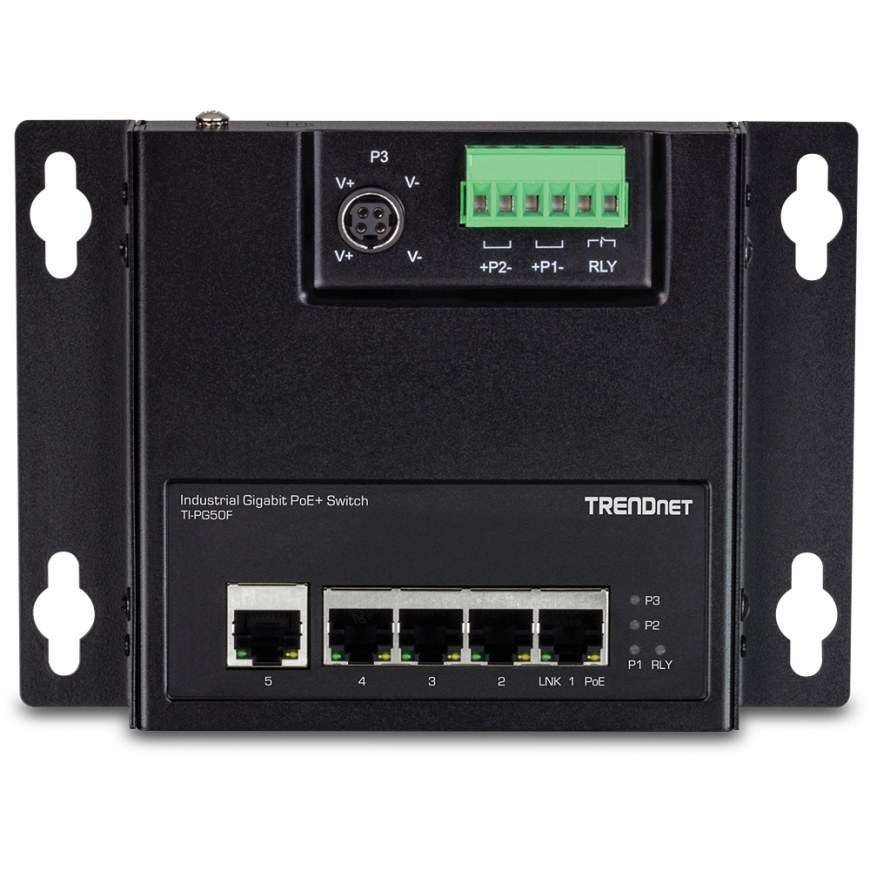

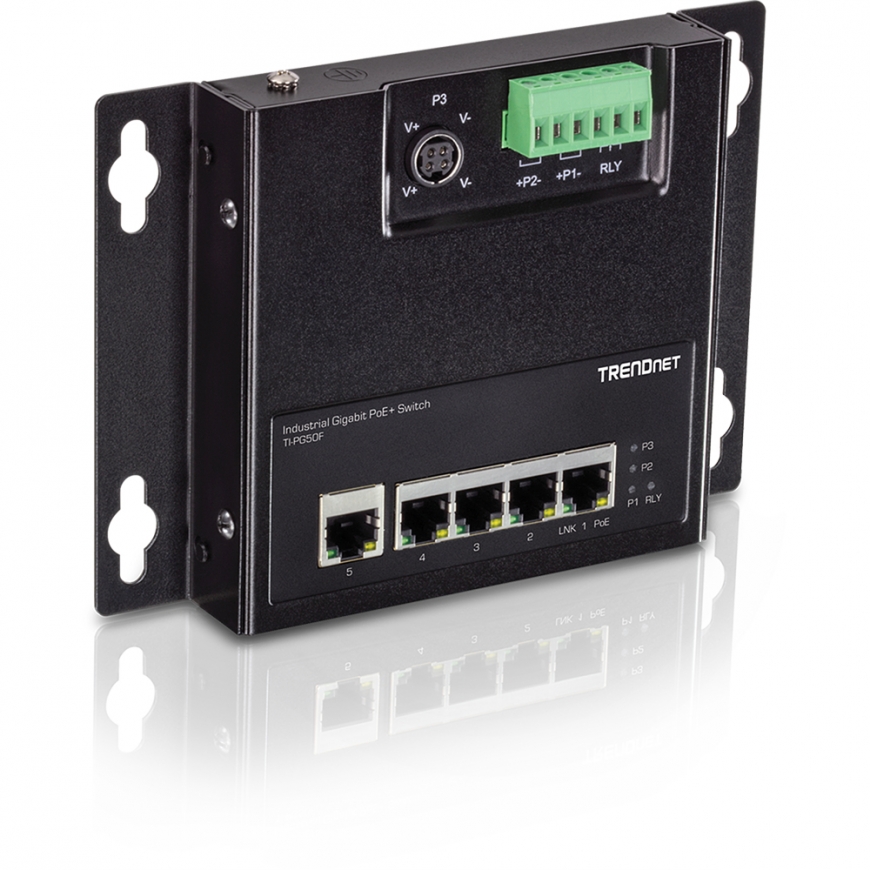

Wall-Mounted Front Access Switch
The wall mountable flat switch provides front access to ports and power interfaces for easier installation. It’s flat and compact size make it ideal for cabinet installations where space is limited.
PoE+ Power
A 120W PoE power budget supplies PoE power from the hardened industrial front access switch to up to five Power over Ethernet devices.
Hardened Industrial Design
Equipped with an IP30 rated metal enclosure, this front access switch is designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments.
Network Ports
4 x Gigabit PoE+ ports and 1 x Gigabit port
PoE Power
Supplies up to 30W of PoE+ power per port with a 120W power budget
Hardware Design

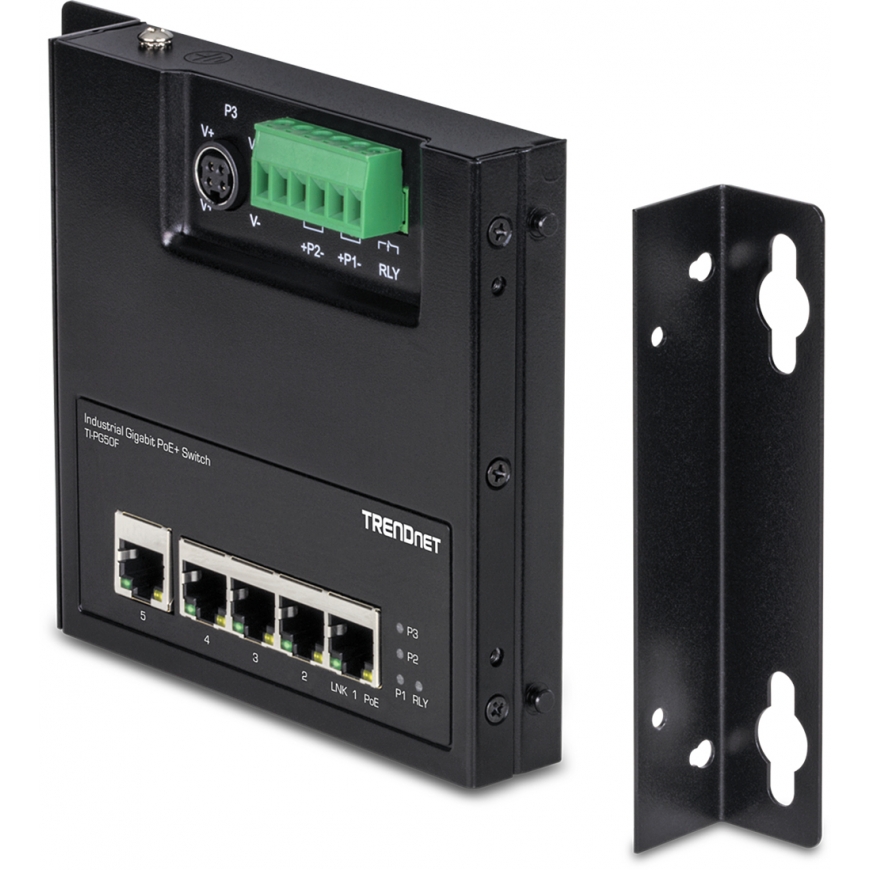

Wall mountable hardware design provides front access to ports and power interfaces for easier installation
Compact
The flat and compact size makes the front access switch ideal for cabinet installations where space is limited

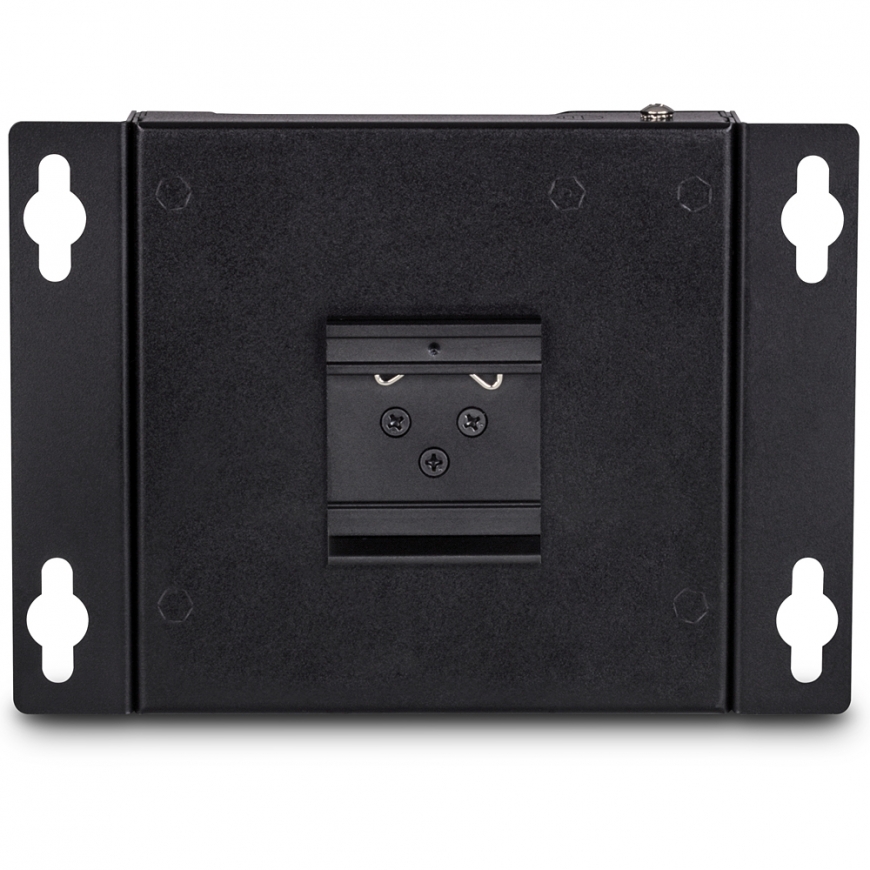

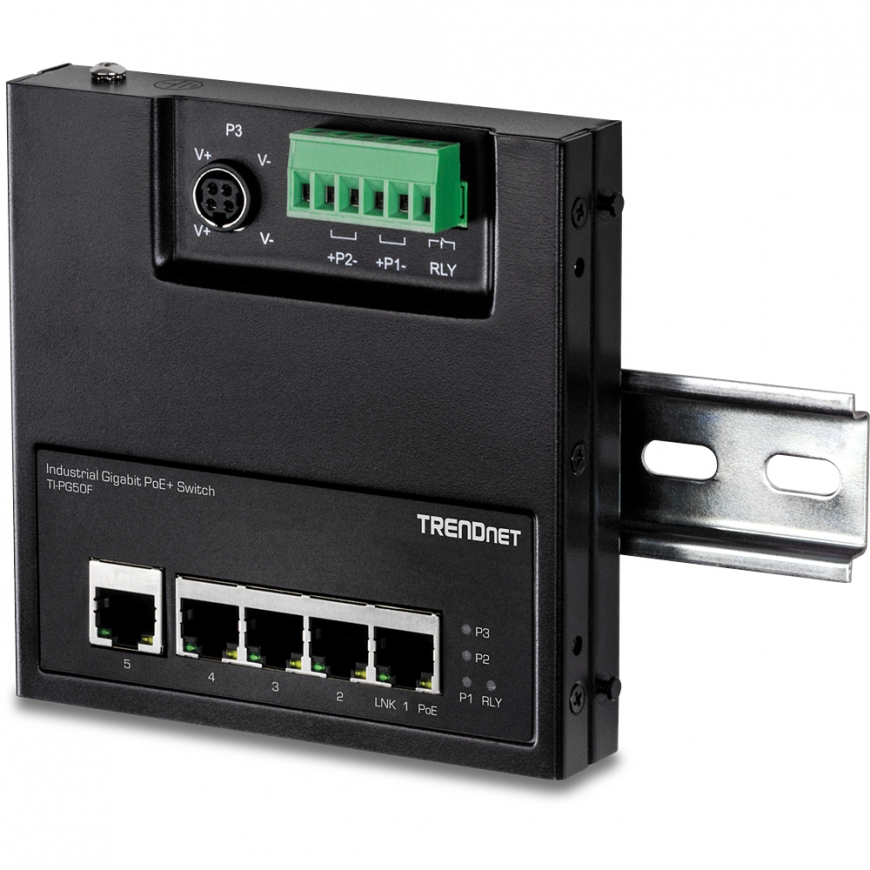

DIN-Rail Mount
Includes DIN-Rail mounting bracket
Switching Capacity
16Gbps switching capacity
Redundant Power
Dual redundant power inputs with overload current protection (power supply sold separately: TI-S12048, TI-S24048, and 48VDC3000)
Alarm Relay
Alarm relay output triggered by power failure of primary or secondary power inputs
Jumbo Frames
Sends larger packets, or jumbo frames (up to 9KB), for increased performance
Wide Temperature Range
Hardened industrial housing offers a wide operating temperature range of -40° – 75° C (-40° – 167° F), allowing for installations in extreme hot and cold environments
Shock and Vibration Resistant
Hardened design rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6) for industrial settings
Grounding Point
Grounding point protects equipment from external electrical surges
LED Indicators
Front access switch with LED indicators that convey power and port status
Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Port mirroring | Yes |
Security | |
| MAC address filtering | Yes |
| MAC address table | 2000 entries |
Design | |
| Product colour | Black |
Features | |
| Mean time between failures (MTBF) | 454556 h |
Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power over Ethernet (PoE) | Yes |
Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions | |
| Width | 118 mm |
| Depth | 23.5 mm |
| Height | 118 mm |
| Weight | 425 g |
Other features | |
| Input current | 2 A |
| Rack mounting | No |
Certificates | |
| Certification | CE, UL, FCC, Shock (IEC 60068-2-27), Freefall (IEC 60068-2-32), Vibration (IEC 60068-2-6) |
Logistics data | |
| Harmonized System (HS) code | 85176990 |
Packaging content | |
| Quick start guide | No |
