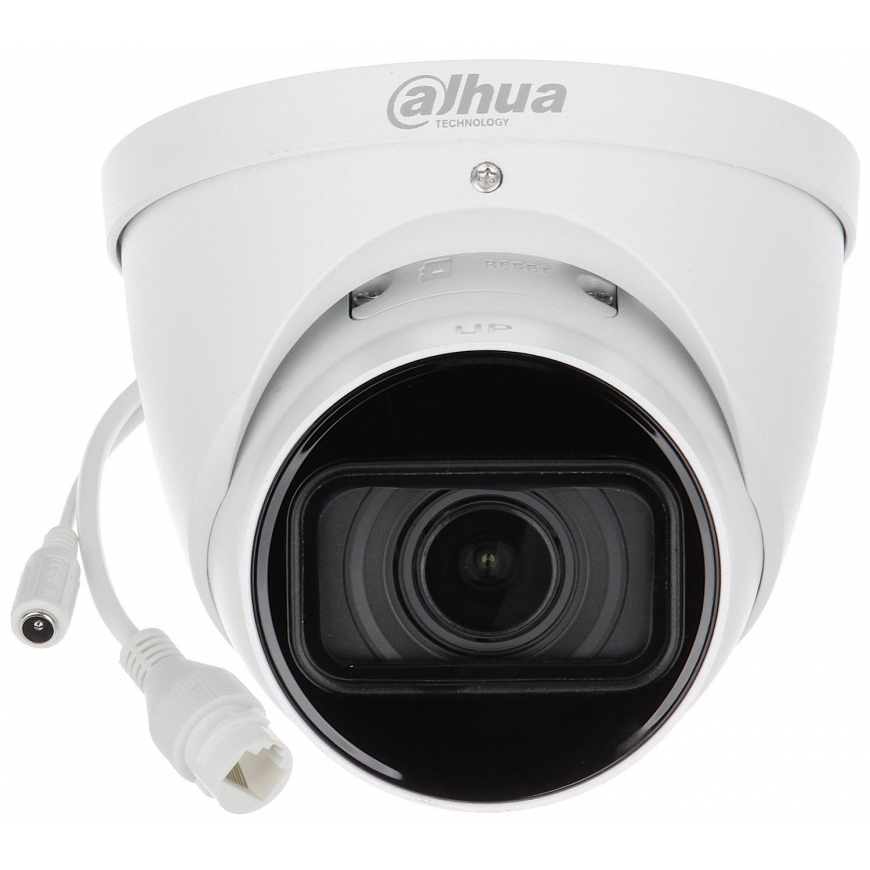

IP CAMERA IPC-HDW2241T-ZS-27135 WizSense - 1080p 2.7 ... 13.5 mm - MOTOZOOM DAHUA
2149180 IPC-HDW2241T-ZS-2713
6923172545138
This product is no longer in stock
IP camera with an efficient H.265 / H.264 video compression algorithm, which ensures clean and smoother video transmission with maximum 1080p resolution.
This makes it ideal for surveillance systems where identification of persons or vehicles is required.
The used motozoom lens with a focal length of 2.7 ... 13.5 mm allows you to adjust the angle visibility by remote control.
The coverage of the illuminator specified by the manufacturer depends on the environmental conditions (air transparency, environment, wall color, ie, the so-called scene reflection coefficient).
Thanks to the possibility of PoE power supply according to the 802.3af standard, the device is even more universal and easier to install.
Thanks to the "Starlight" technology used, very low lighting is enough for the video camera to achieve a bright, colorful image.
| Standard : | TCP/IP |
| Sensor : | 1/2.8 " Progressive Scan CMOS |
| Matrix size : | 2.1 Mpx |
| Resolution : | 1920 x 1080 - 1080p , 1280 x 960 - 1.3 Mpx 1280 x 720 - 720p |
| Lens : | 2.7 ... 13.5 mm - Motozoom |
| Viewing angle : | 108 ° ... 30 ° (manufacturer's data) 103 ° ... 31 ° (our tests) |
| IR illuminator coverage : | 40 years old |
| RS-485 interface : | - |

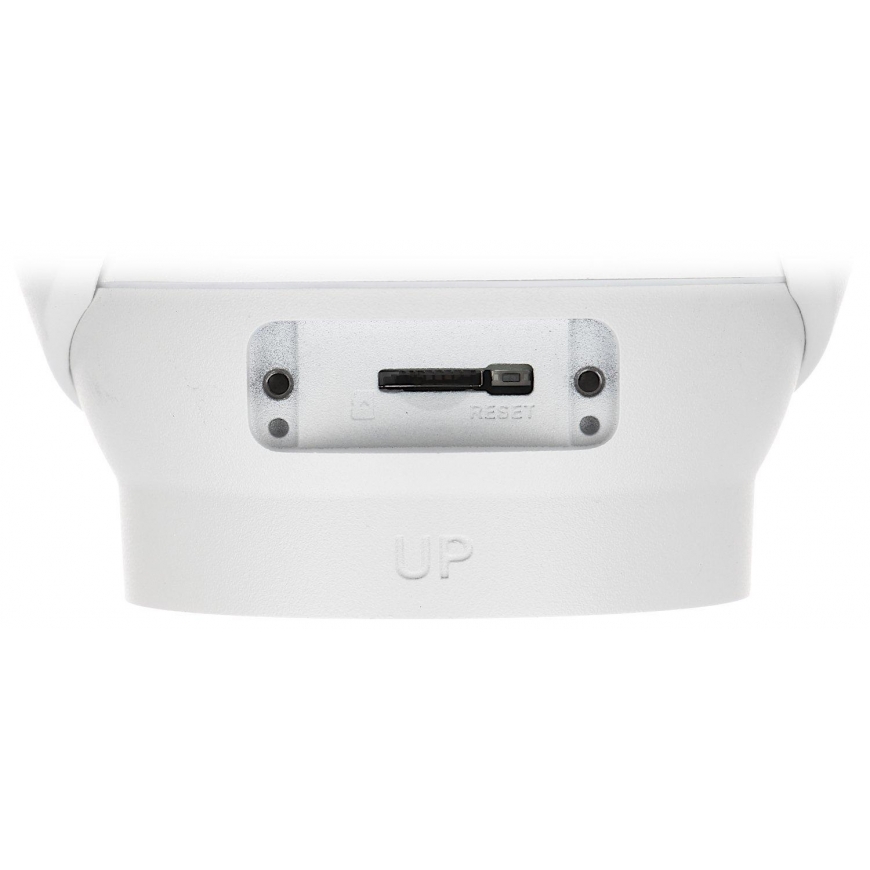

| Memory card slot : | Micro SD card support up to 256GB (local recording possible) |
| Image compression method : | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Alarm inputs/outputs : | - |
| Audio : | Built-in microphone Sound detection Audio transmission over the network |
| Network interface : | 10/100 Base-T (RJ-45) |
| Network protocols : | IPv4/IPv6 , HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, Multicast, ICMP, IGMP |
| WEB Server : | Integrated, Web Viewer |
| Max. number of online users : | 6 |
| ONVIF : | 21.06 |
| Access from a mobile phone : | Port: 37777 or cloud access Android: Free app iOS (iPhone): Free app |
| Default IP Address : | 192.168.1.108 |
| Estimated User Fig. / admin password : | admin / - The administrator password must be entered at first power-up |
| Access port via www : | 80, 37777 |
| Access port through the program to PC : | 37777 |
| Access port via mobile app : | 37777 |
| ONVIF Port : | 80 |
| RTSP URL : | rtsp://admin:hasł[email protected]:554/cam/realmonitor?channel=1&subtype=0 - Main stream rtsp://admin:hasł[email protected]:554/cam/realmonitor?channel=1&subtype=1 - Auxiliary Stream |
| Main stream transfer rate : | 25 fps @ 1080p |
| Selected features : | Motozoom lens - Control from browser level, NVR or software WDR - 120 dB - Wide dynamic range 3D-DNR - Digital noise reduction in the image ROI - improving the quality of selected fragments of the image ICR - mechanical IR filter BLC - configurable backlight compensation HLC - High (point) light compensation Day/night mode Configurable privacy zones IVS analysis : crossing lines , intrusion - classification of people and vehicles |
| Meals : | PoE (802.3af) , 12 V DC / 530 mA |
| Power consumption : | ≤ 5.7 W @ 12 V DC ≤ 6W @ PoE |
| Body : | Dome - Metal |
| Color : | White |
| Anti-vandal : | - |
| Sealing class : | IP67 |
| Working temperature : | -30 °C ... 60 °C |
| Weight : | 0.69 kg |

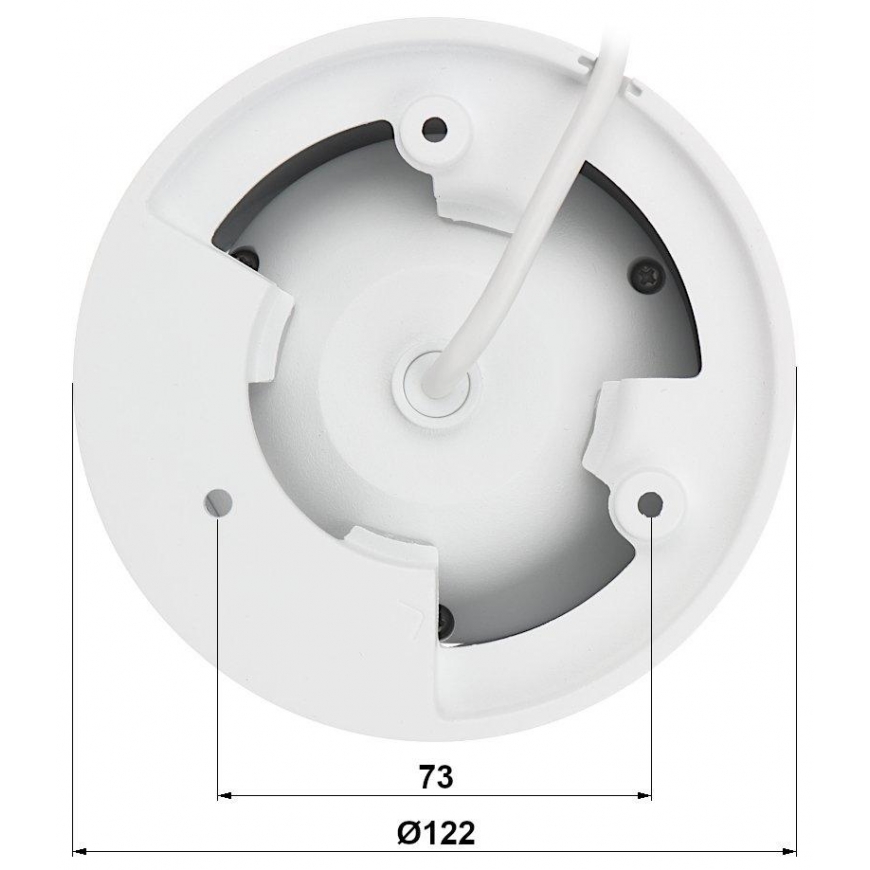

| Dimensions : | Ø 122 x 108 mm |
| Languages served : | Polish, English |
| Manufacturer / Brand : | DAHUA |
| Warranty : | 3 years |
Image from the camera under artificial lighting (about 30 Lux)
Image from the camera at night with the built-in IR illuminator
View from the camera with strong light shining directly on it
