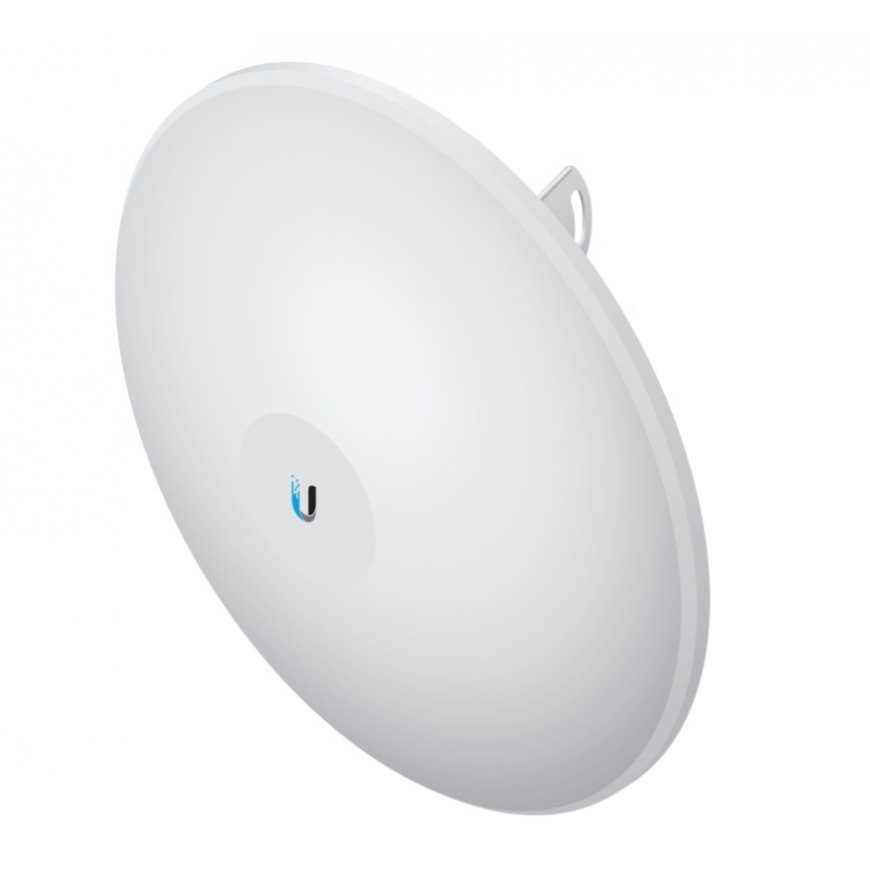

Ubiquiti PBE-5AC-500 network antenna Directional antenna 27 dBi
169,68 €
Monthly payment from 5.27 €
2045495 PBE-5AC-500
0810354022586, 0550000000000, 0810354024993, 4016032919643, 5712505901373, 8592457063353
Shipping 4-5 b.d.
You are interested in this product?
Integrated Radio Design
Ubiquiti’s InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna. This improves performance because it eliminates cable losses.
Performance Breakthrough
airMAX® ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.
Superior Processing
Ubiquiti's airMAX® engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.
Incredible Antenna “Beam” Performance
The form factor of the PowerBeam™ ac features the highest gain for its size. The PowerBeam ac’s excellent beam directivity provides the best performance in high-noise environments.
Advanced Software Technology
Ubiquiti’s airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
Protective Radome
The PowerBeam™ ac PBE-5AC-500 includes a protective radome to shield the radio from nature's harshest elements.
Design | |
| LED indicators | Power, LAN, WLAN |
| Product colour | White |
Antenna | |
| Antenna gain level (max) | 27 dBi |
| Antenna type | Directional antenna |
Features | |
| Built-in processor | Yes |
| Processor frequency | 720 MHz |
| Internal memory | 128 MB |
| Flash memory | 16 MB |
| Processor model | Atheros MIPS 74Kc |
| Internal memory type | DDR2 |
Operational conditions | |
| Operating temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions | |
| Width | 525 mm |
| Depth | 315 mm |
| Height | 525 mm |
| Weight | 3.15 kg |
Other features | |
| Dimensions (WxDxH) | 620 x 620 x 386 mm |
| Frequency band | 5 GHz |
| Mounting | Pole |
Certificates | |
| Certification | FCC, IC, CE |
Technical details | |
| Compliance certificates | RoHS |
Logistics data | |
| Harmonized System (HS) code | 85177100 |
