The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

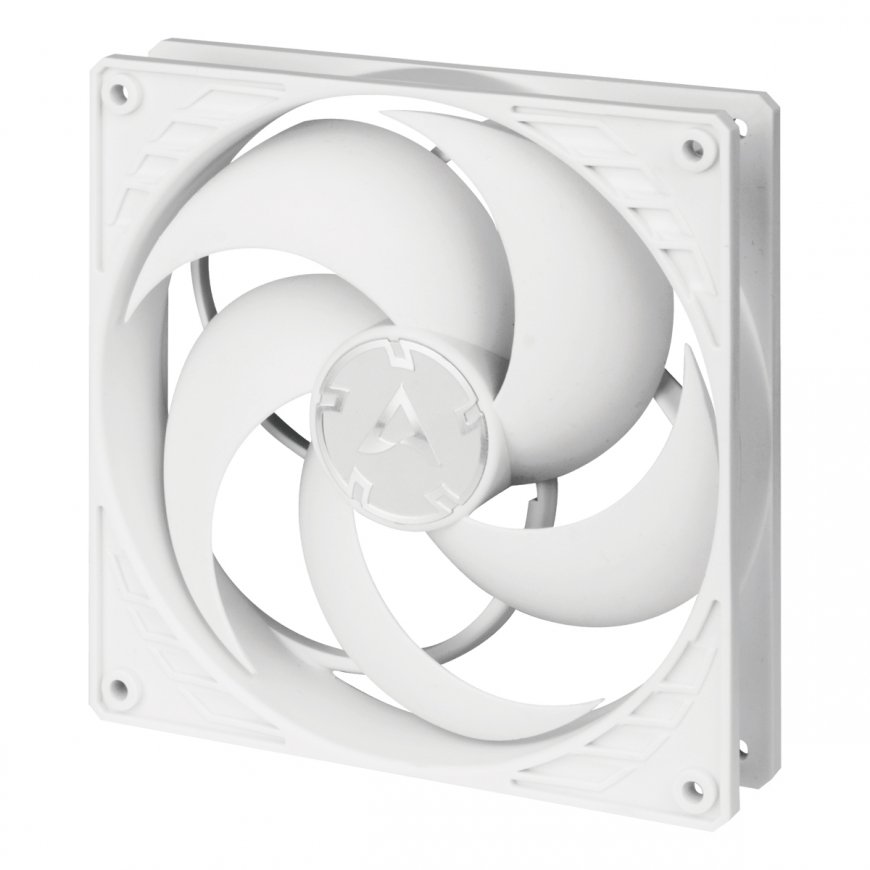

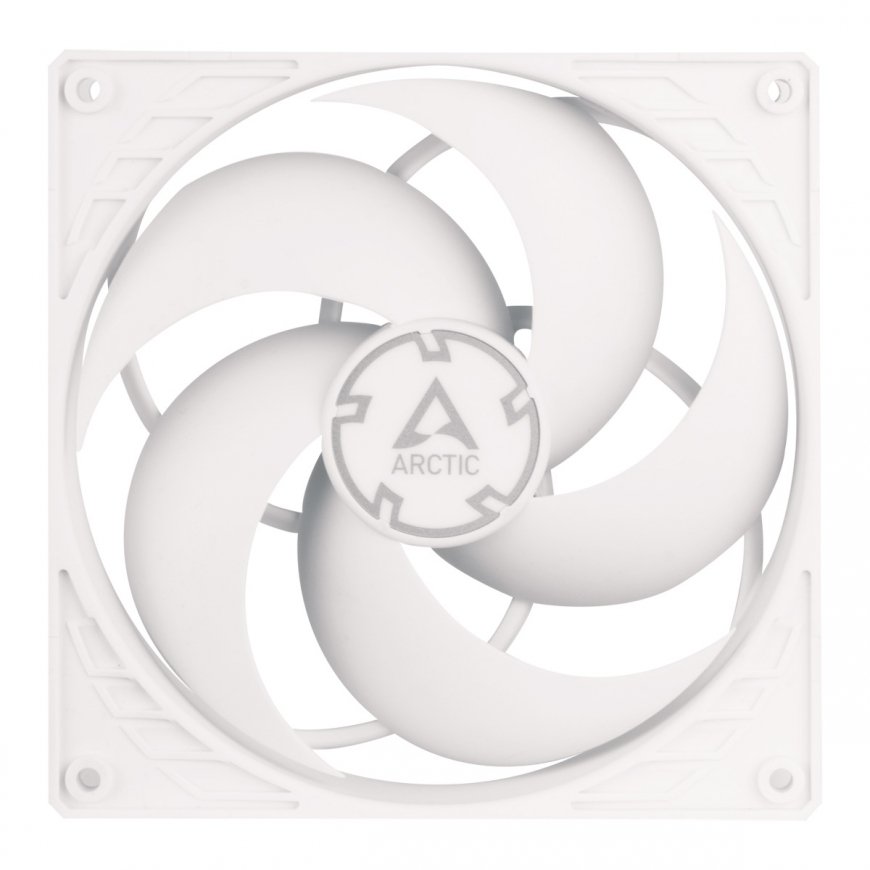

ARCTIC P14 PWM Pressure-optimised 140 mm Fan with PWM
2000580 ACFAN00222A
4895213703093, 0840033400893
Shipping 2-4 days
Optimised for Static Pressure
During the development of the new P14 PWM, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P14 PWM is particularly suitable for use on heatsinks and radiators.
More Efficient Technology
The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new P14 PWM to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance.
Maximum Quietness, Minimum Vibration
Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.

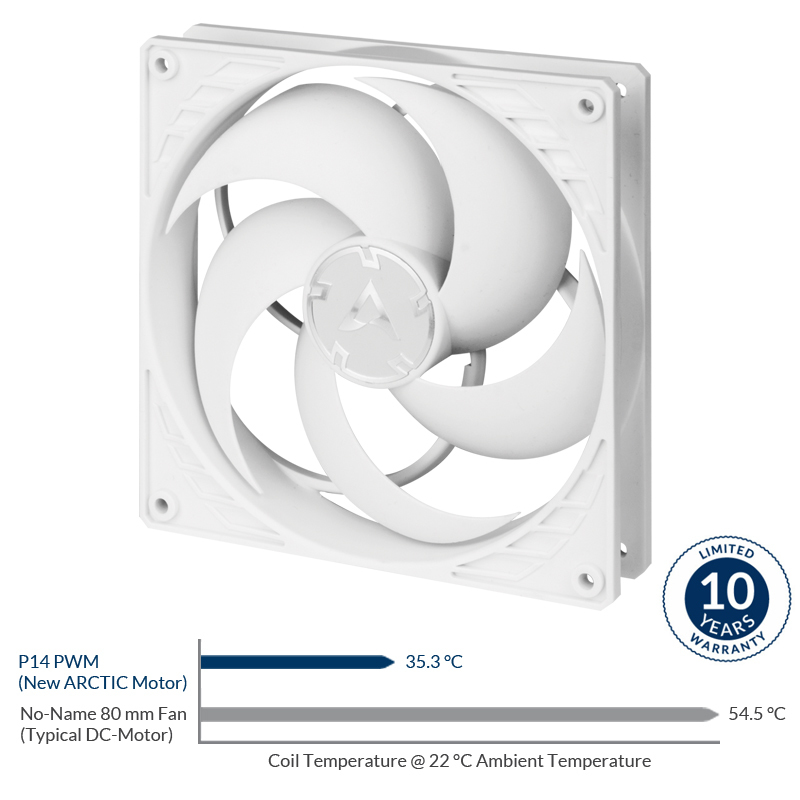

Extended Life Span
A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature. Consequently, we have extended the warranty to 10 years.
200 to 1700 RPM regulated via PWM
Thanks to the 4-pin connector, the RPM can be regulated in a broad spectrum via PWM. In this way, noise is kept at a minimum while maximum cooling performance is guaranteed when needed.

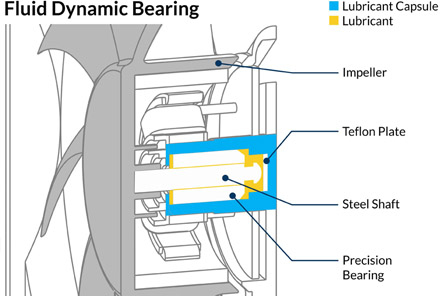

High Quality Bearing
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
Two Way Installation
- Push warm air out of the case
- Pull cool air into your case
Performance | |
| Supported processor sockets | Not supported |
| Type | Fan |
| Fan diameter | 14 cm |
| Airflow | 123.76 m³/h |
| Maximum airflow | 72.8 cfm |
| Maximum air pressure | 2.4 mmH2O |
| Compatible processor series | Not supported |
| Pulse-width modulation (PWM) support | Yes |
| Rotational speed (min) | 200 RPM |
| Rotational speed (max) | 1700 RPM |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Noise level | 0.3 sone |
| Quantity per pack | 1 pc(s) |
| Suitable location | Computer case |
Design | |
| Product colour | White |
| Number of fans | 1 fan(s) |
| Fan connector | 4-pin |
| Number of fan blades | 5 |
Power | |
| Rated current | 0.12 A |
| Power consumption (typical) | 1.44 W |
| Voltage | 12 V |
| Starting voltage | 3.9 V |
Weight & dimensions | |
| Weight | 194 g |
| Package weight | 234 g |
| Height | 27 mm |
| Width | 140 mm |
| Depth | 140 mm |
| Cable length | 0.4 m |
| Package height | 29 mm |
| Package width | 143 mm |
| Package depth | 143 mm |
Packaging content | |
| Screws included | Yes |
| Number of screws | 4 |
| Package type | Box |
Logistics data | |
| Harmonized System (HS) code | 84733080 |
