LevelOne AC1200 Dual Band PoE Wireless Access Point, Ceiling Mount, Controller Managed
LevelOne AC1200 Dual Band PoE Wireless Access Point, Ceiling Mount, Controller Managed
LevelOne AC1200 Dual Band PoE Wireless Access Point, Ceiling Mount, Controller Managed
LevelOne AC1200 Dual Band PoE Wireless Access Point, Ceiling Mount, Controller Managed
LevelOne AC1200 Dual Band PoE Wireless Access Point, Ceiling Mount, Controller Managed
LevelOne AC1200 Dual Band PoE Wireless Access Point, Ceiling Mount, Controller Managed
LevelOne AC1200 Dual Band PoE Wireless Access Point, Ceiling Mount, Controller Managed
LevelOne AC1200 Dual Band PoE Wireless Access Point, Ceiling Mount, Controller Managed
LevelOne AC1200 Dual Band PoE Wireless Access Point, Ceiling Mount, Controller Managed
LevelOne AC1200 Dual Band PoE Wireless Access Point, Ceiling Mount, Controller Managed
LevelOne AC1200 Dual Band PoE Wireless Access Point, Ceiling Mount, Controller Managed
LevelOne AC1200 Dual Band PoE Wireless Access Point, Ceiling Mount, Controller Managed
LevelOne AC1200 Dual Band PoE Wireless Access Point, Ceiling Mount, Controller Managed
LevelOne AC1200 Dual Band PoE Wireless Access Point, Ceiling Mount, Controller Managed
LevelOne AC1200 Dual Band PoE Wireless Access Point, Ceiling Mount, Controller Managed

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

LevelOne AC1200 Dual Band PoE Wireless Access Point, Ceiling Mount, Controller Managed

186,33 €
Monthly payment from 5.70 €
1967986

WAP-8123

4015867229538, 0846359003428, 4015867206652

2026-07-28

Quantity

You are interested in this product?
(Read terms of service)

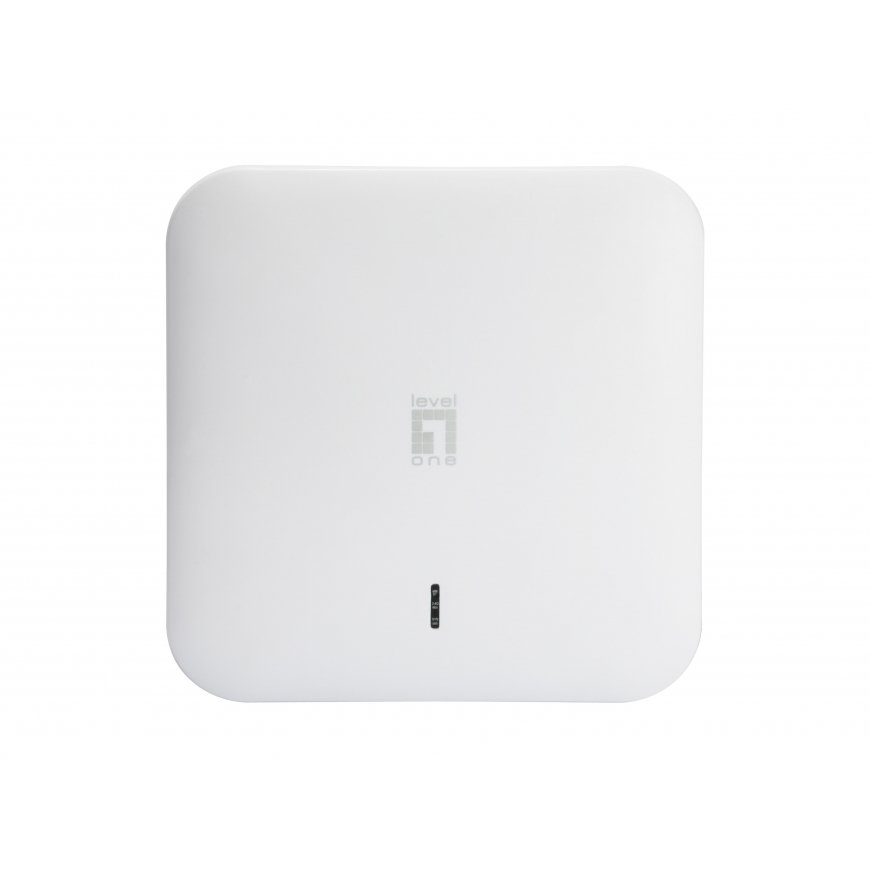

LevelOne’s WAP-8123 is a managed, dual-band wireless access point, Supply 802.11ac Wave 2 MU-MIMO (Multi-User Multiple-Input Multiple-Output), allows multiple devices to get high- bandwidth Wi-Fi signal at the same time, distributing data more efficiently. capable of a combined speed of up to 1200 Mbps. The device runs on 2.4 and 5 GHz frequencies, and can be used as part of a managed network when controlled by the LevelOne WAC-2000/WAC-2003 Wireless LAN Controller. LevelOne WAP-8123 also offers PoE, removing the need for an external power supply, which makes it easy to install. A fast, versatile and secure access point for a wide variety of network requirements.
Wireless LAN features
Modulation 16-QAM, 64-QAM, CCK, DBPSK, DQPSK, OFDM, BPSK, QPSK, 256-QAM, DSSS, 128-QAM
Network
Networking standards IEEE 802.3, IEEE 802.3u, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11i, IEEE 802.11e
Ethernet LAN data rates 10, 100, 1000
Automatic channel selection Yes
Ports & interfaces

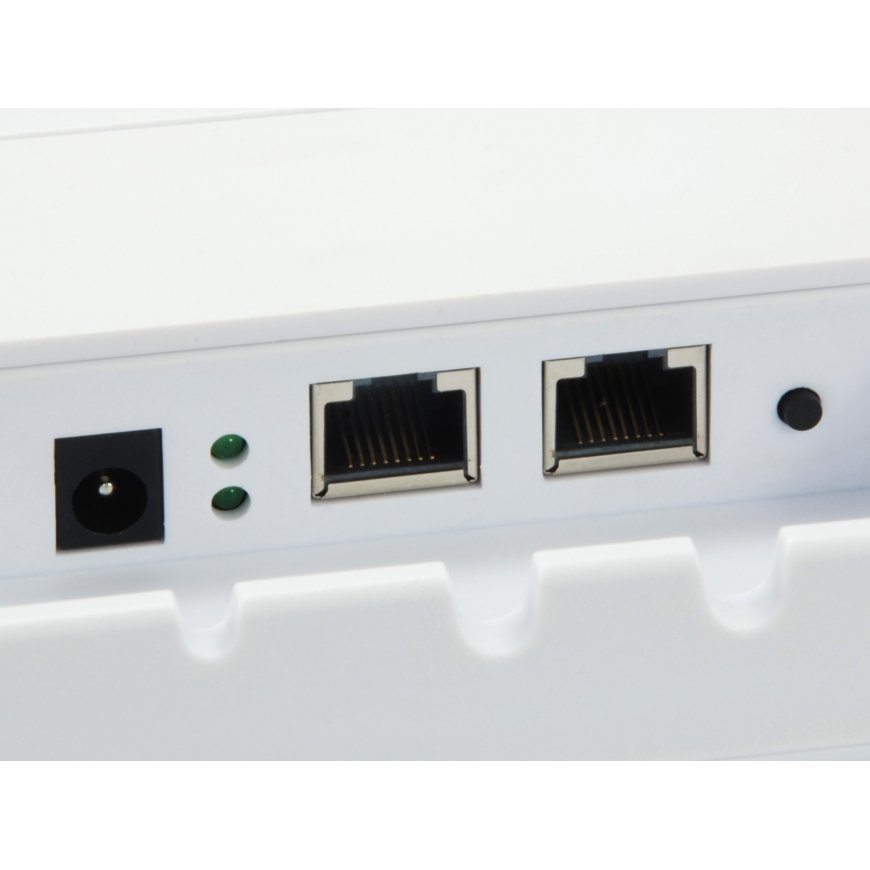

Ethernet LAN (RJ-45) ports 1
USB 2.0 ports quantity 0
DC-in jack Yes
Management features
Web-based management Yes
Reset button Yes
Quality of Service (QoS) support Yes
Wi-Fi Multimedia (WMM)/(WME) Yes
MIMO Yes
Security
Security algorithms WPA, WPA2, WPA2-PSK, 64-bit WEP, 128-bit WEP, TKIP, 128-bit AES
Design
LED indicators Power, Status
Product colour White
Antenna
Antenna gain level (max) 5 dBi
Antennas quantity 4
Features
Firmware upgradeable Yes
Power
Power consumption (typical) 30 W
Power over Ethernet (PoE) Yes
Operational conditions
Operating temperature (T-T) -30 - 55 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 95%
Weight & dimensions
Width 198 mm
Depth 28 mm
Height 198 mm
Weight 520 g
Packaging data
Package width 235 mm
Package depth 81 mm
Package height 243 mm
Package weight 830 g
Package type Box
Other features
Number of users 128 user(s)
Frequency band 2.4 ~ 2.4835, 5.15 ~ 5.35, 5.46 ~ 5.72, 5.725~ 5.825 GHz
Maximum data transfer rate 1200 Mbit/s
Certificates
Certification CE, FCC
Logistics data
Country of origin China
Master (outer) case width 435 mm
Master (outer) case length 491 mm
Master (outer) case height 515 mm
Master (outer) case gross weight 18 kg
Products per master (outer) case 20 pc(s)
Harmonized System (HS) code 85176990
Packaging content
Cables included LAN (RJ-45)
Quick start guide Yes
Mounting kit Yes
