The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

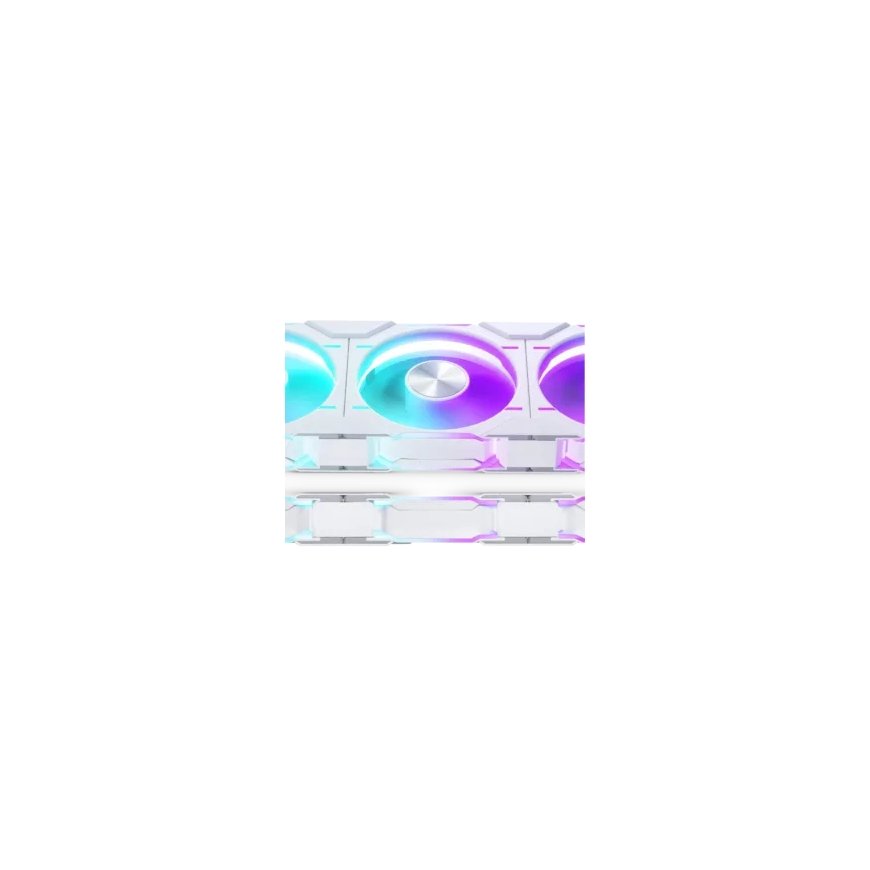

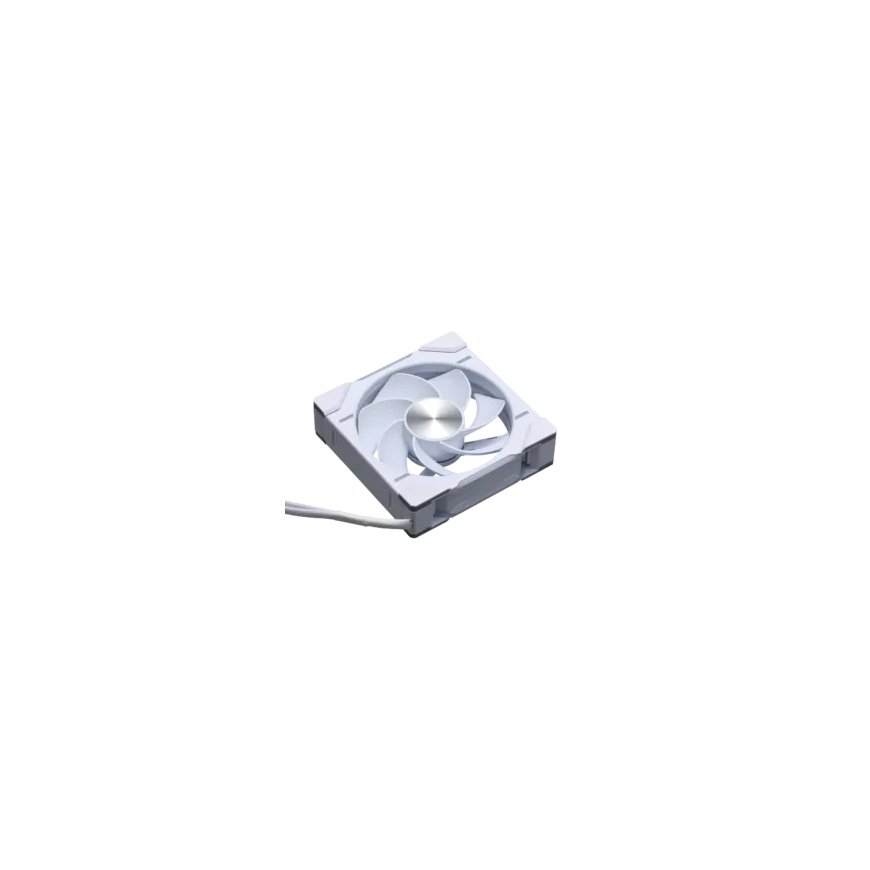

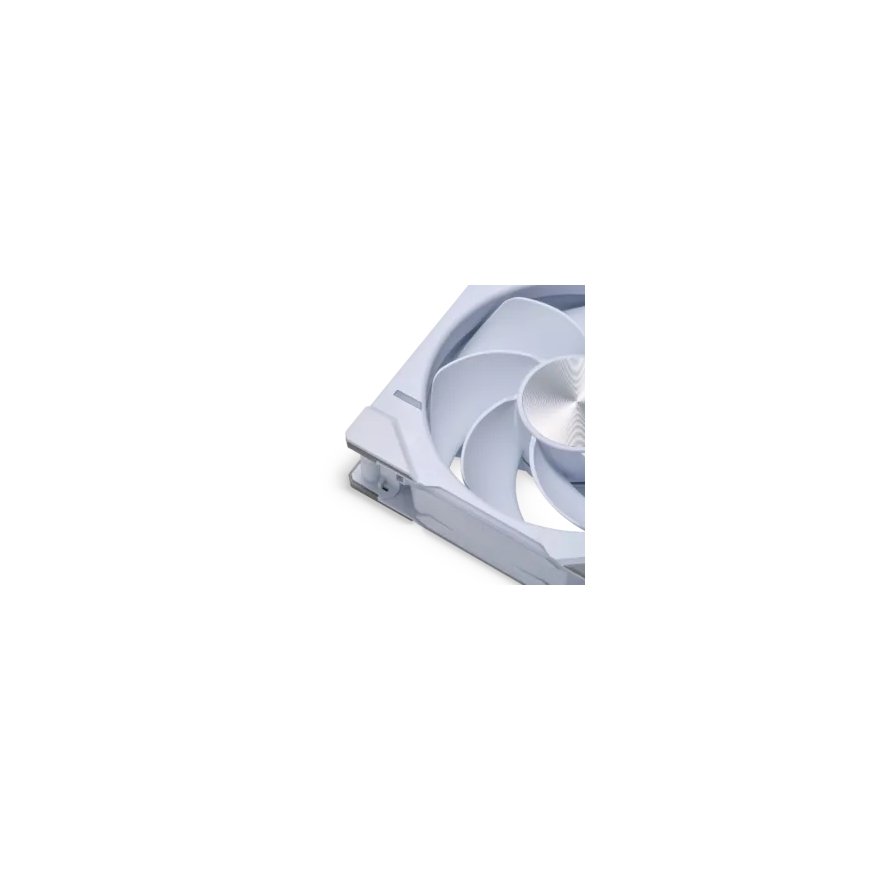

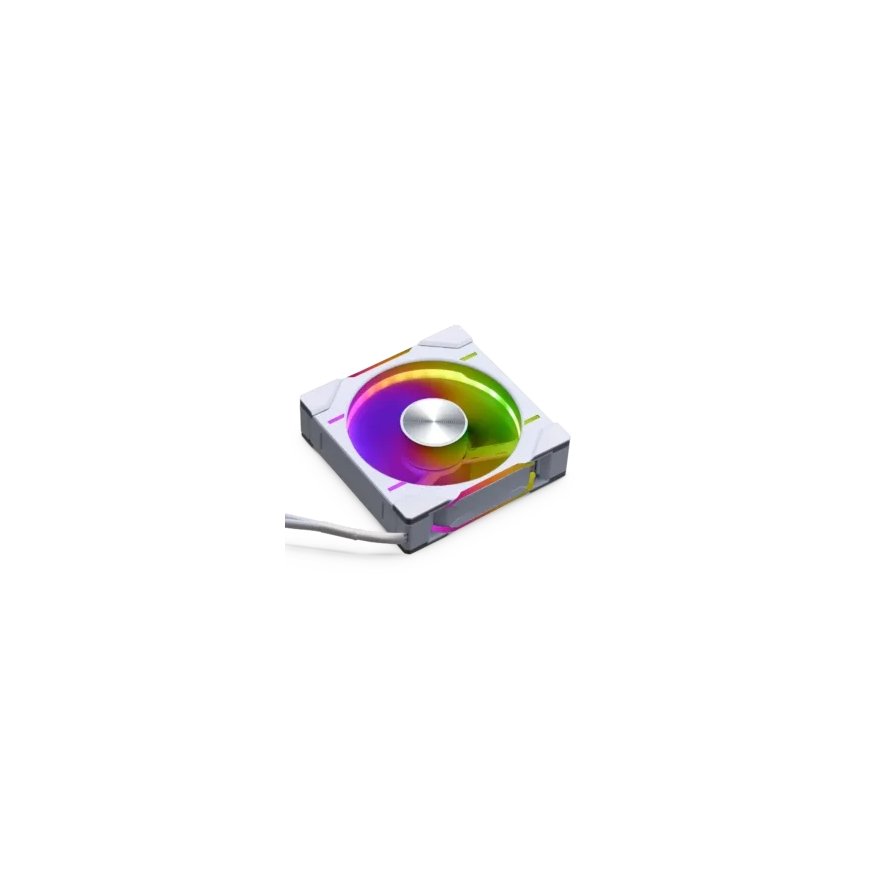

Phanteks D30-120 Computer case Fan 12 cm White 3 pc(s)
109,00 €
Monthly payment from 3.71 €
1959136 PH-F120D30R_DRGB_PWM_WT01_3P
0886523003069
Goods will arrive at the Tallinn warehouse on 09.07.26
You are interested in this product?
The D30-120 combines premium D-RGB lighting with 30 mm thick and aerodynamic fan blades inspired by the ultimate T30 fan, which makes it a true premium D-RGB fan for modern systems. The D30-120 comes in two airflow direction models, regular and reversed. This unique option allows for the ultimate fan configuration for any system.
Regular & Reverse Models
D30 REGULAR
Air moves from front to rear.
D30 REVERSED
Air moves from rear to front.
Clean look in both positions
Clean look with regular and reversed models combined.
Hub spokes blocked view with only regular models.
Link Together as One
Connect up to four D30 fans together with the bridge connectors.
Hide the fan screws with the screw covers for a super-clean look.
Standard PWM fan header to control directly from the motherboard.
30 mm of Performance
Increased thickness improves noise-normalized performance.
Designed to excel on radiators and mesh / dust filters.
D-RGB All the Way
The integrated D-RGB lighting is visible from all sides of the D30 frame.
The blades reflect the light coming from the HALOS lighting ring for a smooth lighting effect.
Compatible with Digital-RGB equipped motherboards and Phanteks Digital-RGB products.
Performance | |
| Type | Fan |
| Mean time between failures (MTBF) | 50000 h |
| Fan diameter | 12 cm |
| Maximum airflow | 61.5 cfm |
| Maximum air pressure | 2.72 mmH2O |
| Noise level (high speed) | 31.8 dB |
| Rotational speed (min) | 250 RPM |
| Rotational speed (max) | 2000 RPM |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Quantity per pack | 3 pc(s) |
| Fan 2 rotational speed (min) | 250 RPM |
| Fan 2 rotational speed (max) | 2000 RPM |
| Fan 2 noise level (high speed) | 31.8 dB |
| Fan 2 maximum airflow | 61.5 cfm |
| Fan 2 maximum air pressure | 2.72 mmH2O |
| Fan speed (min) | 250 RPM |
| Fan speed (max) | 2000 RPM |
| Fan noise level (max) | 31.8 dB |
| Fan static pressure | 2.72 mmH2O |
| Suitable location | Computer case |
Design | |
| Product colour | White |
| Number of fans | 1 fan(s) |
| Illumination LED | Yes |
| Fan connector | 4-pin |
| Number of LEDs | 30 |
| Number of fan blades | 7 |
Power | |
| Power consumption (typical) | 1.8 W |
| Maximum current | 0.45 A |
| Voltage | 5 - 13.2 V |
| LED voltage | 5 V |
| Fan power consumption | 1.8 W |
Weight & dimensions | |
| Package weight | 990 g |
| Height | 120 mm |
| Width | 120 mm |
| Depth | 30 mm |
| Cable length | 0.7 m |
| Fan thickness | 3 cm |
| Fan weight | 300 g |
| Fan dimensions (W x D x H) | 120 x 120 x 30 mm |
| Fan 2 dimensions (W x D x H) | 120 x 120 x 30 mm |
| Fan 2 weight | 300 g |
Technical details | |
| Warranty period | 3 year(s) |
Packaging content | |
| Cables included | 4-pin |
| Package type | Box |
