The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.
Extralink Gigabit PoE Injector 8 Port 8x 1000Mb/s RJ45, Mode B
23,49 €
1923164 EX.6365
5902560366365
Shipping 4-5 b.d.
You are interested in this product?

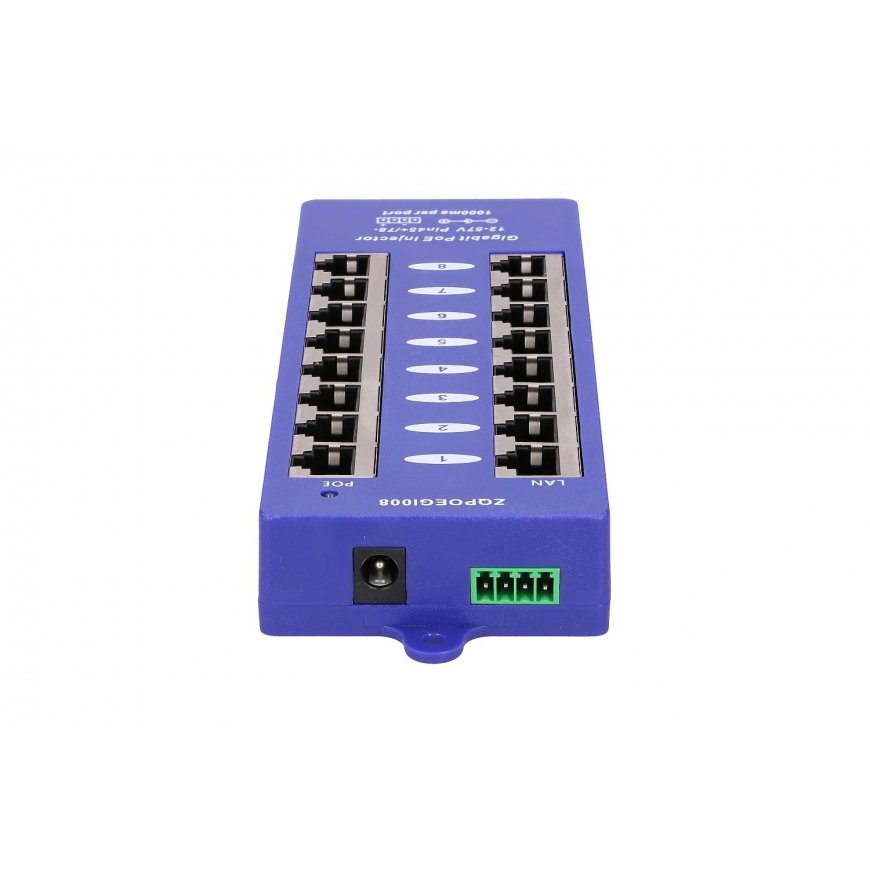

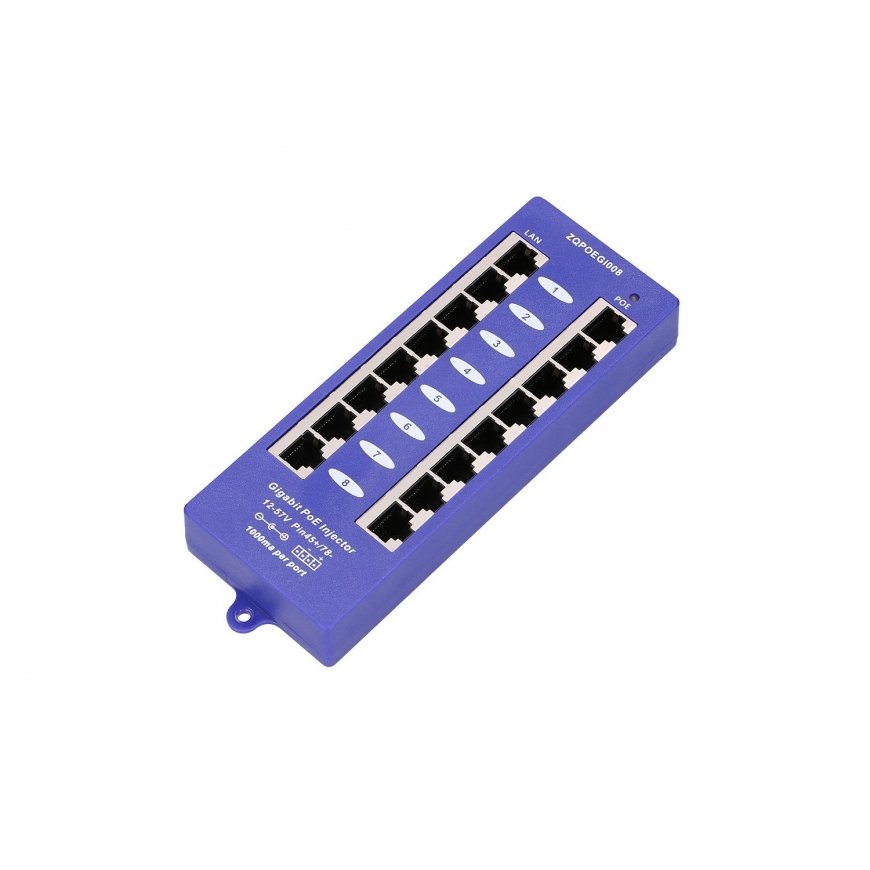

Extralink 8-port PoE injector supports 10/100/1000 M Ethernet throughput. LAN RJ45 connectors are designed to connect the switch/PC/HUB. The POE RJ45 connectors provide data and PoE power at the same time, pins 1/2 & 3/6 & 4/5 & 7/8 are designed for data and pins 4/5 (+) & 7/8 (-) for power. The unit consists of 8 RJ45 sockets and one power outlet for up to 60 V DC. The power input has a diameter of 5.5 mm. The total output power must be less than the maximum input power of the AC-DC supply, otherwise a stronger AC-DC supply must be considered. The recommended power formula for the AC-DC adapter is 10 W per RJ45 kit (1 kit = 2 x RJ45 socket). For example, 8 x 10 W = 80 W for a PoE panel with 8 ports.
| Package type | Box |
| Package width | 200 mm |
| Package depth | 270 mm |
| Package height | 320 mm |
| Plug and Play | Yes |
| Package weight | 1.3 kg |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 16 |
| Ethernet LAN data rates | 10; 100; 1000 |
| Ethernet interface type | Gigabit Ethernet; Fast Ethernet |
| Package volume | 0.4 cm³ |
| Easy to install | Yes |
| Wall mountable | Yes |
| Power over Ethernet (PoE) | Yes |
| RJ-45 input ports | 8 |
| RJ-45 output ports | 8 |
| Power over Ethernet (PoE) voltage | 48 V |
| Cabling technology | 1000/10000 |
| Rack mounting | No |
