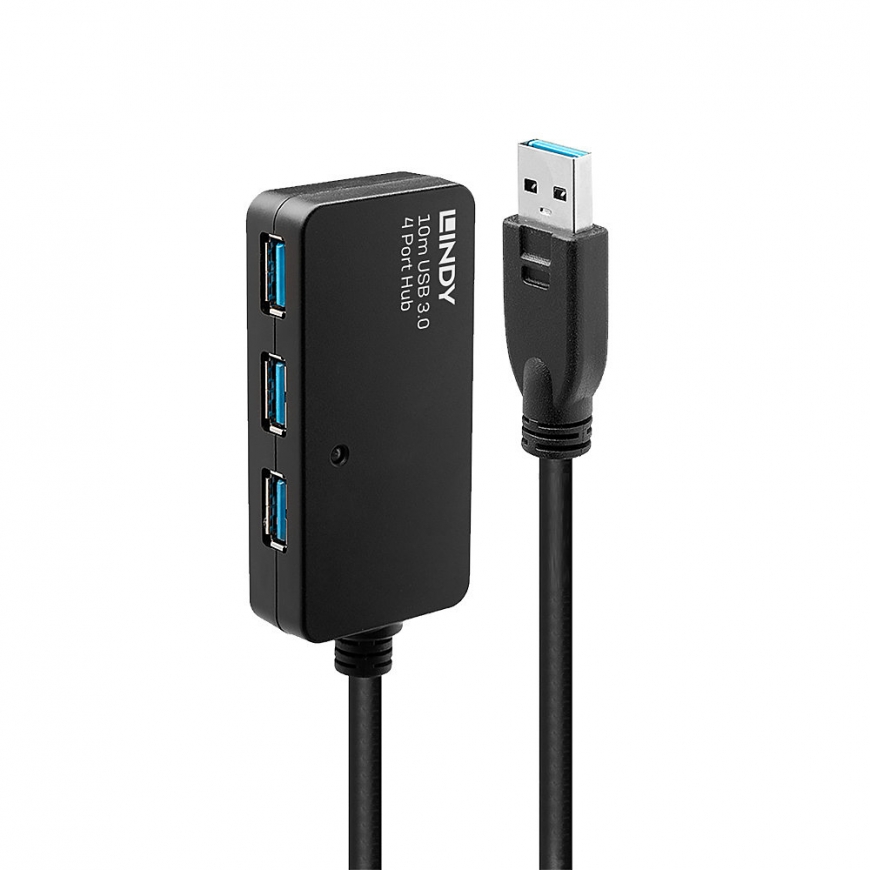

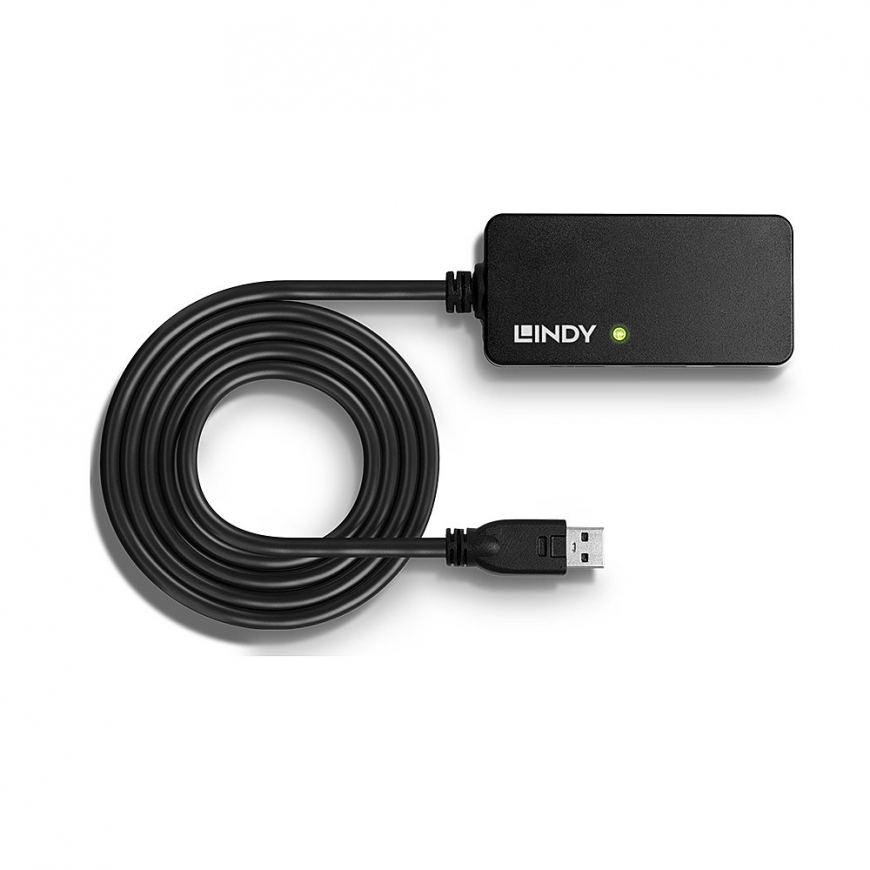

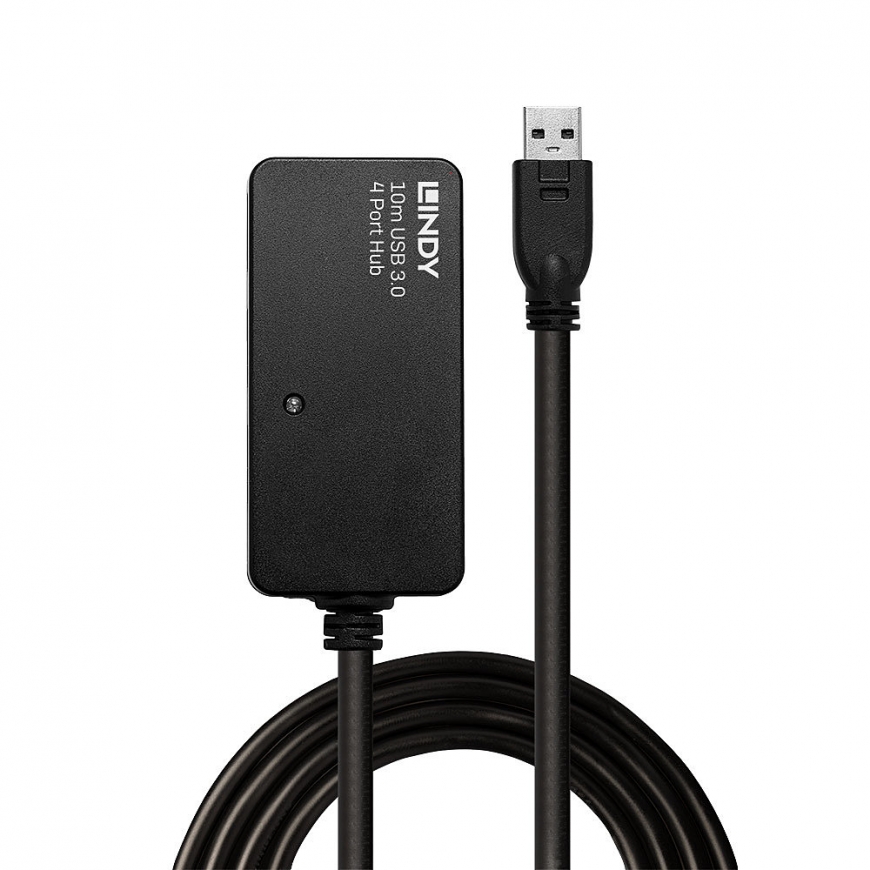

Lindy 10m USB 3.0 Active Extension Pro Hub
127,04 €
Monthly payment from 4.17 €
1126927 43159
4002888431590, 5053866596458
Shipping 2-3 b.d.
You are interested in this product?
This hub features industry-proven active technology and locking connectors to ensure full signal integrity in the most demanding environments.

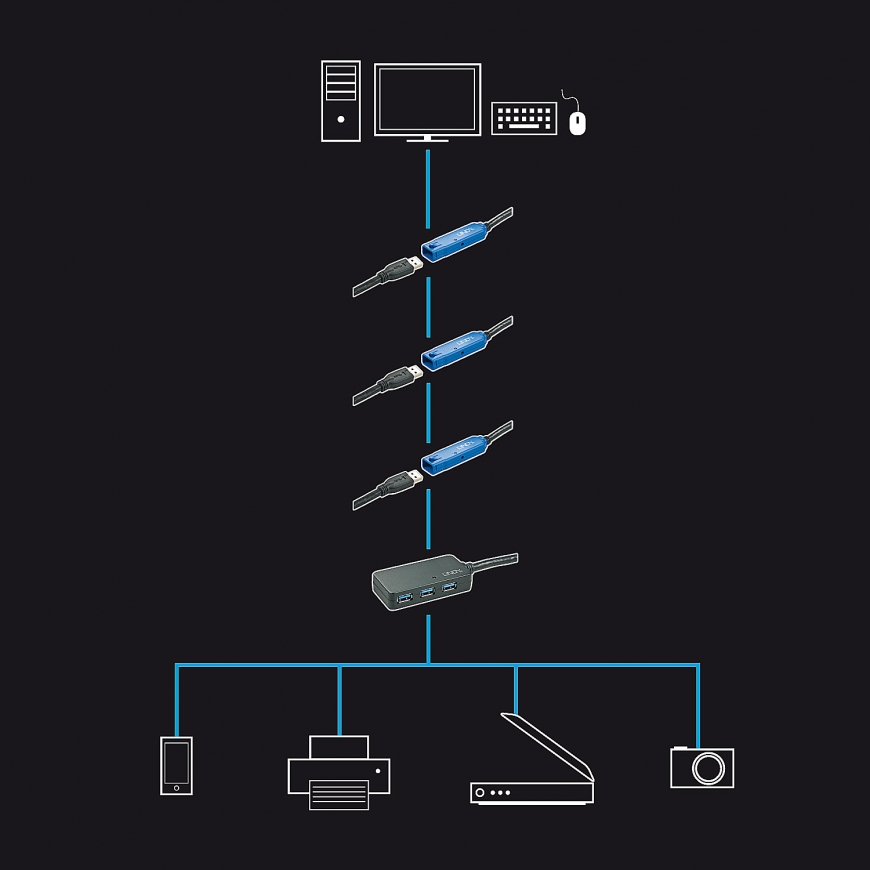

This 10m extension hub can be used on its own or as part of the Lindy USB 3.0 Active Extension System Pro. This system is a modular solution that can combine multiple USB Active Extension Pro cables and this Active Extension Pro hub. It enables the distribution of USB signals to up to 4 devices at distances of up to 40m (depending on the cable configurations used).
Using this hub as part of the USB 3.0 Active Extension System Pro
If you would like to use this hub as part of combined Lindy USB 3.0 Active Extension System Pro installation, please note the requirements below.
This Active Extension Hub Pro must be installed as the final part of the extension system.
The first unit connected to your computer must always be the USB 3.0 Active Extension Pro 8m (No. 43158) or 15m (No. 43229). Once the first cable is connected, you can cascade additional Extension System Pro cables to extend the distance up to a maximum of 40m.
The final part of the extension can be any cable or hub from the Extension System Pro range.
If you need to extend multiple devices or connect a USB device with high power requirements, you should use the 10m Hub Pro unit with its power supply as the final part of the extension.
Information about USB 3.0, 3.1 and 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
Ports & interfaces | |
| Ports quantity | 4 |
| DC-in jack | Yes |
| Hub interfaces | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
Features | |
| Data transfer rate | 5000 Mbit/s |
| LED indicators | Yes |
| Product colour | Black |
| Cable length | 10 m |
| Plug and Play | Yes |
| Certification | CE, UKCA, FCC, RoHS, REACH, California Proposition 65 |
| Cable type | Round cable |
| Housing material | Plastic |
| AWG wire size | 24/24/20 |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Cable diameter | 7 mm |
| Plating material | Nickel |
| Conductor material | Tinned copper |
| Contact material | Brass |
| Connector contacts plating | Gold |
| Nominal attenuation | 0.064MHz - 0.08dB 0.256MHz - 0.11dB 0.512MHz - 0.13dB 0.772MHz - 0.15dB 1.0MHz - 0.20dB 4MHz - 0.39dB 8MHz - 0.57dB 12MHz - 0.67dB 24MHz - 0.95dB 48MHz - 1.35dB 96MHz - 1.90dB 200MHz - 3.20dB 400MHz - 5.80dB |
| Transmission medium | Twisted pair |
| Bend radius (min) | 3.6 cm |
Power | |
| Power note | 3.5/1.35mm DC |
Weight & dimensions | |
| Weight | 790 g |
| Depth | 38 mm |
| Height | 15 mm |
| Width | 80 mm |
| Connector 1 dimensions (WxDxH) | 15 x 42 x 8 mm |
Packaging data | |
| Package weight | 900 g |
| Package depth | 200 mm |
| Package height | 70 mm |
| Package width | 240 mm |
| Package type | Box |
| Quantity per pack | 1 pc(s) |
Packaging content | |
| Manual | Yes |
Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating temperature (T-T) | -20 - 60 °F |
Logistics data | |
| Harmonized System (HS) code | 84719000 |
Design | |
| Cable shielding | Aluminum mylar foil |
