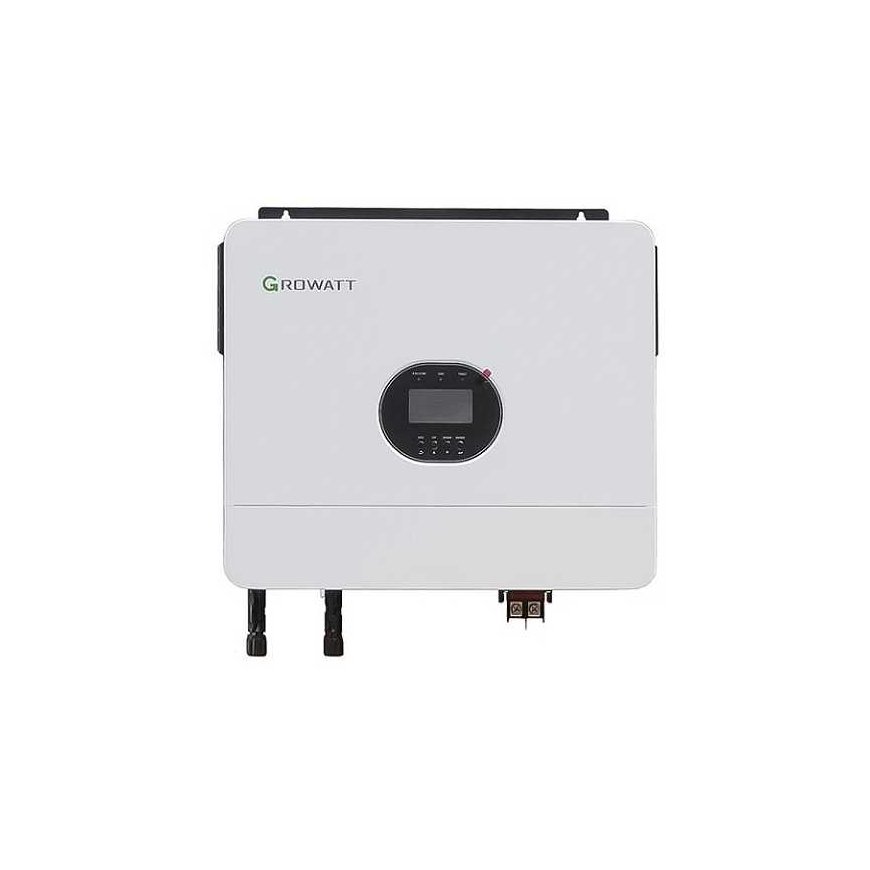

Inverter GROWATT SPF6000ESP, 6kW, 1-phase, 48V, 100A MPPT, 500V
829,00 €
Мес. плата от 22.25 €
3199127 SPF6000ESP
9990000822423
Доставка 2-4 р.д.
Notify you about this product?
Features:
Combines the functions of an inverter, MPPT 100A solar charger and battery charger to provide uninterrupted power support while remaining portable.
LiFePO4, lithium, lead acid batteries are supported.
Operation parameters and priorities can be set on the LCD screen as needed.
Nominal power 6kW. The power of solar panels is up to 8kW.
The maximum PV open circuit voltage reaches 500V DC, MPPT voltage 120~450V DC, which allows full use of solar energy.
Supports parallel connection to increase power, can operate up to 6 devices in parallel.
2 MPPT inputs.
Integrated MPPT 100A PV charge controller.
Combines solar, AC or battery power to ensure continuous power.
Allows flexible planning of inverter charging and discharging time.
Supports WiFi and GPRS remote monitoring.
Compatible with Internet interface Growatt Shine WiFi-F (code NV820337).
Technical data:
Battery voltage: 48V DC.
Nominal power: 6000W.
Fuse tripping: at 12000VA.
Waveform: True sinusoid.
Battery type: lithium/lead acid.
Switching time: 10ms/20ms.
Frequency: 50/60Hz.
PV open circuit voltage max.: 500V DC.
MPPT voltage range: 120~450V DC.
Max. solar charge current: 100A.
Power of solar panels: 8000W.
Safety class: IP20.
Screen: LCD.
Operating temperature: -0°C ~ +55°C.
Dimensions: 460x395x132 mm.
Weight: 13.5 kg.
Warranty: The warranty of the voltage converter (inverter) is valid from the day when we (the seller) are provided with the serial number of the inverter, the purchase invoice, a certified electrician's or es certificate at the time of delivery of the solar power plant about the installed:
1) Lightning arrester and overvoltage limiter (on the input side)
2) Lightning protection (between solar panels and inverter)
3) DC voltage disconnector between panels and inverter
4) Separate grounding of solar panels, from common house grounding.
The 2-year (24-month) manufacturer's warranty is valid from the date of purchase of the inverter upon submission of the above documents.
Note: Lightning strike is an insurable event, not a warranty event.
Specifications
| Battery voltage | 48V DC (Lithium / Lead-acid) |
| Inverter output | |
| Rated power | 6000VA / 6000W |
| Parallel capability | yes, max 6 units |
| Surge power | 12000 VA |
| Waveform | pure sine wave |
| AC voltage regulation (Battery mode) | 230V AC +/- 5% @ 50/60Hz |
| Transfer time | 10ms (typical) / 20ms (max) |
| AC charger | |
| Charge current | 80A |
| Voltage | 230V AC |
| Selectable voltage range | 170~280V AC (for PC) / 90~280V AC (for home appliances) |
| Frequency range | 50Hz / 60Hz (Auto sensing) |
| Efficiency | |
| Inverter efficiency (peak) | 93% |
| Solar charger | |
| Maximum PV array open circuit voltage | 500V DC |
| MPPT range @ operating voltage | 120~450V DC |
| Number of independent MPP trackers | 2 |
| Strings via MPP tracker | 1 |
| Max. input current via MPP tracker | 16A |
| Maximum solar charge current | 100A |
| Maximum PV array power | 8000W |
| General specifications | |
| Dimensions(W*H*D) | 460*395*132 mm |
| Protection degree | IP20 |
| Even weight | 13.5 kg |
| Altitude | < 2000 |
| Operating temperature | 0°C to 55°C |
| Humidity range (non-condensing) | 5% - 95% |
| Storage temperature | -15°C to 60°C |
