OUTPUT/INPUT EXPANDERS MCX4D ROGER
3076073 MCX4D
5907608961625
This product is no longer in stock

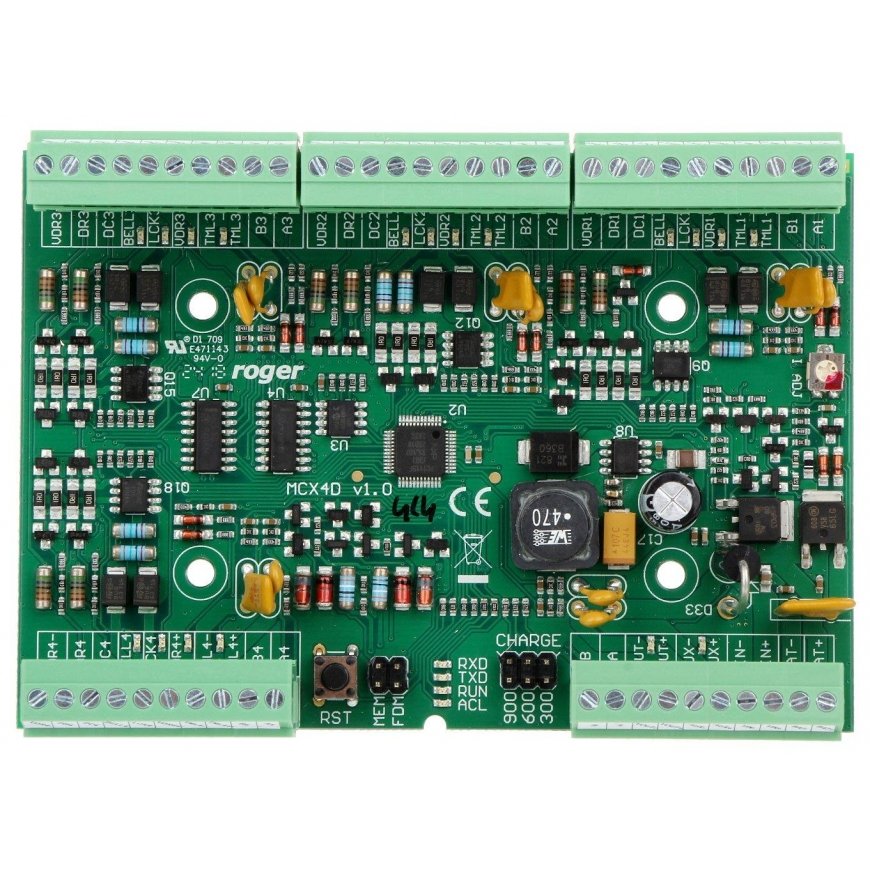

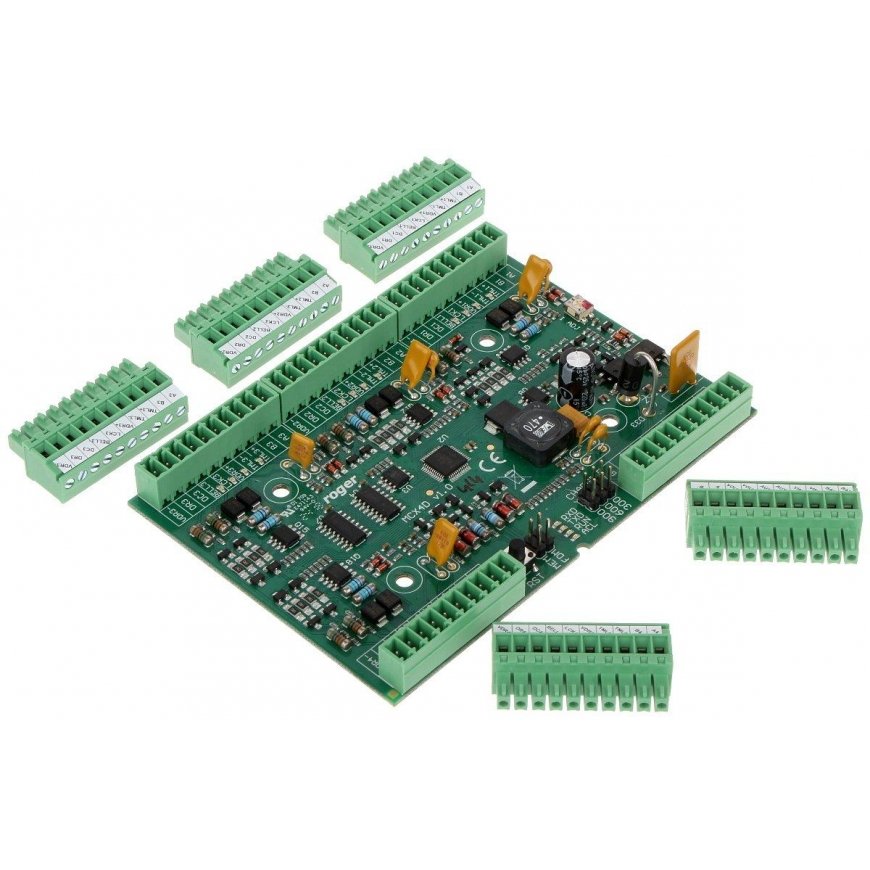

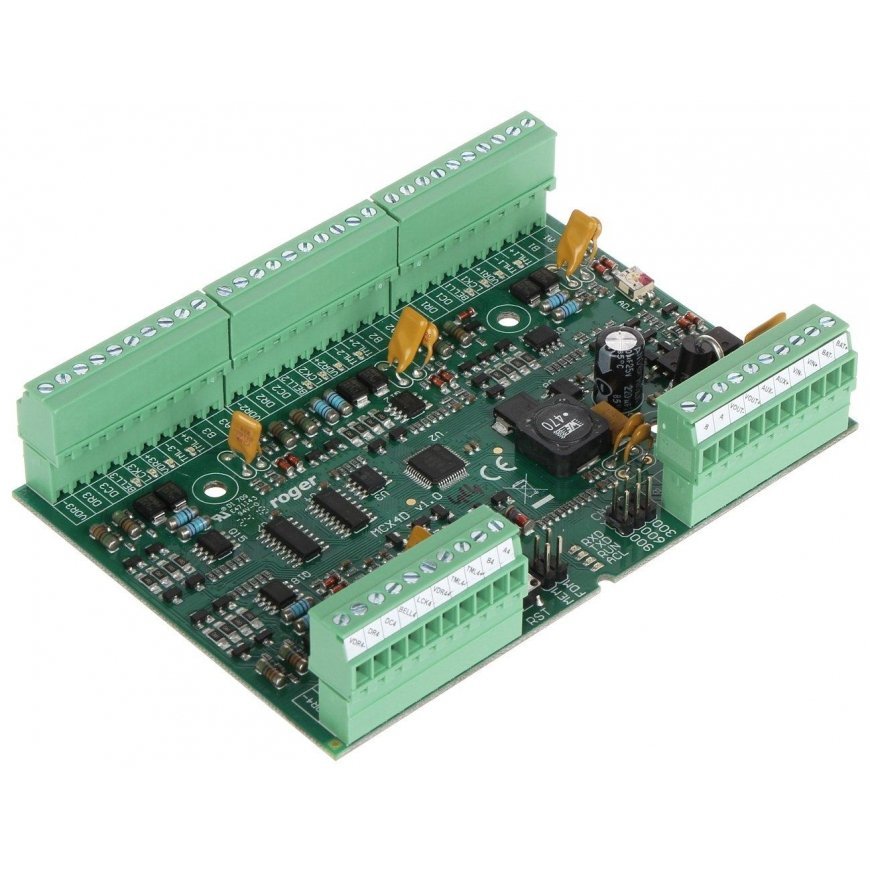

MCX4D is an input and output expander designed for use in the access control system RACS 5.
The module is designed to handle 4 transitions, act as a power and communication distributor, and serve a backup battery.
For each service transition, the extender offers: 2 inputs, 2 outputs, a communication interface for readers and 2 power outputs.
The electrical circuits designed to serve each transition are electrically isolated from each other, which means that an accident or sabotage in one of the transitions does not affect the operation of the remaining transitions.
Expander MCX4D is powered by an external power supply 13.8 VDC, which at the same time is the source of power locks, readers and other transition elements.
In the event of a power failure, the entire system is powered by a backup battery that can be charged as needed.
| Number of transitions served : | 4 |
| Meals : | 13.8 V DC |
| Main features : | Transistor outputs: 4 Power distribution for 4 transitions Communication bus distribution 4 power outputs 12 V/1 A 4 power outputs 12 V/0.2 A Communication Communication interface RS485 to the access controller Power supply to the access controller notification Protection against deep battery discharge Battery charging current: 0.3 A / 0.6 A / 0.9 A |
| Weight : | 0.111 kg |
| Dimensions : | 115 x 86 x 45 mm |
| Manufacturer / Brand : | ROGER |
| Warranty : | 3 years |
