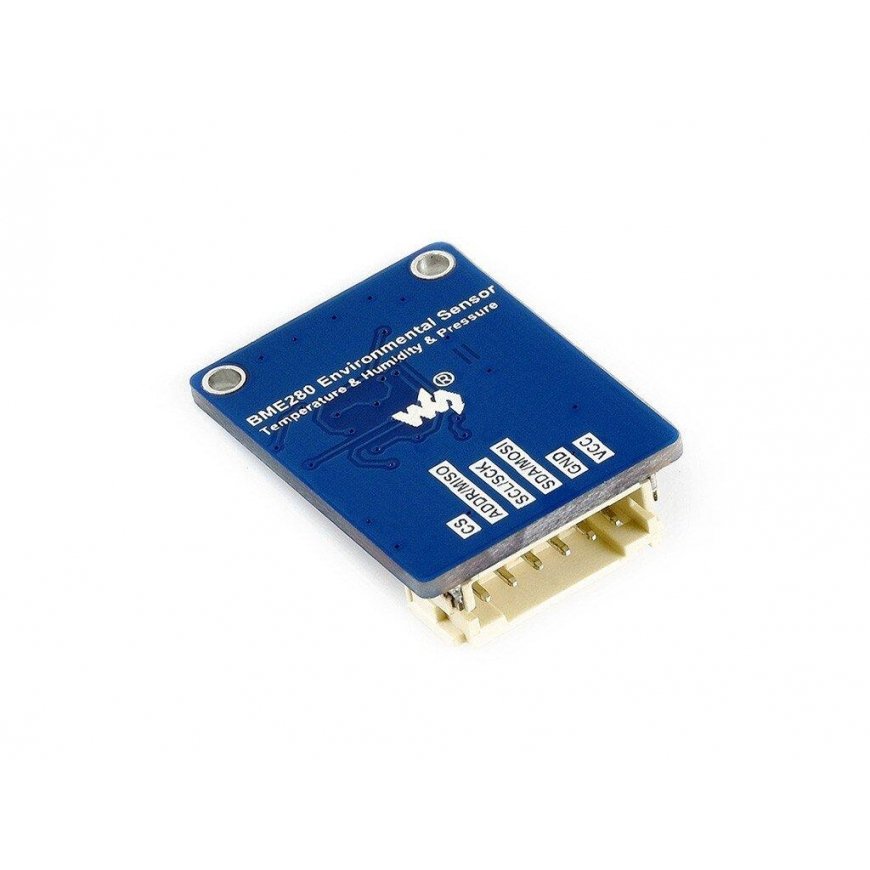

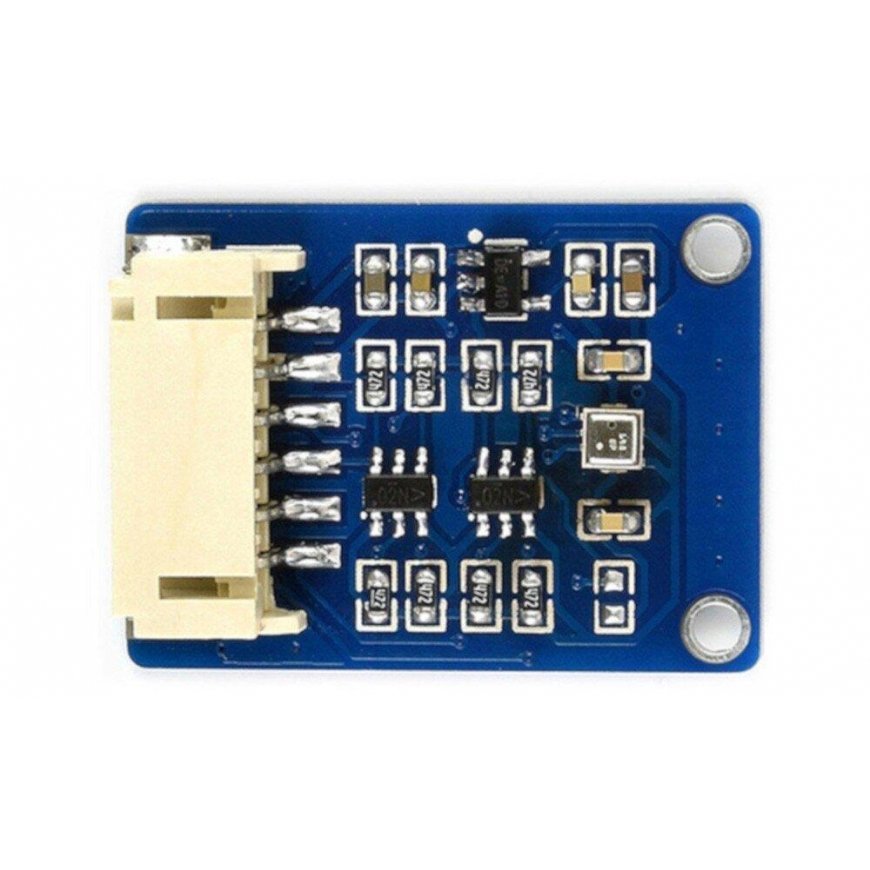

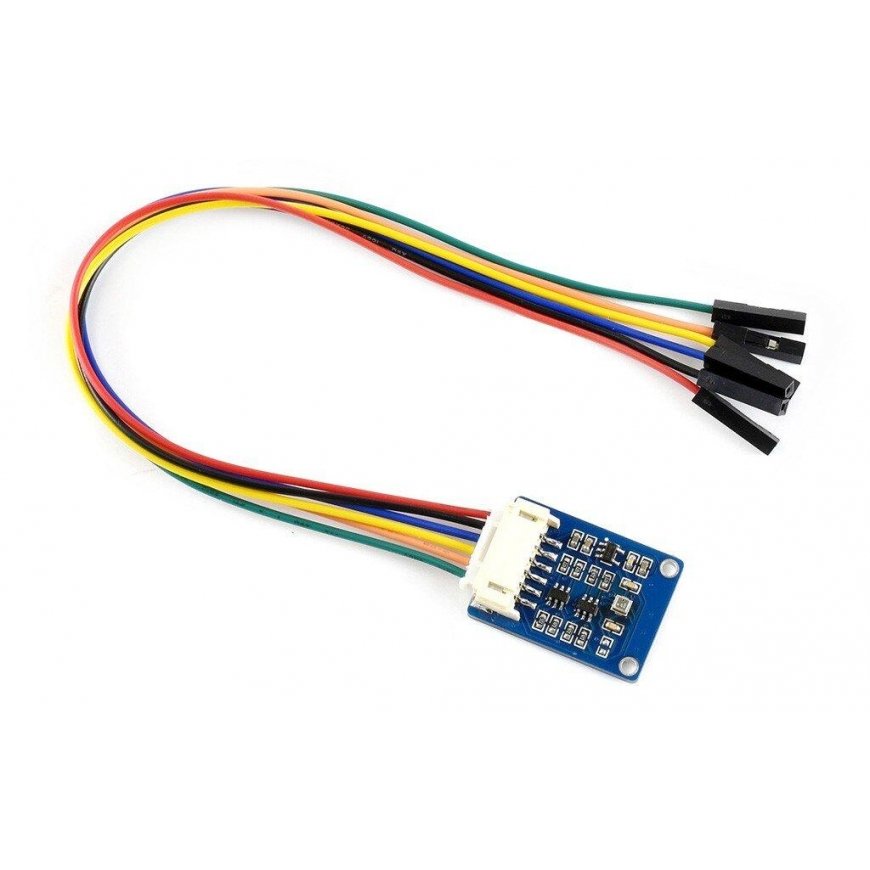

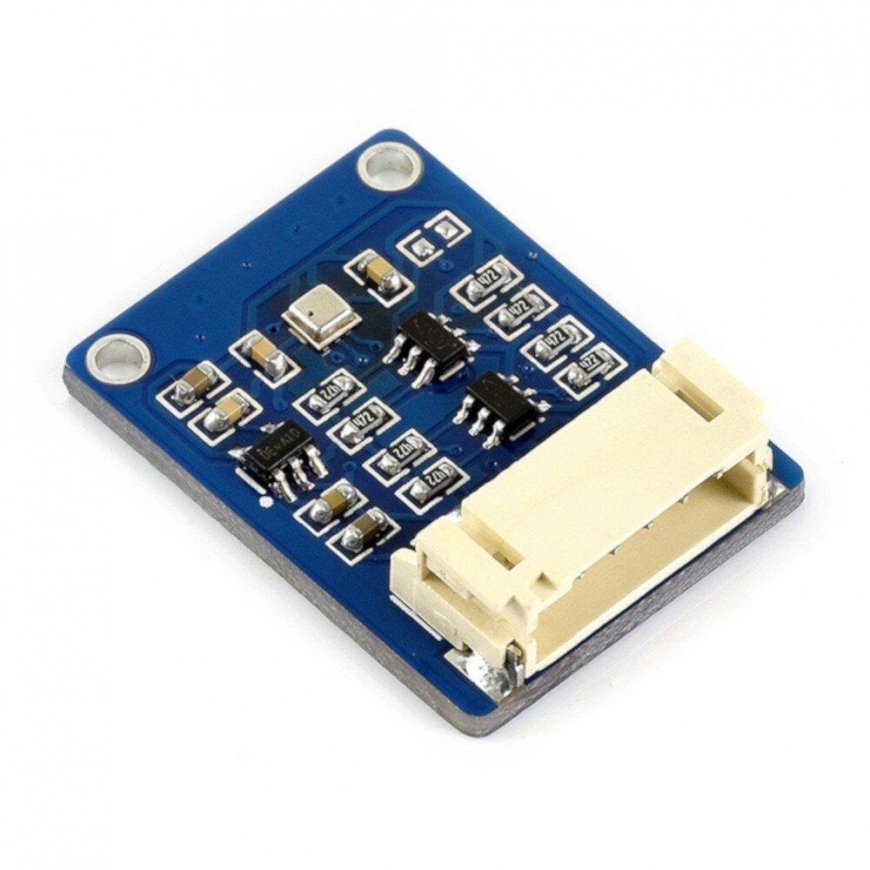

BME, humidity, temperature and pressure sensor I2C/SPI, 3.3V/5V, Waveshare 15231
29.00 €
3695004 AN-13463
5904422377304
Piegāde 11-18 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
The humidity, temperature, and pressure sensor is powered by 3.3 V or 5 V voltage with I2C and SPI interface. Measurement range: temperature: from -40 °C to 85 °C, humidity: from 0% to 100% RH, pressure: from 300 hPa to 1100 hPa.
Key features:
- Default connection: I2C, configurable address
- Supports SPI connection
- Operates at 3.3 V and 5 V voltage
- Compatible with: Raspberry Pi, Arduino, STM32
Specifications:
- Operating voltage: 3.3 V or 5 V
- Interface: I2C / SPI
- Temperature:
- measurement range: from -40 °C to 85°
- resolution: 0.01 °C
- accuracy: ±1 °C
- Humidity:
- measurement range: from 0% to 100% RH
- resolution: 0.008% RH
- accuracy: ±3% RH
- response time: 1s
- delay: ≤2% RH
- Pressure:
- measurement range: from 300 hPa to 1100 hPa
- resolution: 0.18 PA
- accuracy: ±1 hPa
- Current consumption: up to 0.1 mA / 1 Hz
- Dimensions: 27 x 20 mm
- Mounting hole sizes: 2 mm
