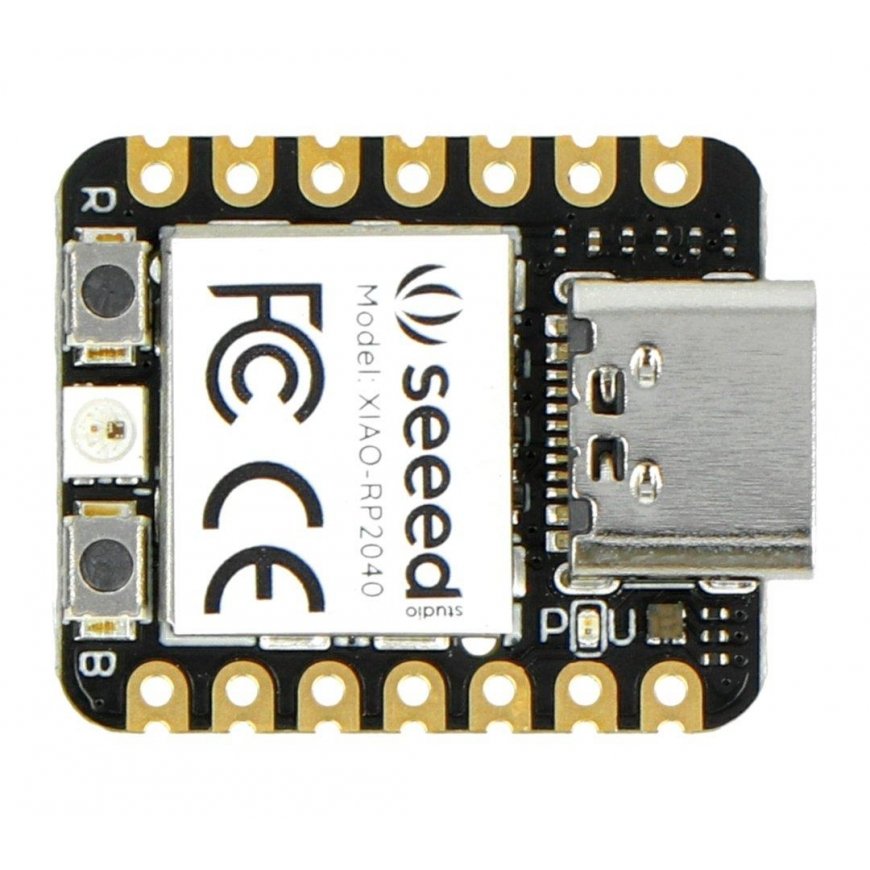

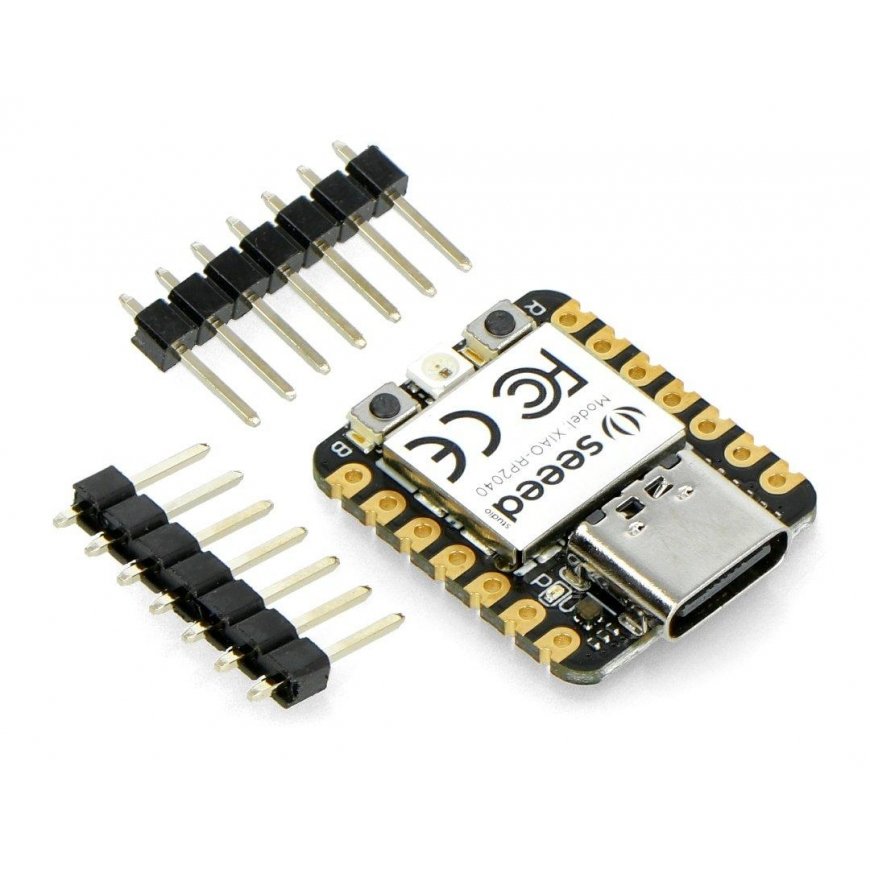

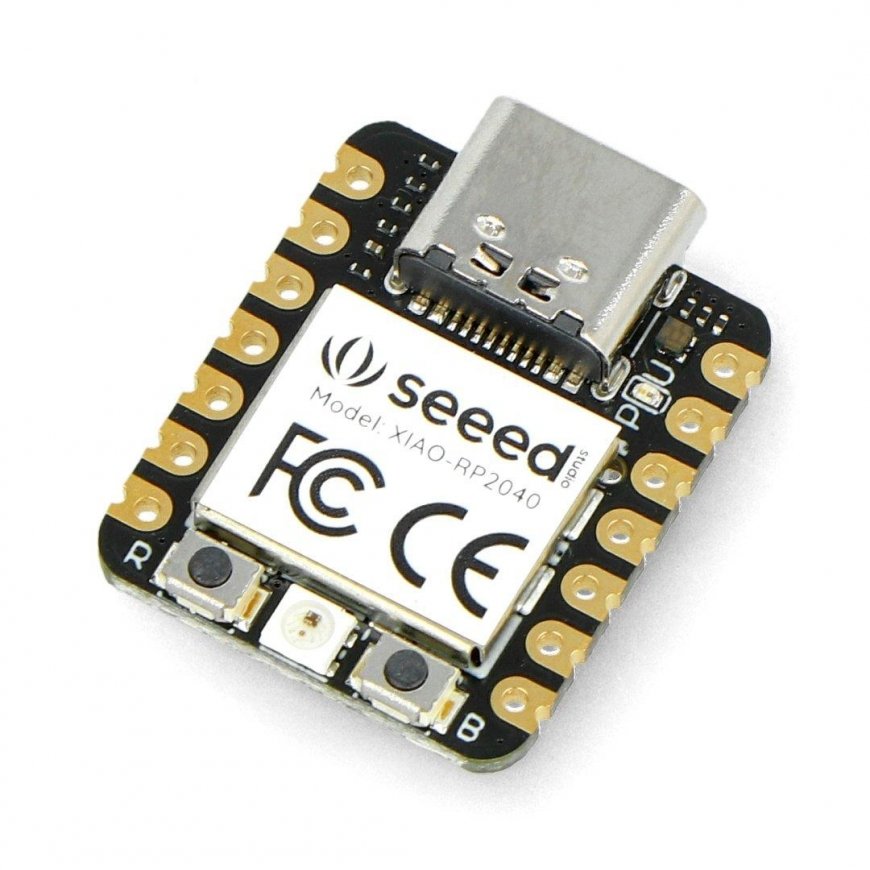

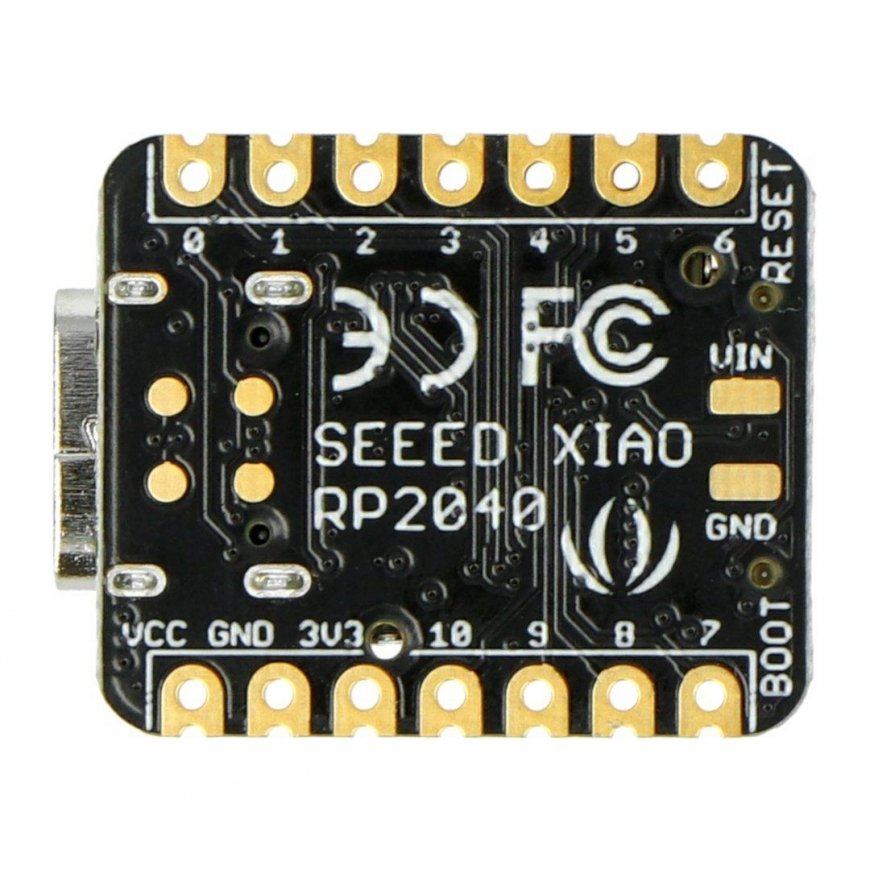

Seeed Studio Seeed Xiao RP2040 - ARM Cortex M0+ - Seeedstudio 102010428
3693907 AN-19980
5904422379834
Piegāde 11-18 d.d.
Viss par produktu
A small board with a very powerful Raspberry Pi RP2040 microcontroller. The Xiao RP2040 module is manufactured by Seeedstudio. The MCU with a dual-core ARM Cortex M0+, with a clock frequency of 133 MHz, can be programmed using Arduino, MicroPython, and CircuitPython. The board has interfaces that allow for multiple programs to be created. The Xiao RP2040 is another board from the Xiao series. Like the Xiao Seeeduino, it is compact and has many interfaces. The module is equipped with the same chip as the Raspberry Pi Pico and Arduino RP2040, 264 kB of SRAM, and 2 MB of internal flash memory and can be programmed in C/C++ and MicroPython. The Seeed Xiao RP2040 has 11 digital pins, 4 analog pins, 11 PWM pins, I2C, UART, and SPI interfaces. The Xiao is programmed via a USB Type-C interface. Additionally, the board has a Reset and Boot button, one programmable RGB LED, a power LED, two status LEDs, and one free-form LED.
Key features:
- Powerful microcontroller: dual-core ARM Cortex M0+, with a clock frequency of 133 MHz
- Resources: 264 kB SRAM and 2 MB flash memory
- Wide compatibility: supports MicroPython / Arduino / CircuitPython
- Easy to design: works with breadboards, SMD design, no components on the back of the board
- Small size: thumb-sized board (20 x 17.5 mm)
- Multiple interfaces: 11 digital pins, 4 analog pins, 11 PWM pins, 1 I2C interface, 1 UART interface, 1 SPI interface, 1 SWD connector
- Compatibility: all pins are compatible with Seeeduino Xiao and Seeeduino Xiao expansion board
- Microcontroller: Raspberry Pi RP2040 dual-core ARM Cortex M0+ 133 MHz
- Memory: 256 kB SRAM, 2 MB Flash
- Input/output pins: 11 digital, 4 analog, 11 PWM
- Interfaces: 1 I2C, 1 UART, 1 SPI, 1 SWD
- Power and programming: USB Type C
- LEDs: 1 general-purpose LED, 1 power LED, two serial port LEDs, 1 RGB LED
- Buttons: Reset, Boot
- Power blocks: for battery power
- Software compatibility: MicroPython / Arduino / CircuitPython
- Dimensions: 20 x 17.5 x 3.5 mm
