Pb.Hub V.1.1 I/O 6-channel I2C - STM32F0 expansion module - M5Stack U041-B
22.16 €
3687567 AN-21948
6972934173737
Piegāde 11-18 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu

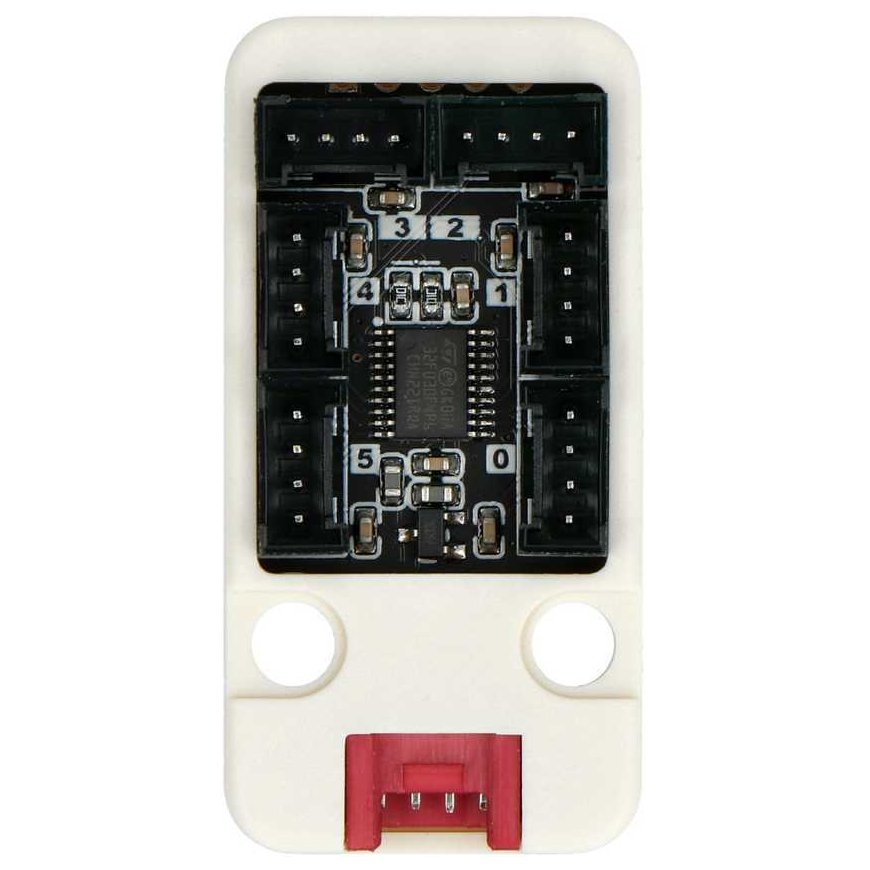

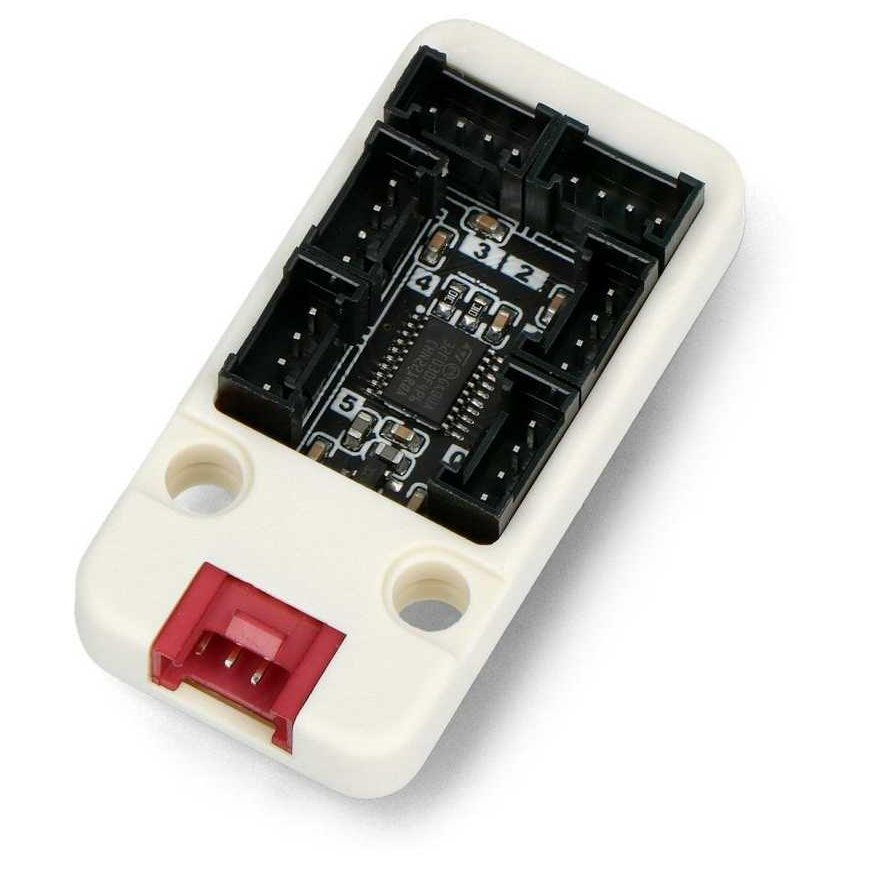

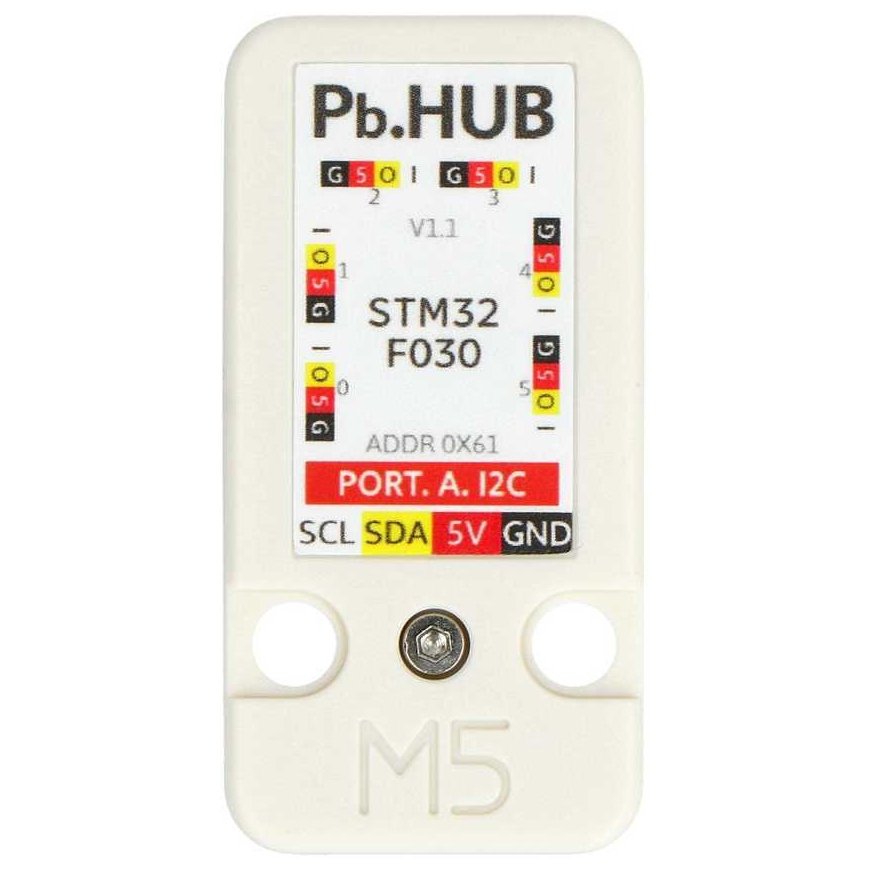

I/O hub - an expansion of the M5Stack unit type. The module has as many as 6 additional input and output ports, and the STM32F0 control system is installed in it. The I2C interface is used to communicate with the main module. Each input/output port of the module can support GPIO, PWM, and can also be used to control servos, ADC sampling or RGB lighting control.
Specifications:
- Type: I/O hub, ADC
- Integrated chip: STM32F0
- Number of channels: 6x I/O + 1x I2C
- Interface: I2C bus
- Interface address: (configurable)
- Module dimensions: 48 x 24 x 12 mm
- Weight: 6.7 g
- I/O Hub 6-channel I2C - STM32F0 - Unit expansion module - M5Stack

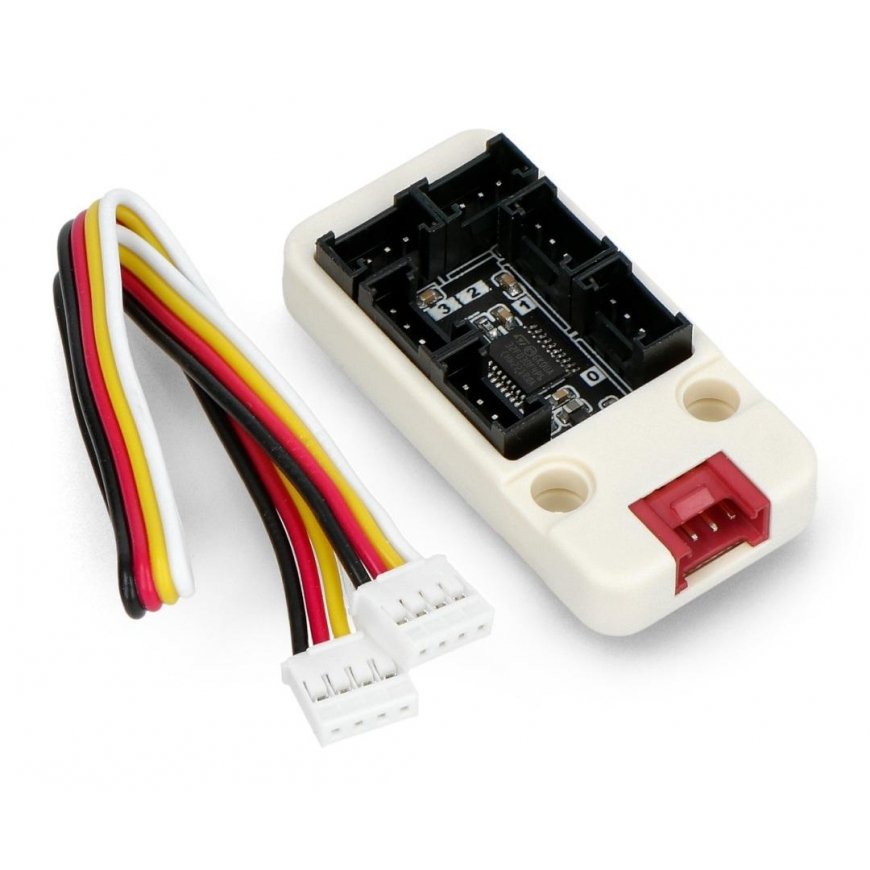

- 20 cm long connecting cable with Grove connector
