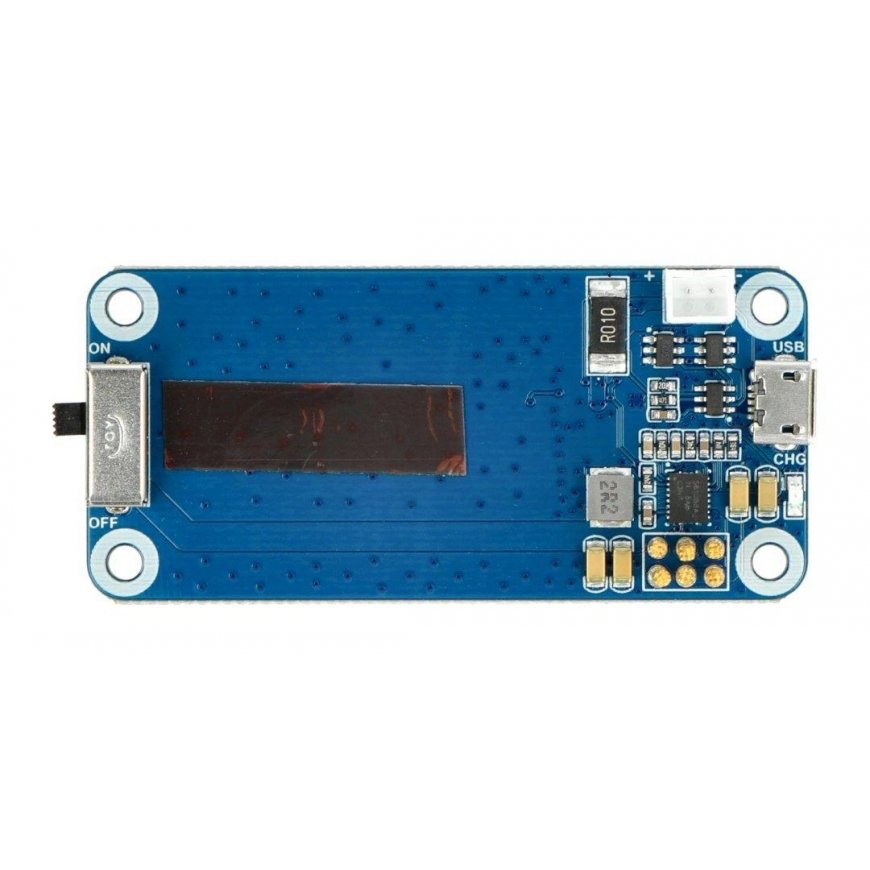

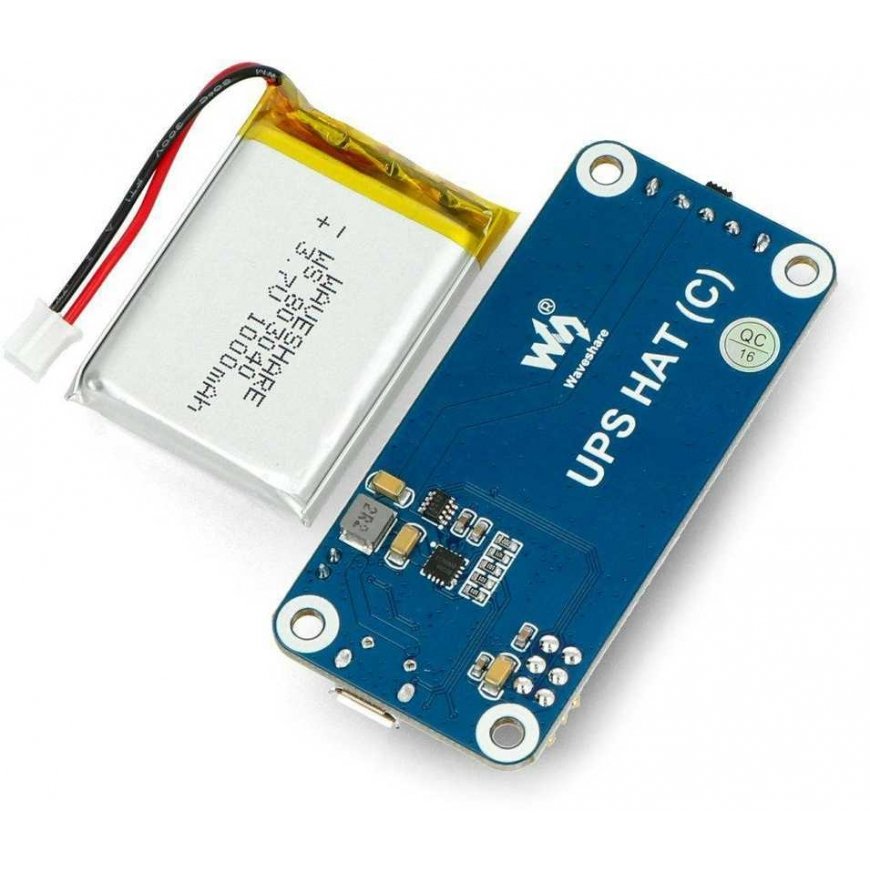

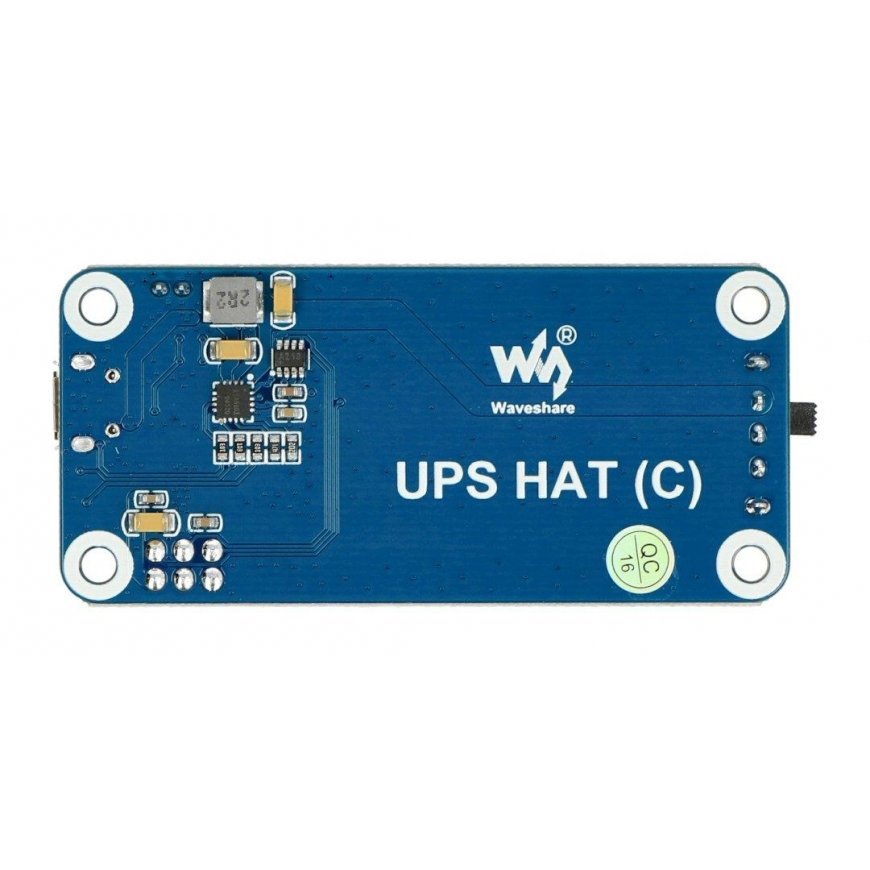

UPS HAT for Raspberry Pi Zero, Waveshare 19739
3687376 AN-19717
5904422347239
Piegāde 11-18 d.d.
Viss par produktu
The UPS HAT provides uninterrupted power to the Raspberry Pi Zero minicomputer thanks to a Li-Pol battery. When the power supply from the Raspberry Pi Zero power supply fails, the HAT will maintain power using the battery. The output voltage from the HAT is 5 V. The Raspberry Pi Zero is powered via pogo pins located on the HAT. In addition, the HAT allows you to charge the included battery via a microUSB connector. The I2C interface is used for interaction, allowing you to read battery parameters such as voltage, current consumption, etc.
Specifications:
- Output voltage: 5V
- I2C interface
- Mounting holes: 3 mm
- Charging voltage: 5 V via microUSB
- Battery: Li-Pol 803040 3.7 V 1000 mAh
- Dimensions: 65 x 30 mm

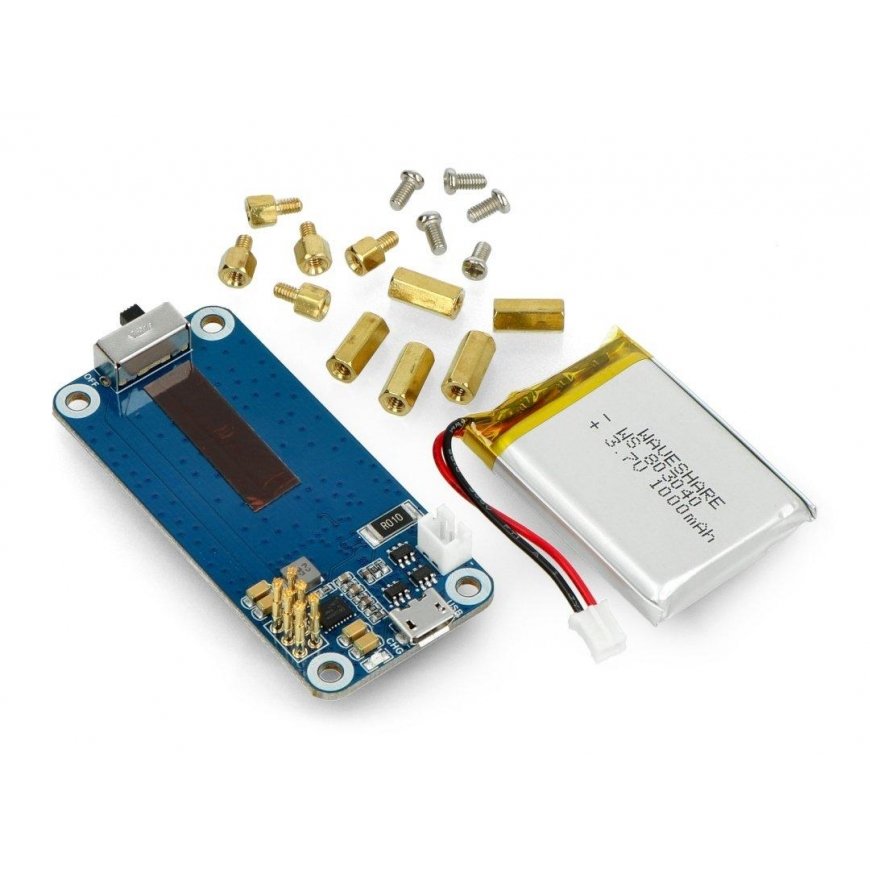

- UPS HAT
- Rechargeable battery 3.7V 1000mAh
- Screw and gasket set
