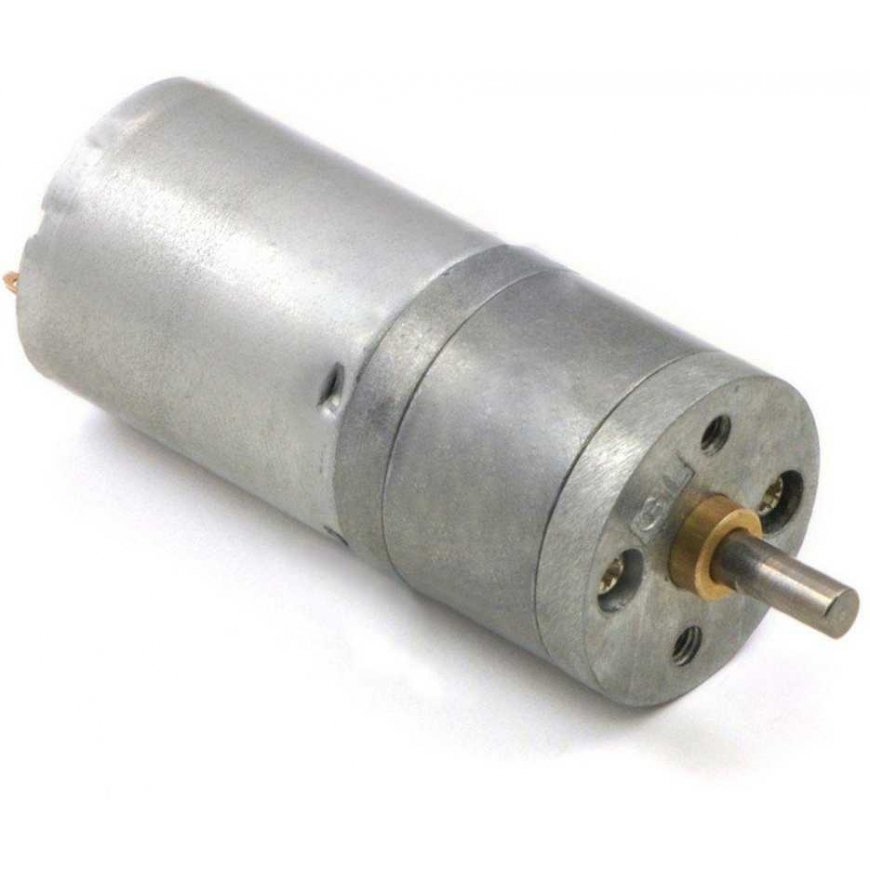

25Dx56L Motor with 227:1 Gearbox 12V 33RPM - Pololu 3233
49.00 €
Ikm. maksa no 2,16 €
3685855 AN-16382
5904422325855
Piegāde 8-15 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
The Polol motor with a 227:1 reduction ratio generates 33 rpm, a torque of 23 kg * cm (2.25 Nm). The motor is supplied with a voltage of 12 volts with an average current consumption of 200 mA at no load and 2100 mA with the shaft stopped.
Specification:
- Reduction: 227:1
- Supply voltage 12V:
- 33 rpm
- No-load current consumption: 200 mA
- Current consumption when the spindle is stopped: 2100 mA
- Torque: 23 kg * cm (2.25 Nm)
- Supply voltage 6V:
- Idle speed: 16 rpm
- No-load current consumption: 100 mA
- Current consumption when the spindle is stopped: 1050 mA
- Torque: 11.5 kg * cm (1.12 Nm)
- Dimensions: 25D x 56L mm
- Shaft diameter: 4 mm
- Weight: 94 g
