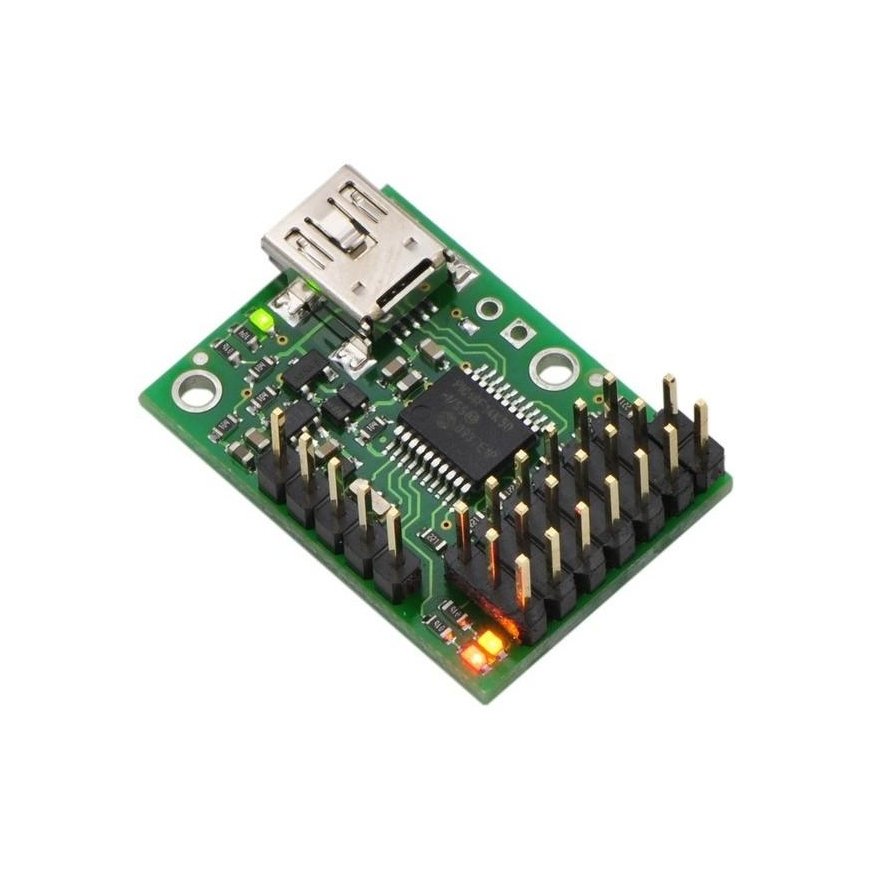

Servo Motor Controller Pololu Micro Maestro USB 6-channel

Viss par produktu

Micro Maestro is a very smart 6-channel servo motor controller from Pololu. The well-known electronics manufacturer has implemented a lot of smart features in this small module that you may need in a variety of projects:

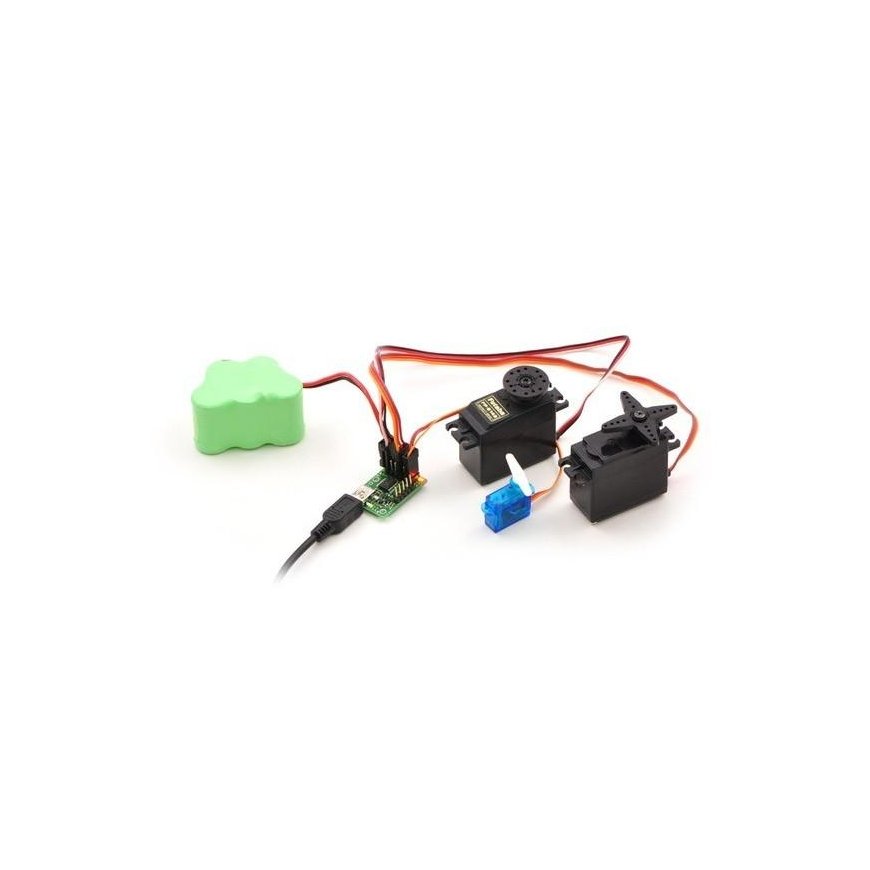

• The module can control up to 6 servo motors simultaneously, 1 channel for each. Position, speed, acceleration and other parameters for each channel can be controlled separately or all together like in simple servo controllers.

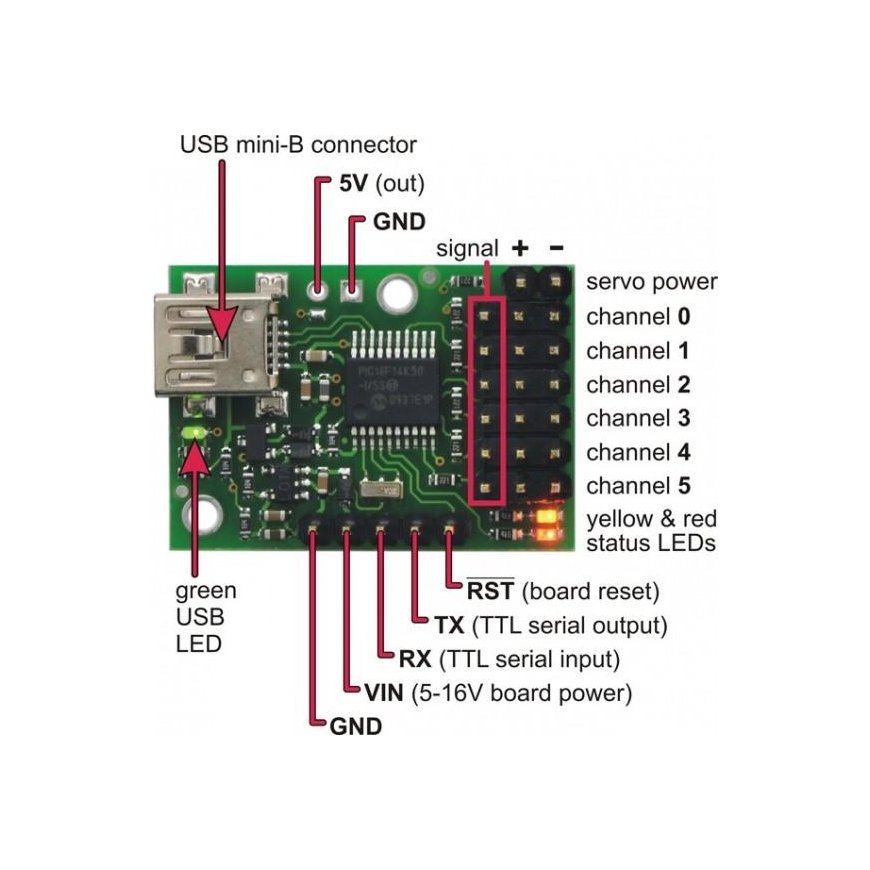

• The control signal can be supplied in 3 ways: via USB connection, TTL (5V) logic signal interface, and internal programming, which will work even if the USB or 5V logic signal interface is disconnected.
• Servo signal pulse from 0.25μs to 3280 μs, frequency from 33 to 100 Hz.
• The TTL (5V) logic signal interface supports a signal frequency from 300 to 200,000 bps, automatically setting it from 300 to 115,200 bps.
• The manufacturer provides free software for controlling the module in C#, Visual Basic .NET, and Visual C++, or the module can be controlled by other software.
• The manufacturer provides an Arduino library with control code examples.

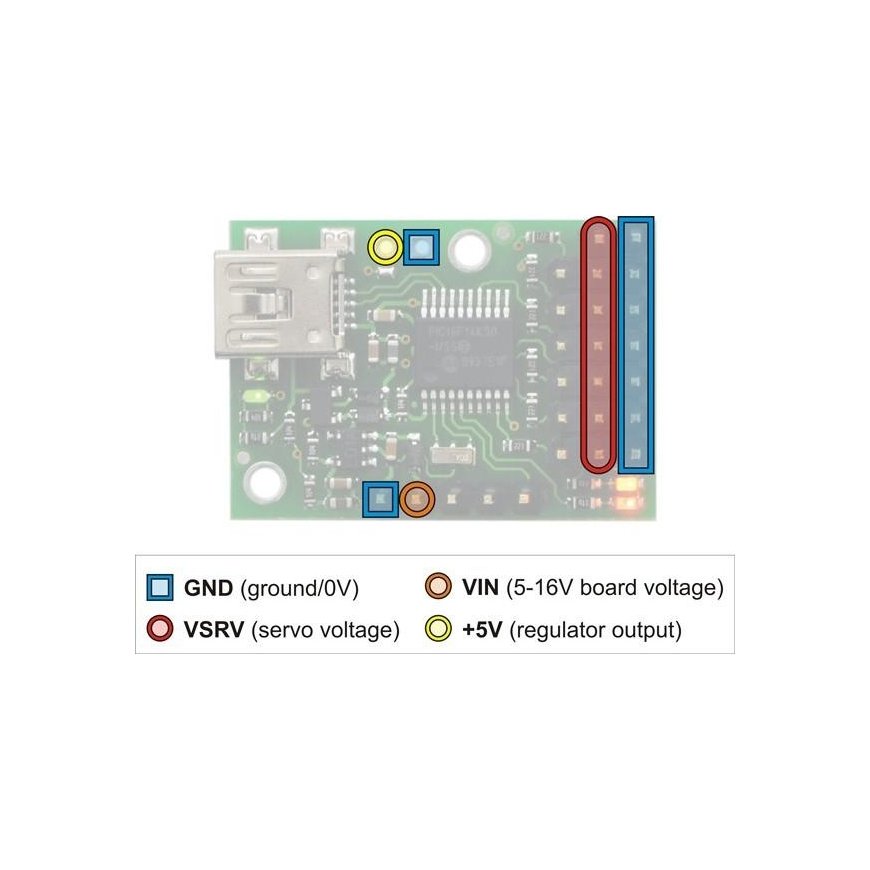

• Supply voltage: 5-16V
• Logic signal voltage: 5V
• Weight: only 4.8g

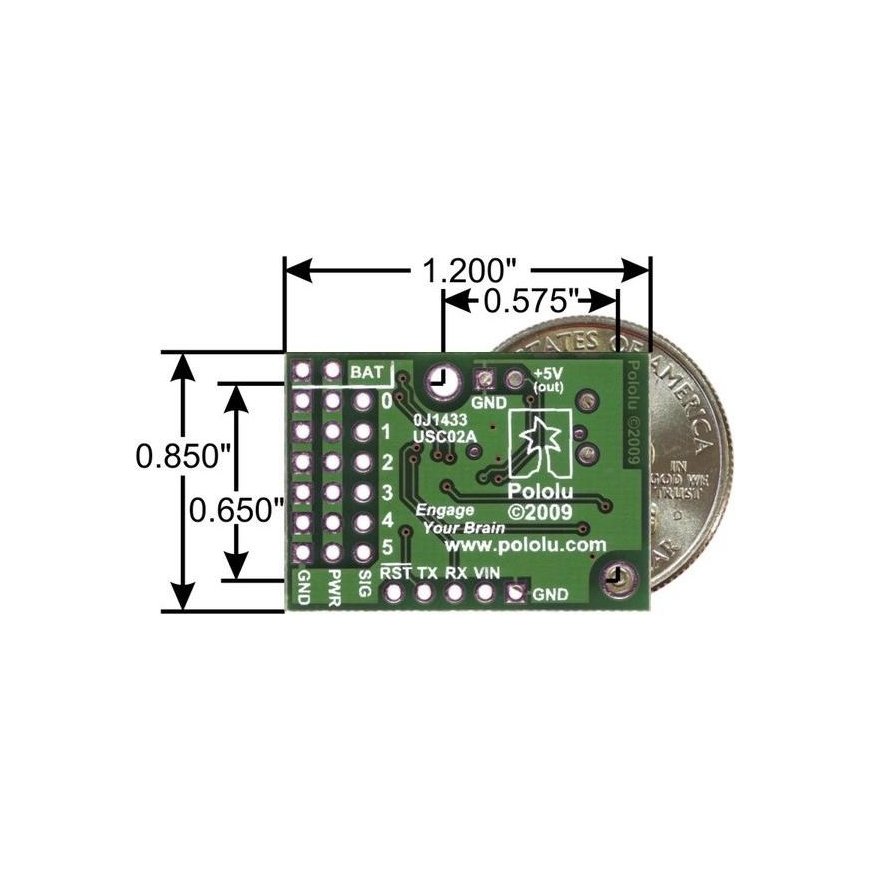

• Size: only 2.2 x 3.1 cm

• Small motorized projects
• Smart home
• User manual
• Pololu USB management software
• Arduino control code library
