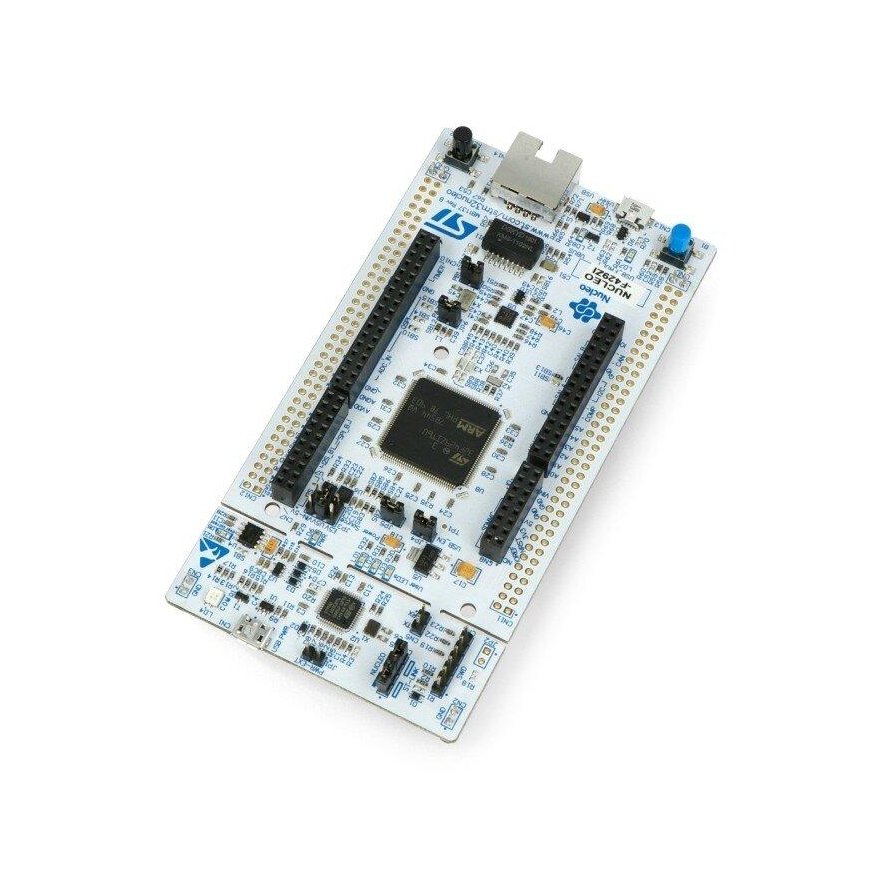

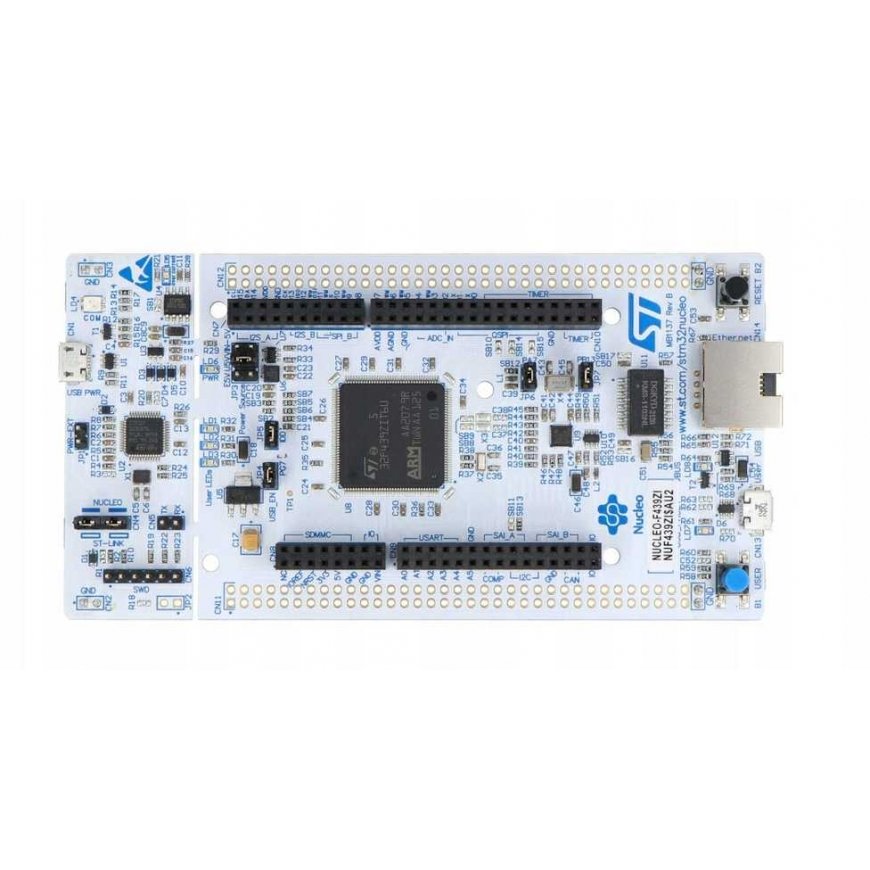

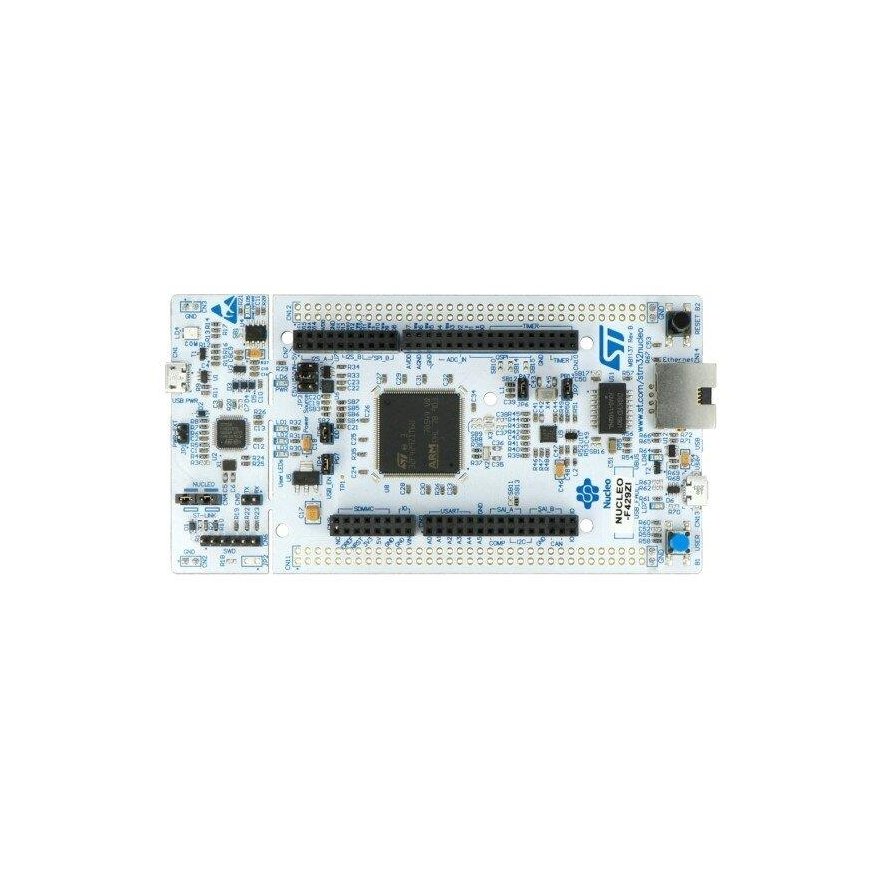

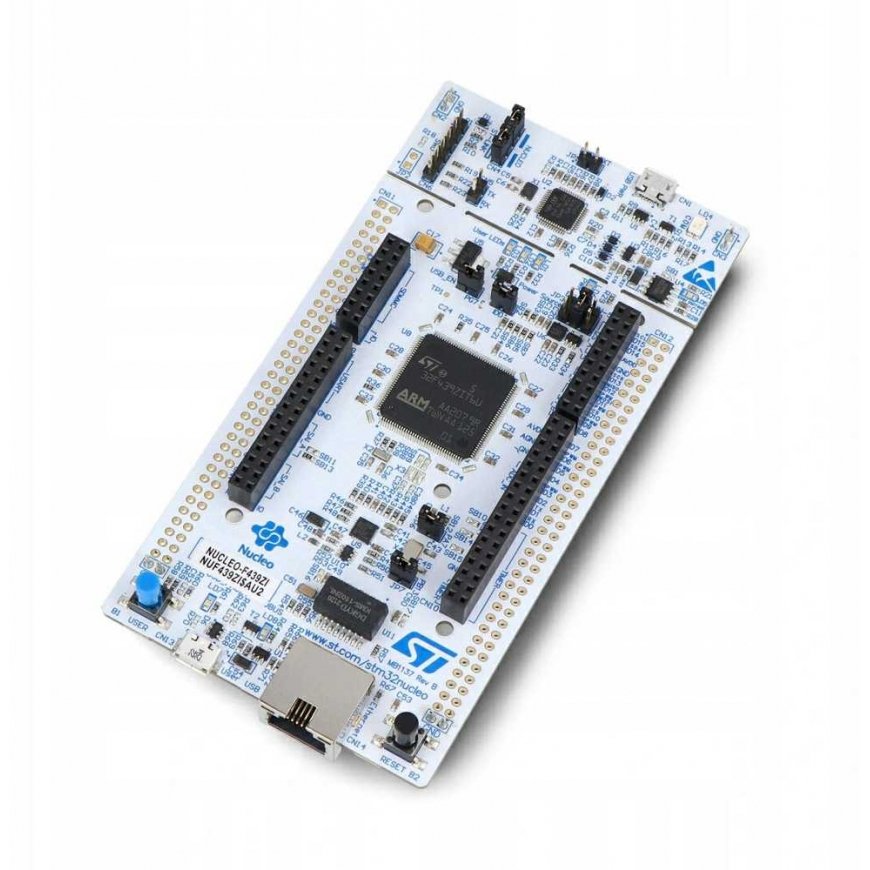

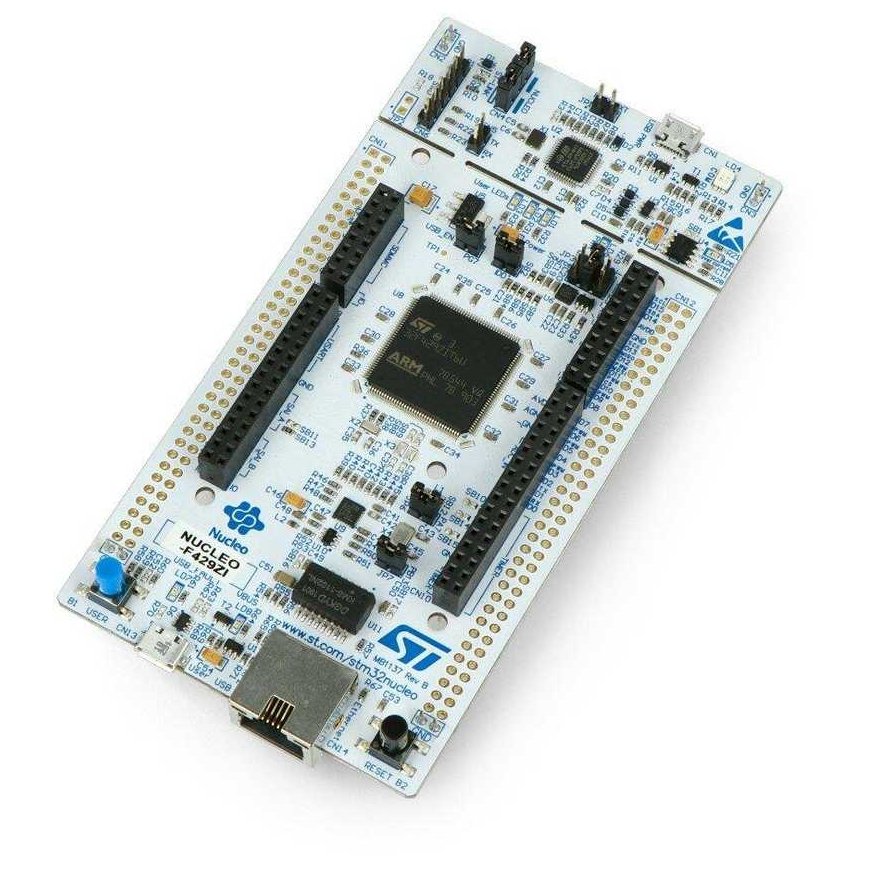

Stmicroelectronics STM32 NUCLEO-F429ZI module - STM32F429ZIT6 ARM Cortex M4
79.00 €
Ikm. maksa no 2,93 €
3682987 AN-05527
5904422364939
Piegāde 11-18 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
The module is equipped with a 32-bit microcontroller with ARM Cortex M4, 180 MHz, 2 MB Flash, 256 kB SRAM. The Nucleo is compatible with the mbed platform, has connectors for connecting Arduino brackets, Arduino add-ons and an Ethernet socket.Specifications:
- Microcontroller: STM32F429ZIT6
- Core: ARM Cortex M4 32-bit
- Clock frequency: 180 MHz
- Flash memory: 2MB
- RAM: 256 KB
- Analog-to-digital converter (ADC): 12-bit, 24 channels
- Digital-to-analog converter (DAC): 12-bit, 2-channel
- Number of 16-bit timers: 12
- Number of 32-bit timers: 2
- Interfaces: 3x I2C, 6x SPI, 2x I2S, 2x CAN, 4x USART, 4 UART, USB OTG
- Ethernet connection
- Two types of connections:
- Bracket connectors compatible with Arduino Uno Rev3
- Standard STMicroelectronics Morpho pins for accessing microcontroller wiring
- The module is compatible with the mbed system (mbed.org)
- The ST-Link/V2 debugger is placed on the board with the ability to work as a standalone device with SWD output
- Possibility of power supply via USB connection
- Three LEDs are embedded:
- 1 x for power supply voltage indication
- 1 x connection indicator
- 1 x at the user's disposal
- Two buttons:
- 1 x RESET
- 1 x at the user's disposal
- Three different interfaces via microUSB connector (USB overwrite):
- Virtual COM port
- Mass storage
- Programming/debug port
- The module supports most popular environments, such as IAR, Keil, and platforms based on the GCC compiler.
- Module dimensions: 135 x 70 x 18 mm
