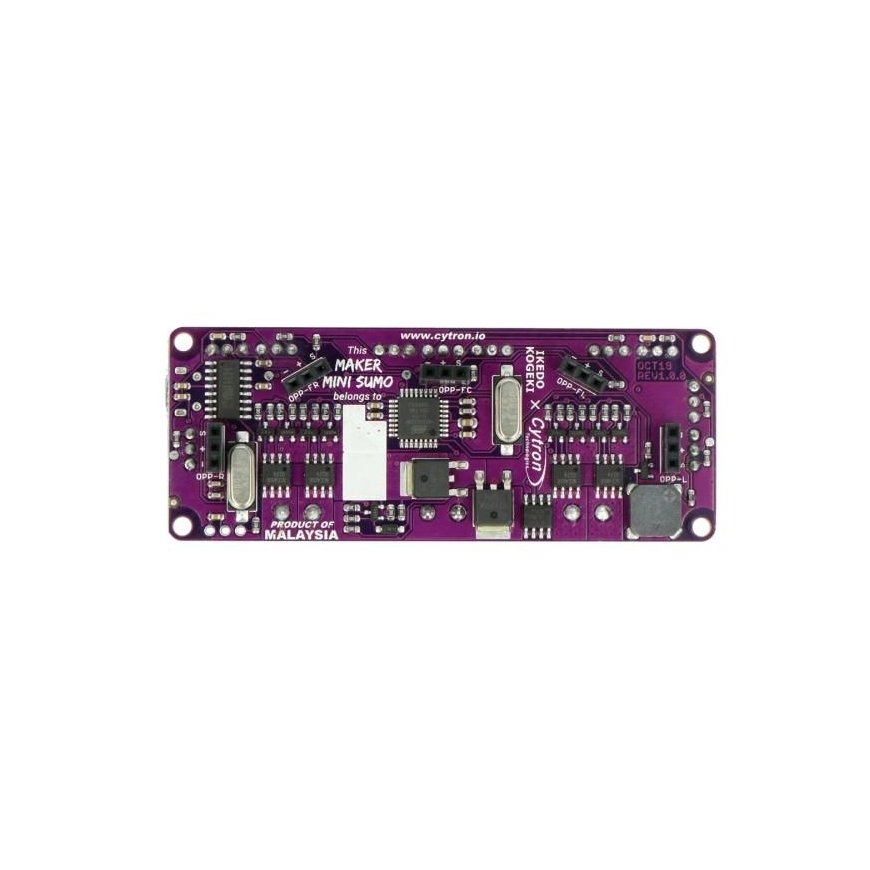

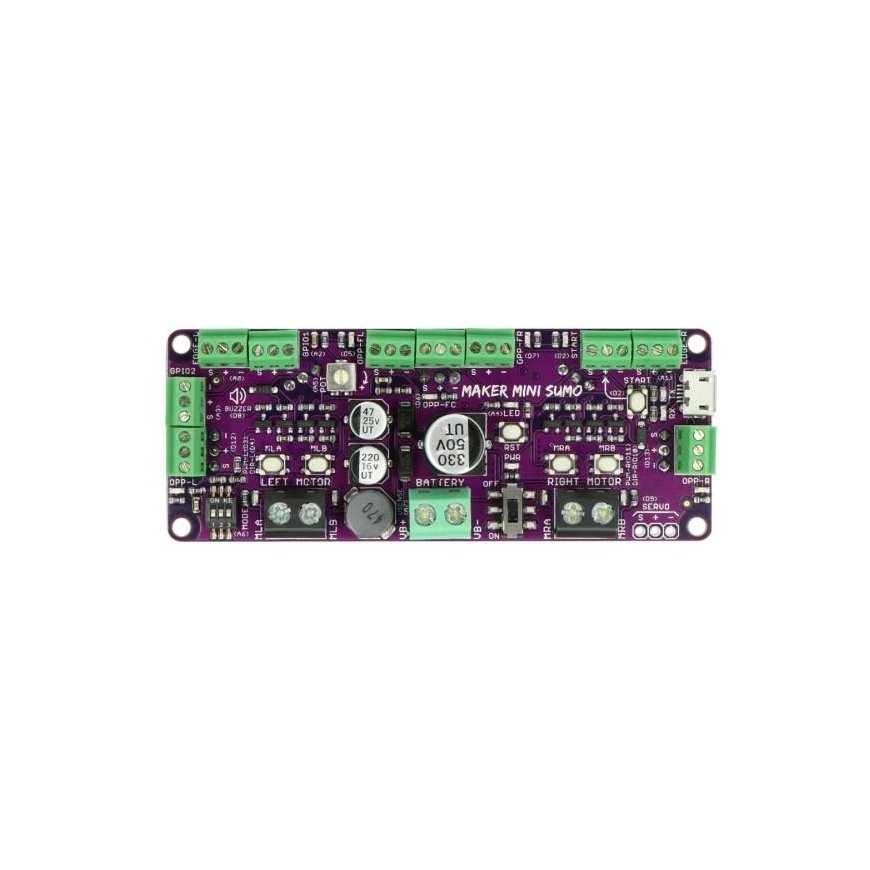

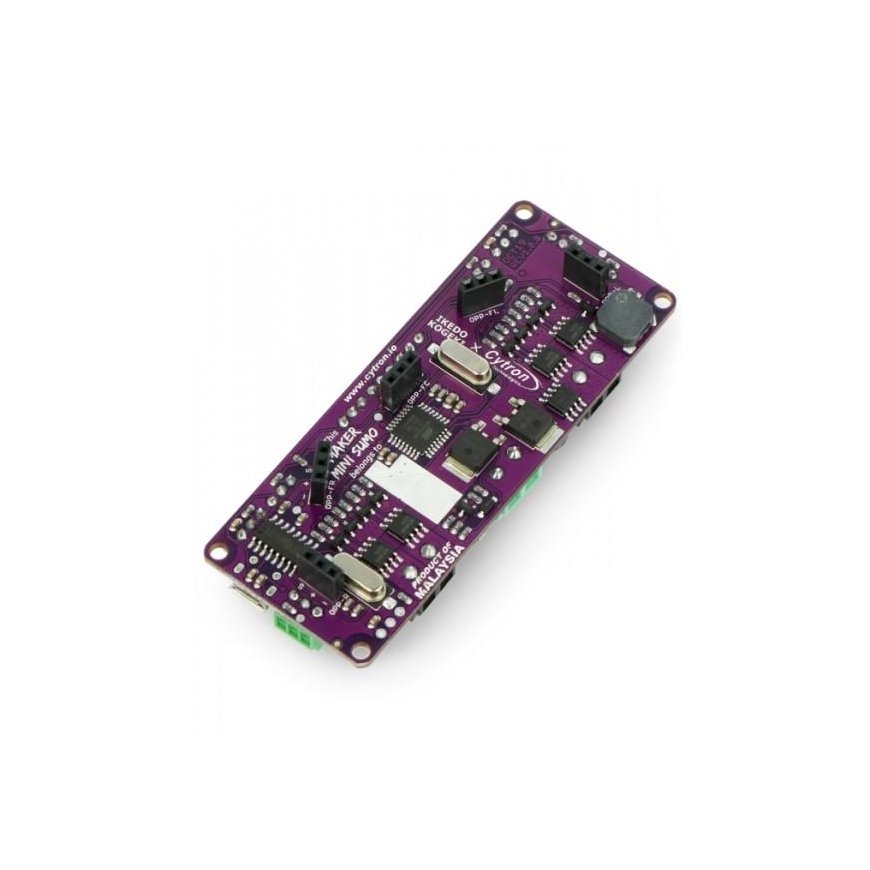

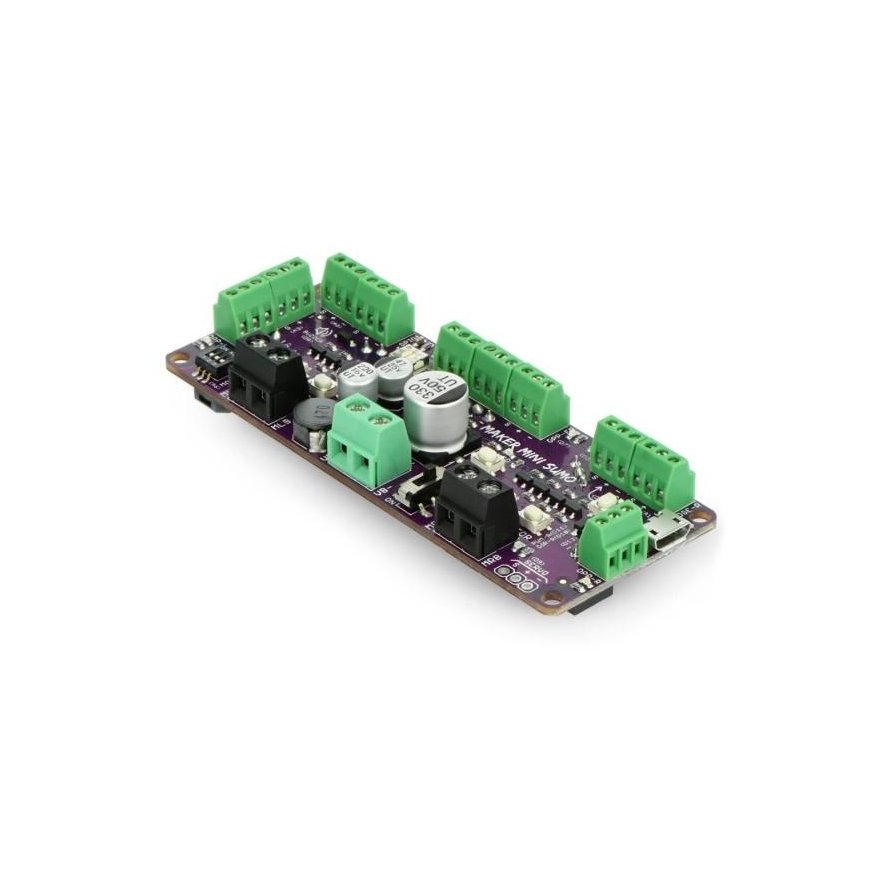

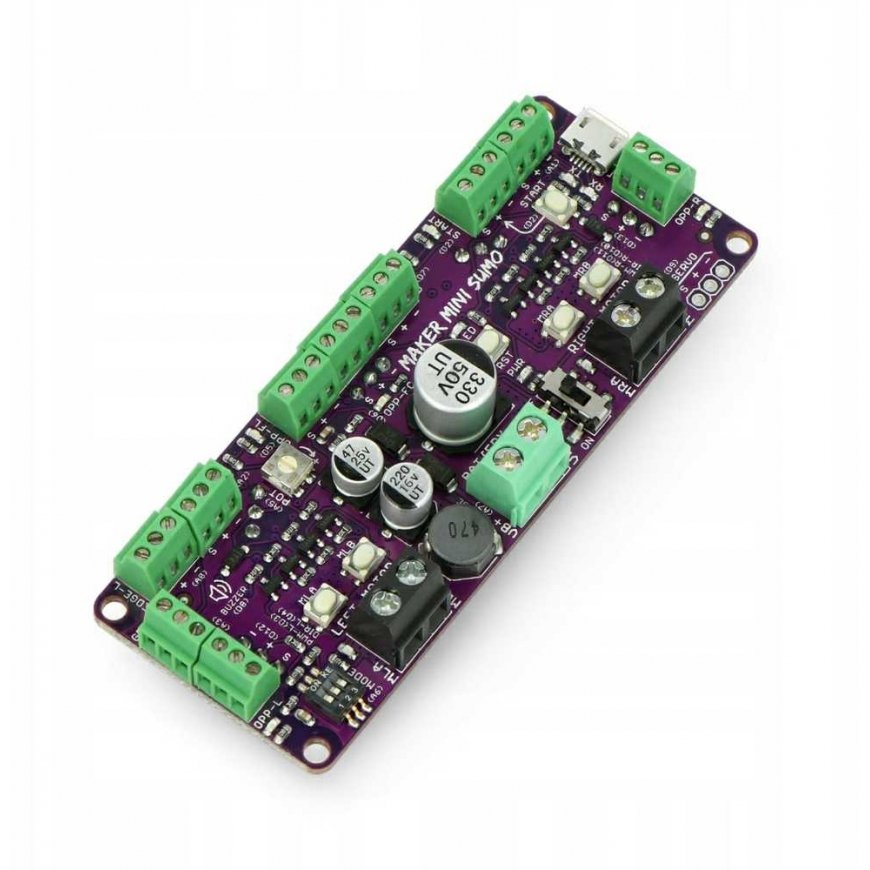

Cytron Maker Mini Sumo Controller

Viss par produktu

Maker Mini Sumo is an Arduino NANO analog specially designed for educational sumo robot projects. The microcontroller was developed in collaboration with the world sumo robot champions Team Ikedo Kogeki, so it will suit both beginners and experienced users. The design solutions are truly exceptional: sensor connections are designed so that no soldering is required, it is connected with plastic latches, motor wires are firmly screwed with screws, a shock-resistant on/off button is installed so that the robot does not turn off after a blow during competitions, and many other solutions. Other important features are: LED lights and built-in buttons allow you to quickly and easily test the motors and code, the battery voltage can be measured with a microcontroller.
The robot can be controlled with an RC radio remote control by connecting an RC module through a special connector; the manufacturer provides libraries for the RC control code.
The microcontroller has reverse polarity protection.

Technical data:
● Microprocessor: Atmega328P
● Operating frequency: 16 MHz
● Motor voltage: 7-18V DC
● Motor current: up to 6A for each of 2 channels
● Buttons for quick code-free engine testing
● Power supply: 5V DC (via micro USB or ICSP)
● Number of analog signal connectors: 6 (input only)
● Number of digital signal connectors: 20 (6 of which are PWM)
● Dimensions: 36 x 92 mm

References and application:
● Connector layout and more characteristics
● Arduino IDE library and code examples
