Tumbler ON-OFF 12V / 20A with backlight, green, Adafruit 3307
19.00 €
3682388 AN-11415
5904422317522
Piegāde 8-15 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu

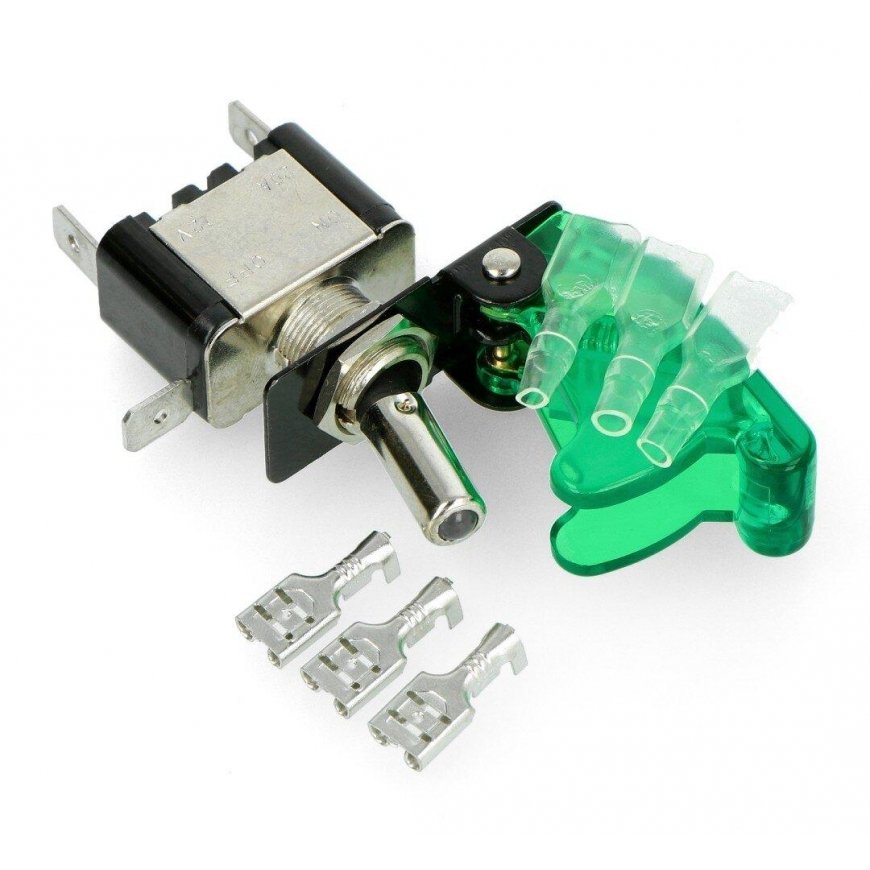

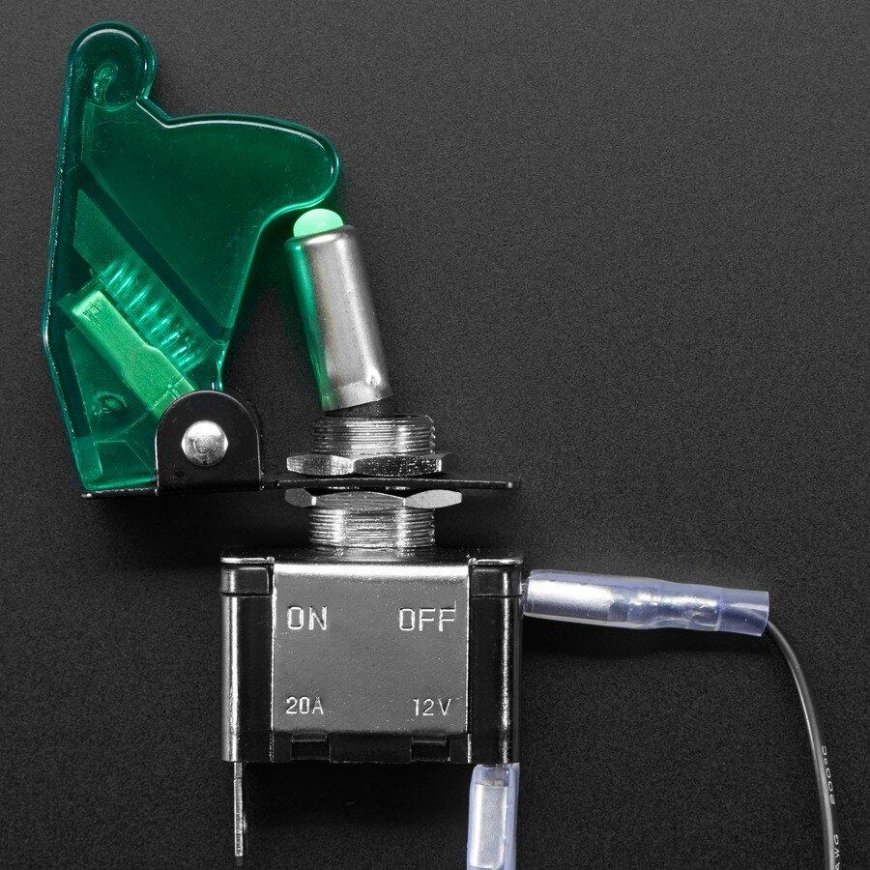

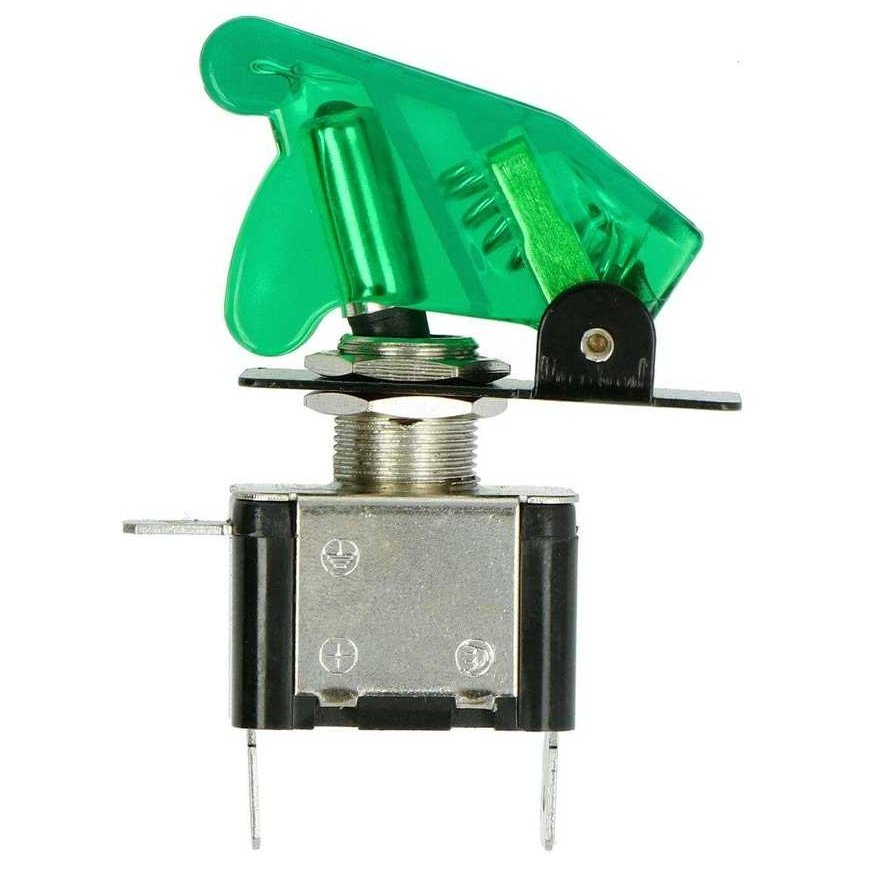

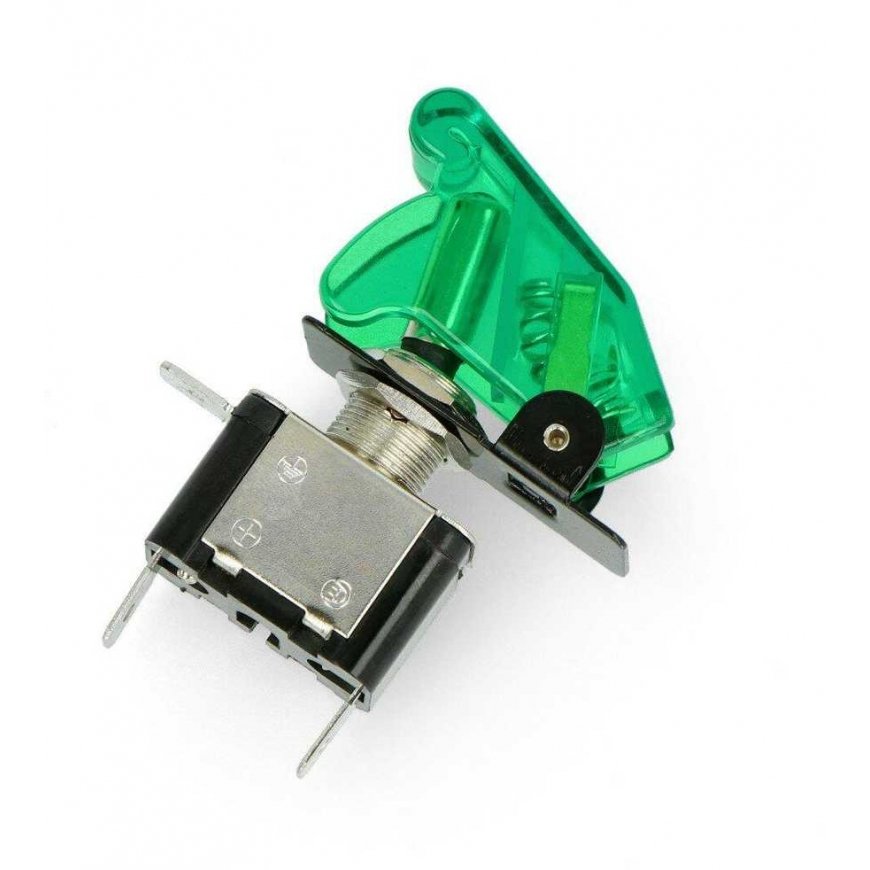

Switch with lever and 2 contacts, with a carrying capacity of 20 A and 12 V. Pins 24.2 mm, total height - 66 mm. The switch has a green backlight. The LED is powered by a voltage of 3 V.
Specifications:
- Number of positions: 2
- Number of contacts: 2
- Pins: 24.2 mm
- Type: On-Off for soldering wires

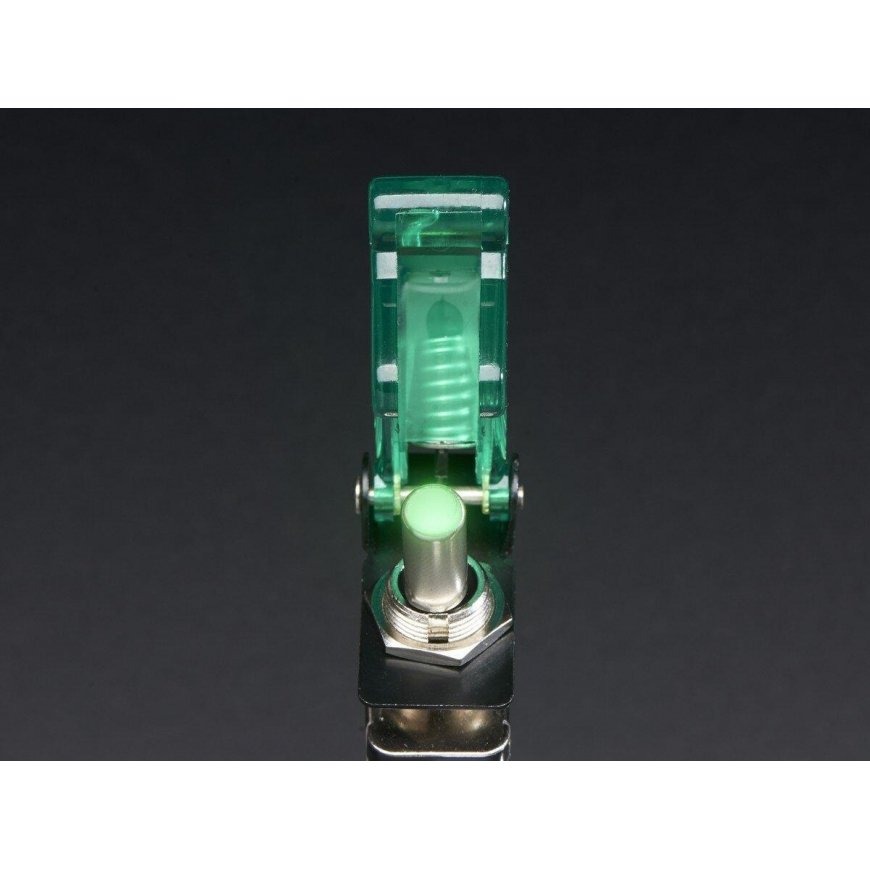

- Backlight color: green
- Contact load: 12 V / 20 A (1-2 A recommended)
- LED supply voltage: 3 V to 12 V
- Dielectric strength: 1500 VAC - 1 min
- Insulation R: 500 VDC 100 M min.
- Service life: 10000 cycles
- Operating temperature: -25 °C to 85 °C
- Dimensions: 66 x 50 x 18 mm
- Weight: 35.9 g
