MCP3421 – 18-bit 1-channel I2C ADC – STEMMA QT/Qwiic – Adafruit 5870

19.77 €
3678925

AN-25281

5904422386399

Piegāde 11-18 d.d.

Šī prece Jūs ieinteresēja
(Lasīt pakalpojumu sniegšanas noteikumus)

Viss par produktu

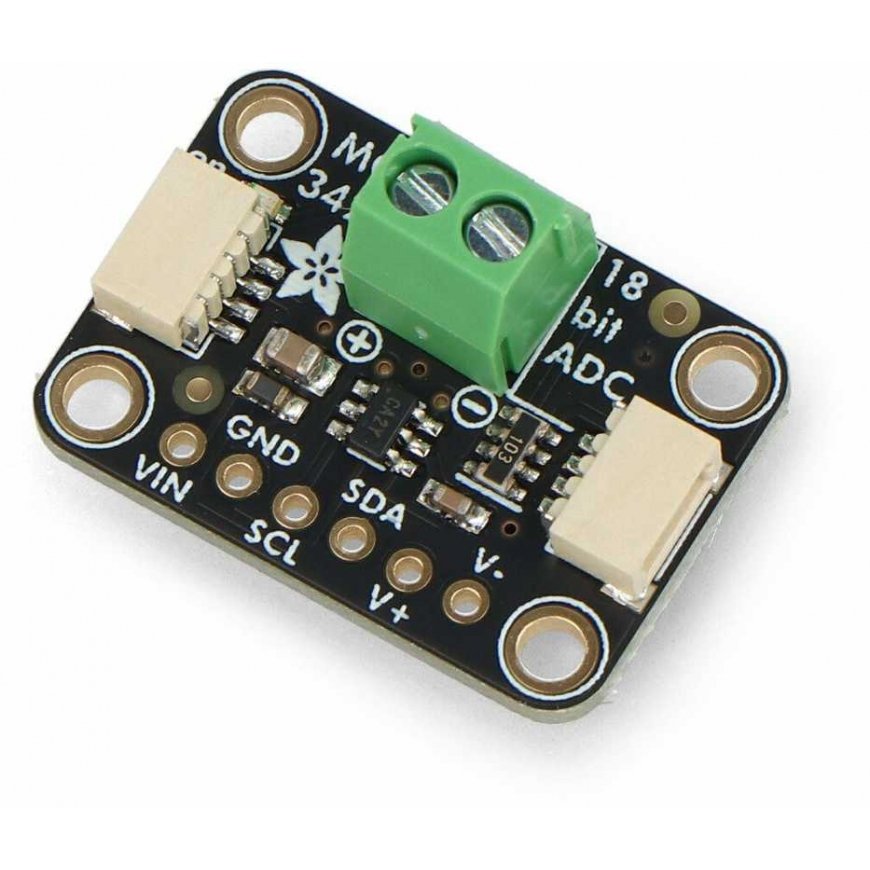

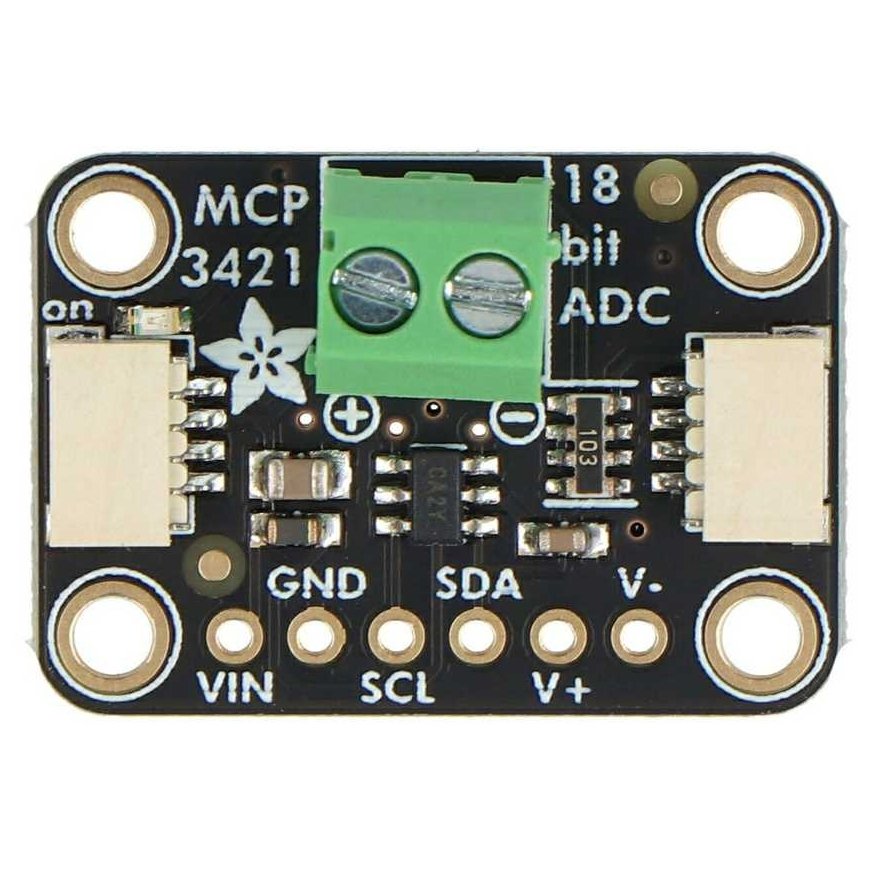

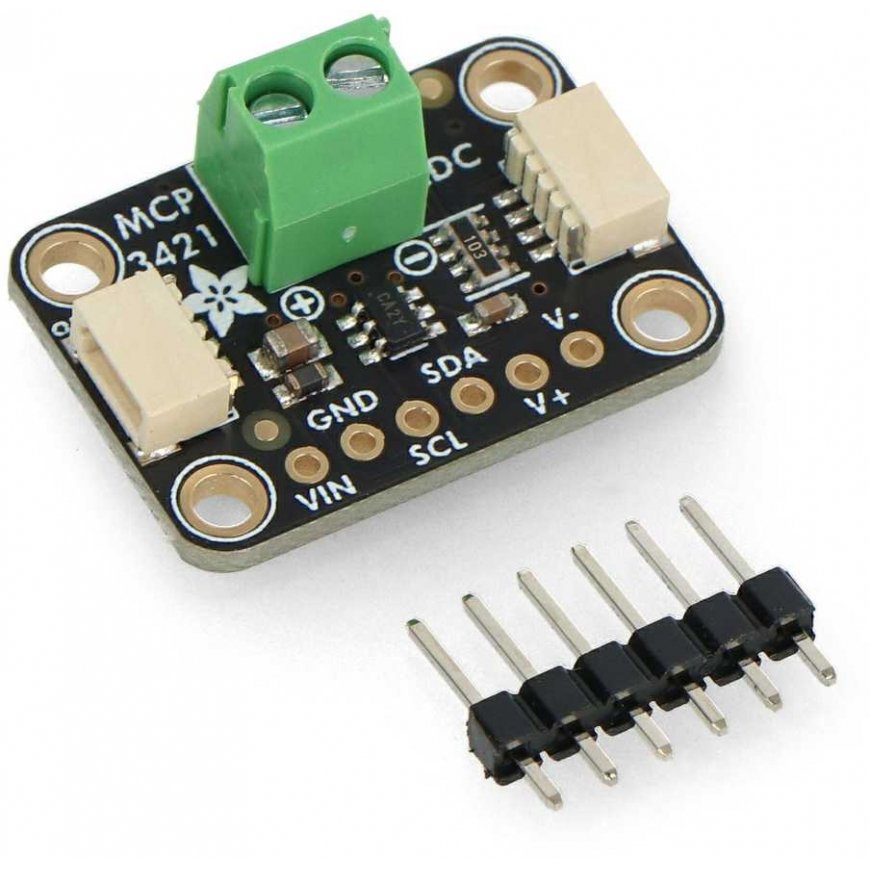

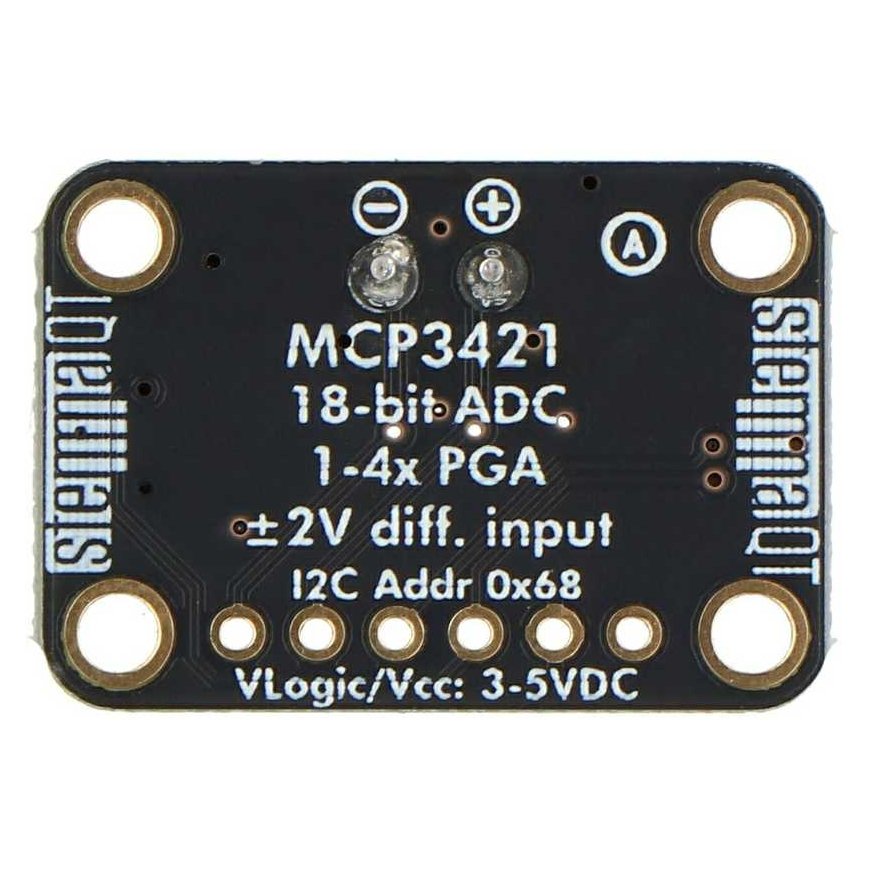

The Adafruit MCP3421 is a single-channel 18-bit ADC with an I2C interface, supporting sampling rates up to 240 SPS. It features differential inputs, a programmable amplifier (1x to 8x), a built-in precision voltage standard (2.048 V ± 0.05%), and selectable resolution from 12 to 18 bits. It is ideal for reading sensors such as strain gauges, thermocouples, or pressure sensors. Compatible with STEMMA QT and SparkFun Qwiic, allowing for quick connection to development boards without soldering.
