OLED display 1.3" 64x128px, SPI/I2C, black/white, for Raspberry Pi Pico, Waveshare 19376
22.88 €
3677767 AN-19546
5904422371920
Piegāde 11-18 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu

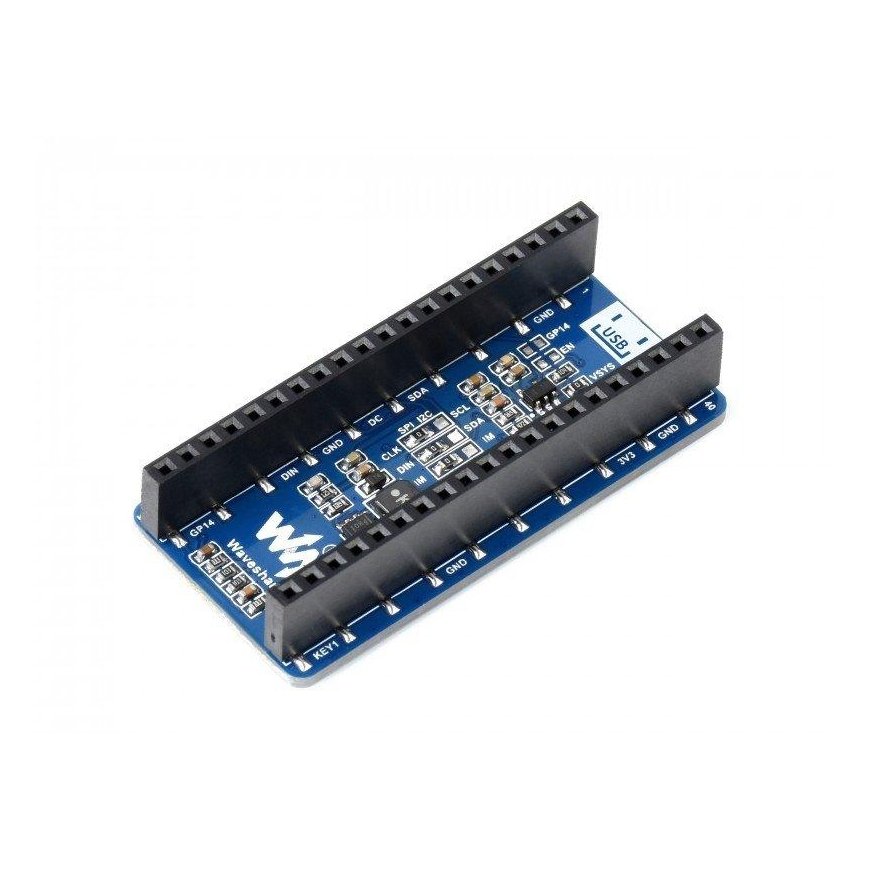

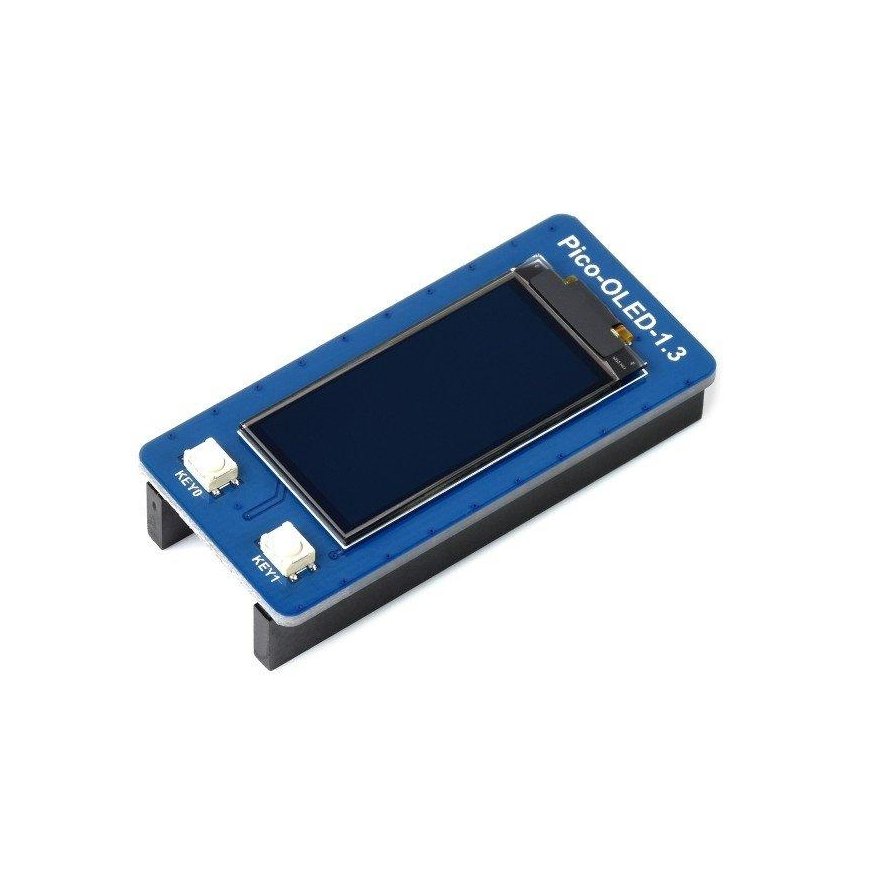

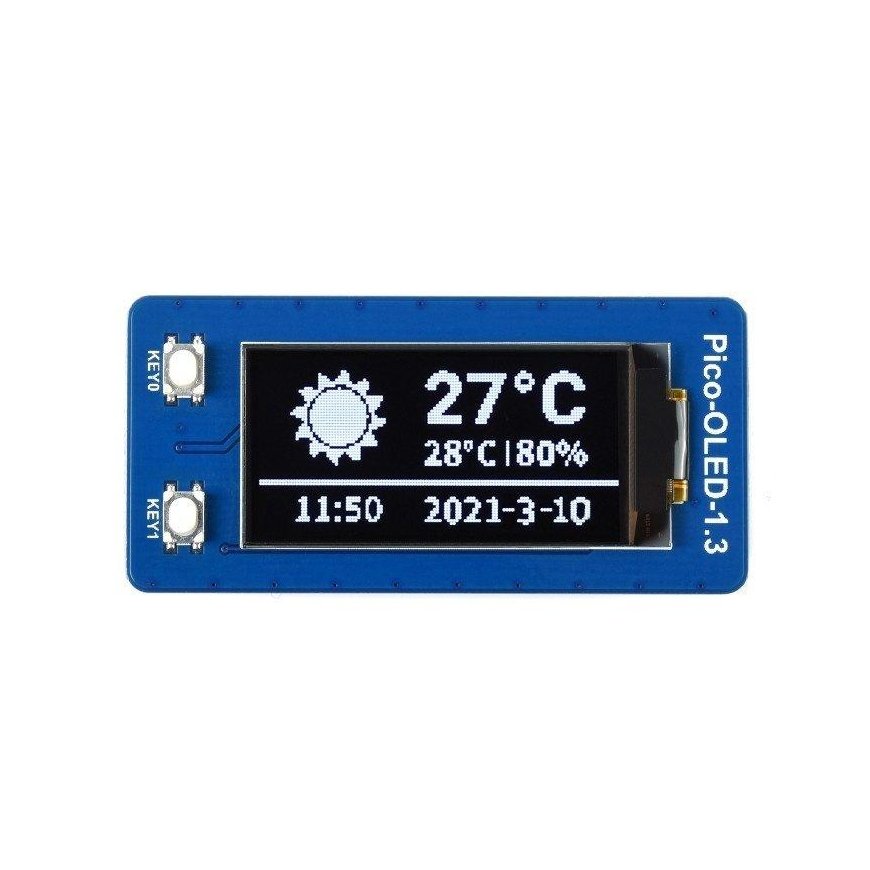

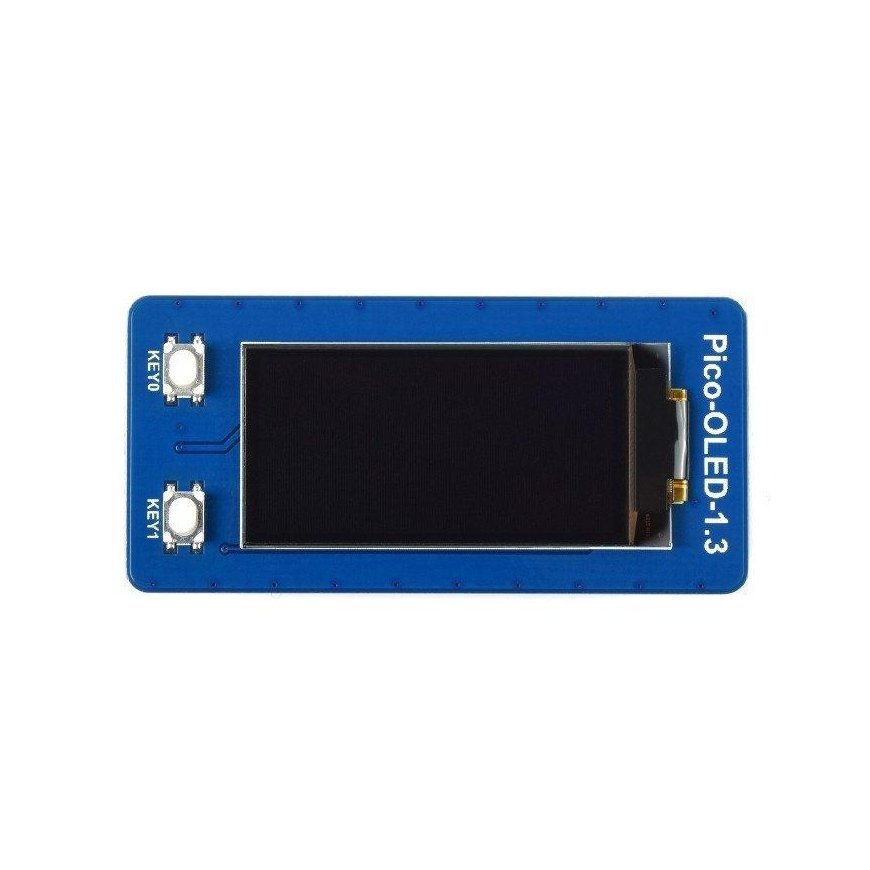

A compact display with connectors compatible with the Raspberry Pi Pico version. It has two buttons for easy user operation. It has a built-in SH1107 controller and uses SPI and I2C (optional) buses. The display resolution is 64x128px and the diagonal is 1.3". The module displays the image in two colors - black and white, and the size of one pixel is 0.15 x 0.15 mm.Specifications:

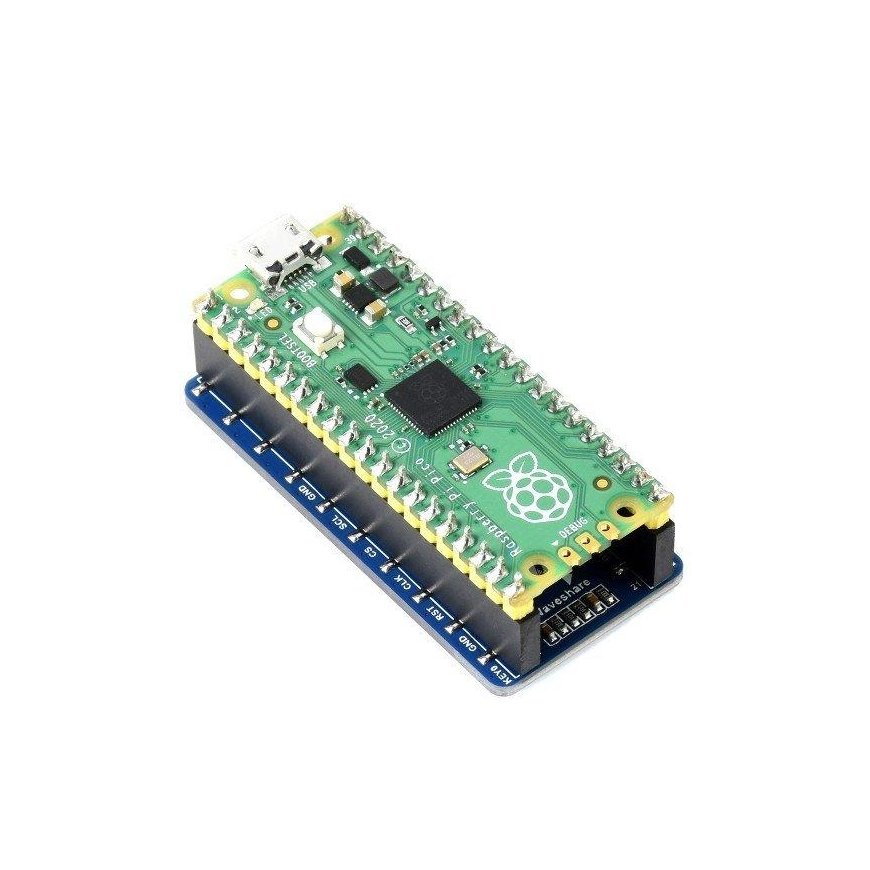

- For Raspberry Pi Pico version
- Type: OLED display
- Interface: SPI/I2C 4-pin
- Screen diagonal: 1.3"
- Screen resolution: 64x128px
- Pixel size: 0.15 x 0.15 mm
- Screen colors: black and white
- Operating voltage: 3.3V
- Two buttons used: KEY0 and KEY
- Programming language: C / C++ / MicroPython
- Embedded controller: SH1107
- Screen dimensions: 14.7 x 29.42 mm
- Module dimensions: 52 x 25 mm
