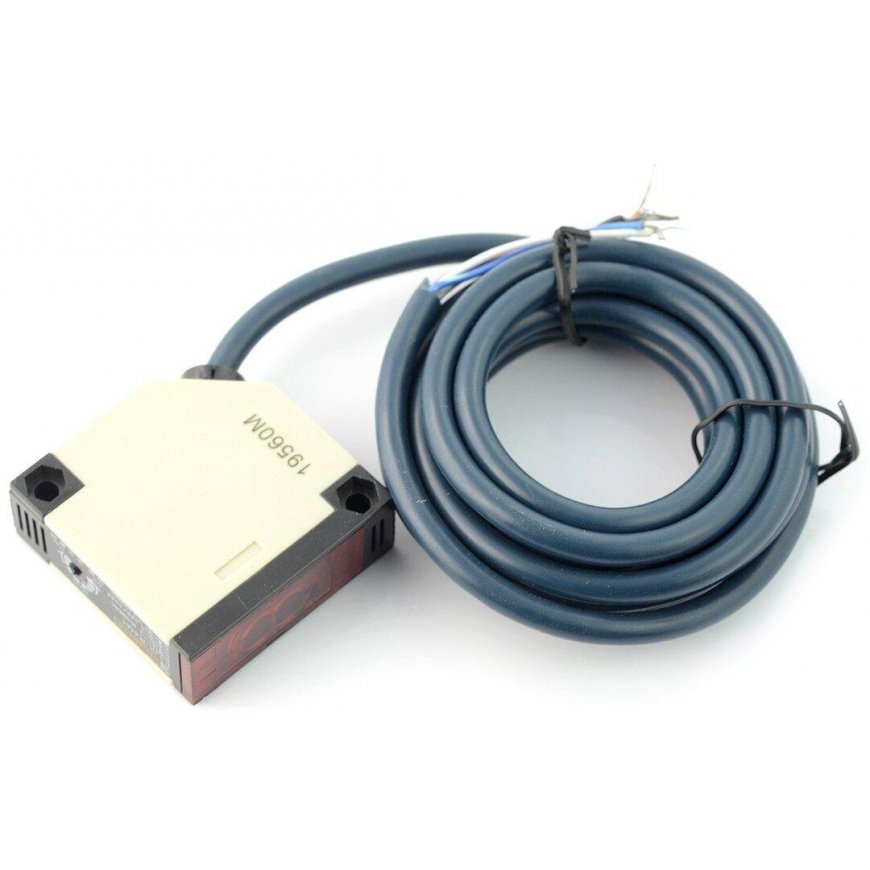

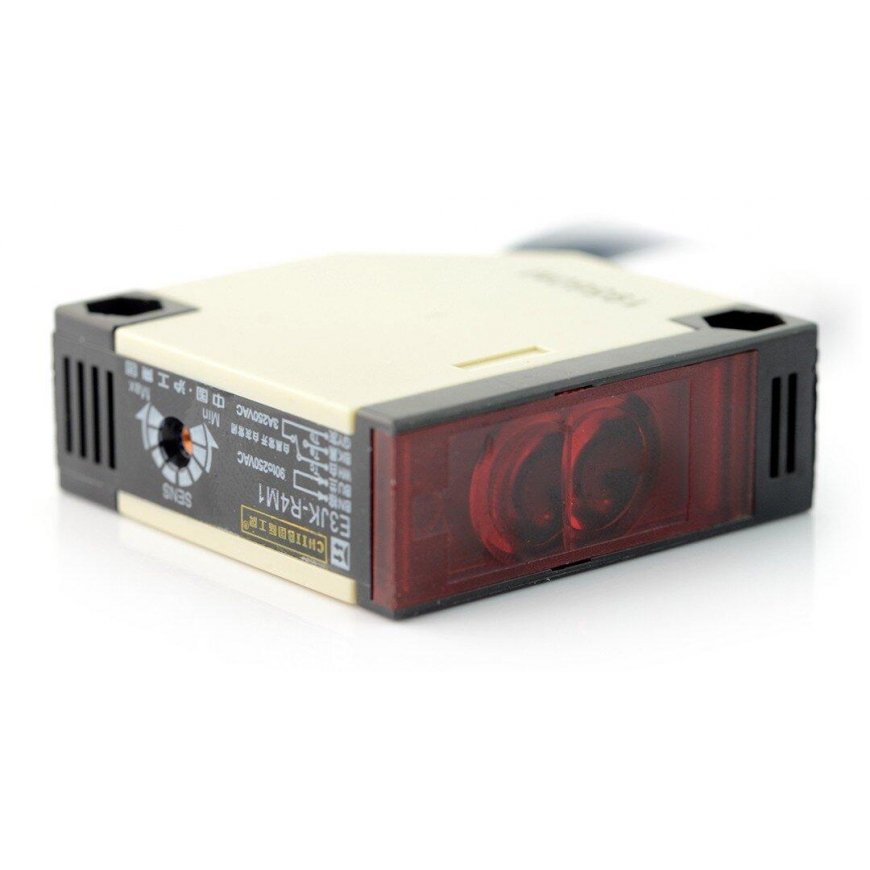

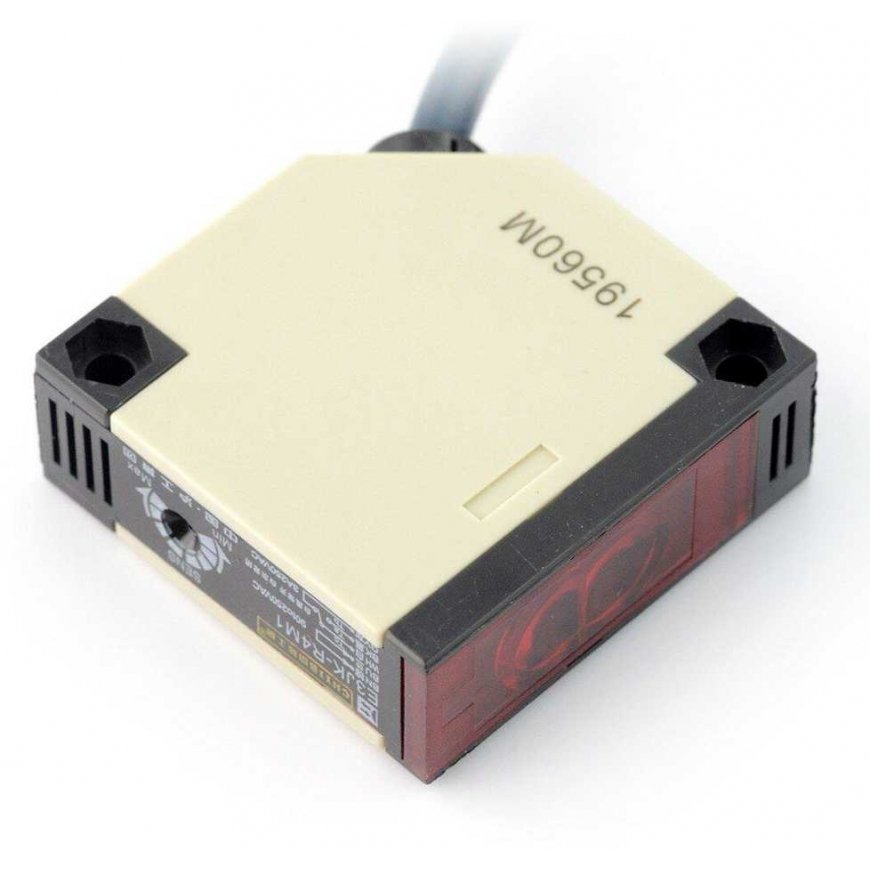

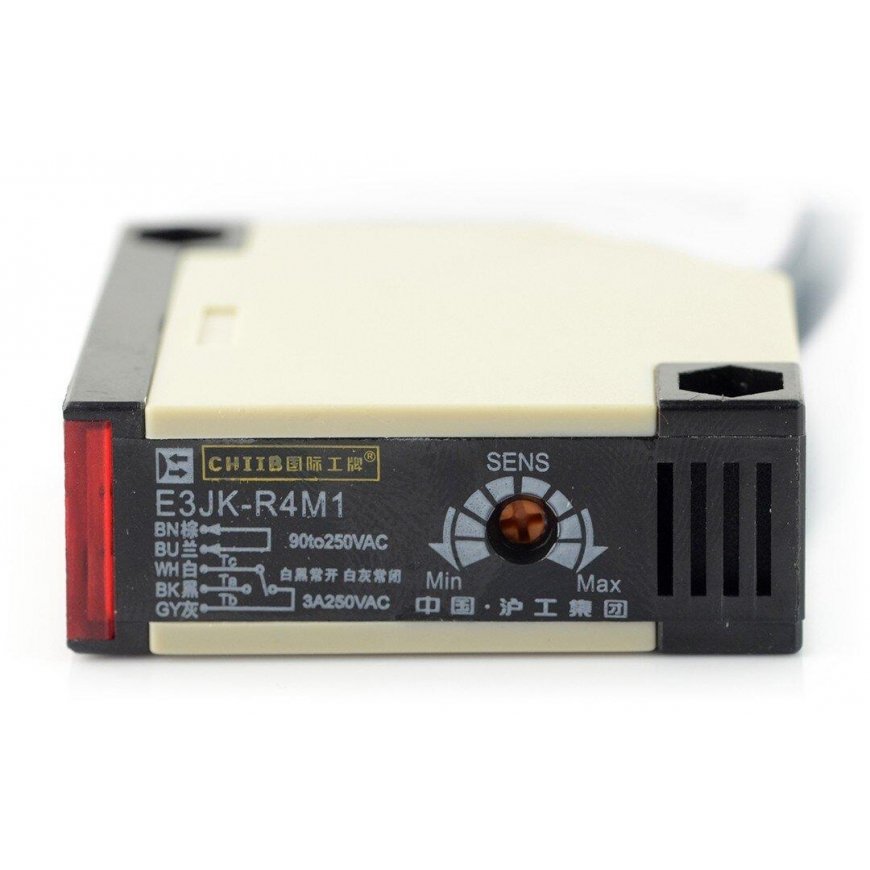

Oem SPDT E3JK-R4M1 90-250VAC photoelectric sensor IP65 NC/NO - 4m
39.00 €
Ikm. maksa no 1,90 €
3676992 AN-11835
5904422367046
Piegāde 11-18 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
The photoelectric sensor detects objects by reflection. The detection range is up to 4 meters. It has a Light-ON operating mode. It is powered by a voltage of 90 V to 250 V, has an SPDT output. The sensor has an IP65 sealing class.Specifications:
- Supply voltage: from 90 V - 250 V AC
- Load: max. 3 A / 250 V AC
- Insulation resistance: min. 20 MΩ at 500 VDC
- Type: photoelectric transmission
- Detection range: up to 4 m
- Output: SPDT
- Light source: red LED 660 nm
- Operating mode: Light-ON
- Ambient lighting:
- lamp: max. 3000 lx
- sunlight: max. 10,000 lx
- Sealing class: IP65
- Response time: up to 30ms
- Operating temperature: -25 °C to 55 °C
- Cable length: 2 m
- Housing: plastic
- Quick check
- Dimensions: 10.8 x 20 x 31 mm

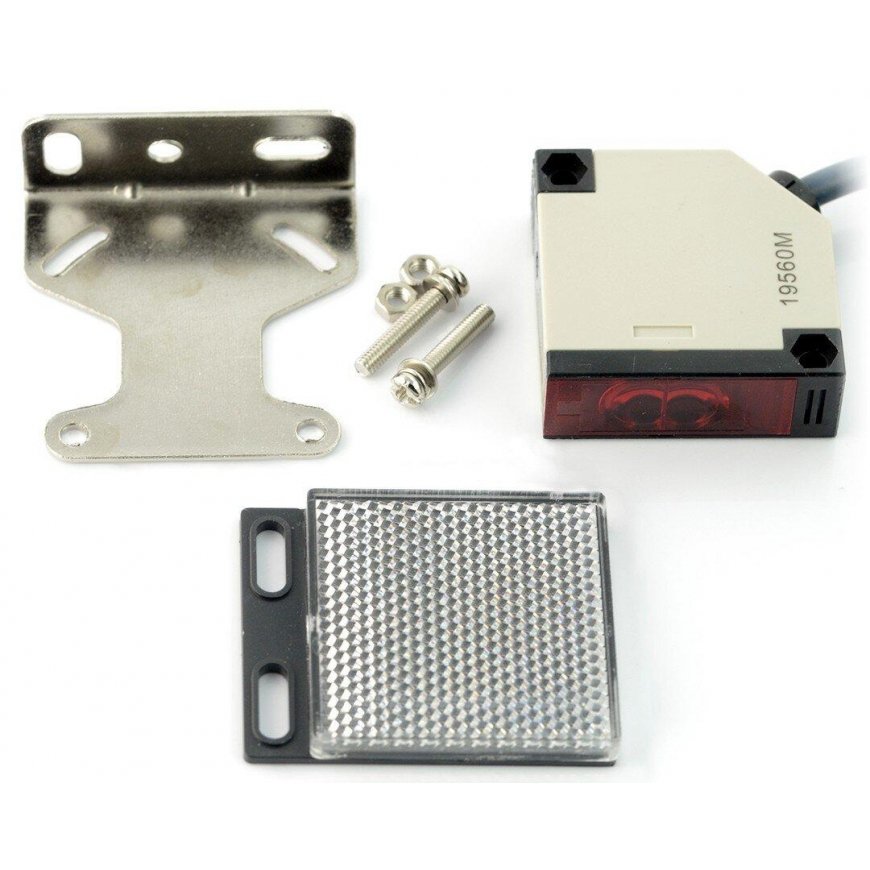

- Sensor E3JK-R4M1
- Sensor holder
- Reflector
- Bolts and nuts
