E-paper E-Ink display, 2.13” 250x122px, SPI, black and white, for Raspberry Pi Pico, Waveshare 19406
29.36 €
3676375 WSR-18993
5904422371807
Piegāde 11-18 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu

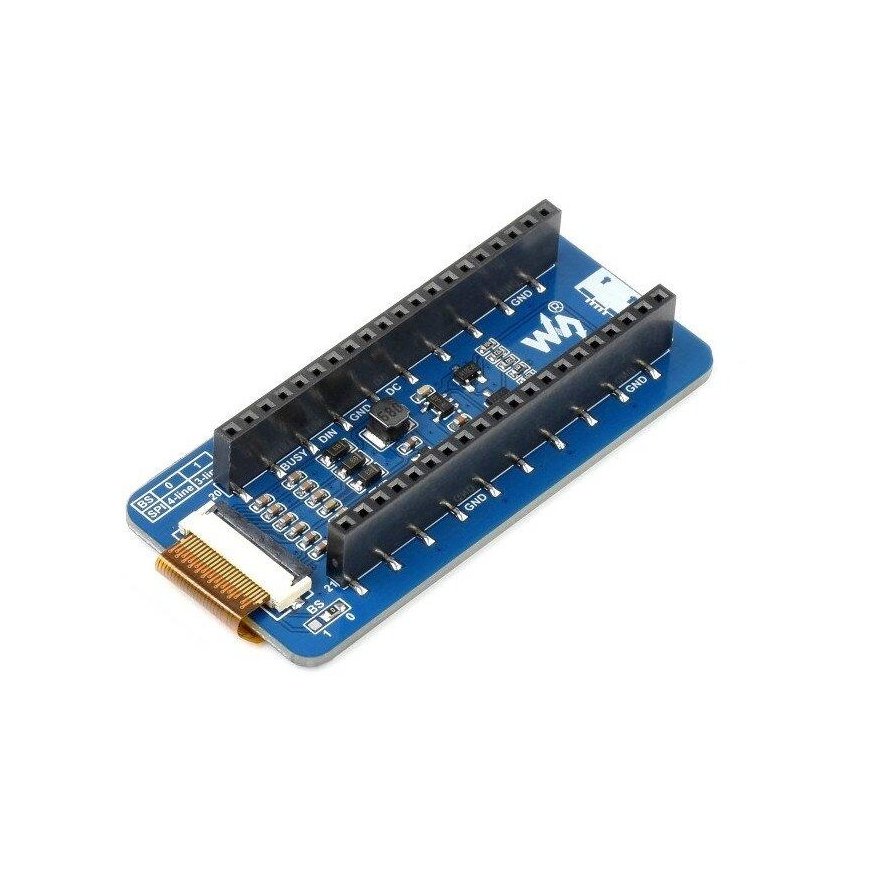

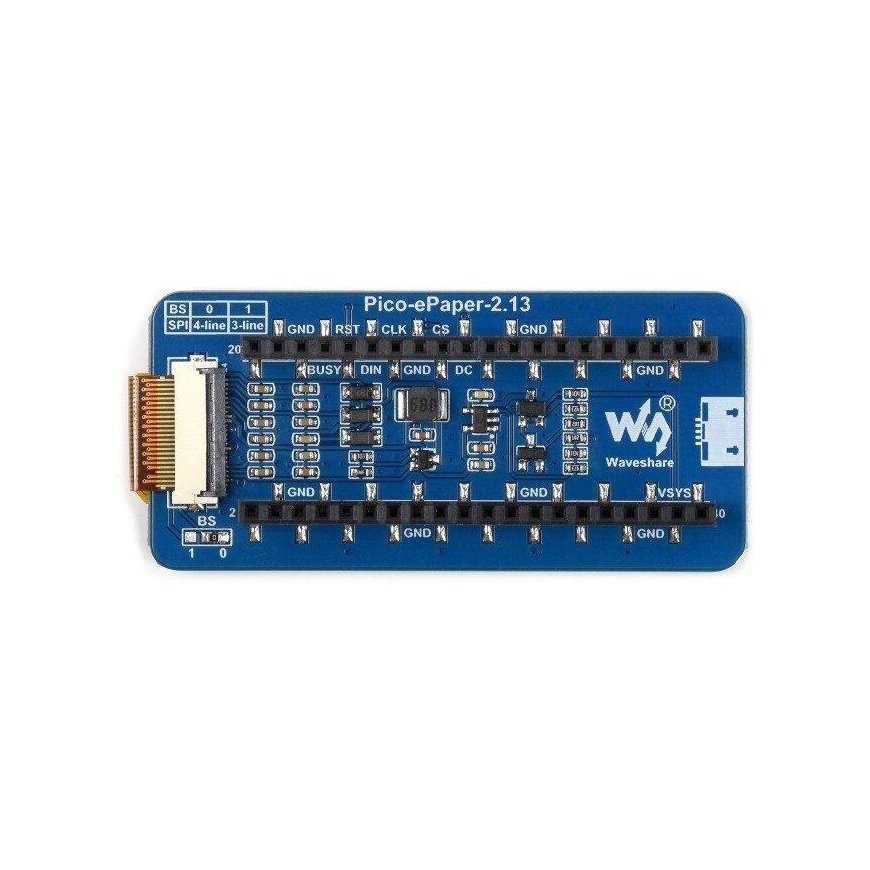

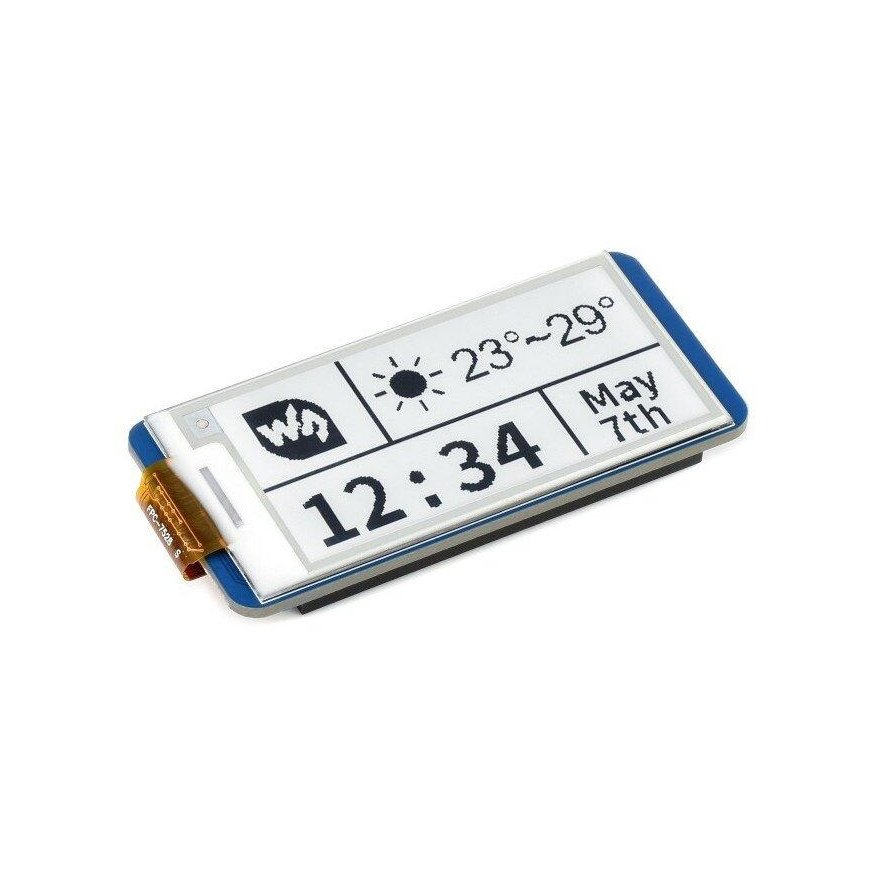

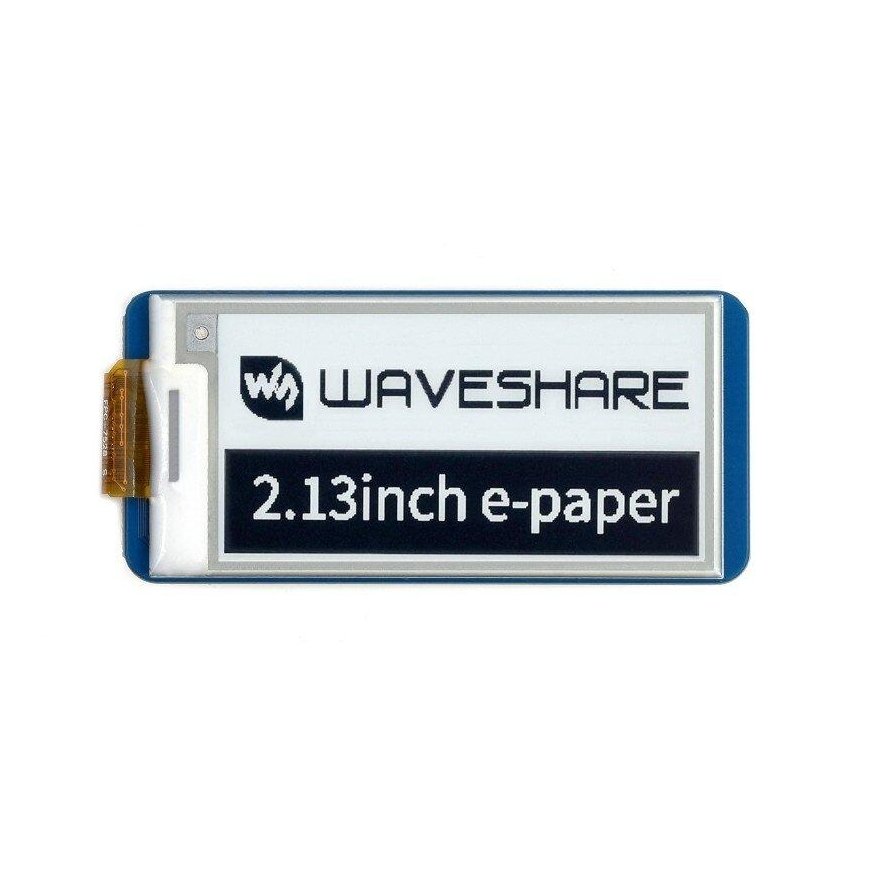

Waveshare produces a display for Raspberry Pi Pico. The module is made using e-paper technology, so this type of display is suitable for reading e-books and e-magazines. The diagonal is 2.13", and the resolution is 250x122px. The image is presented in two colors: black and white, with a grayscale of 2. The display provides the user with a wide viewing angle exceeding 170°.Main features:
- A screen made using e-paper technology, which is used in e-readers
- The image is displayed in two colors: white and black.
- Low energy consumption during use
- Displaying the last image even when the power source is disconnected
- SPI interface
- Programmable with C/C++ and MicroPython

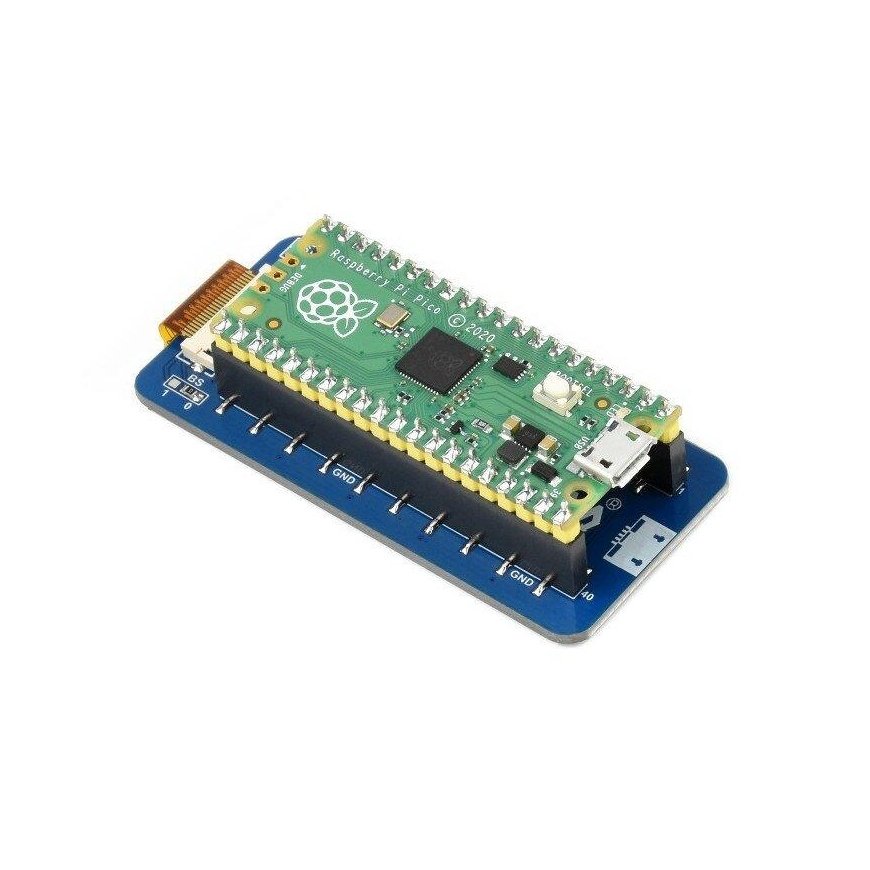

- Compatible with Raspberry Pi Pico
- Screen type: e-paper
- Operating voltage: 3.3V/5V
- Screen size: 2.13"
- Resolution: 250x122px
- Pixel size: 0.194 x 0.194
- Communication interface: 3-wire SPI, 4-wire SPI
- Colors shown: black and white
- Grayscale: 2
- Partial refresh time: 0.3s
- Total refresh time: 2s
- Refresh power: 26.4 mW
- Standby current: <0.01 µA
- Viewing angle: > 170°
- External dimensions: 65 x 30.5 mm
