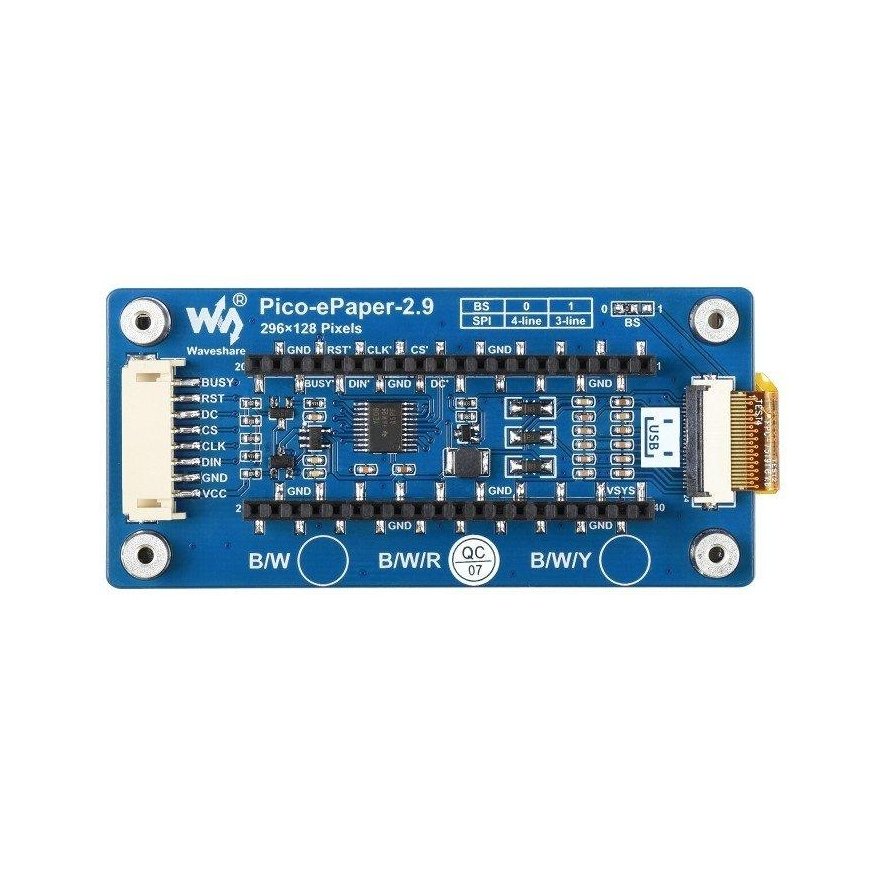

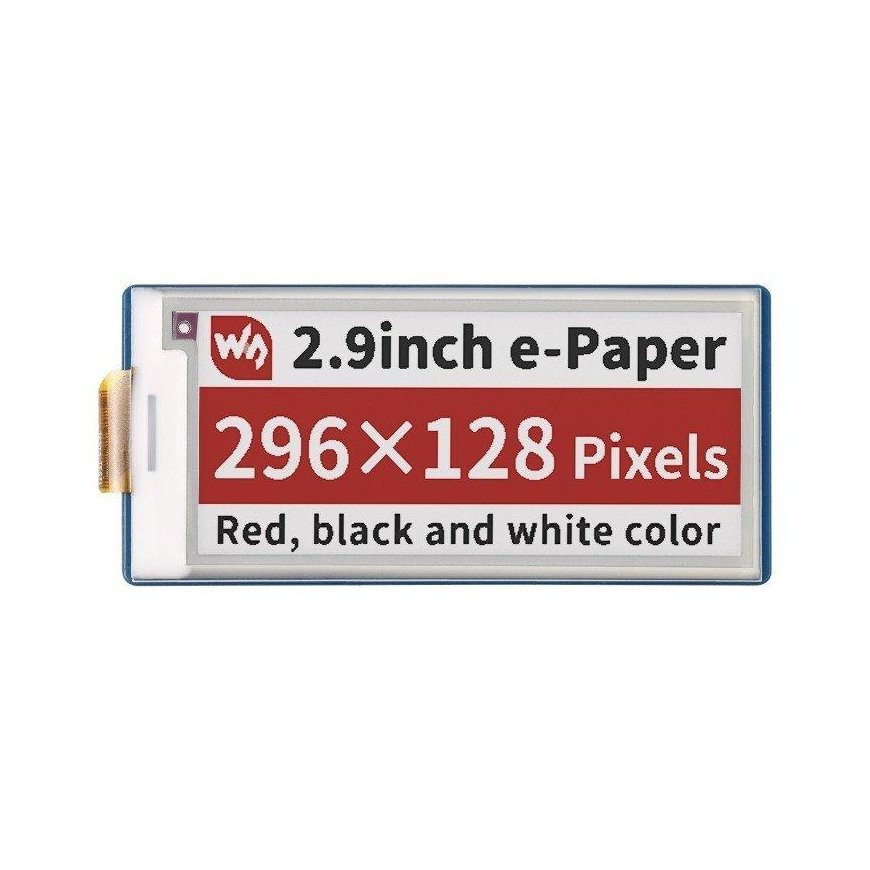

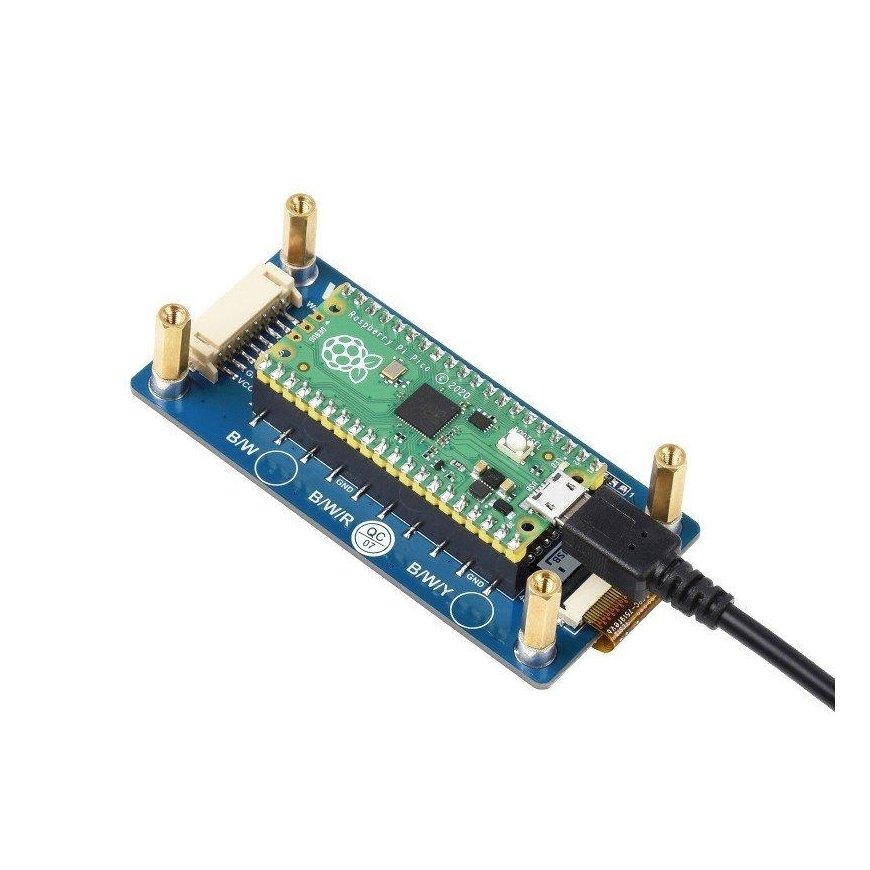

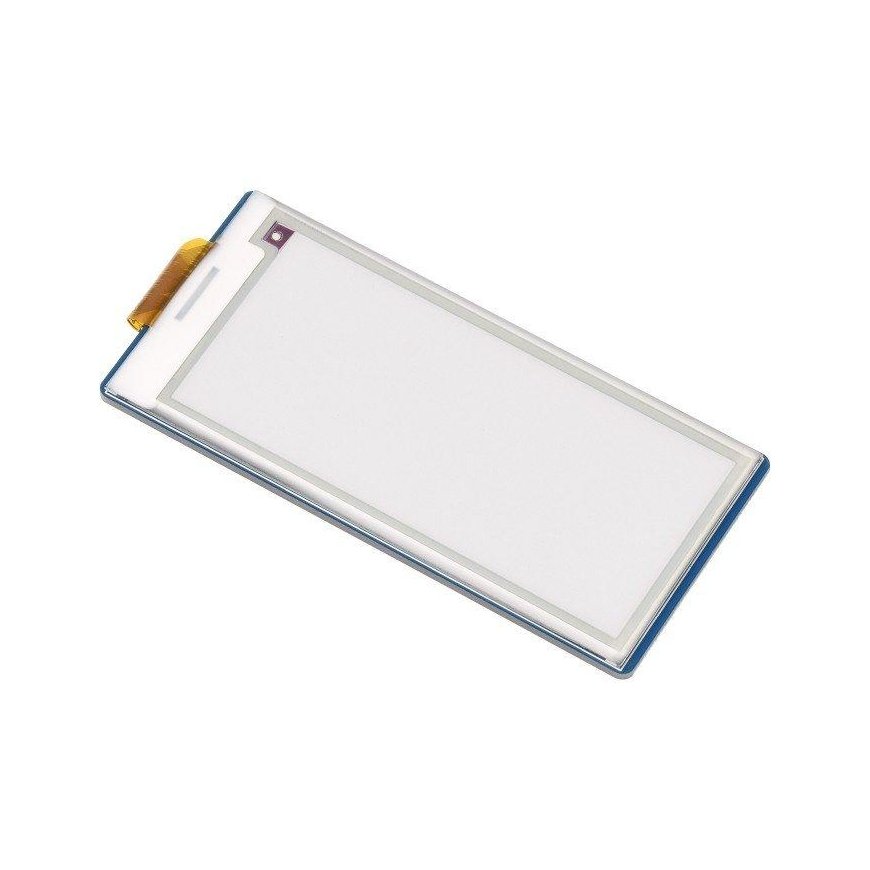

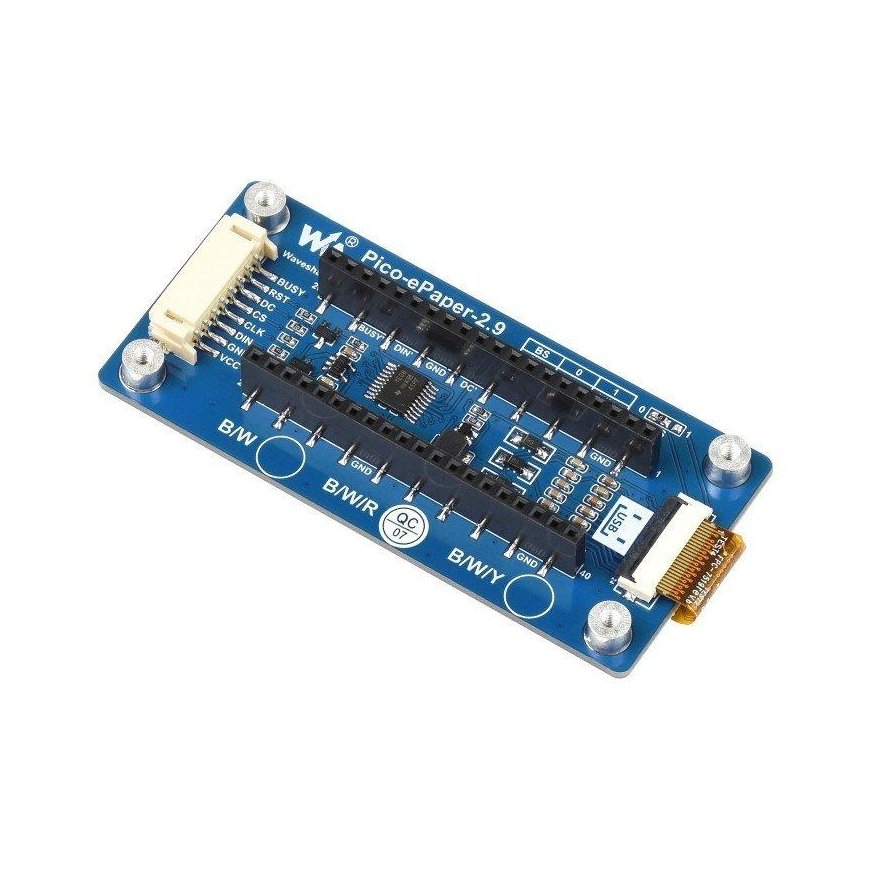

E-Paper E-Ink display 2.9” 296x128px, SPI, 3 colors, for Raspberry Pi Pico, Waveshare 19607
39.00 €
Ikm. maksa no 1,90 €
3675007 AN-19544
5904422371838
Piegāde 11-18 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
296x128px resolution E-Paper display for the popular Raspberry Pi Pico. Its diagonal is 2.9". It displays three-color content: red, black and white. The module uses the SPI bus to communicate with the Raspberry Pi. The display is made using E-Ink technology, which gives the user the impression that he is reading from a sheet of paper. This type of display can be used to read e-books and e-magazines. The display does not emit blue light and is passively reflective. It displays the last read content, even when the power is disconnected. It is characterized by low power consumption, and energy is consumed only for updating.Specifications:
- For Raspberry Pi Pico
- Type: E-Paper display
- Technology: E-Ink
- Interface: SPI (3-wire or 4-wire)
- Screen size: 2.9"
- Screen resolution: 296x128px
- Pixel size: 0.227 x 0.226 mm
- Display colors: red, black, white
- Viewing angle: >170°
- Gray colors: 2
- Total refresh time: 15s
- Power consumption during update: 26.4 mW
- Standby power consumption: 0.01 uA
- Supply voltage: 3.3V/5V
- Programming language: C/C++/MicroPython
- Screen dimensions: 66.90 x 29.06 mm
- Module dimensions: 82 x 38 mm
