OLED 1.3" 128x64px module for Raspberry Pi 4/3+/3/2/Zero, Waveshare 13890
22.58 €
3674519 AN-10752
5904422339302
Piegāde 11-18 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu

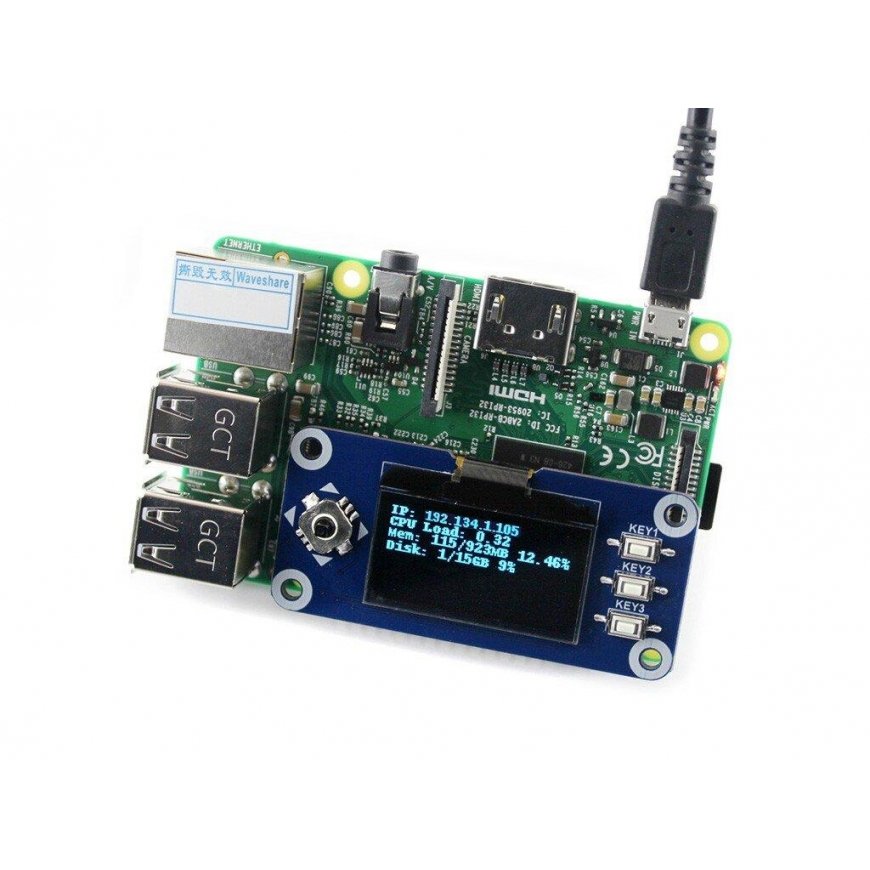

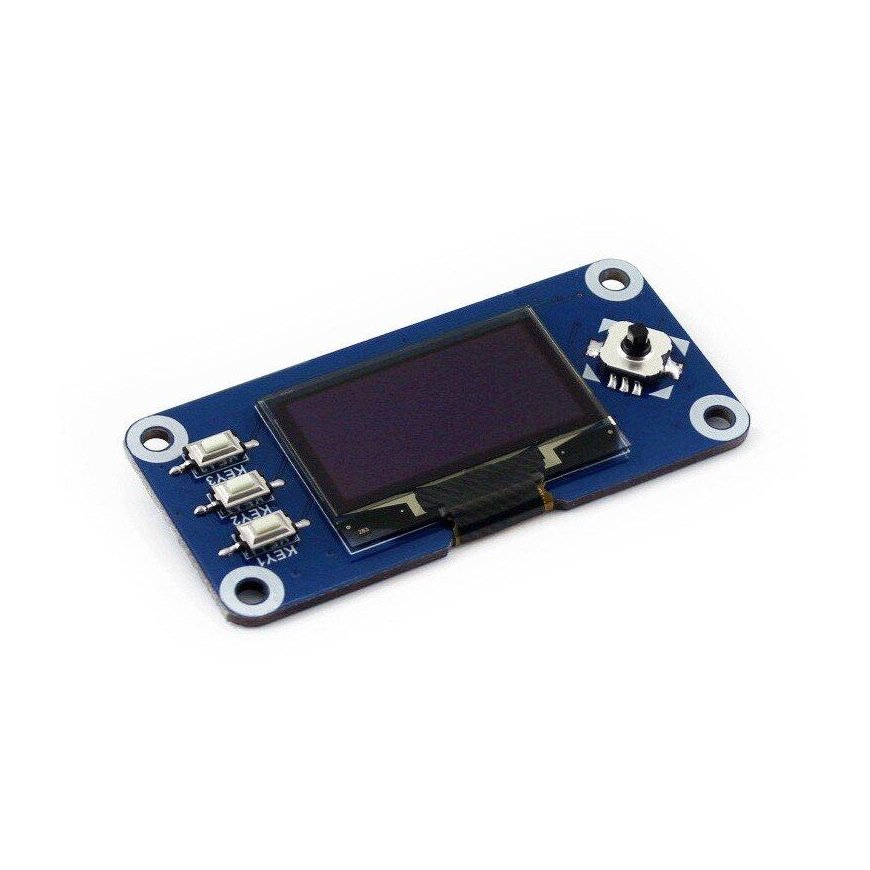

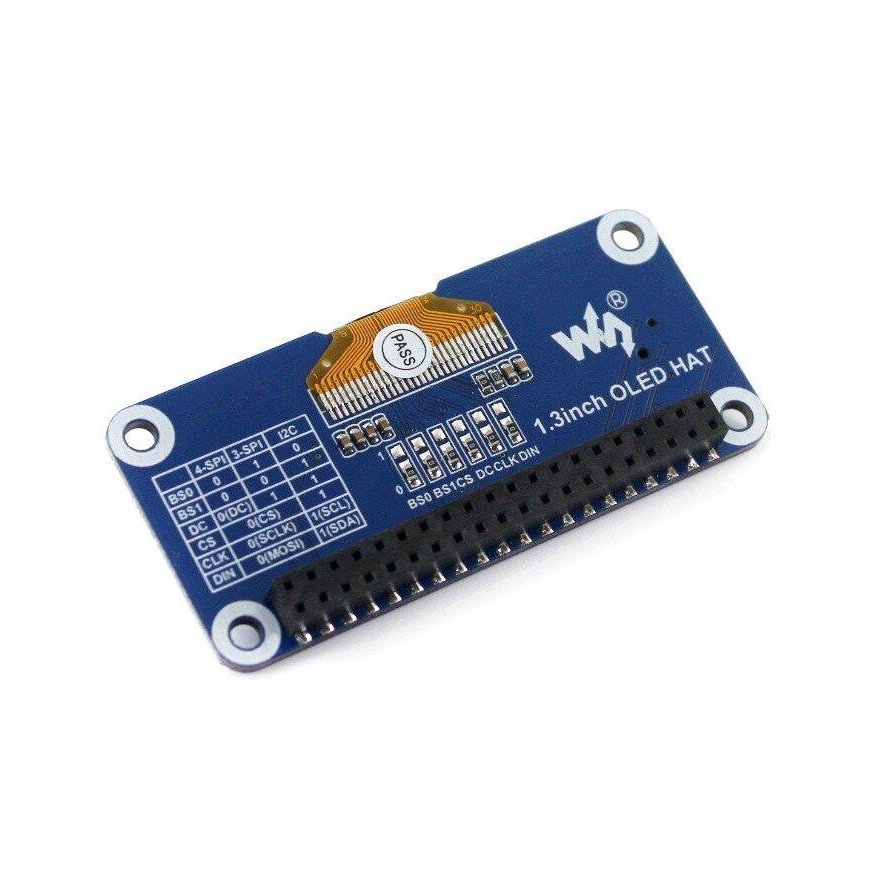

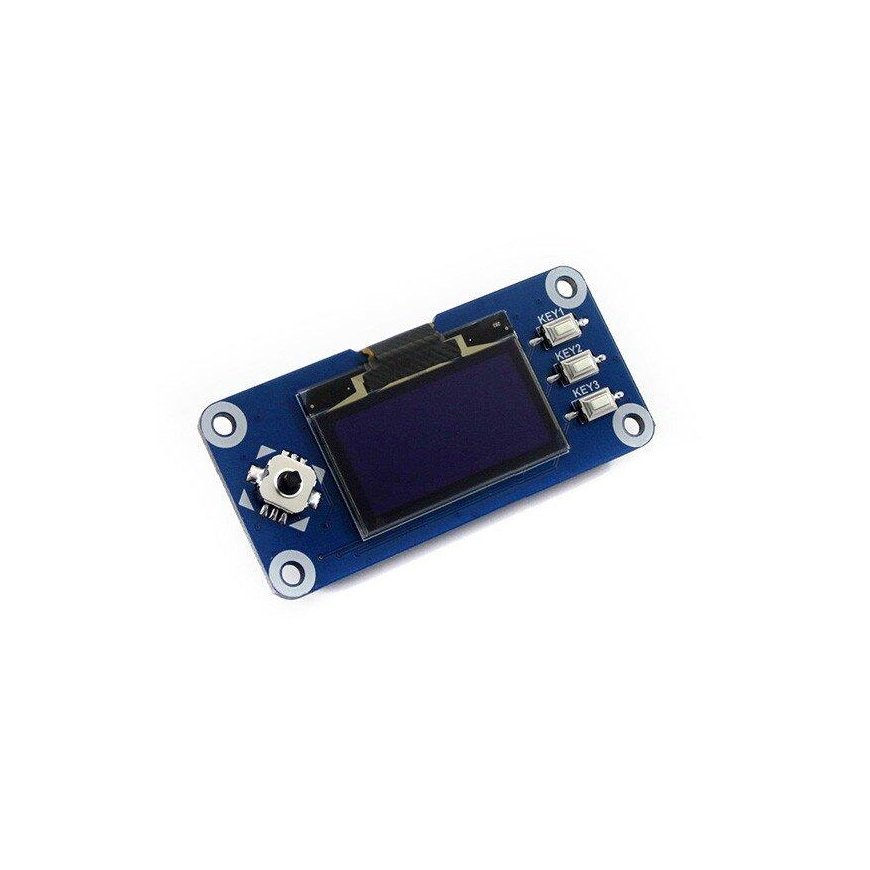

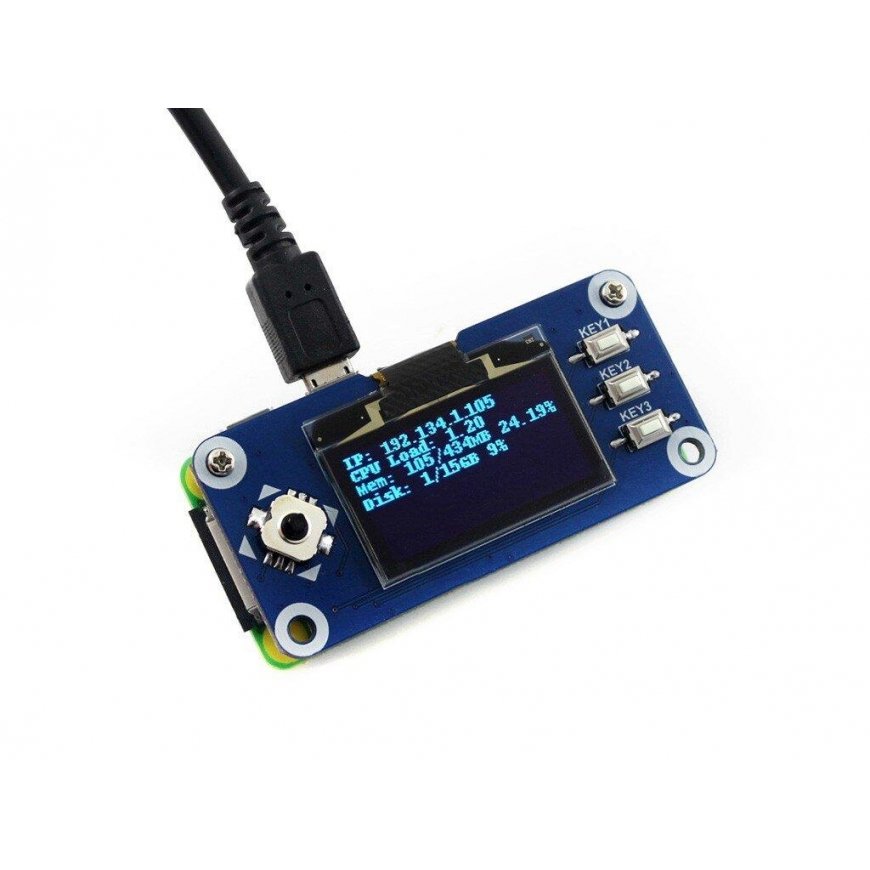

Raspberry Pi and Jetson Nano add-on with a blue OLED display with a diagonal of 1.3" and a resolution of 128x64px. The display is based on the SH1106 controller, supports communication via the I2C or SPI bus. In addition, the board has a joystick and three buttons.
Main features:
- Standard connection via Raspberry Pi 4 / 3+ / 3 / 2 / Zero / Zero W and Jetson Nano connector via GPIO
- Additional interfaces: 4-SPI, 3-SPI, I2C
- The panel consists of 1x joystick (5 positions), 3x buttons
Specifications:
- Controller: SH1106
- Interface: 4-SPI, 3-SPI, I2C
- Screen color: blue
- Resolution: 128x64px
- Supply voltage: 3.3V
- Dimensions: 65 x 30.2 mm
