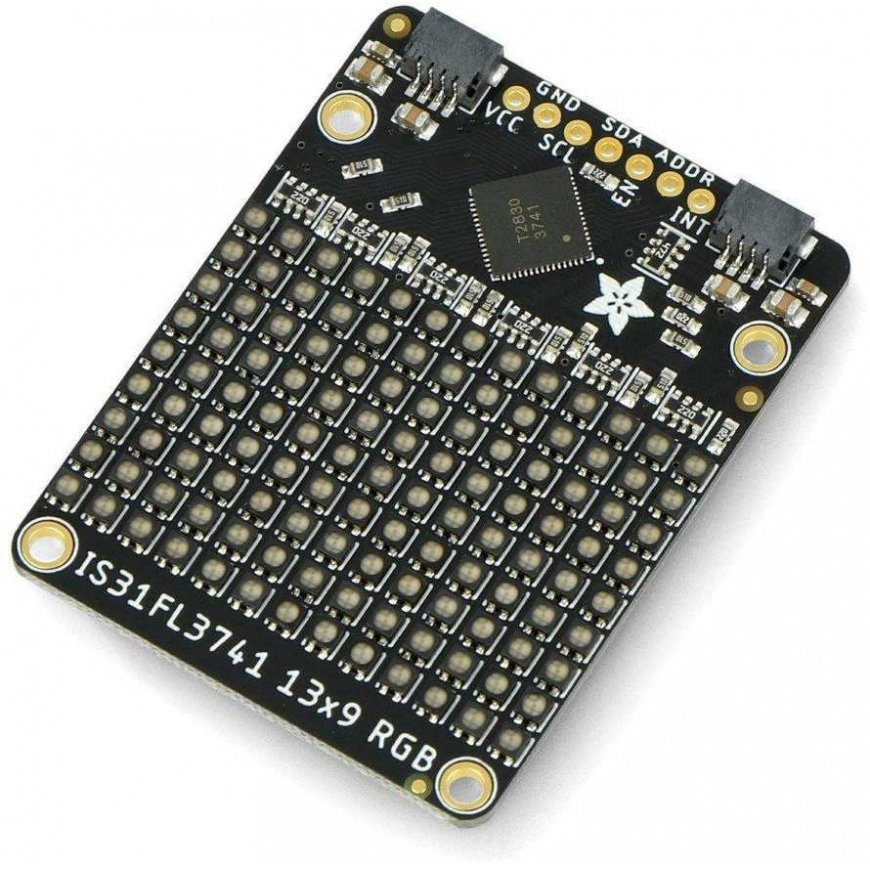

RGB LED Matrix Controller - 117 LED RGB Matrix Module - IS31FL3741 - STEMMA QT/Qwiic - Adafruit 5201
39.00 €
Ikm. maksa no 1,90 €
3670655 AN-20367
5904422380724
Piegāde 11-18 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu

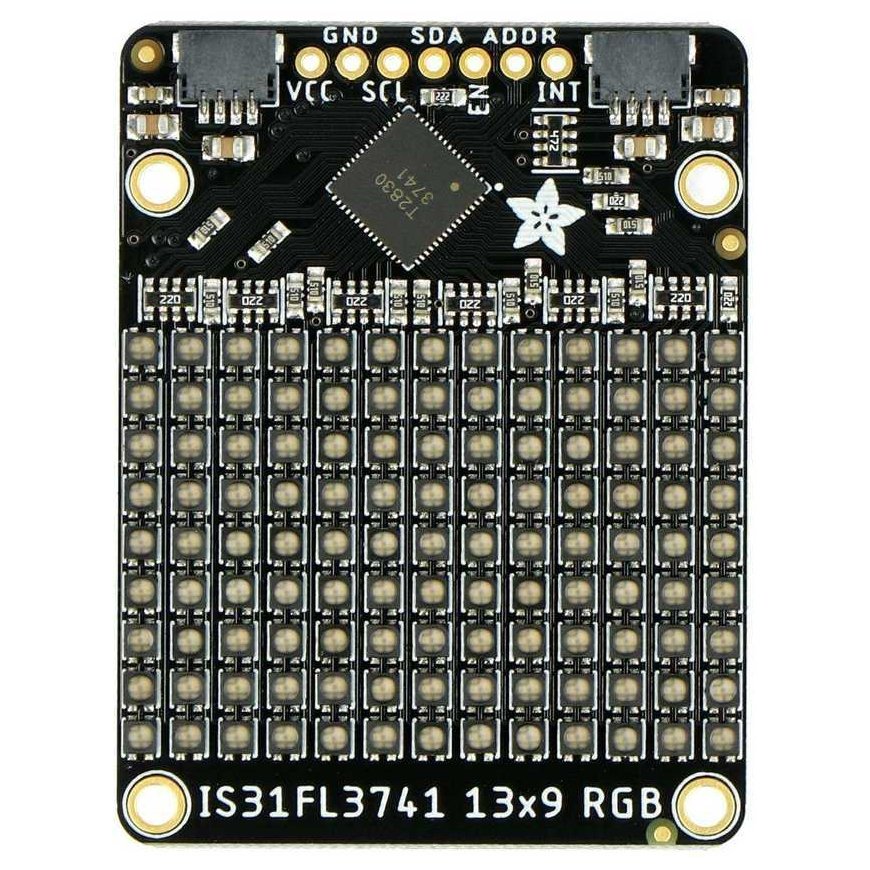

LED matrix module consisting of 117 RGB LEDs arranged in 13 columns and 9 rows. Each diode has dimensions of 2 x 2 mm and a spacing of 3 mm. The module contains an IS31FL3741 controller that uses the I2C bus to communicate with a controller module - Arduino or Raspberry Pi. It is used in projects where visual effects are key. The design possibilities are virtually unlimited.Specifications:
- LED color: RGB
- Number of LEDs: 117 LEDs
- Layout: 13 columns and 9 rows
- Integrated chip: IS31FL3741
- Interface: I2C bus

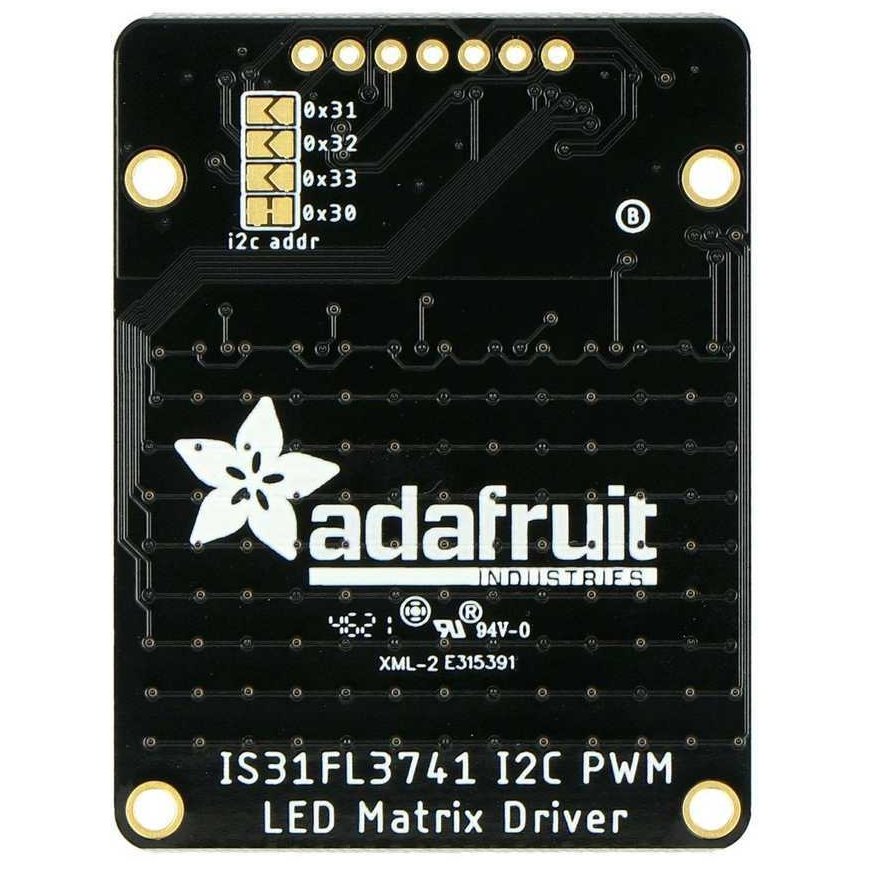

- Interface address:
- Default: 0x30
- Configurable: 0x31, 0x32, 0x33
- Supply voltage: 3.3V to 5V
- Connectors: STEMMA QT / Qwiic / Solder Fields
- Dimensions: 51.3 x 39 x 4.6 mm
- Weight: 5.8 g
- RGB LED matrix controller - module with RGB LED matrix of 117 diodes - IS31FL3741 - STEMMA QT/Qwiic - Adafruit 5201 - 1 pc

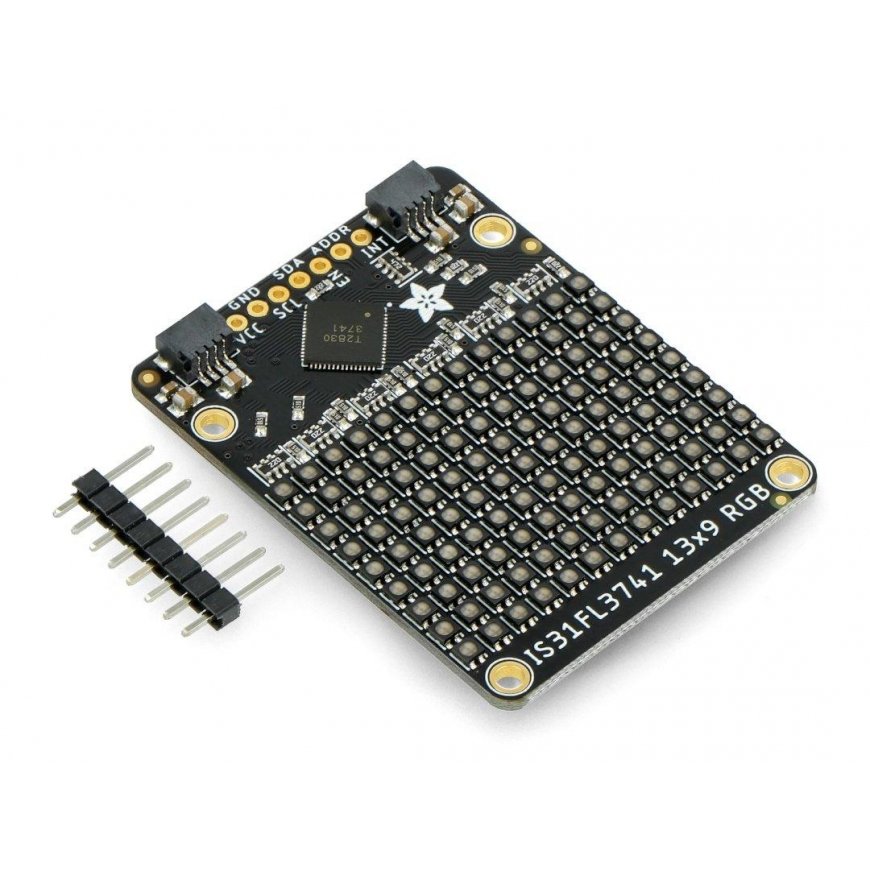

- Gold pins 1x8 - 2.54 mm pitch - 1 pc.
