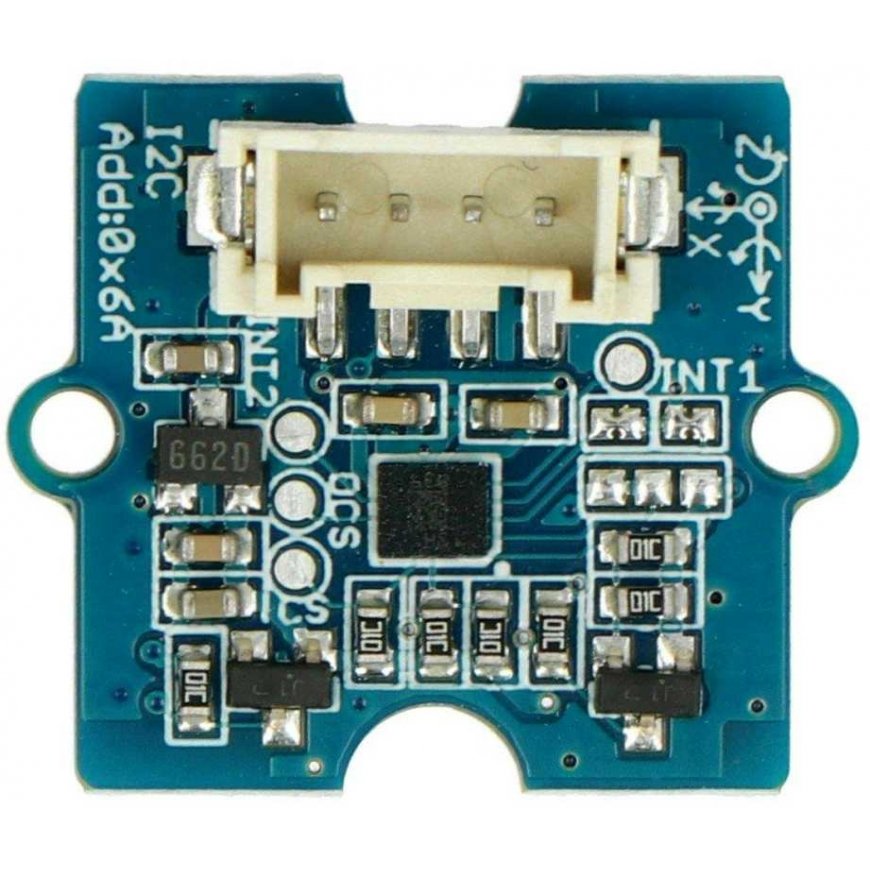

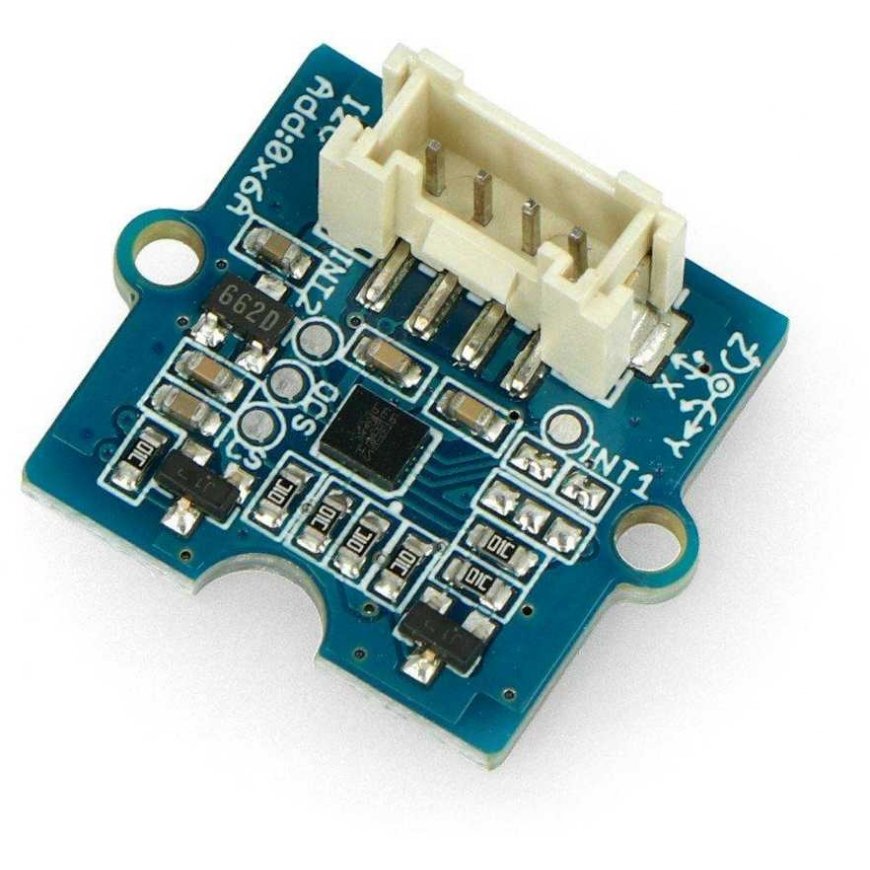

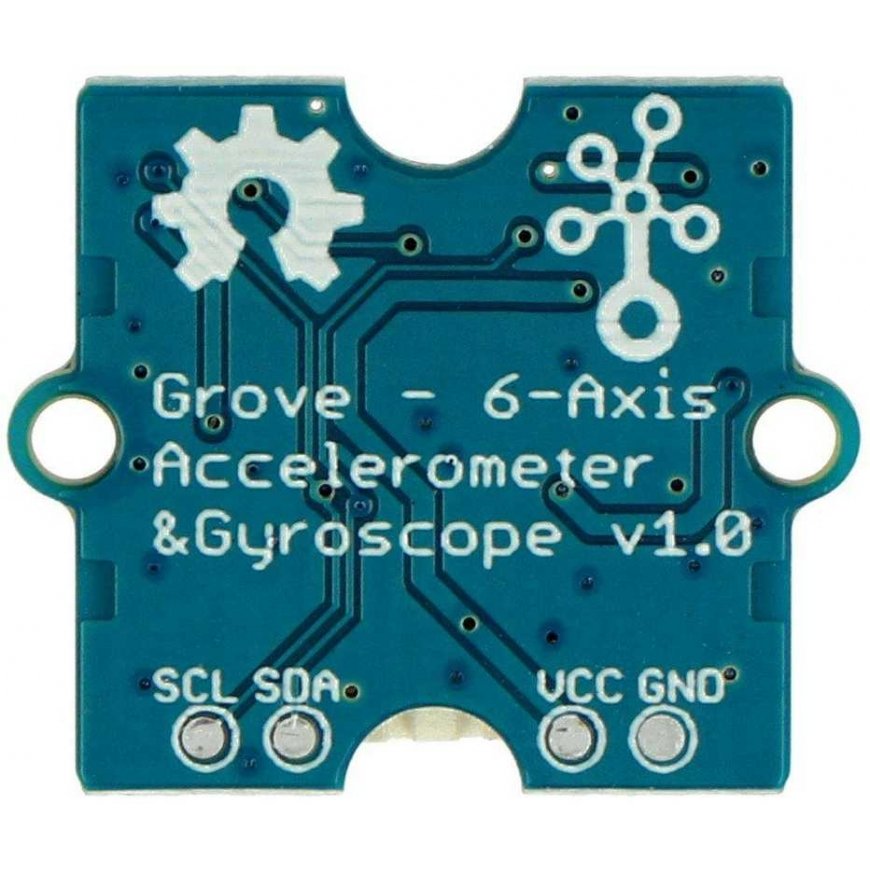

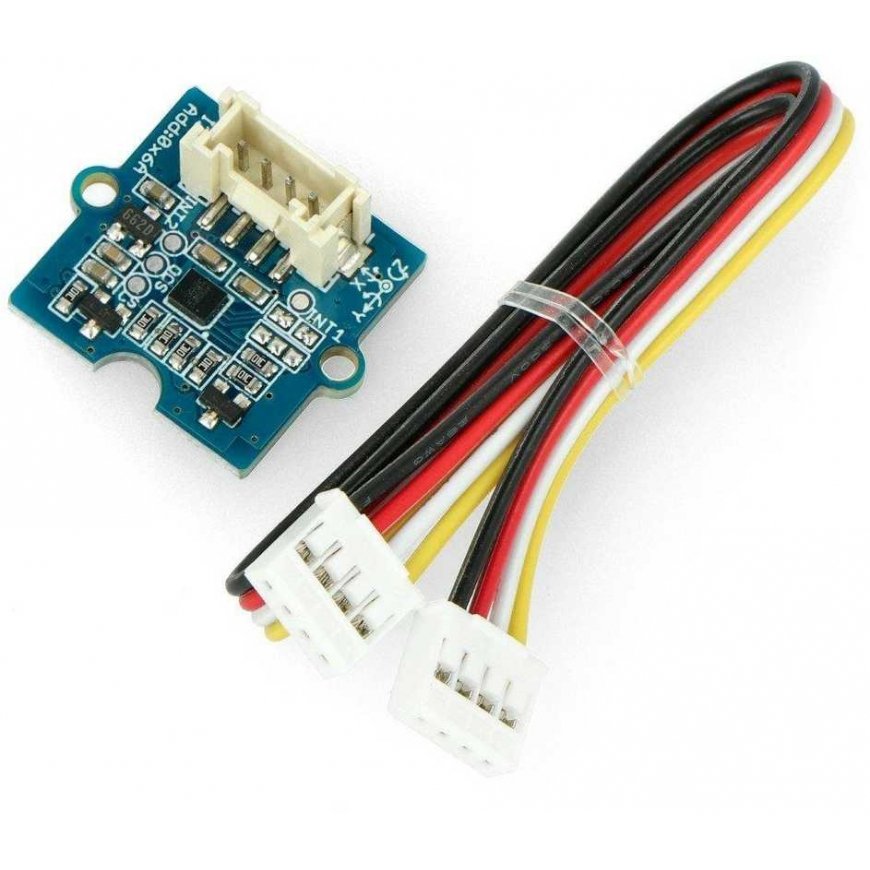

Seeed Studio Grove, 6-axis accelerometer and gyroscope LSM6DS3, Seeedstudio 105020012
23.41 €
3669268 AN-15559
5904422343538
Piegāde 11-18 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
The module contains a 6-axis accelerometer and gyroscope based on the LSM6DS3 system, with a built-in power regulator. It allows you to measure 6 quantities: acceleration X, Y, Z and angular velocity X, Y, Z. The Grove connector allows you to easily connect the board to the Base Shield board. The module is powered by 3.3 V or 5 V.
Specifications:
- Supply voltage: 3.3V or 5V
- System: LSM6DS3
- Current consumption: 0.9 mA in normal mode and 1.25 mA in high-performance mode
- Measurement ranges (configurable):
- Accelerometer: ± 2, ± 4, ± 6, ± 16 g
- Gyroscope: ± 125, ± 245, ± 500, ± 1000, ± 2000 °/s
- Dimensions: 21 x 20 mm
Links:
Manufacturer's page
Manual
