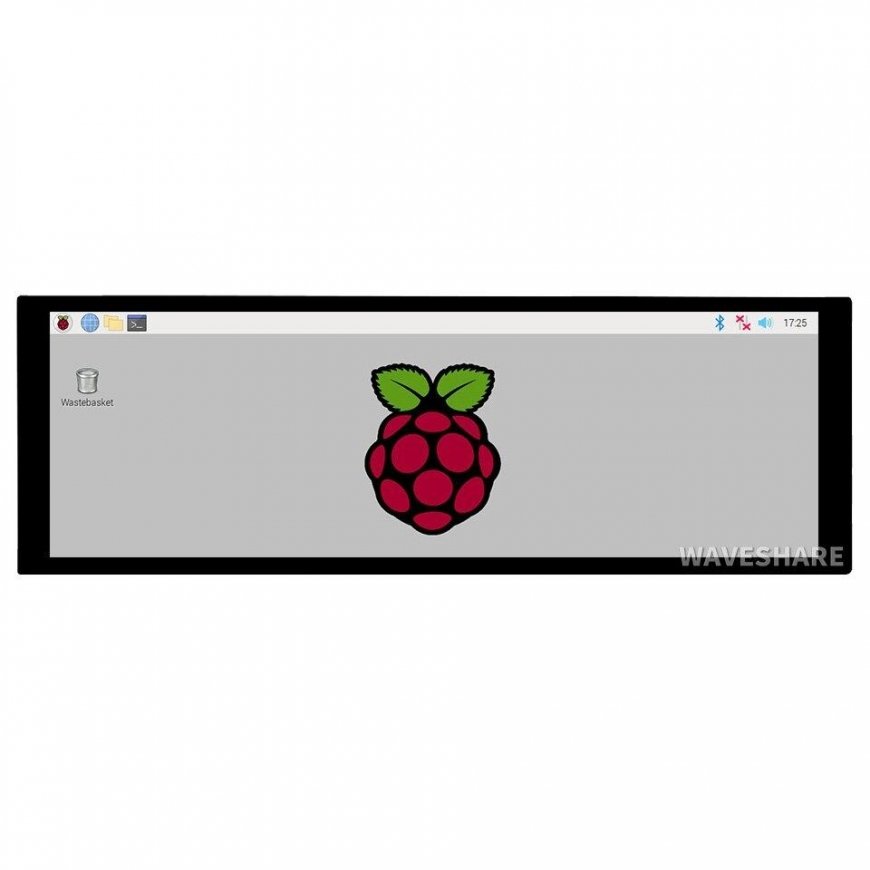

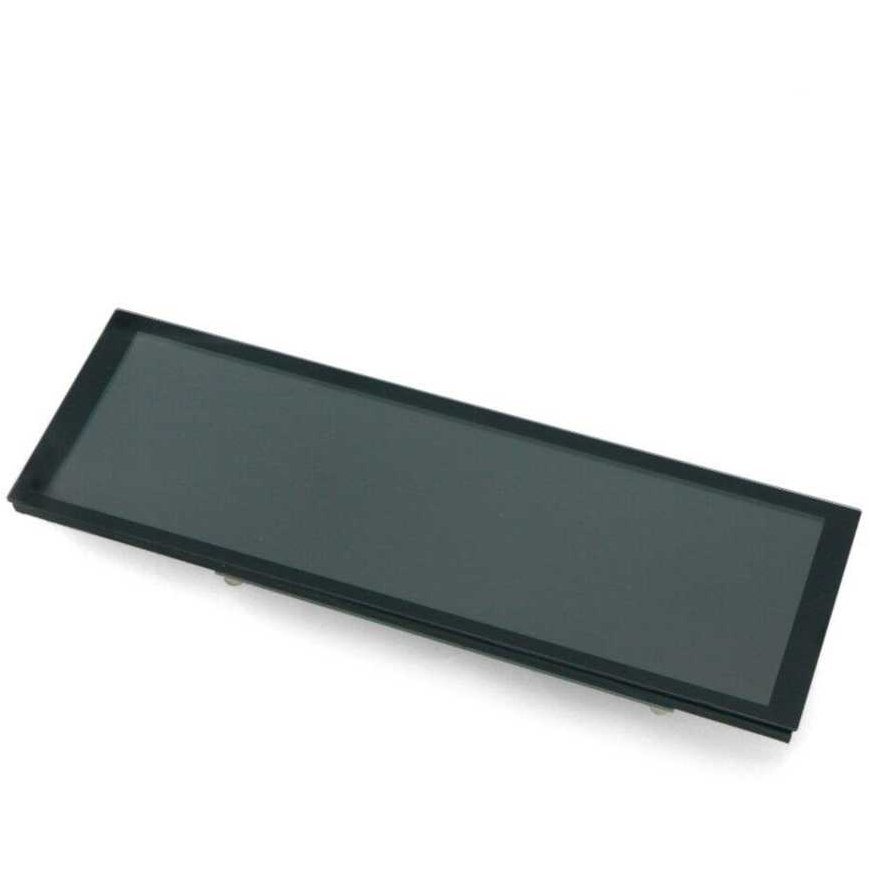

Touch screen, capacitive LCD IPS 7.9" 400x1280px HDMI + USB, for Raspberry Pi, Waveshare 17916
129.00 €
Ikm. maksa no 4,22 €
3667442 AN-19133
5904422371333
Piegāde 11-18 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu

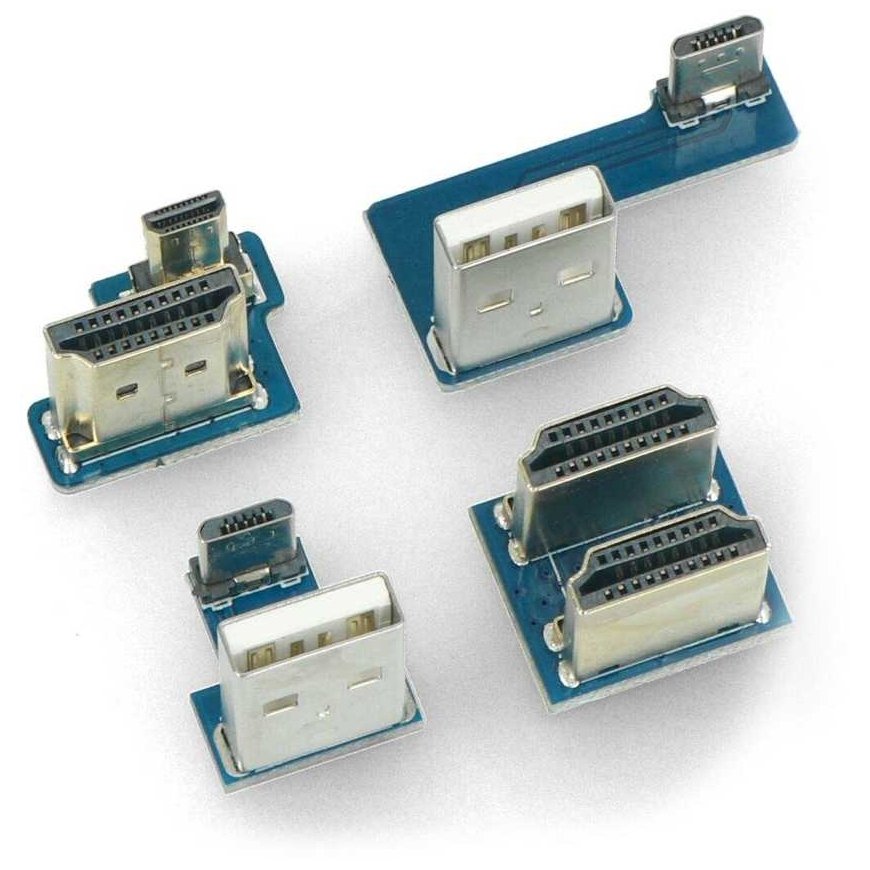

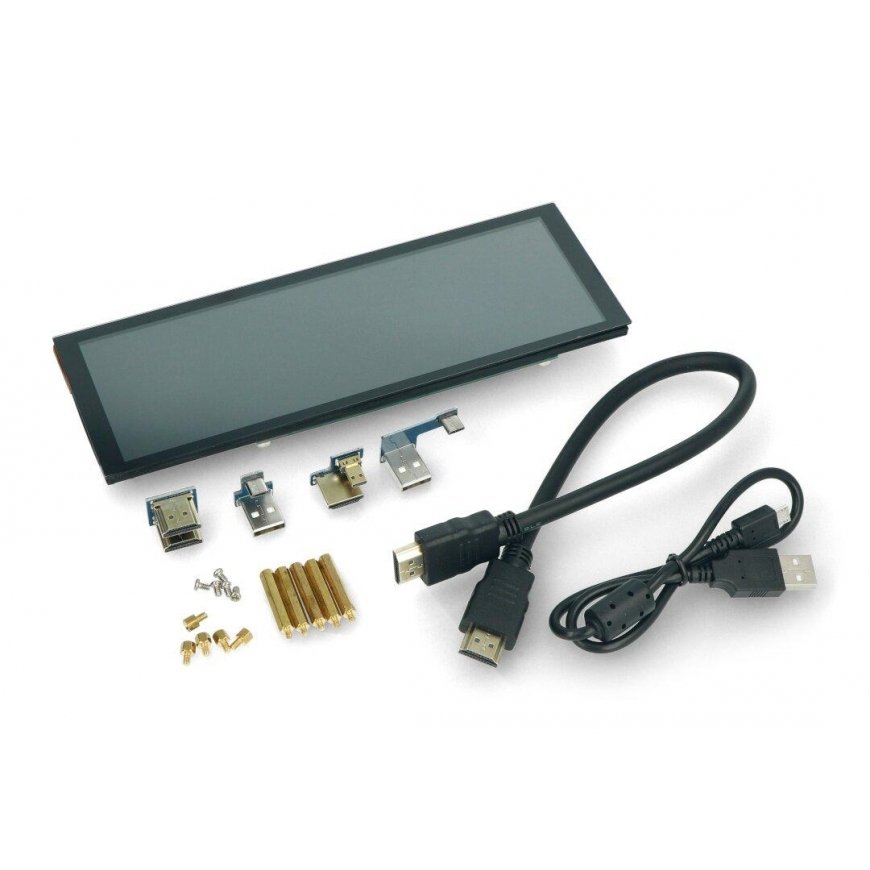

Waveshare IPS LCD screen with capacitive touch. The screen diagonal is 7.9", and its resolution is 400x1280px, viewing angle - 170°. It has a 3.5 mm jack connector for connecting headphones or speakers. Supports capacitive touch with 5 touch points. The screen is covered with tempered glass, which significantly improves its durability and scratch resistance. Interacts via HDMI connector, USB connectors are responsible for the touch function. The screen is compatible with Raspberry Pi, Nvidia Jetson and other HDMI devices, such as PC. The kit includes a 7.9" screen, HDMI - microHDMI adapter, HDMI - HDMI adapter, two USB - microUSB adapters, HDMI - HDMI cable, USB - microUSB cable, screws and spacers.Specifications:
- Diagonal: 7.9"
- Resolution: 400x1280px
- Display port: HDMI
- Sensor connection: USB
- Screen type: IPS
- Viewing angle: 170°
- Touch type: capacitive
- Number of touch points: 5
- Touch panel: 6H tempered glass
- Audio output: 3.5 mm jack
- Power switch
- Screen orientation switch
- Dimensions: 207.78 x 69.80 mm
