DRV8833, dual channel motor controller 10.8V/1.2A, Pololu 2130
23.00 €
3667250 AN-00546
5904422367213
Piegāde 11-18 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu

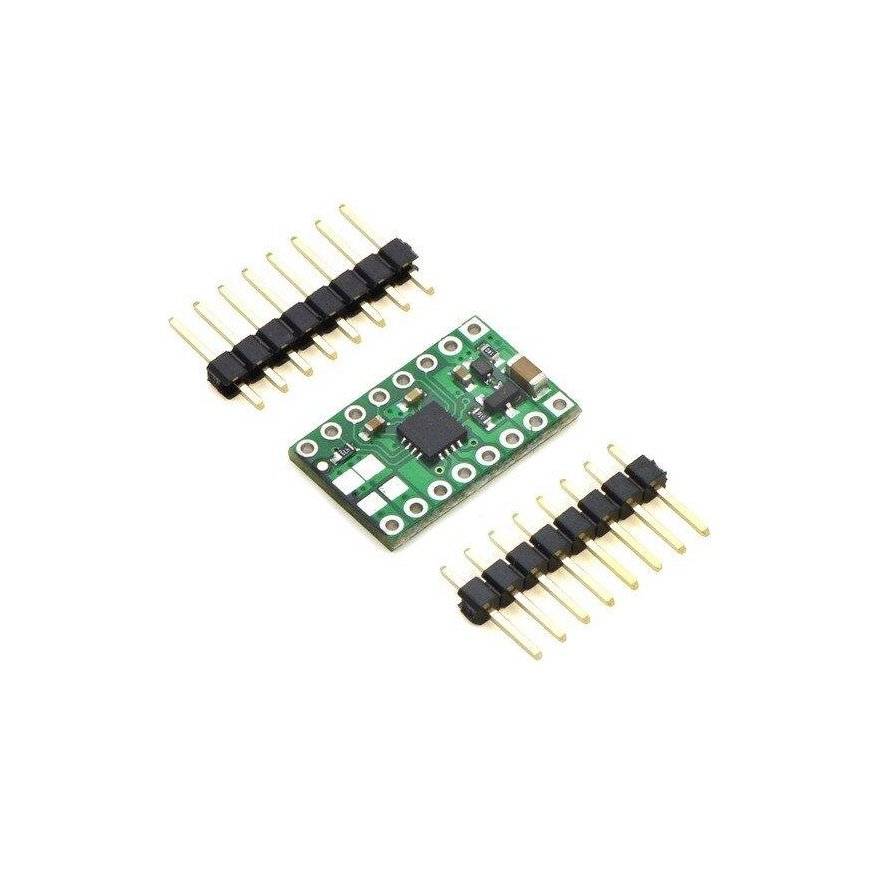

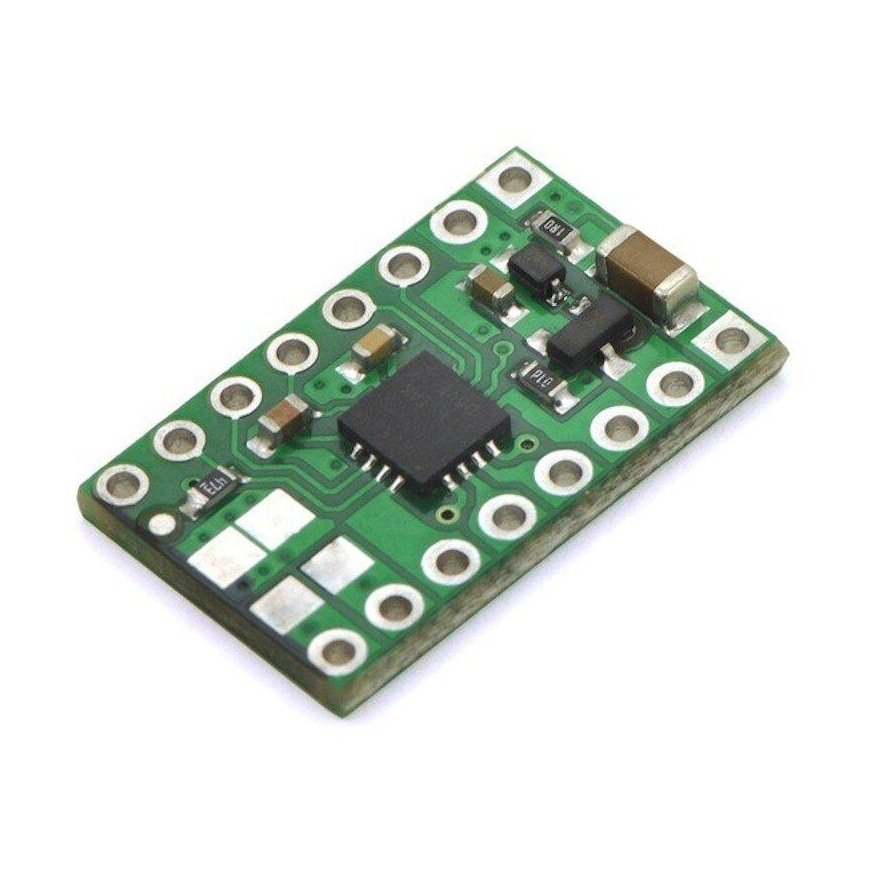

The module is a two-channel DC controller based on Texas Instruments DRV8833. The advantage of the system is its extremely small dimensions - the board is the size of a 14-pin DIP package. The module can control motors with voltages from 2.0 V to 11 V, with a DC current consumption of up to 1.2 V. The controller channels can be connected to increase the current capacity - up to 2.4 A. The kit includes the module and goldpin connectors.
Specifications:
- Number of channels: 2
- Supply voltage: 2.7 V to 10.8 V
- Continuous current per channel: 1.2 A
- Maximum instantaneous current per channel: 2 A
- Continuous current with channels connected: 2.4 A
- Protection against reverse power connection
- Protection against under and over voltage

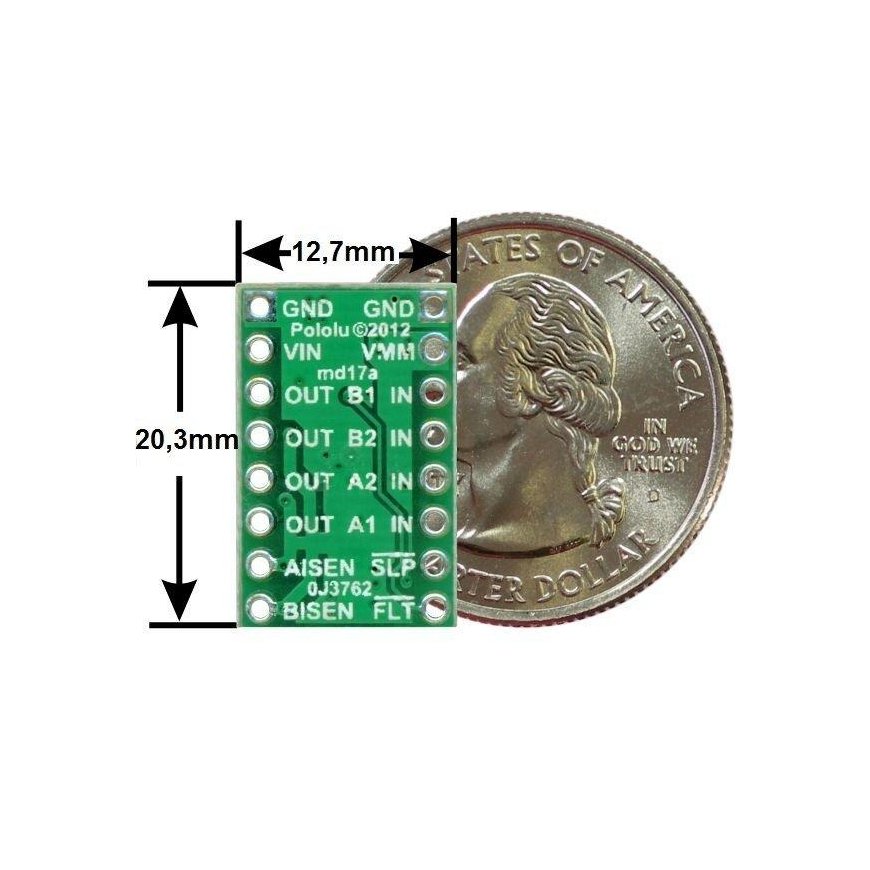

- Dimensions: 11.7 x 20.3 mm
- Weight: 1 g
Links:
Manufacturer's page
