W5500 - Ethernet and PoE add-on for Arduino - DFRobot DFR0850
49.00 €
Ikm. maksa no 2,16 €
3658657 AN-20069
5904422379988
Piegāde 11-18 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu

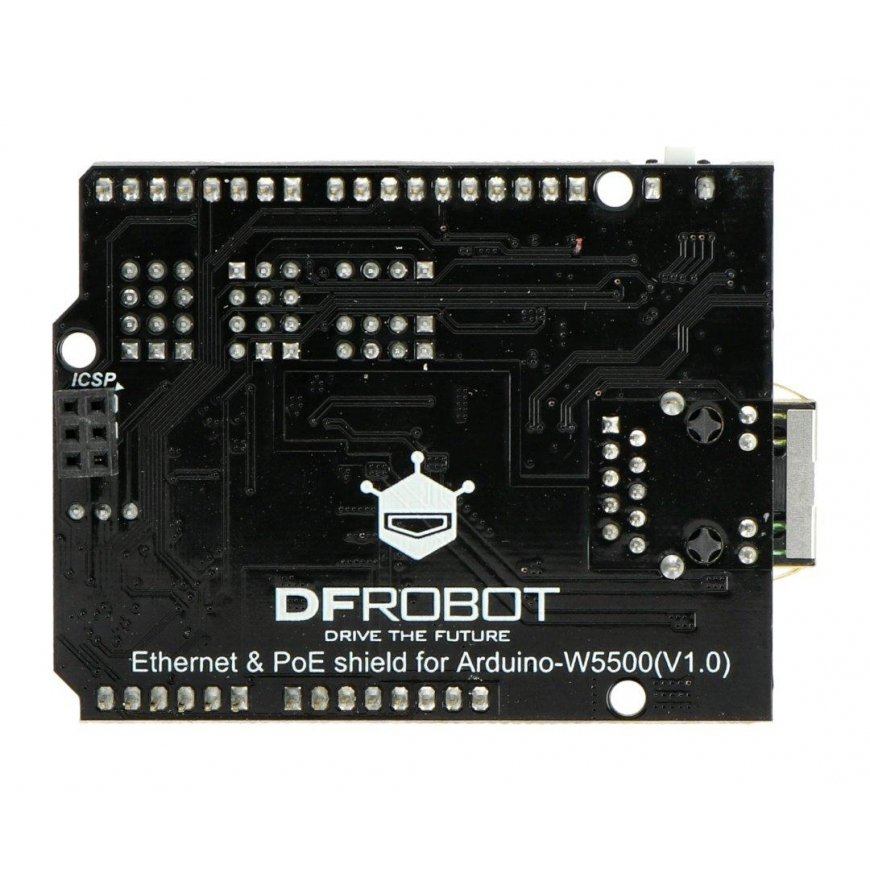

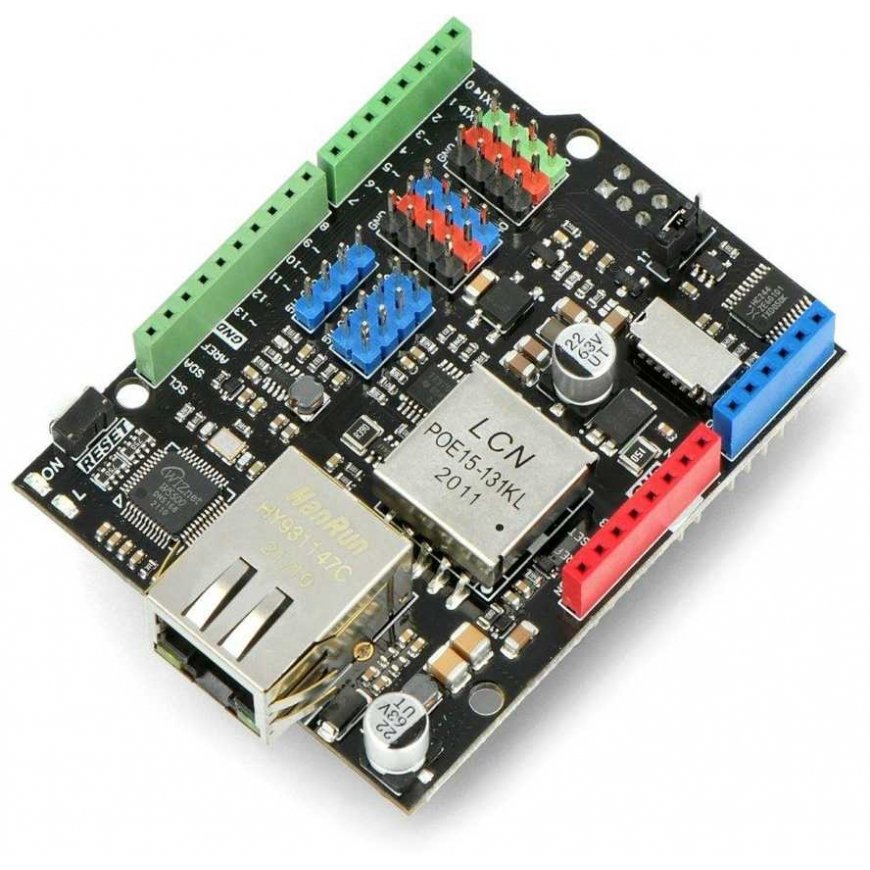

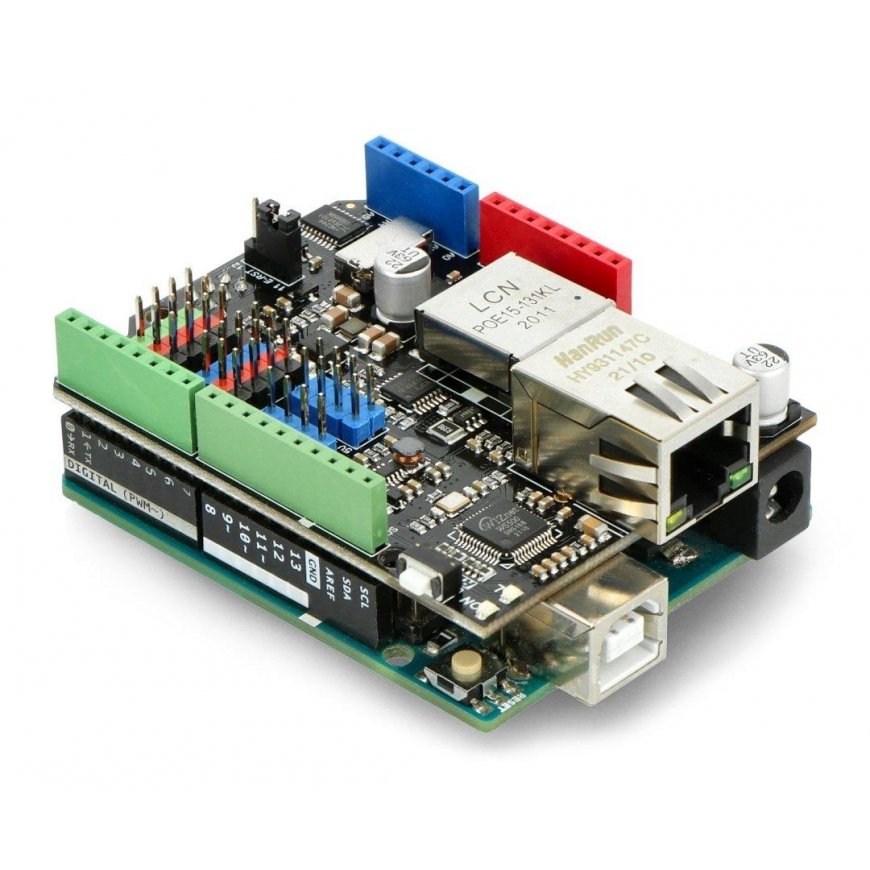

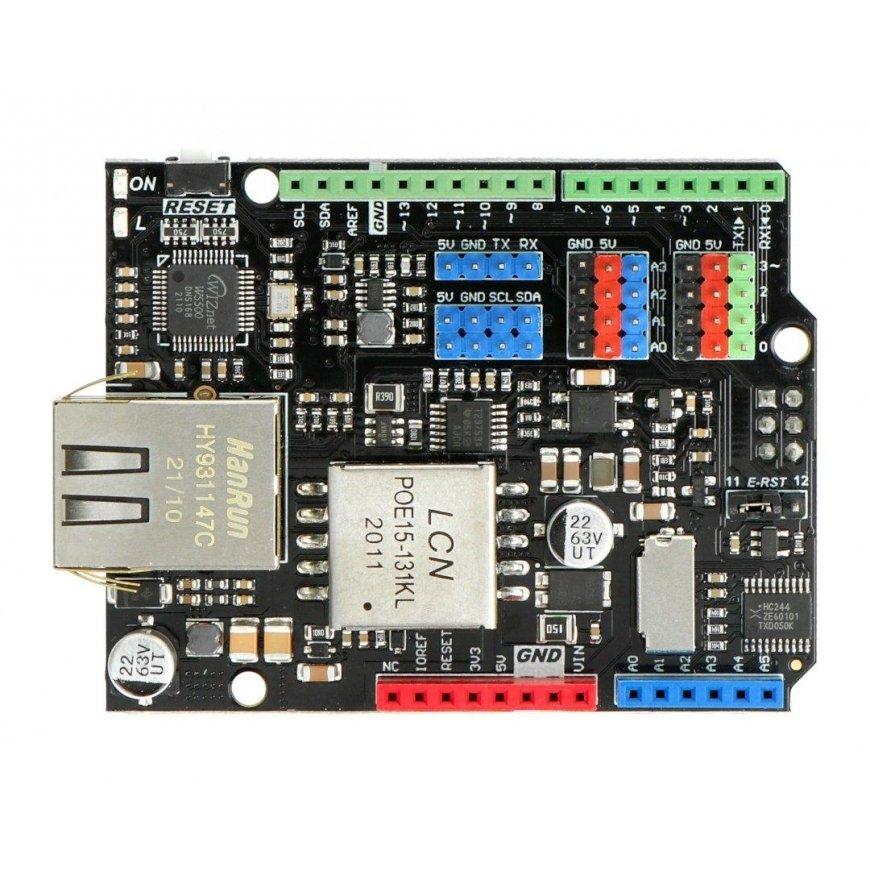

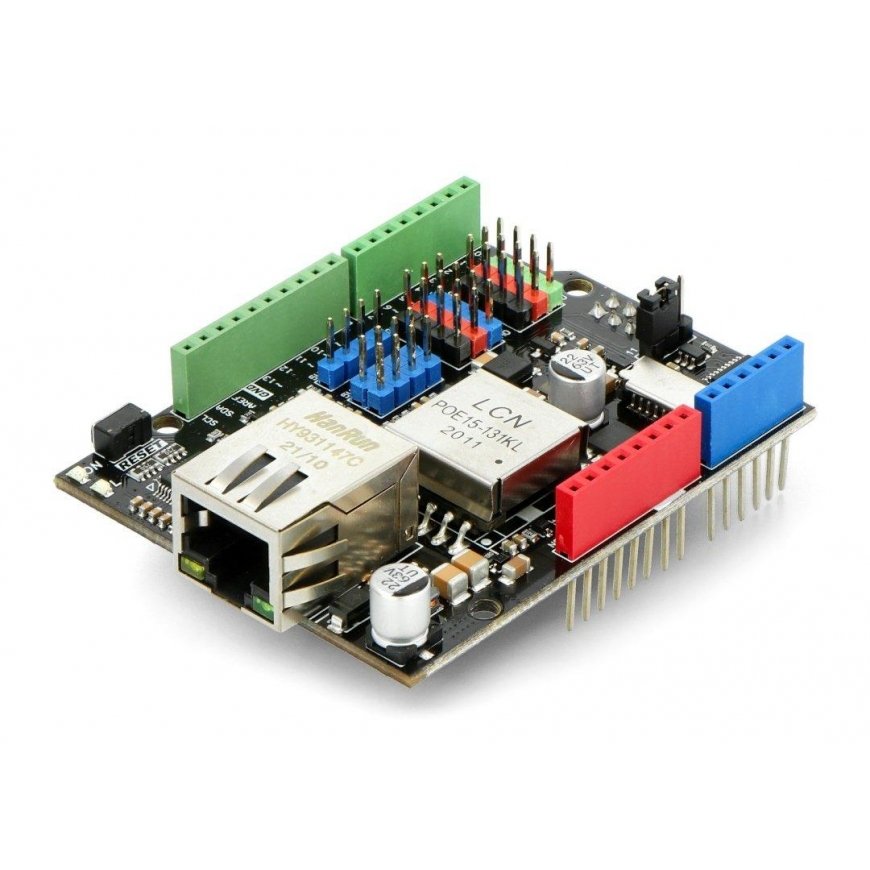

The Arduino board add-on is made by DFRobot. It extends the capabilities of Arduino by adding Ethernet connectivity and a PoE module. This allows users to connect Arduino to the network using an RJ45 cable. The module is based on the W550 chip, which provides wired TCP/IP communication. The W5500 has a built-in 32 kilobyte internal memory buffer for processing Ethernet packets.Main features:
- TCP/IP protocol support: TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
- WOL Wake-on-LAN support
- Ethernet controller: W5500 with 32 kB buffer
- Integrated level converter circuit
- PoE module allows power over Ethernet - works only with PoE-enabled routers/switches
- Suggested program:
- security system: network camera
- home monitoring
- USB Ethernet: storage devices, network printers
- set-top box, PVR, digital media center
- Type: Arduino expansion board
- Type: communication set-top box
- Connection type: Ethernet and PoE
- PoE input: 48V AC/DC
- PoE power: up to 12W (VIN port can output 12V/1A)
- PoE Class: 0 PD
- PoE standard: 802.3at
- Interface: SPI bus
- SPI clock: maximum 80 MHz
- Ethernet controller: W5500 with 32 kB buffer
- Supported TCP/IP protocols: TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
- Integrated RJ45 connector
- microSD memory card slot
- Dimensions of the set:
- panels: 68.6 x 53.3 mm
- boards and Ethernet connectors: 72.5 x 53.3 mm
- W5500 - Ethernet and PoE adapter for Arduino - 1 pc.
- 2.54 mm jumper - 1 pc.
