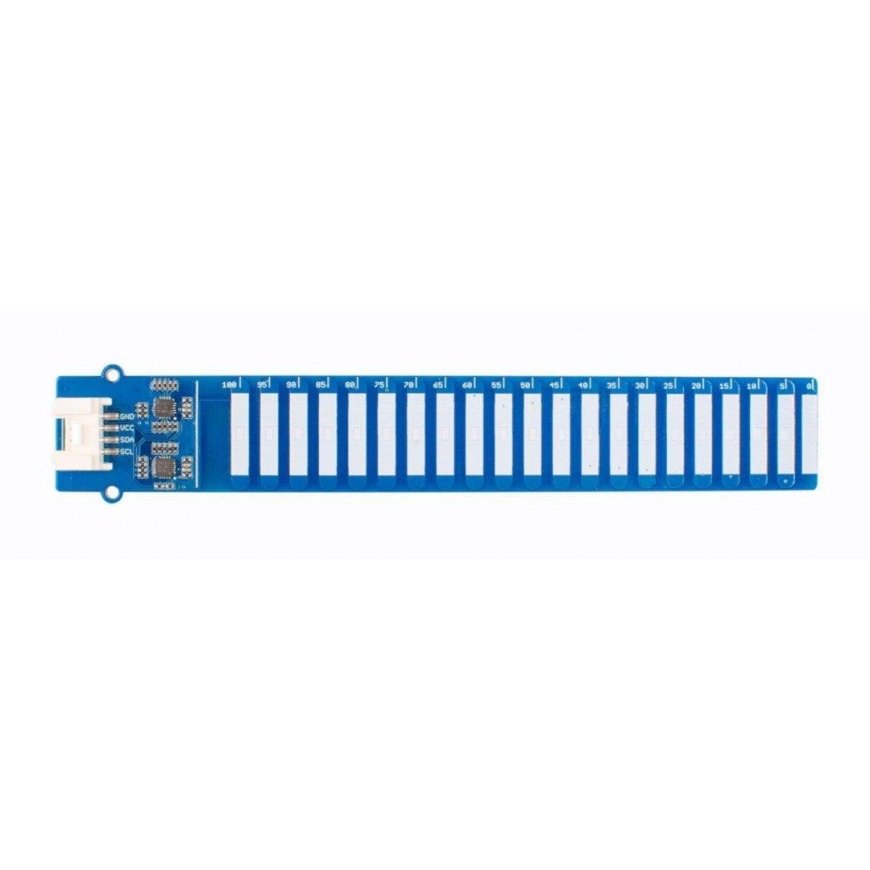

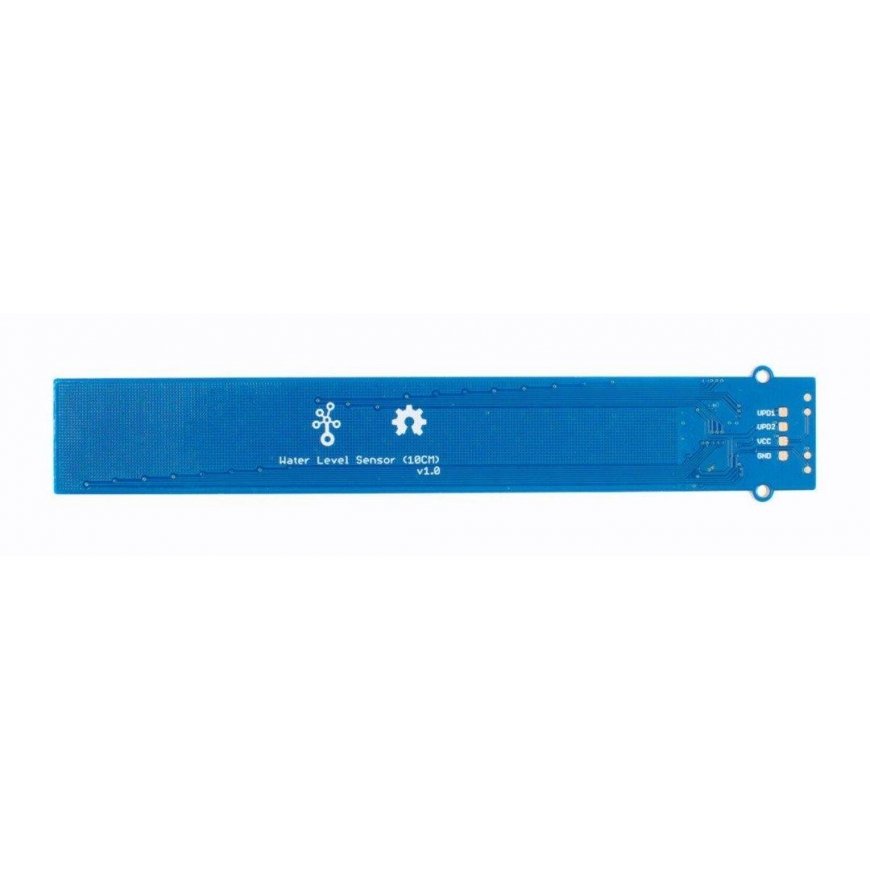

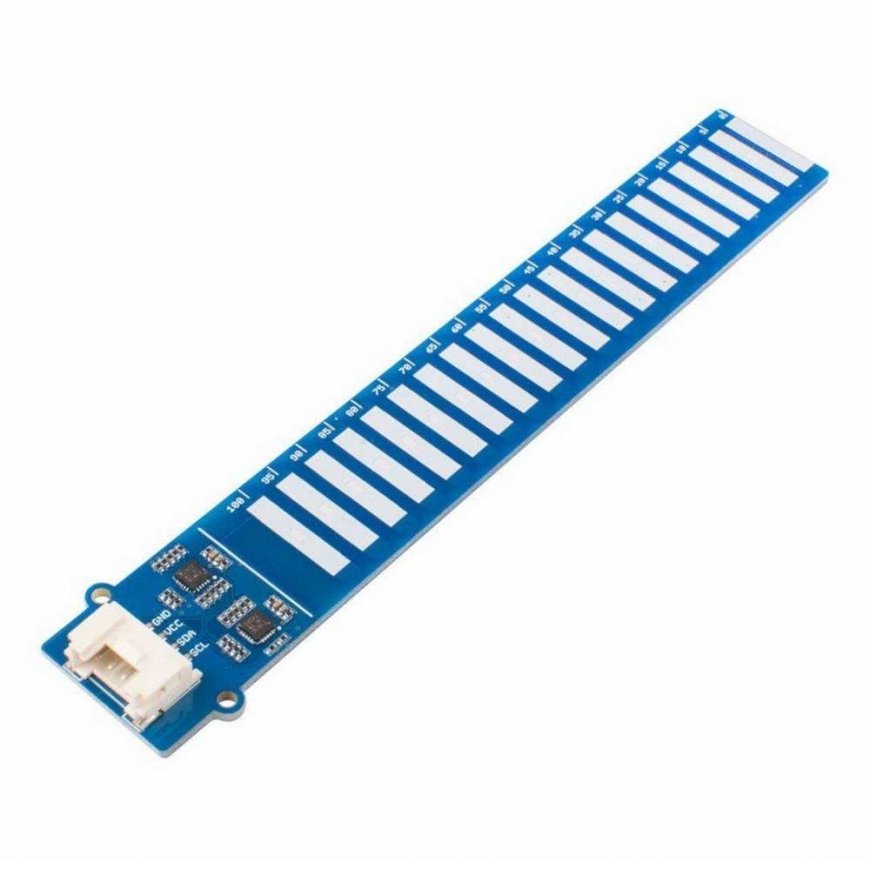

Seeed Studio Grove, water level sensor, 10cm, Seeedstudio 101020635
20.46 €
3658604 AN-16346
5904422378134
Piegāde 11-18 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
Sensor for measuring water level in a container up to 10 cm using an Arduino module. Measurement is made by volume. The sensor has a Grove connector for easy connection to the BaseShield. Interacts via the I2C interface. The module is powered by 3.3 V or 5 V. Cable included.
Specifications:
- Supply voltage: 3.3V or 5V
- System: 2x 8-bit ATtiny1616
- Measurement accuracy: ± 5 mm
- Interface: I2C - uses two addresses simultaneously: 0x78 and 0x77
- Operating temperature: -40 °C to 105 °C
- Dimensions: 133 x 20 mm
- Weight: 9 g
