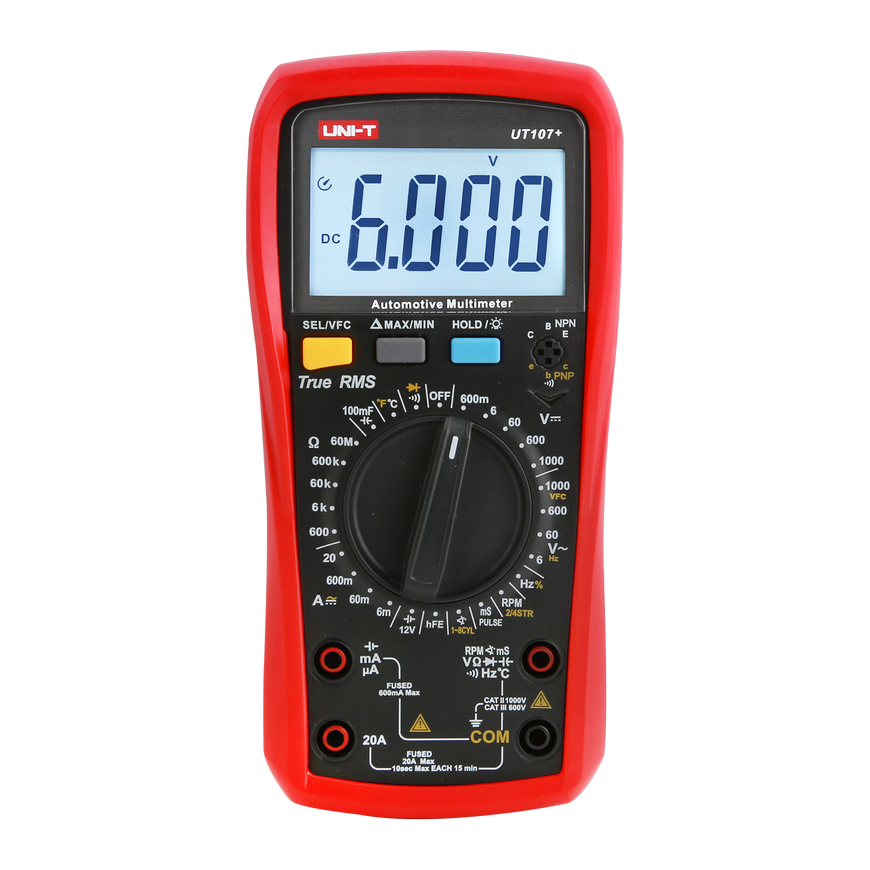

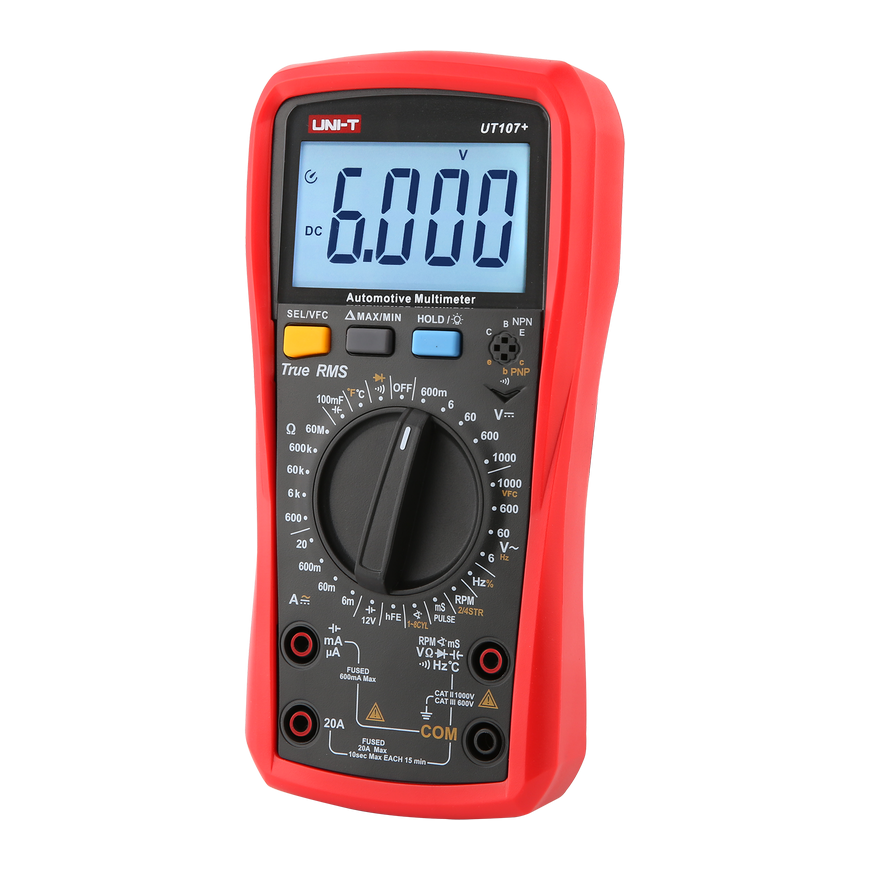

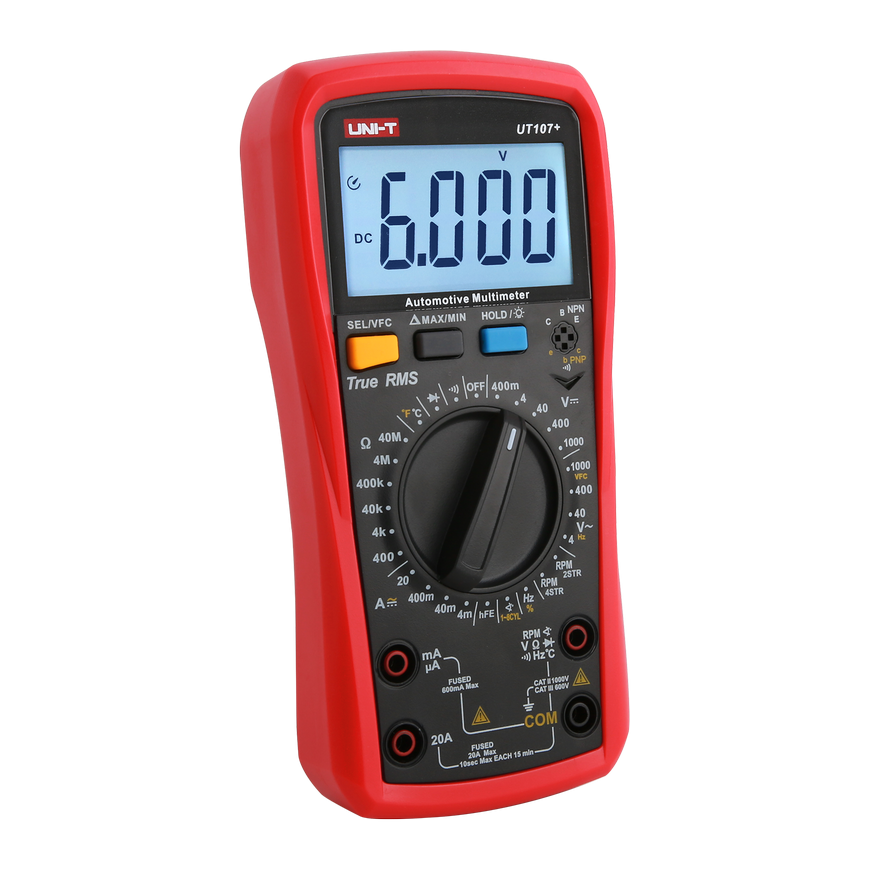

Uni-T UT107+ universal meter
39.00 €
Ikm. maksa no 1,90 €
3657205 MIE0466
5901890077989
Piegāde 6-10 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
-----------MEASUREMENT RANGES
-----------
DC voltage: 600mV/6V/60V/600V/1000V; ± (0.5% + 3)
AC voltage: 6V/60V/600V/1000V; ± (0.8%+3)
DC current: 6 mA/60mA/600mA/10A; ± (1% + 8)
AC: 6 mA/60 mA/600 mA/10 A; ± (0.8%+8)
Resistance: 600 ohms / 6 kOhm / 60 kOhm / 600 kOhm / 6 MOhm / 60 MOhm; ± (0.8%+3)
Frequency: 10Hz ~ 10MHz; ± (0.1% + 5)
Capacitance: 6 nF/60 nF/600 nF/6 uF/60 uF/600 uF/6 mF/60 mF/100 mF ; ± (3%+10)
Temperature: -40°C-1000°C; ± (1% + 8)
Diode test
Circuit continuity check
hFE measurement of transistors
Duty cycle measurement
12V battery test
------------
ADDITIONAL FEATURES
------------
High voltage warning
Manually changing measurement ranges
Maximum reading: 4000
Low battery indicator
Maximum/minimum/relative reading
Automatic shutdown
Freeze the last reading
------------
GENERAL FEATURES
------------

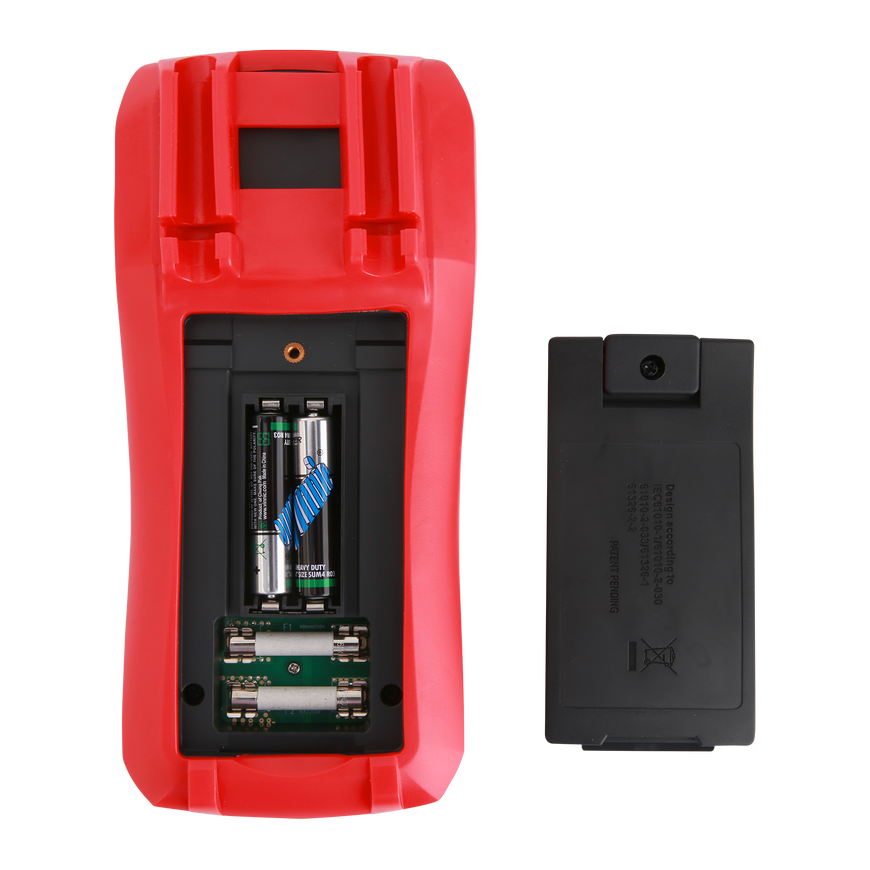

Power supply: 2 AA batteries (1.5V)
Product dimensions: 420 x 320 x 300 mm
Product weight: 348g
