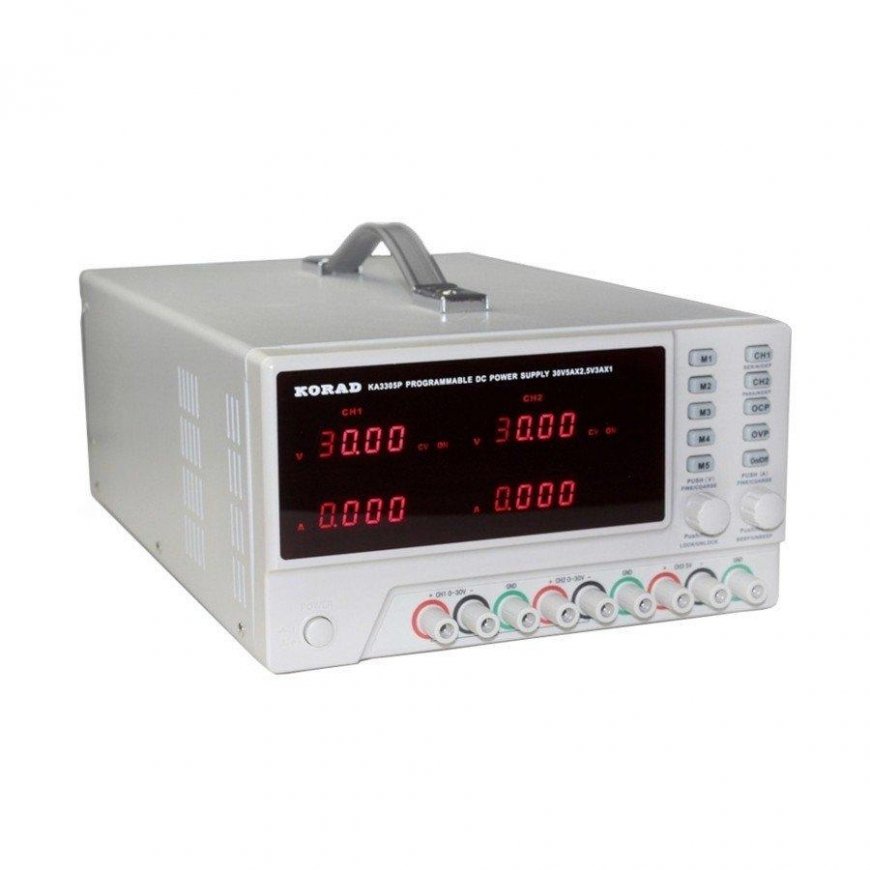

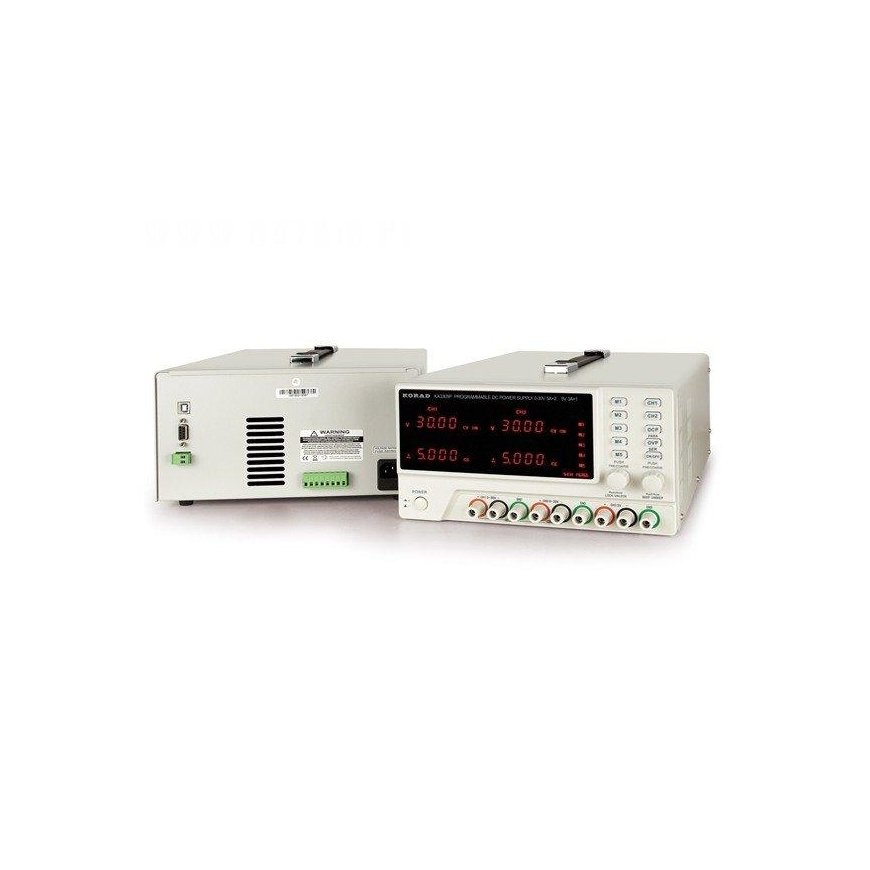

Triple laboratory power supply Korad KA3305P 2x30V/5A+5V/3A - connection to a computer
288.99 €
Ikm. maksa no 8,34 €
3653066 AN-16672
5904422344894
Piegāde 11-18 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
Triple-stabilized laboratory power supply with programmable memory. It allows smooth adjustment of voltage from 0 V to 30 V and current from 0 A to 5 A. KA3305P has a large LED display, which provides real-time information about current-voltage and load. The power supply can operate in constant output voltage (CV) and constant load current (CC) modes.Specifications:
- Manufacturer: Coradium
- Voltage range: 2x 0 V to 30 V
- Intensity range: 2x from 0 A to 5 A
- Independent channel: 5 V / 3 A
- Power: 300 W
- Load regulation:
- Voltage: ≤ 0.01% + 5mV
- Parameter setting accuracy:
- Voltages: 10 mV
- Intensity: 1 mA
- Output voltage ripple:
- Voltage: ≤ 2 mVrms
- Intensity: ≤ 3 mArms
- Reaction time:
- Voltage rise: ≤ 100 ms (rated load 10%)
- Voltage drop: ≤ 100 ms (rated load 10%)
- Channel 3:
- Voltage 5V
- Current 3 A
- Dimensions: 38 x 25 x 14 cm

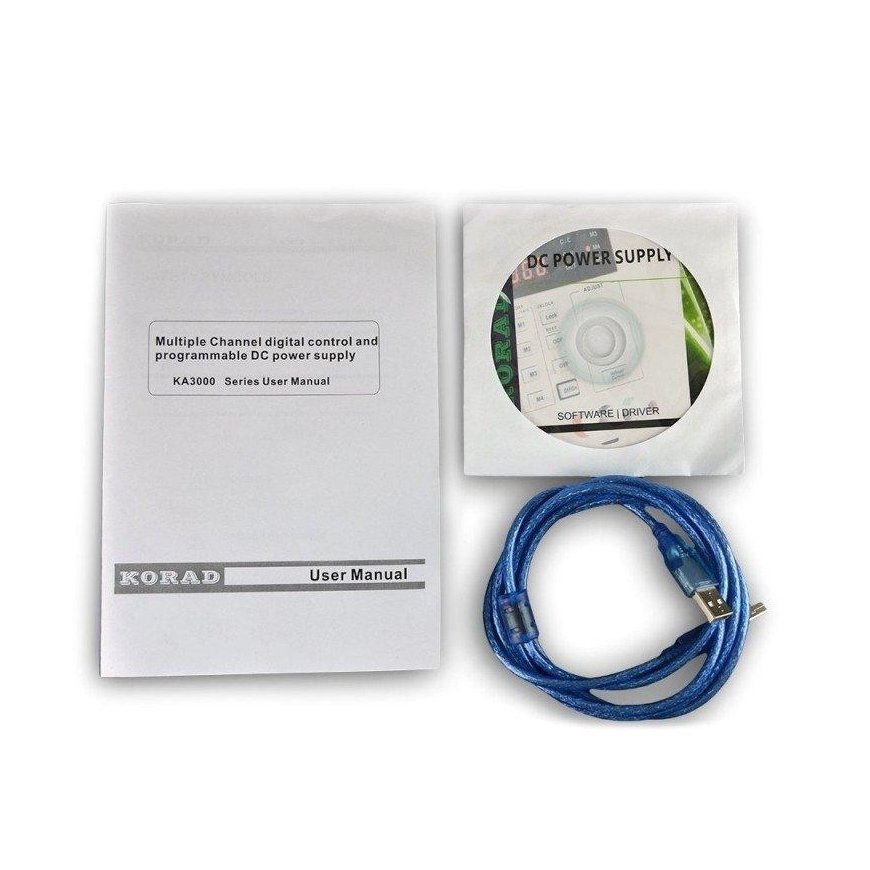

- Laboratory power supply Korad KA3305P
- Power cord
- 2x connecting cable (2 wires)
- USB cable
- Instructions for use
