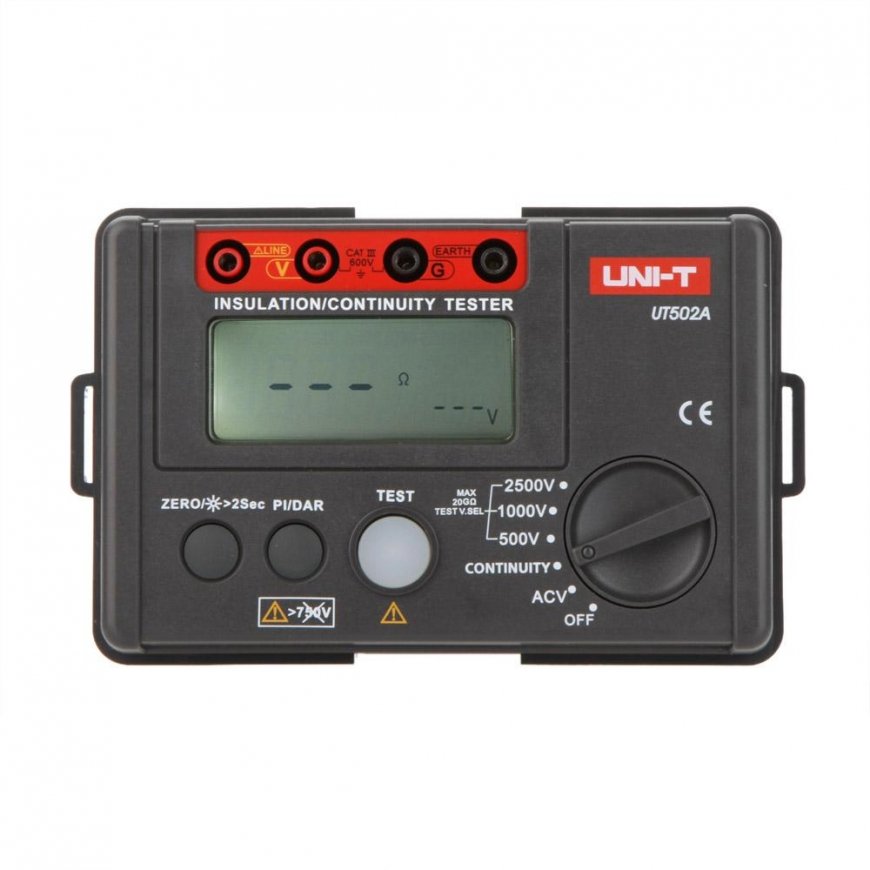

Insulation resistance meter CAT III CAT IV UT502A UNI-T
3649645 UT502A
5901436741329
Piegāde 10-16 d.d.
Viss par produktu
Insulation resistance 0.00MΩ～20.0GΩ; ±(3%+5)～; Test voltage 500V/1000V/2500V 0~20%; DC voltage 1000V ±(1%+3); AC voltage 750V ±(1.5%+3); Automatic range selection; Short circuit current <2mA; data recording; "Sleep mode"; Polarization index; Dielectric strength; Screen illumination; etc. Included is a case, batteries.
Rated current: 1 mA
Output short-circuit current: <2 mA
Low resistance measurement: 0-200 ohms
AC voltage measurement: 30-750 V ± (2% + 3)
Dielectric absorption measurement
Polarization indexing
Automatic measurement
Low battery indicator
High voltage warning
LCD display with backlight
Call
Power supply: 6x 1.5V batteries
Screen size: 70.6 x 34 mm
Product dimensions: 150 x 100 x 71 mm
Product weight: 500g
