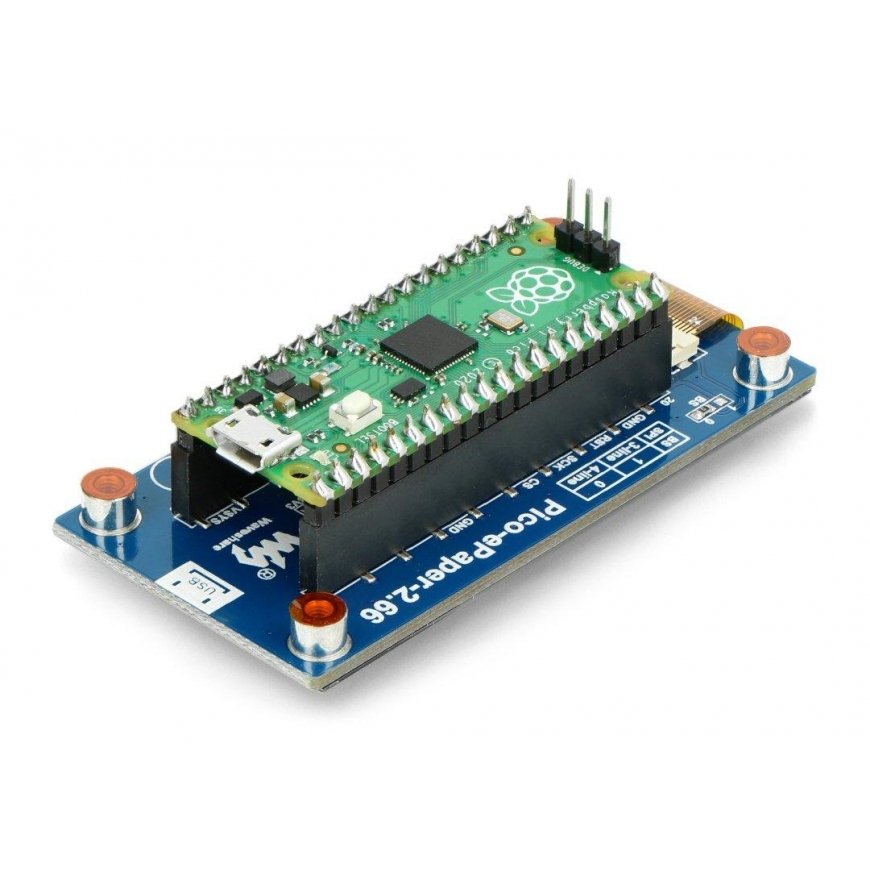

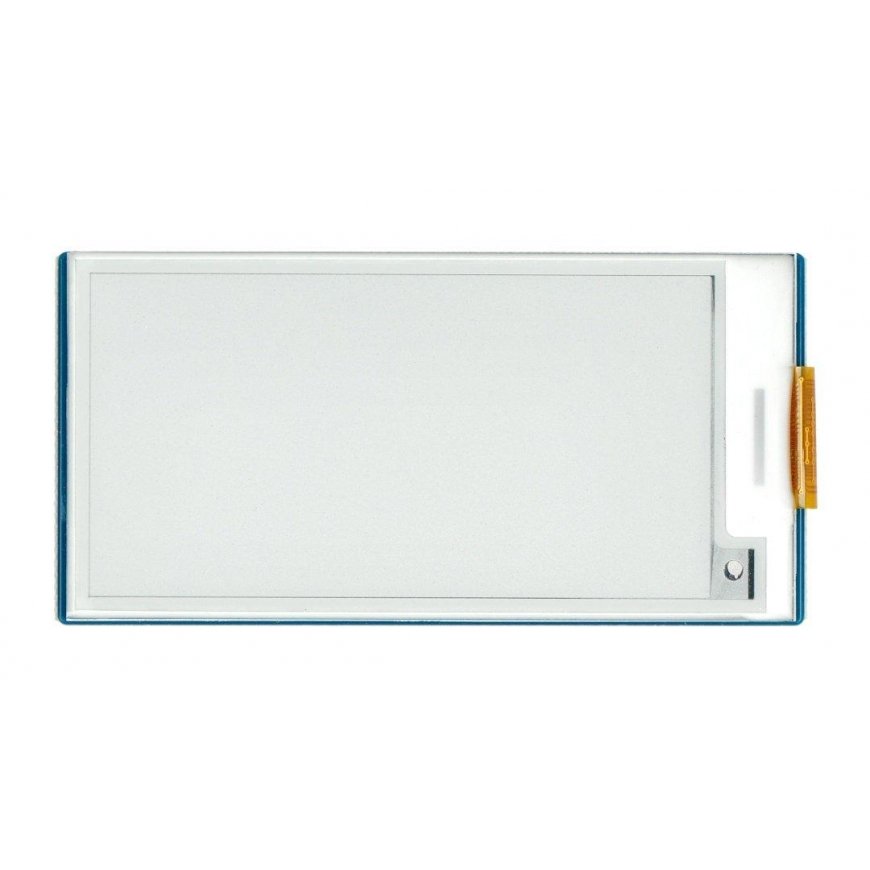

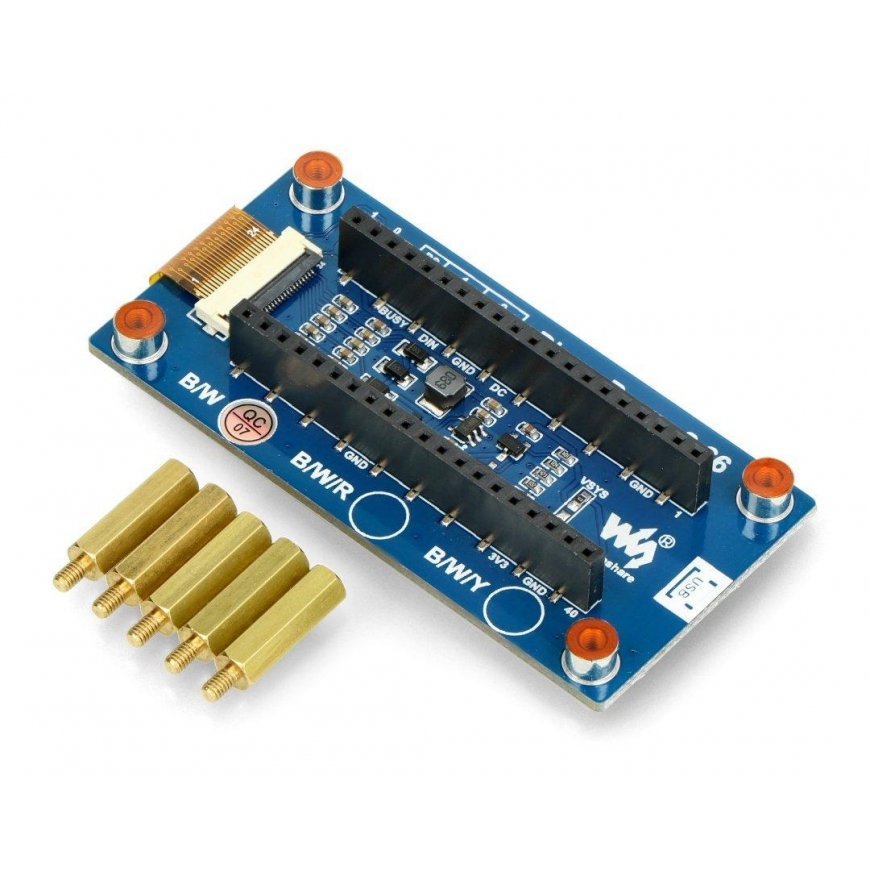

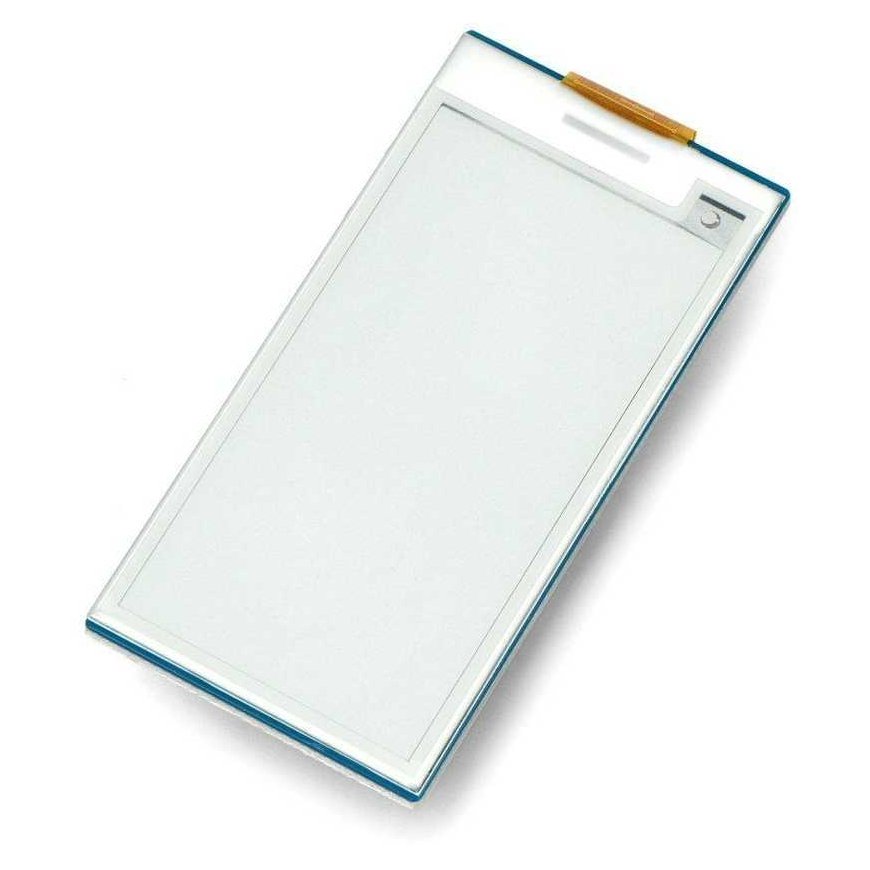

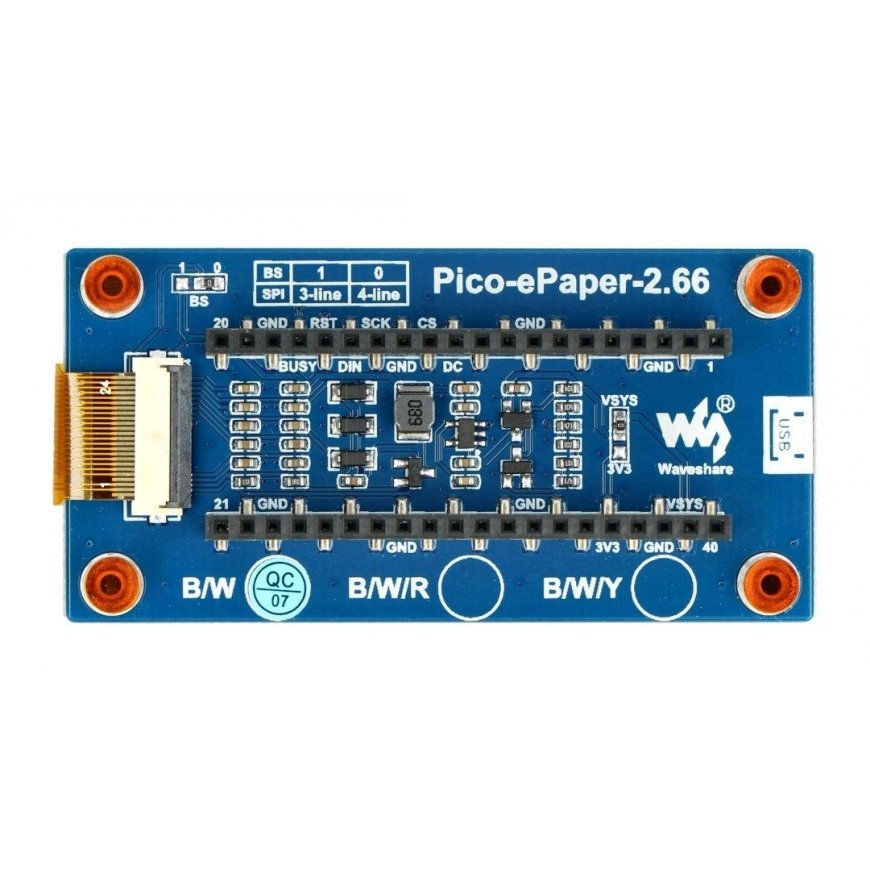

E-Paper E-Ink display 2.66'' 296x152px - SPI - 2 colors - Raspberry Pi Pico - Waveshare 20052
31.50 €
3640331 AN-20111
5904422352622
Piegāde 11-18 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
2.66” e-paper display, created for Raspberry Pi Pico. Its resolution is 296x152px. The display presents images and texts in two colors: black and white. It uses the SPI bus to interface with the Raspberry Pi. The Waveshare display is made using E-Ink technology, which imitates a traditional sheet of paper. This type of display is used for reading e-books or e-magazines. The display does not emit blue light and is passively reflective.Specifications:
- For Raspberry Pi Pico
- Type: e-paper display
- Technology: E-Ink
- Interface: SPI (3-wire or 4-wire)
- Screen size: 2.66”
- Screen resolution: 296x152px
- Pixel size: 0.203 x 0.202 mm
- Screen colors: black, white
- Viewing angle: > 170°
- Grayscale: 2
- Total refresh time: 5s
- Power consumption during update: 42.4 mW
- Standby power consumption: < 0.01 uA
- Supply voltage: 3.3V
- Programming language: C / C++ / MicroPython
- Screen dimensions: 60.088 x 30.704 mm
- Module dimensions: 74 x 37.5 mm
