Gravity - BeiDou GNSS GPS receiver module - I2C/UART - DFRobot TEL0157
39.00 €
Ikm. maksa no 1,90 €
3640310 AN-22671
6959420923199
Piegāde 11-18 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
GNSS GPS BeiDou receiver module with Gravity connector, made by DFRobot. The GNSS positioning module supports single and multi-system positioning. Works with BeiDou, GPS, GLONASS and other multi-satellite systems. It has higher accuracy and faster speed than the traditional single GPS positioning method. It provides highly accurate positioning data such as longitude, latitude, altitude and current time, even in complex urban environments. The module is compatible with Arduino, ESP32 and Raspberry Pi. Specifications:
- Operating voltage: 3.3 V to 5.5 V DC
- Output signal: I2C/UART
- Positioning accuracy: 2.0 m CEP
- Response time: 30s for cold start; 2s for hot start
- Current consumption: 40 mA
- Antenna interface: IPEX1
- Antenna frequency: 1561 MHz to 1575.42 MHz ± 3 MHz
- Plate dimensions: 27 x 37 mm

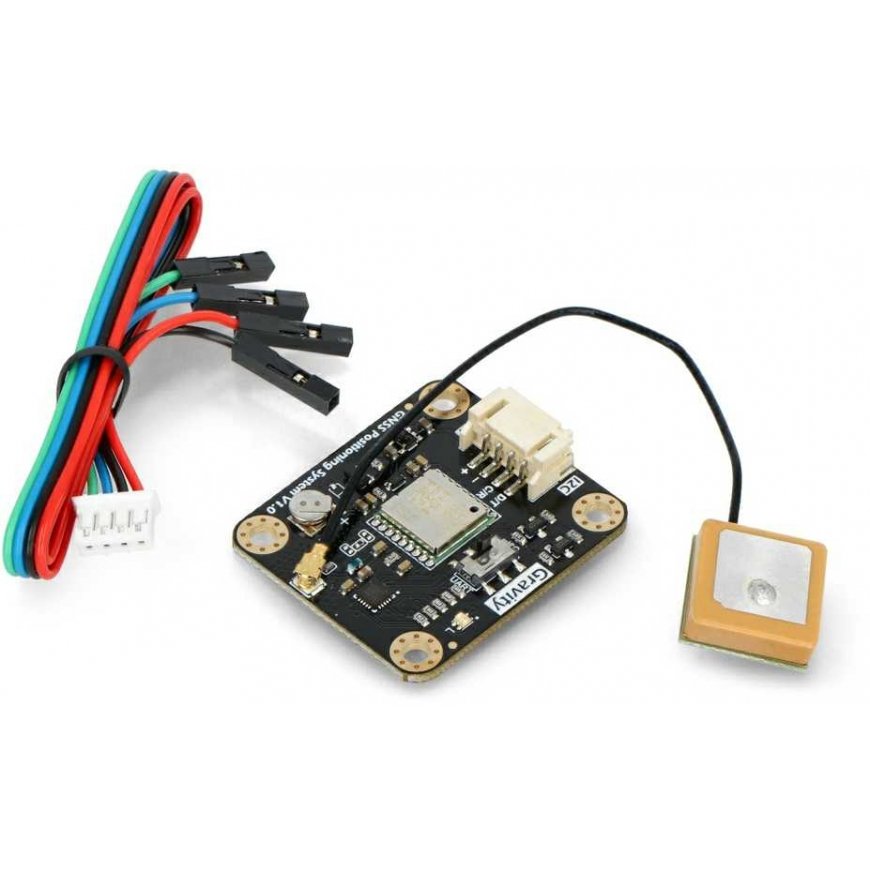

Included:
- GNSS positioning module
- Active GPS/BeiDou ceramic antenna with IPEX1 connector
- Connecting cable with Gravity connector
