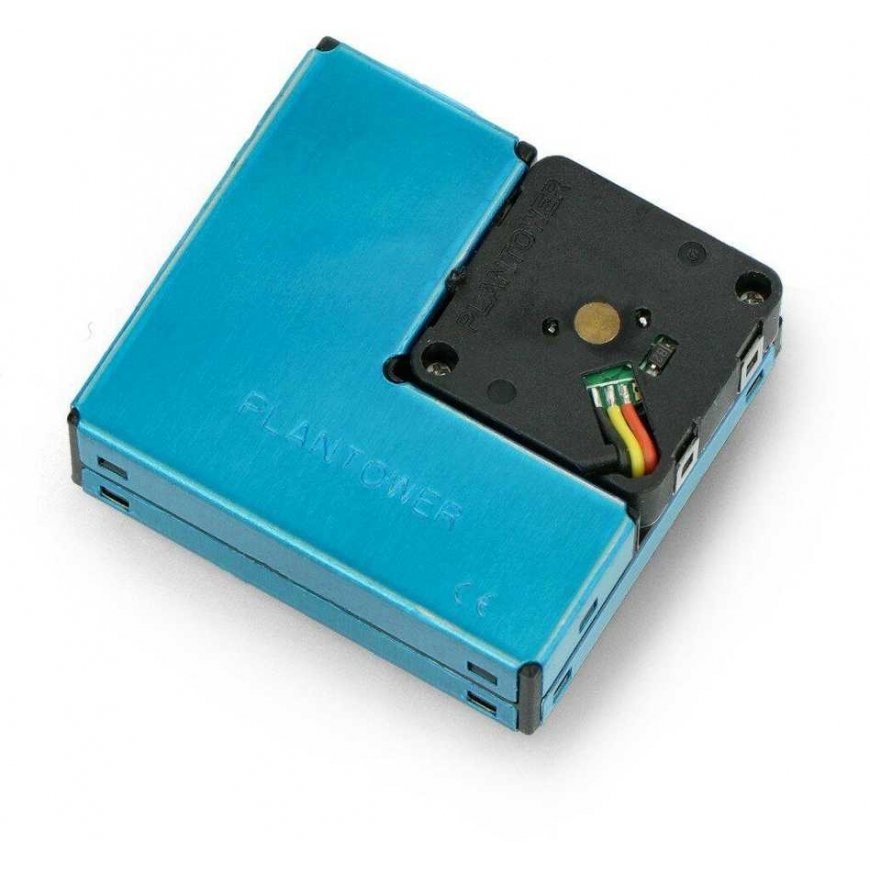

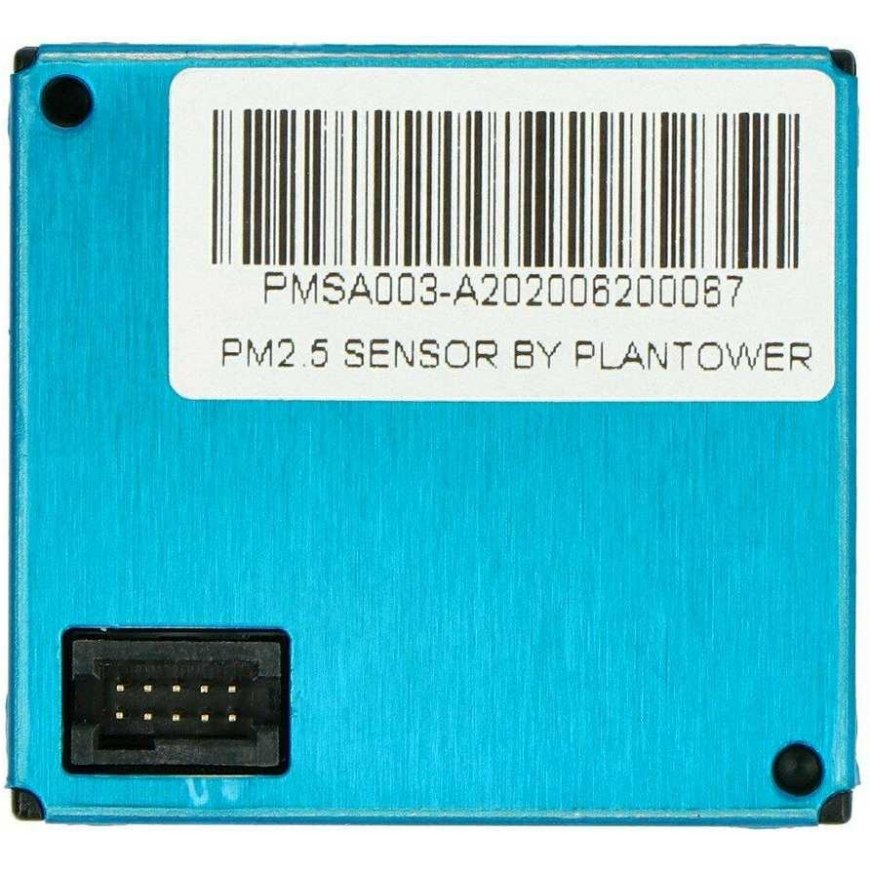

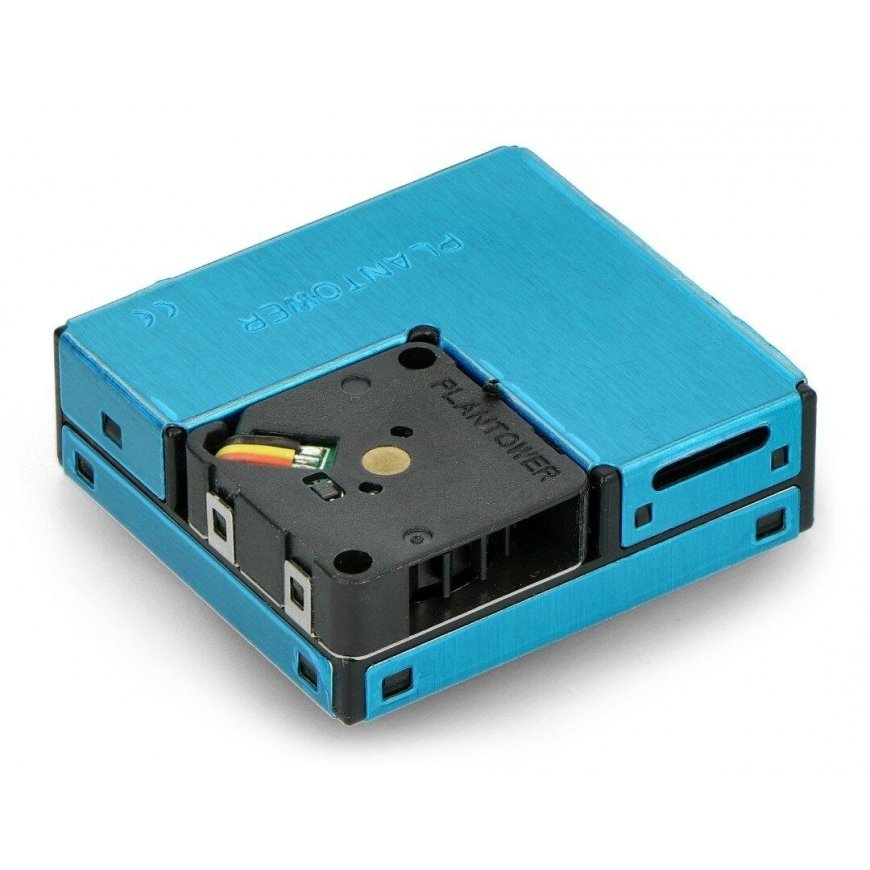

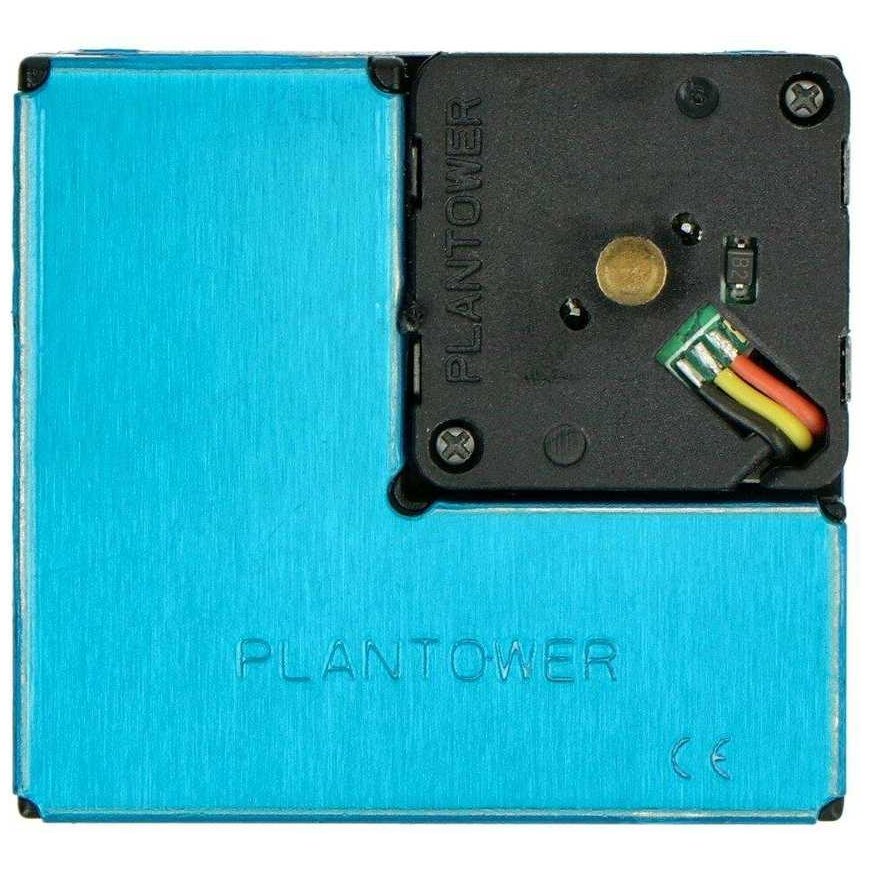

Dust/air quality sensor PM1.0/PM2.5/PM10 - 5V UART - PlanTower PMSA003-A
49.00 €
Ikm. maksa no 2,16 €
3640306 AN-17769
5904422366643
Piegāde 11-18 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
Dust sensor module that allows you to measure the degree of air purity. Enables accurate analysis of environmental pollution and measures the concentration of PM1.0 / PM2.5 / PM10 particles. During measurement, it detects particles with a diameter of 0.3 μm. The supply voltage of the PMSA003 sensor is 5 V. The communication between the sensor and the microcontroller is via the UART interface.Specifications:
- Manufacturer: PlanTower
- Supply voltage: 3.3V to 5V
- Current consumption: up to 100 mA
- Interface: UART
- Measuring range:
- from 0.3 µm to 1.0 µm
- from 1.0 µm to 2.5 µm
- from 2.5 µm to 10 µm
- Sensitivity:
- 50% 0.3μm
- 98% for 0.5 μm and larger
- Operating temperature: -5 °C to 60 °C
- Response time: less than 10 seconds
- Data interface level: 3.3 V
- Connector: 10 pins 1.25 mm
- Silver color
- Dimensions: 38 x 35 x 12 mm
- Weight: 20.7g
