Servo DFRobot SER0049, micro, 9g 180 degrees
3638741 AN-19205
5904422361686
Piegāde 11-18 d.d.
Viss par produktu
The DFRobot micro servo is made by DFRobot, with a total weight of only 9g, but with high strength and speed. It is characterized by high torque, stable operation, accurate working angle and easy installation. The working voltage ranges from 4.8 to 6V. When using 6V power supply, the servo torque is 1.2kg/cm. There are no limit switches in the center of the mechanism, so it can be smoothly rotated 360° by hand. Meanwhile, the servo can operate smoothly with minimal power and can be powered by a regular battery or USB. In addition, users can directly control the servo control using the Arduino IDE servo libraries, allowing a maximum rotation angle of 180° with a pulse range of 500-2,500μs.
Specifications:
- Operating voltage: 4.8 V to 6 V DC
- Rated current consumption: up to 8 mA at 6.0 V
- Current consumption without load:
- ≤50 mA at 4.8 V
- ≤60 mA at 6.0 V
- Current consumption when the shaft is stopped:
- ≤550 mA at 4.8 V
- ≤650 mA at 6.0 V
- Nominal torque:
- ≥0.32 kg/cm at 4.8 V
- ≤0.4 kg/cm at 6.0 V
- Torque at stopped shaft
- ≥1.0 kg/cm at 4.8 V
- ≤1.2 kg/cm at 6.0 V
- Operating angle: 180° ± 10°
- Communication mode: PWM
- Pulse width range: 500 μs to 2500 μs
- Dimensions: 32.5 x 12 x 27.3 mm

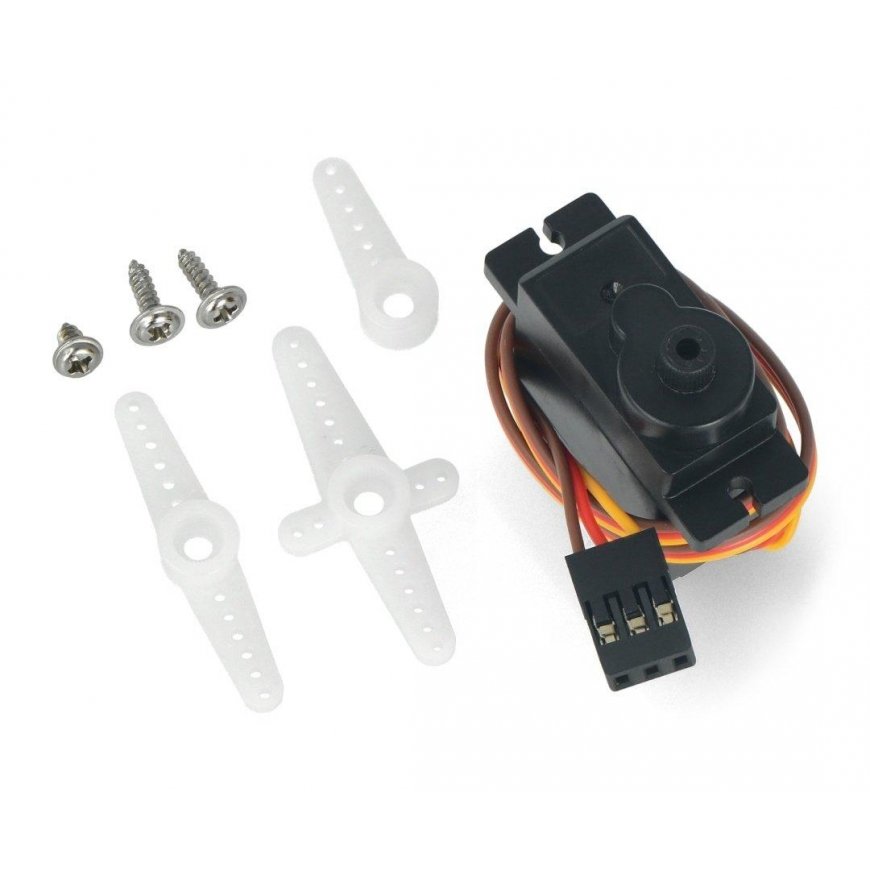

Included:
- 9g 180° servo x1
- Servo board and accessories x1 (screw and bit set)
