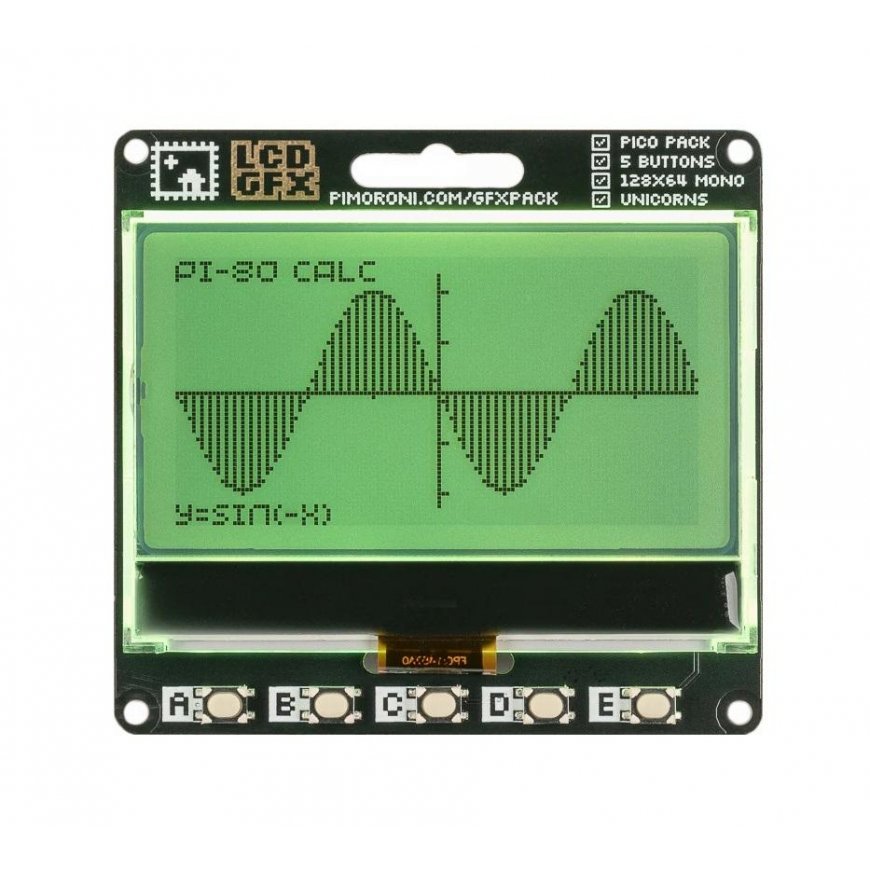

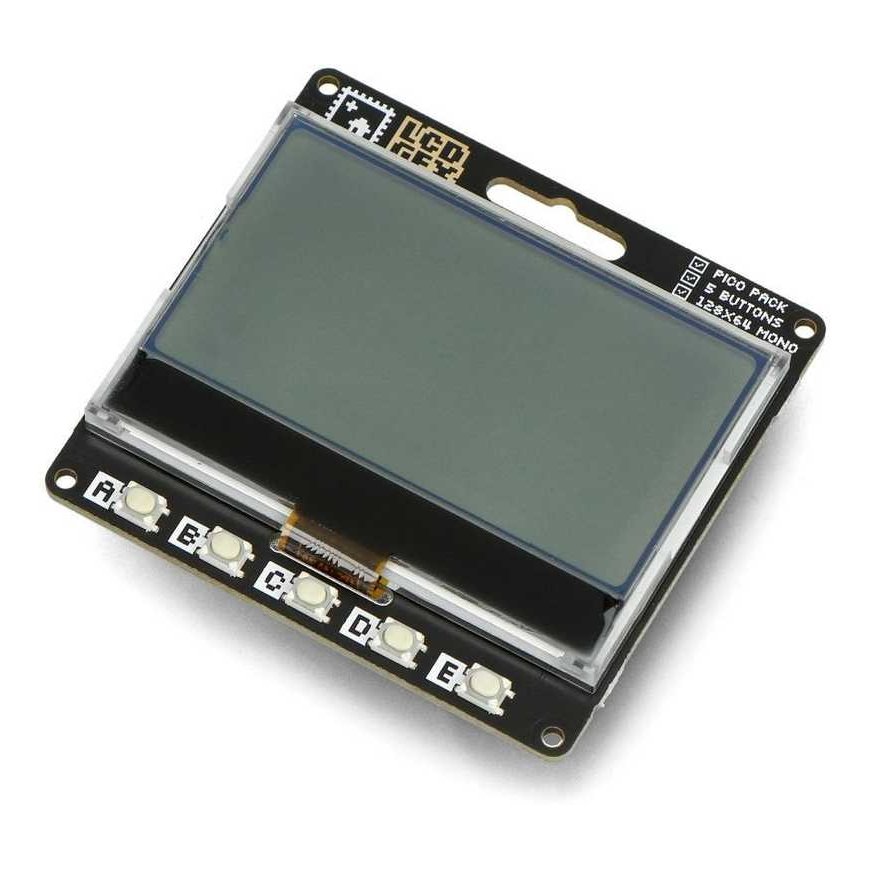

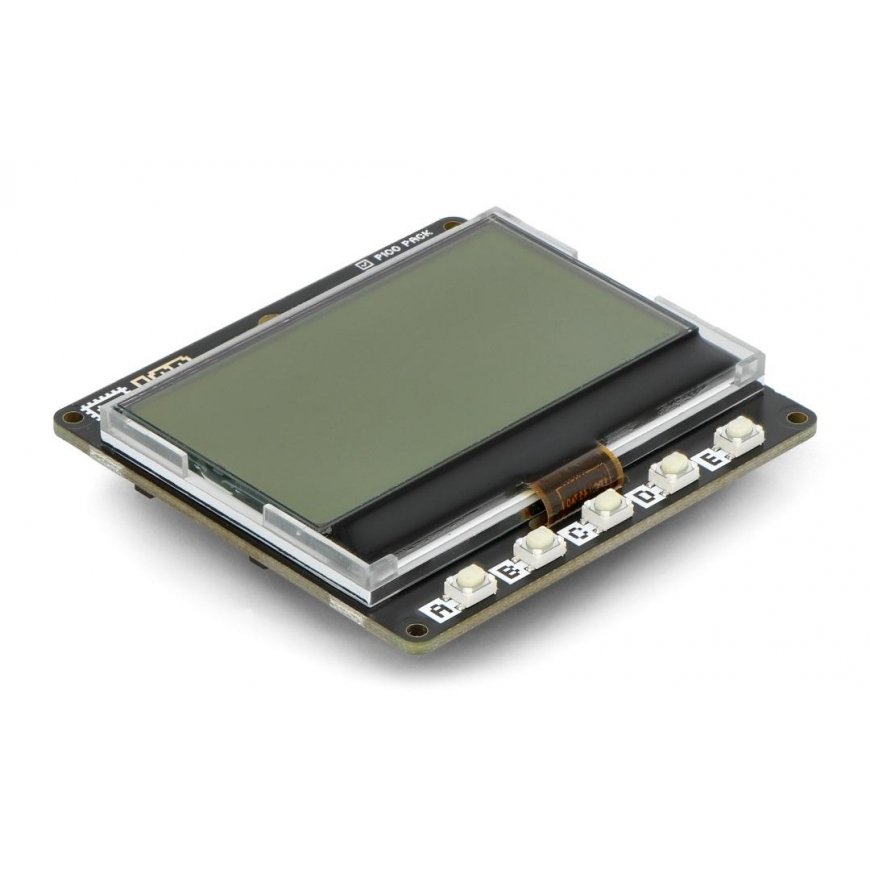

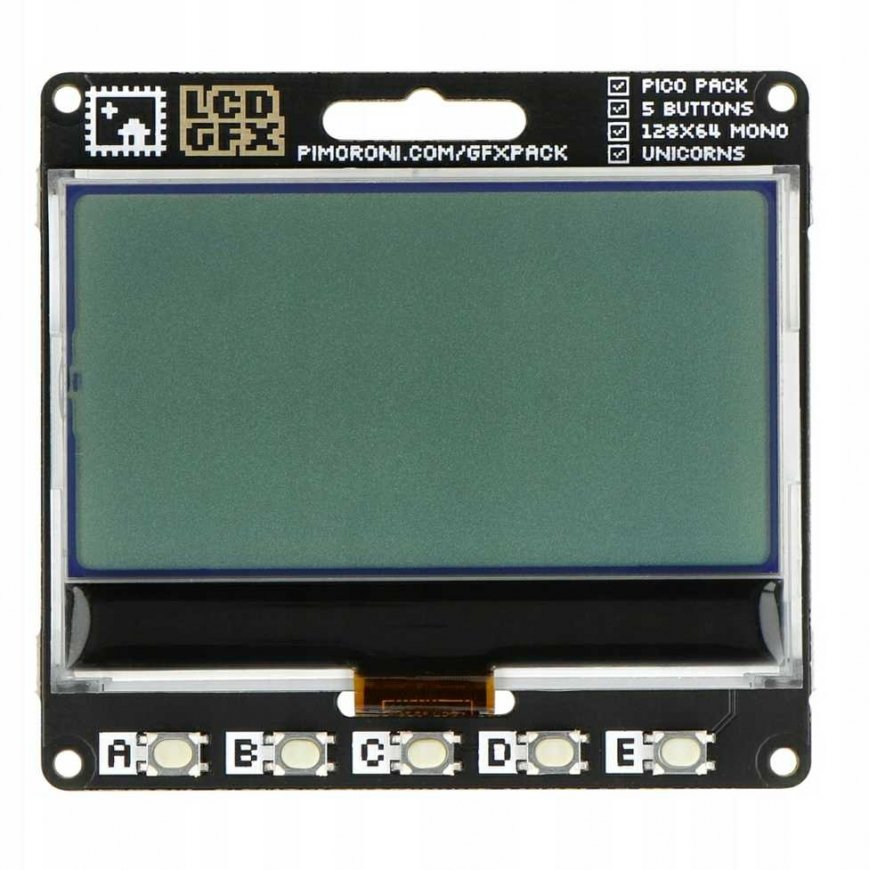

Pico GFX Pack - Monochromatic LCD Display - RGBW Illumination - for Raspberry Pi Pico - PiMoroni PIM656
39.00 €
Ikm. maksa no 1,90 €
3634786 PIM-22595
0769894022993
Piegāde 11-18 d.d.
Šī prece Jūs ieinteresēja
Viss par produktu
The Pico GFX Pack is another PiMoroni offering that expands the functionality of the Raspberry Pi Pico with additional capabilities. This time, the manufacturer has prepared a retro-style monochrome LCD display, which is illuminated by RGBW diodes. The screen resolution is 128x64px, and its diagonal is 2.15". In addition, the panel also has buttons marked with the letters A, B, C, D and E, and a reset button. In addition, the Pico GFX Pack has a Qwiic / STEMMA QT connector, so additional peripherals can be connected to it. Main features:
- Compatible with Raspberry Pi Pico and Pi Pico W
- Maintained in a retro atmosphere
- Equipped with RGBW LEDs that illuminate the board in any color in this range
- Allows you to display text and graphics that can be created using the PicoGraphics library

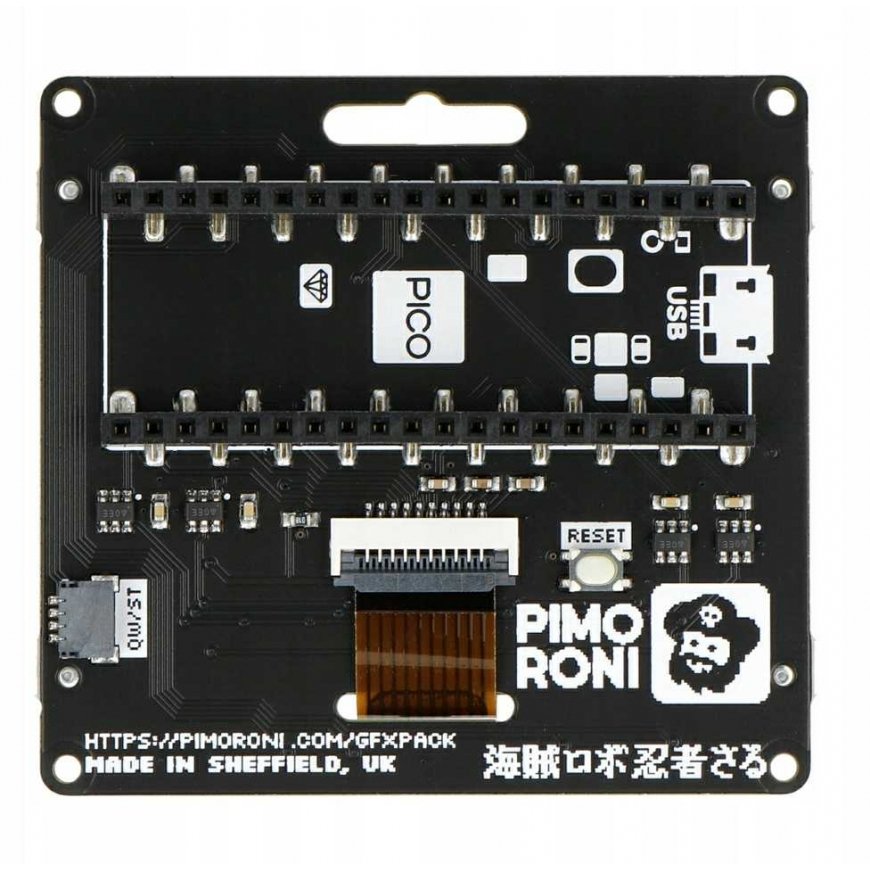

- No soldering is required as the board has a Raspberry Pi socket on the back
Specifications:
- Display type: monochrome LCD display
- Screen diagonal: 2.15"
- Resolution: 128x64px
- Display lighting: RGBW LEDs
- User buttons: 5
- Button labels: A, B, C, D, and E
- Additional button: reset
- Pins: Qwiic/STEMMA QT connector, Raspberry Pi Pico socket
- Board dimensions: 60.8 x 56.8 x 12.2 mm
