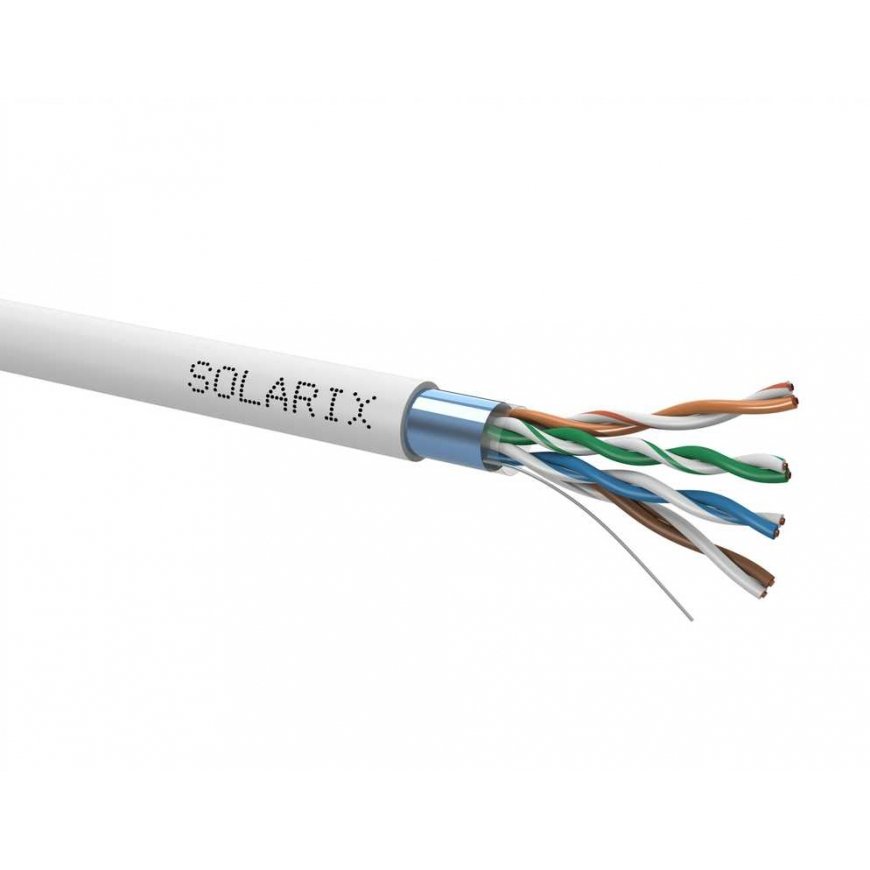

This installation cable (wire cable) is a reliable part of the Solarix product line - CAT5E. Together with other components of the Solarix structured cabling system, it creates a solution that guarantees long service life, maximum performance and trouble-free operation of computer and telecommunications networks. Solarix - CAT5E installation cable is designed for horizontal distribution and easily meets the requirements defined in the international standards TIA/EIA 568, EN 50173 and ISO 11801 for CAT5E, making it suitable for the most demanding structured cabling protocols (e.g. Gigabit Ethernet). The cables are marked with a 1 m gauge. CAT5E Highest supported protocol [?] : 1000BaseT Highest theoretical speed that can be achieved by the cable Shielding: foil around all 4 pairs Bandwidth [?] : 100 MHz Available bandwidth Conductor [?] : 0.51 mm AWG 24 copper wire Conductor type and diameter Insulation [?] : polyethylene 0.9 mm Insulation type and diameter Sheath [?] : PVC Sheath type Color: gray Cable diameter: 5.9 mm Weight: 36 kg/km NVP [?] : 68 % Nominal propagation speed - signal speed in the cable and the ratio of the speed of light % Propagation delay [?] : 535 ns/100mSignal delay per pairDelay offset [?] : 20 ns/100mSignal delay difference between the fastest and slowest pairStorage temperature: -20°C to 60°COperating temperature: -20°C to 60°CInstallation temperature: from 0°C to 50°C
